Notice

This manual provides general information, preparation for

use, installation and operating instructions for the Black Lion

Audio Bluey 500.

The information contained in this manual is subject to

change without notice. Black Lion Audio makes no warran-

ties of any kind with regard to this manual, including, but not

limited to, the implied warranties of merchantability and t-

ness for a particular purpose. Black Lion Audio shall not be

liable for errors contained herein or direct, indirect, special,

incidental, or consequential damages in connection with the

furnishing, performance, or use of this material.

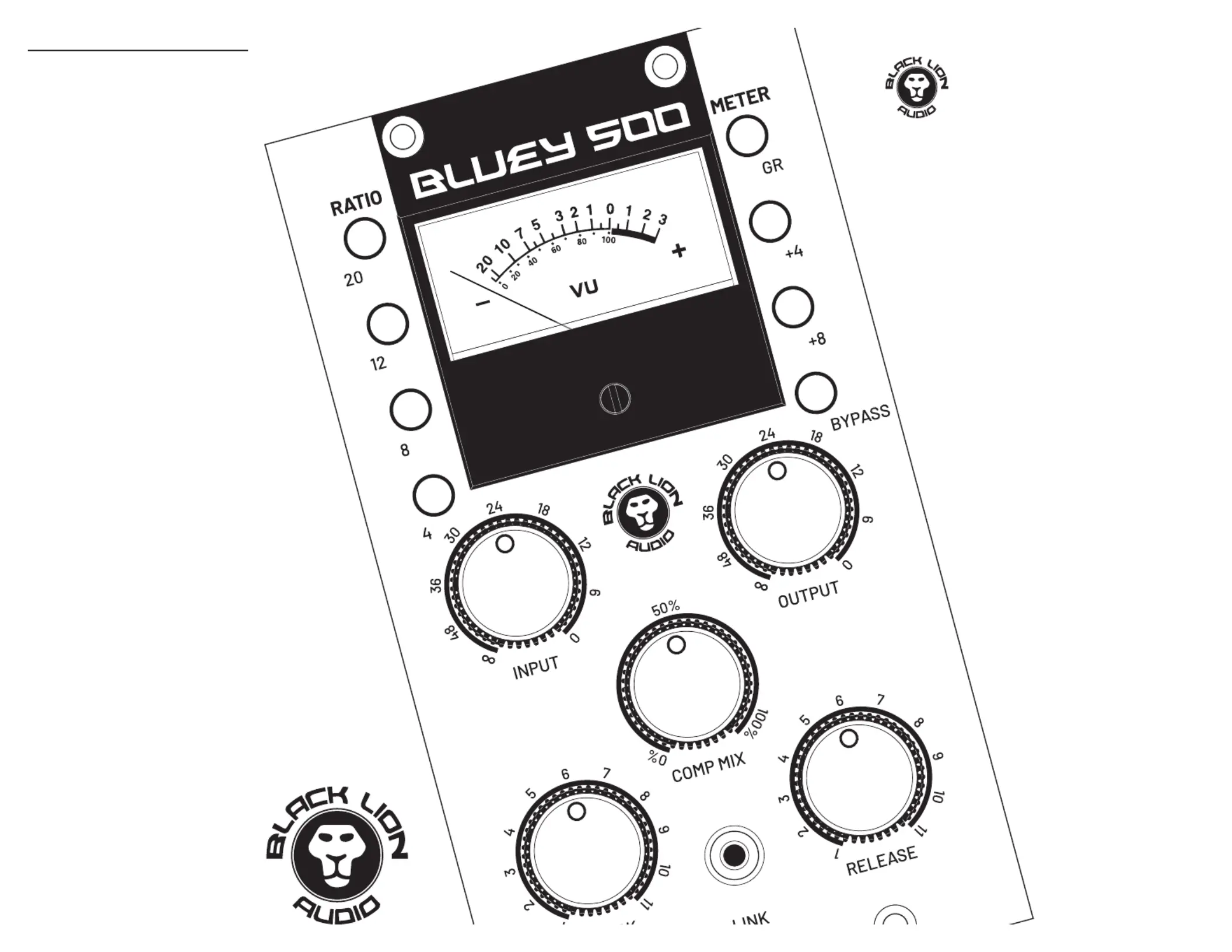

Bluey 500

500-Series Modied “Blue Stripe”

FET Limiter / Compressor

Owner’s

Manual

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus that produce heat.

9. Use only attachments/accessories specied by the manufacturer

10. Use only with a cart, stand, tripod, bracket or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid in-

jury from tip-over.

11. Unplug this apparatus during lightning storms or when unused for

long periods of time.

12. Refer all servicing to qualied service personnel. Servicing is re-

quired when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been ex-

posed to rain or moisture, does not operate normally, or has been

dropped.

13. This apparatus shall not be exposed to dripping or splashing, and

no object lled with liquids, such as vases, shall be placed on the

apparatus.

14. Any changes or modications not expressly approved in this manu-

al could void your authority to operate this apparatus.

COMPLIANCE

The Black Lion Audio Bluey 500 complies with all applicable

CE / RoHS / WEEE European Union directives.

Do not attempt to service this unit yourself, as it will void your warran-

ty. Please check your unit carefully upon receipt and return to place

of purchase immediately if there are any problems with the product.

After that, the standard Black Lion Audio 3 YEAR warranty will apply

to defects in materials and workmanship.

U.S.A.

Should your Black Lion Audio product require service,

please contact us on our customer service site:

https://www.blacklionaudio.com/contact. You must obtain an RA #

(Return Authorization number) from us before shipping a unit back to

us. This RA # must be clearly written on the outside of the box.

Please safely pack the units…It is best to use the original packing

materials. Black Lion Audio cannot be responsible for any damag-

es incurred in shipping to us due to poor packaging. PLEASE PACK

CAREFULLY and FULLY INSURE THE SHIPMENT.

INTERNATIONAL

For service or warranty assistance, please contact the Black Lion Au-

dio distributor in your country through the dealer from whom you pur-

chased this product.

LIMITED 3 YEAR WARRANTY

Black Lion Audio’s Bluey 500 is warranted by Black Lion Audio to be free

from defects in materials and workmanship for the period of THREE (3)

YEARS to the original purchaser. In the event of such defects, the prod-

uct will be repaired without charge or, at our option, replaced with a new

one if delivered to Black Lion Audio prepaid, together with a copy of the

sales slip or other proof of purchase date. The warranty excludes prob-

lems due to normal wear, abuse, shipping damage or failure to use the

product in accordance with the specications.

All parts and labor are covered under this Limited Warranty. However,

if it is determined by Black Lion Audio that the device was damaged or

made defective through abuse, we reserve the right to charge the cus-

tomer for the cost of the repair.

Black Lion Audio shall not be liable for damages based upon inconve-

nience, loss of use of the product, loss of time, interrupted operation or

commercial loss or any other damages, whether incidental, consequen-

tial or otherwise. This warranty gives you specic legal rights, and you

may have other rights, which will vary from state to state.

This warranty is not transferable.

QUICK START GUIDE

INSTALLATION

1. Mute your studio monitors.

2. Power OFF the chassis.

3. Inspect Bluey 500 and make sure nothing is surrounding the card

edge connector.

4. Carefully slide Bluey 500 into an empty slot in your power chassis.

5. Make sure the module connectors sits well into the mating Edac

chassis connector.

6. Secure the Bluey 500 to the chassis using the four front-mounted

screws.

7. Power ON the power chassis.

INITIAL SETUP:

Using balanced XLR cables, connect the Bluey 500’s inputs and outputs

from your 500-series chassis to your mixing bus or patch bay. If you are

using two Bluey 500s in parallel (or stereo), connect the two units using

an RCA cable between the front-mounted RCA jacks. Set all controls to

full counter-clockwise position, and all pushbuttons deselected or in the

off position. Set the Bypass button to the on position, and apply power.

Unmute the monitors, and verify that signal is passing to and

from the unit. Set the INPUT, OUTPUT, ATTACK and RELEASE

controls to about 12 o’clock, set COMP MIX to full clockwise, select

RATIO 4, and press the Bypass button. Increase the INPUT until

the meter is deecting a few dB. Again, verify signal is passing

through the unit. Done!

NOTES

The Attack control

The Attack control on the Bluey 500 works a little differently

than you may have encountered on other ‘76-style compressors.

Turning the Attack knob to the left (counter-clockwise) will yield

faster attack times; slower times result when turning to the right

(clockwise). We’ve found this control scheme to be more intuitive;

akin to a volume knob decreasing level to the left and increasing

to the right.

•Attack: Continuously variable 20uS to 800uS

•Release: Continuously variable 1200mS to 50mS

Bluey’ 500s buffering:

Bluey 500 features additional input and output buffering circuit-

ry not found on most other compressors; as such you may nd

the input to run a little hotter than you might initially expect. This

extra gain is useful for directly inserting Bluey in a console insert

point. Additionally, it serves to model the manner in which the

original Bluey was used as a console insert while also ensuring

stable level balance when adjusting the Comp Mix control.

Stereo linking

When running a pair of Bluey 500s via a stereo link, start by setting

both units to matched settings, as the detector circuits are the linked

elements - not the controls. Note that due to design limitations of the

‘76-style compressors, no two units will ever be 100% matched without

an external battery-powered balancing box. If you don’t have a balancing

box, you may need to make slight alterations to the Input and Output

controls to create perfect stereo matching.

All-buttons mode

By pressing in all four ratio buttons you activate what is referred to as “all

buttons” mode. This “secret” mode changes the ratio to roughly 20:1. It

also changes the bias of the circuit and the way that the controls inter-

act with each other. The unit will become much more aggressive with

its reaction knee becoming more like a plateau than a gentle curve and

will have a more aggressive, dirty tone that sounds incredible on aggres-

sive drums. The attack will become very punchy with a gooey “sucking”

sound on the release.

SPECIFICATIONS

Attack Continuously variable 800uS to 20uS

Release Continuously variable 1200mS to 50mS

Ratio Pushbutton selected 4:1, 8:1, 12:1, 20:1 and any

combination

Voltage ± 16v

Dimensions Width:76 mm (3”)

Height: 178 mm (5.25”)

Depth: 229 mm (9”)

Weight 1.47 kg (3.25 lbs)

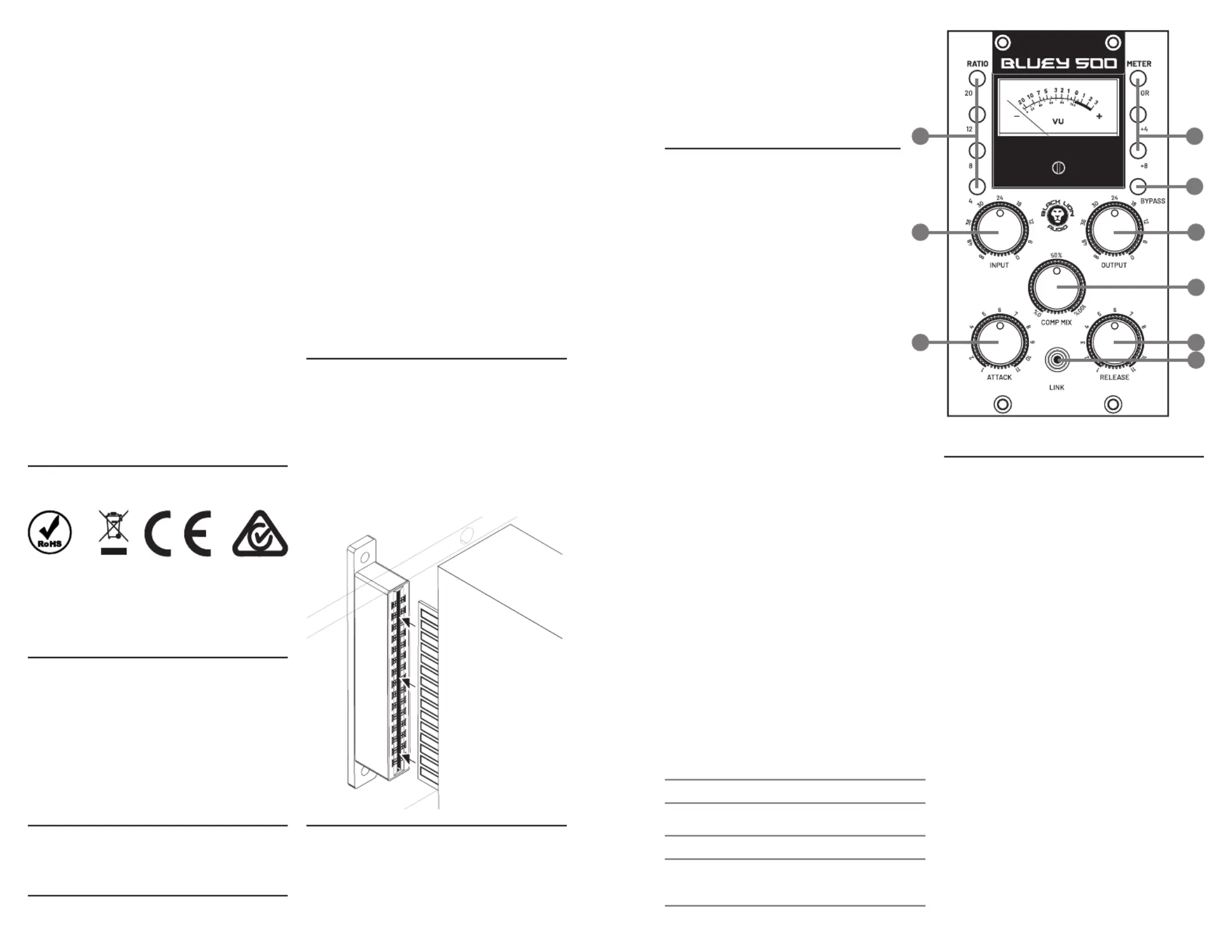

CONTROLS

1. Input: Sets the threshold and controls the level at which the com-

pressor starts compressing

2. Output: Applies makeup gain to compressed signal to compensate

for signal lost during compression

3. Attack: Controls the amount of time it takes for the unit to react to

an incoming signal

4. Release: Controls the speed at which the compressor releases the

compressed signal

5. Comp Mix: Allows the user to blend the dry uncompressed signal

with the wet compressed signal to allow more natural sounding

compression

6. Ratio: Controls the amount of compression applied (Yes, it does all-

buttons-in-mode)

7. Meter Mode: Selector switches GR meters the amount of gain re-

duction applied (+4 meters output level at 0 with +4dB output; +8

meters output level at 0 with +8dB output)

8. RCA Stereo Link: Use standard 2-conductor RCA cable for stereo

linking.

9. Bypass: Bypasses the compression circuit.

Note: For proper performance, balanced XLR must be used for all in-

puts and outputs.
