Revolution 14x16

14-in / 16-out USB audio interface / word clock

Quick Start Guide

SOFTWARE REGISTRATION CODE

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other.

A grounding-type plug has two blades and a third grounding prong.

The wide blade or third prong is provided for your safety. If the pro-

vided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particular-

ly at plugs, convenience receptacles, and the point where they exit

from the apparatus. If the power cord becomes frayed, stop using

immediately.

11. Use only attachments/accessories specied by the manufacturer

12. Use only with a cart, stand, tripod, bracket or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid in-

jury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is re-

quired when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been ex-

posed to rain or moisture, does not operate normally, or has been

dropped.

15. This apparatus shall not be exposed to dripping or splashing, and

no object lled with liquids, such as vases, shall be placed on the

apparatus.

16. Note that this apparatus is not completely disconnected from the

AC mains service when the power switch is in the OFF position.

17. The mains plug or power inlet on the product is used as the discon-

nect device, so the disconnected device shall remain readily opera-

ble when reconnected.

18. Any changes or modications not expressly approved in this manu-

al could void your authority to operate this apparatus.

19. Only use power supplies and accessories provided with the product

or approved by the manufacturer.

The lightning ash with an arrow-

head symbol within an equilateral

triangle is intended to alert the

user to the presence of uninsu-

lated “dangerous voltage” within

the product’s enclosure that may

be of sucient magnitude to

constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

The Black Lion Audio Revolution 14x16 complies with all applicable

RoHS / WEEE European Union directives.

Do not attempt to service this unit yourself, as it will void your warran-

ty. Please check your unit carefully upon receipt and return to place

of purchase immediately if there are any problems with the product.

After that, the standard Black Lion Audio 3 YEAR warranty will apply

to defects in materials and workmanship.

U.S.A.

Should your Black Lion Audio product require service,

please contact the Black Lion Audio Service Department:

https://www.blacklionaudio.com/contact. You must obtain an RA #

(Return Authorization number) from us before shipping a unit back to

us. This RA # must be clearly written on the outside of the box.

Please safely pack the units…It is best to use the original packing

materials. Black Lion Audio cannot be responsible for any damag-

es incurred in shipping to us due to poor packaging. PLEASE PACK

CAREFULLY and FULLY INSURE THE SHIPMENT.

INTERNATIONAL

For service or warranty assistance, please contact the Black Lion Au-

dio distributor in your country through the dealer from whom you pur-

chased this product.

LIMITED 3 YEAR WARRANTY

Black Lion Audio’s Revolution 14x16 is warranted by Black Lion Audio

to be free from defects in materials and workmanship for the period of

THREE (3) YEARS to the original purchaser. In the event of such defects,

the product will be repaired without charge or, at our option, replaced

with a new one if delivered to Black Lion Audio prepaid, together with a

copy of the sales slip or other proof of purchase date. The warranty ex-

cludes problems due to normal wear, abuse, shipping damage or failure

to use the product in accordance with the specications.

All parts and labor are covered under this Limited Warranty. However,

if it is determined by Black Lion Audio that the device was damaged or

made defective through abuse, we reserve the right to charge the cus-

tomer for the cost of the repair.

Black Lion Audio shall not be liable for damages based upon inconve-

nience, loss of use of the product, loss of time, interrupted operation or

commercial loss or any other damages, whether incidental, consequen-

tial or otherwise. This warranty gives you specic legal rights, and you

may have other rights, which will vary from state to state.

This warranty is not transferable.

RAD Distribution

180 Carpenter Ave. Middletown,

New York 10940, US

Revised 08/12/24

LET’S GET STARTED!

GETTING TO KNOW THE REVOLUTION 14X16

Windows users: Install the Revolution 14x16 Windows ASIO driver. This

installer was designed to be easy to use. Simply follow the on-screen in-

structions. You will be alerted that the installer has successfully nished

and it will prompt you to reboot your computer. Click “Finish” to automat-

ically restart your computer.

The ASIO drivers are available for download on the Black Lion Audio

website on the bottom of the Revolution 14x16 page.

MacOS users: The Revolution 14x16 is a class-compliant Core Audio

device, so no installation is necessary. Simply connect your Revolution

14x16 to your computer to begin using it.

1. Go to www.blacklionaudio.com

2. Click on the “REGISTER PRODUCT” button on the upper right corner.

3. Click “Create an Account” and follow the on-screen instructions.

You’ll need to verify your email address once submitted.

4. Return to blacklionaudio.com and click on the “REGISTER PROD-

UCT” button on the upper right corner. Log in to your new account.

5. Click “Register a product” in the blue bar on the top left.

6. Enter serial number of the unit. It’s located on the bottom of the unit.

7. Enter software number. It’s located on the front cover of this man-

ual.

8. Click “Verify.” The following screen will contain your software codes

and download instructions.

Product registration and software download instructions

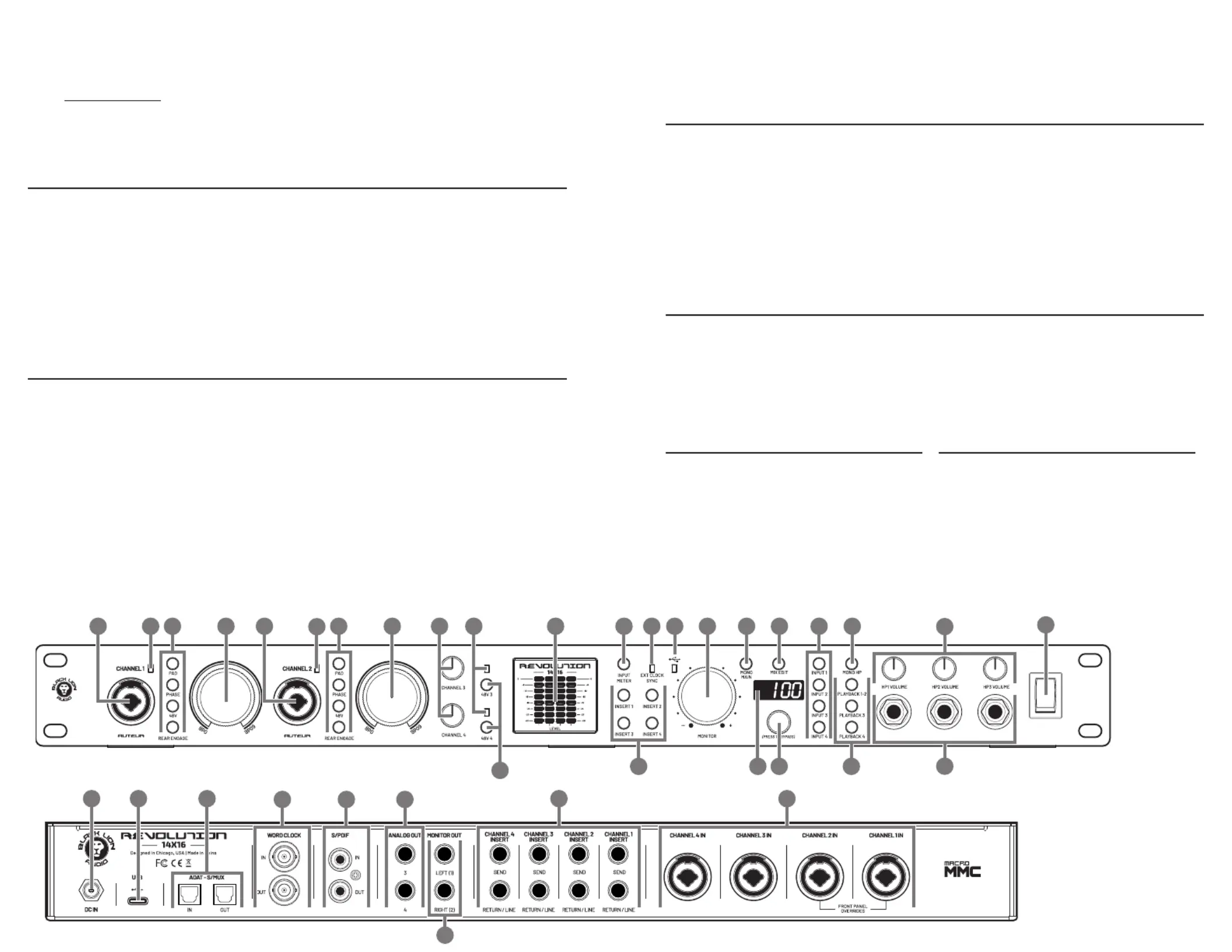

Front panel

Connecting to a computer (Mac & Windows)

Connect the Revolution 14x16 to your computer using a USB cable. The USB indicator light will illuminate in green.

1. Inputs: XLR-Combo inputs for connecting microphones and

instruments. Use the center-balanced 1/4” connection in this jack

for Hi-Z devices (electric guitars and basses.)

2. Signal LED: Lights green when detecting incoming signal; lights red

when signal is clipping.

3. Preamp options: Various options for channels 1 and 2.

Pad: -10 dB pad. Phase invert. activates +48V phantom Phase: 48v:

power; per-channel. activates the rear panel inputs Rear Engage:

for channels 1 and 2.

4. Ch 1 & 2 Preamp Gain: Controls gain on the Channel 1 and 2 (Auteur)

preampliers.

5. Ch 3 & 4 Preamp Gain: Controls gain on the rear-mounted Channel

3 and 4 preampliers.

6. Ch. 3 & 4 48V Buttons: Activates +48 V phantom power for channels

3 and 4. Button lights red when active.

7. Main Meter: Meters the 4 analog inputs or playback levels. When set

to Input Metering mode, signals hitting 0 dBFS are clipping.

8. Input Meter: Toggles the Main Meter between displaying analog

input or playback levels. Lit red=input metering; unlit=playback

metering.

9. Ext Clock Sync: When lit green, indicates the Revolution 14x16 is

being clocked by an external primary clock via BNC, or SPDIF. ADAT

sync will not affect the sync light. Flashing green indicates lack of

clock sync.

10. Inserts 1-4: Toggles the channel 1-4 Return/Line inputs on/off.

11. USB Status: This LED indicates the status of USB connectivity:

ĥSolid Green: USB source is connected and has a secure connec-

tion to host.

ĥOff: No USB source connection.

12. Monitor: This attenuates the monitor output level.

13. Mono Main: Sums the Monitor Outputs to mono.

14. Mix Edit: Activates conguration mode for setting the headphone

mix.

15. LCD Screen: Displays percentage of currently-selected audio

source being sent to headphone mix.

16. Encoder: used to enter mix values of currently-selected source to

headphone mix. Press to bypass custom headphone mix.

17. Input 1-4: Toggles monitoring of the 4 analog input sources to the

headphone mix.

18. Playback 1-4: Toggles monitoring of the playback sources to the

headphone mix.

19. Mono HP: Sums the headphone outputs to mono.

20. Headphone Volume: Controls headphone volume.

21. Headphone Outputs: Connect headphones to these jacks. All head-

phone outputs share the mix from the headphone mixer.

22. Power Switch: Turns the unit off or on.

Rear panel

Creating a custom headphone mix

23. DC In: Connection for power.

24. USB-C to Computer: Connect computer or mobile device here

for recording with applications that support multi-channel audio

interfaces.

25. ADAT - S/MUX: Connect your ADAT devices here for additional

digital inputs and outputs. Revolution 14x16 sends and receives up

to eight channels of digital audio from an ADAT-compatible device.

26. Word Clock Input and Output: Connect to the Word Clock Out jack

to use the Revolution 14x16 as a primary clock for your other devic-

es; Connect to the Word Clock In jack to sync the Revolution 14x16

to your primary clock.

27. SPDIF Input and Output: Input: Use this to accept digital audio from

another SPDIF device. Use this to output digital audio to anOutput: -

other SPDIF device.

28. Analog Out 3-4: Outputs for additional monitors or signal proces-

sors.

29. Monitor Output: Main outputs. Connect your monitor speakers here.

30. Channel Inserts 1-4: Connect external hardware processors here.

Connect Send to your processor’s input and Return/Line to its out-

put. Return/Line jacks can also be used to connect line-level sourc-

es without using the Send connections.

31. Channel Inputs 1-4: Connect microphones and instrument-level

devices here. Note that the rear-mounted Channel 1 and 2 inputs

will require that the Rear Engage switch to be activated before ac-

cepting signal.

The Revolution 14x16 allows you to quickly create a custom headphone

mix. Here’s how:

1. Press the Mix Edit button to enter Mix Edit Mode. The Mix Edit button

lights green.

2. Select the rst of your desired headphone mix sources using the

Input and Playback buttons. The Input or Playback button pressed

will ash green.

3. Rotate the Encoder to edit the percentage of the selected source to

be sent to the headphone mix.

4. Repeat the previous two steps to adjust the level of all desired

sources.

5. When you’re nished creating your custom mix, Press Mix Edit to

exit Mix Edit Mode.

The headphone mix is shared by all 3 headphone outputs.

The number of digital audio

channels that can be transmit-

ted or received by the ADAT I/O

is dependent upon the selected

device conguration. Higher

sampling rates consume more

bandwidth, reducing channel

count.

ADAT Port conguration is

established in the Black Lion

Control Panel app’s Format tab

(Windows) or in Audio MIDI Setup

(Mac.)

ĥ44.1 kHz: 8-in, 8-out

ĥ48 kHz: 8-in, 8-out

ĥ88.2 kHz: 4-in, 4-out

ĥ96 kHz: 4-in, 4-out

ĥ176.4 kHz: 2-in, 2-out

ĥ192 kHz: 2-in, 2-out

Channels 1 and 2 of the Revolu-

tion 14x16 feature Black Lion Au-

dio’s proprietary “Chicago-Style”

Auteur preamps. These preamps

are designed to deliver the “best

of both worlds” of both British-

and American- style preamps.

The Auteur preamps on Channels

1 and 2 deliver the quick attack

and transparency of Ameri-

can-style preamps at the input

stage — ideal for snappy transient

sources like drums.

Upon increasing the gain, you’ll

nd the Auteur preamps will

deliver the warmth, color, and

saturation on the output stage

more commonly associated with

British-style designs—thanks to

their Cinemag transformers.

The choice is yours! We recom-

mend you experiment with the

Auteur channels and nd the set-

tings that best serve your song.

ADAT ports and sample rates Auteur preamps

23 25

7 8 13 14 19 22

9 11 12

10 1815 16

1 2 3 4 1 3

282726

4 252

3130

Produkt Specifikationer

Mærke:	Black Lion Audio
Kategori:	Ikke kategoriseret
Model:	Revolution 14x16

Har du brug for hjælp?

Hvis du har brug for hjælp til Black Lion Audio Revolution 14x16 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Black Lion Audio Manualer

Black Lion Audio Micro Clock MkIII XB Manual

25 December 2024

Black Lion Audio Revolution 14x16 Manual

11 December 2024

Black Lion Audio PG-2R Manual

9 December 2024

Black Lion Audio PG-P Type C Manual

5 September 2024

Black Lion Audio PBR TRS3 Manual

5 September 2024

Black Lion Audio PBR TT Manual

5 September 2024

Black Lion Audio PG-X Type C Manual

5 September 2024

Black Lion Audio Revolution 2x2 Manual

3 September 2024

Black Lion Audio Revolution 6x6 Manual

3 September 2024

Black Lion Audio SEVENTEEN 500 Manual

3 September 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Crestron FT2A-PWR-SW-2 Manual

18 Juni 2025

Royal Catering RC-TFWH120X30 Manual

18 Juni 2025

Martin VC-Strip 15 Manual

18 Juni 2025

Ikea FJÄLLARNIKA 705.922.11 Manual

18 Juni 2025

Chapin 78005 Manual

18 Juni 2025

Chapin 22180XP Manual

18 Juni 2025

Audio-Technica AT-VM750xSH Manual

18 Juni 2025

D-Link DXS-3600-EM-8XS Manual

18 Juni 2025

Chapin 8001A Manual

18 Juni 2025

ORNO OR-DB-KA-170PD Manual

18 Juni 2025
