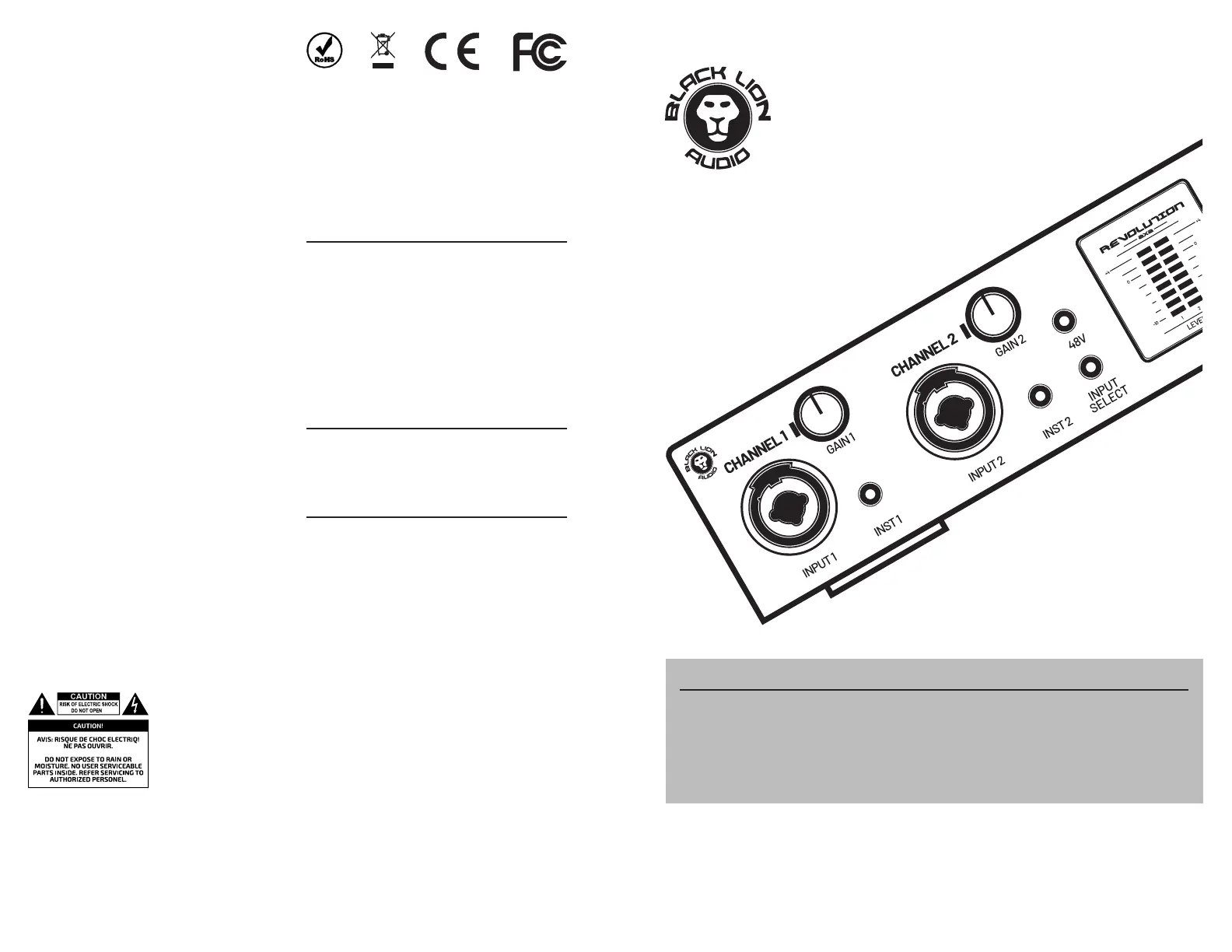

Revolution 2x2

The truly high-end, portable recording interface.

Quick Start Guide

SOFTWARE REGISTRATION CODE

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other.

A grounding-type plug has two blades and a third grounding prong.

The wide blade or third prong is provided for your safety. If the pro-

vided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particular-

ly at plugs, convenience receptacles, and the point where they exit

from the apparatus. If the power cord becomes frayed, stop using

immediately.

11. Use only attachments/accessories specied by the manufacturer

12. Use only with a cart, stand, tripod, bracket or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid in-

jury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is re-

quired when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been ex-

posed to rain or moisture, does not operate normally, or has been

dropped.

15. This apparatus shall not be exposed to dripping or splashing, and

no object lled with liquids, such as vases, shall be placed on the

apparatus.

16. Note that this apparatus is not completely disconnected from the

AC mains service when the power switch is in the OFF position.

17. The mains plug or power inlet on the product is used as the discon-

nect device, so the disconnected device shall remain readily opera-

ble when reconnected.

18. Any changes or modications not expressly approved in this manu-

al could void your authority to operate this apparatus.

The lightning ash with an arrow-

head symbol within an equilateral

triangle is intended to alert the

user to the presence of uninsu-

lated “dangerous voltage” within

the product’s enclosure that may

be of sucient magnitude to

constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

The Black Lion Audio Revolution 2x2 complies with all applicable /

RoHS / WEEE European Union directives.

Do not attempt to service this unit yourself, as it will void your warran-

ty. Please check your unit carefully upon receipt and return to place

of purchase immediately if there are any problems with the product.

After that, the standard Black Lion Audio 3 YEAR warranty will apply

to defects in materials and workmanship.

U.S.A.

Should your Black Lion Audio product require service,

please contact the Black Lion Audio Service Department:

https://www.blacklionaudio.com/contact. You must obtain an RA #

(Return Authorization number) from us before shipping a unit back to

us. This RA # must be clearly written on the outside of the box.

Please safely pack the units…It is best to use the original packing

materials. Black Lion Audio cannot be responsible for any damag-

es incurred in shipping to us due to poor packaging. PLEASE PACK

CAREFULLY and FULLY INSURE THE SHIPMENT.

INTERNATIONAL

For service or warranty assistance, please contact the Black Lion Au-

dio distributor in your country through the dealer from whom you pur-

chased this product.

LIMITED 3 YEAR WARRANTY

Black Lion Audio’s Revolution 2x2 is warranted by Black Lion Audio to

be free from defects in materials and workmanship for the period of

THREE (3) YEARS to the original purchaser. In the event of such defects,

the product will be repaired without charge or, at our option, replaced

with a new one if delivered to Black Lion Audio prepaid, together with a

copy of the sales slip or other proof of purchase date. The warranty ex-

cludes problems due to normal wear, abuse, shipping damage or failure

to use the product in accordance with the specications.

All parts and labor are covered under this Limited Warranty. However,

if it is determined by Black Lion Audio that the device was damaged or

made defective through abuse, we reserve the right to charge the cus-

tomer for the cost of the repair.

Black Lion Audio shall not be liable for damages based upon inconve-

nience, loss of use of the product, loss of time, interrupted operation or

commercial loss or any other damages, whether incidental, consequen-

tial or otherwise. This warranty gives you specic legal rights, and you

may have other rights, which will vary from state to state.

This warranty is not transferable.

Connect headphones here.

Connect microphone here.

LET’S GET STARTED! GETTING TO KNOW THE REVOLUTION 2X2.

Windows users: Install the Revolution 2X2 Windows ASIO driver. This

installer was designed to be easy to use. Simply follow the onscreen in-

structions. You will be alerted that the installer has successfully nished

and it will prompt you to reboot your computer. Click “Finish” to automat-

ically restart your computer.

The ASIO drivers are available for download on the Black Lion Audio

website on the bottom of the Revolution 2x2 page.

MacOS users: The Revolution 2X2 is a class-compliant Core Audio de-

vice, so no installation is necessary. Simply connect your Revolution 2X2

to your computer to begin using it.

1. Turn the Mixer knob on the front panel of your Revolution 2X2 to the

12 o’clock position. This will allow you to hear both your inputs and

the playback from the computer.

2. Connect a pair of headphones to the Revolution 2X2 headphone

output and turn the Phones volume control to the 12 o‘clock position.

1. Go to www.blacklionaudio.com

2. Click on the “REGISTER PRODUCT” button on the upper right corner.

3. Click “Create an Account” and follow the onscreen instructions.

You’ll need to verify your email address once submitted.

4. Return to blacklionaudio.com and click on the “REGISTER PROD-

UCT” button on the upper right corner. Log in to your new account.

5. Click “Register a product” in the blue bar on the top left.

6. Enter serial number of the unit. It’s located on the bottom of the unit.

7. Enter software number. It’s located on the front cover of this man-

ual.

8. Click “Verify.” The following screen will contain your software codes

and download instructions.

1. Connect a microphone then speak into it while watching the meter

on Channel 1 in Studio One and slowly turning the Revolution 2X2

Input 1 Trim knob clockwise.

2. Engage MONO button for input monitor summing.

3. Click the “Record“ button in Studio One Artist to being recording

your rst track!

Product Registration and software download instructions Front Panel

Rear Panel

Plug-in to the computer instructions (mac & PC)

Prepping for Playback

Recording

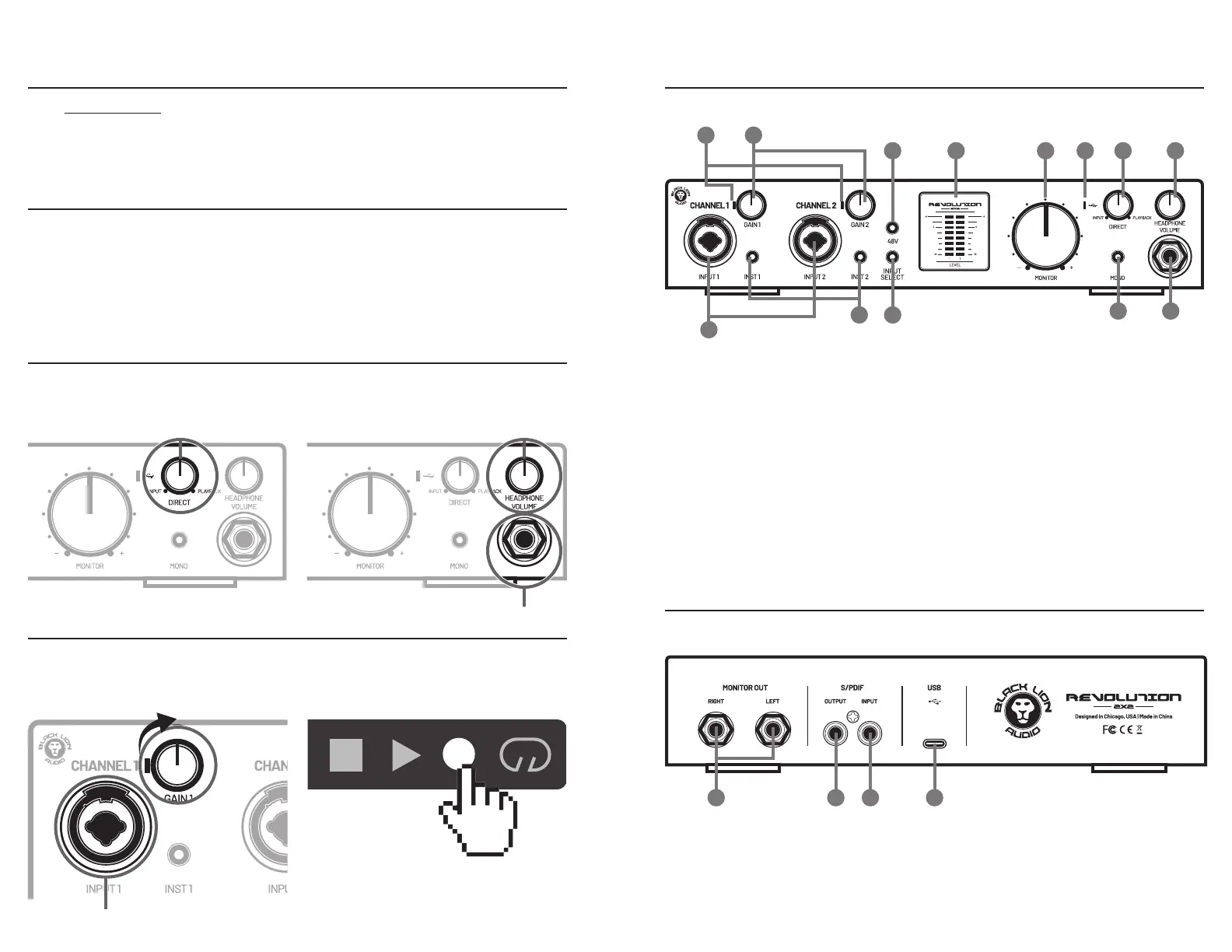

1. Inputs: XLR-Combo inputs for connecting microphones,

instruments, and line-level equipment.

2. Instrument Input Switch: This selects between instrument level

and line level for the 1/4” input on the XLR-Combo.

3. Preamp Gain: This knob attenuates the level of gain on the

preamplier.

4. Input Meter: This LED indicates the levels coming into the preamp.

5. 48V Button: This button turns on 48V phantom power on both

preamplifiers.

6. Input Select: Engaging this button switches to S/PDIF digital inputs.

7. Main Output Meter: This meters the output level.

8. Monitor: This attenuates the analog output level.

9. USB Status: This LED indicates the status of USB connectivity.

10. Direct Mixer: This knob is a direct mixer for monitoring inputs in

real-time. Turn left for inputs, and turn right for playback.

11. Headphone Volume: This attenuates the headphone volume level.

12. Headphone Output: Connect your headphones here.

13. Mono Button: Engaging this switch performs mono summing to

direct input monitoring. For monitoring stereo inputs, make sure

this button is disengaged. This button only effects input monitor,

and not playback monitoring.

1. Main Output: Connect your monitors here.

2. S/PDIF Input: Connect S/PDIF digital outputs from devices here.

3. S/PDIF Output: Use this to output the Revolution 2x2 main outputs

to another device.

4. USB-C Connector: Connect your computer here, and you’re good

to go!

11109875

13 12

1 2 3 4
