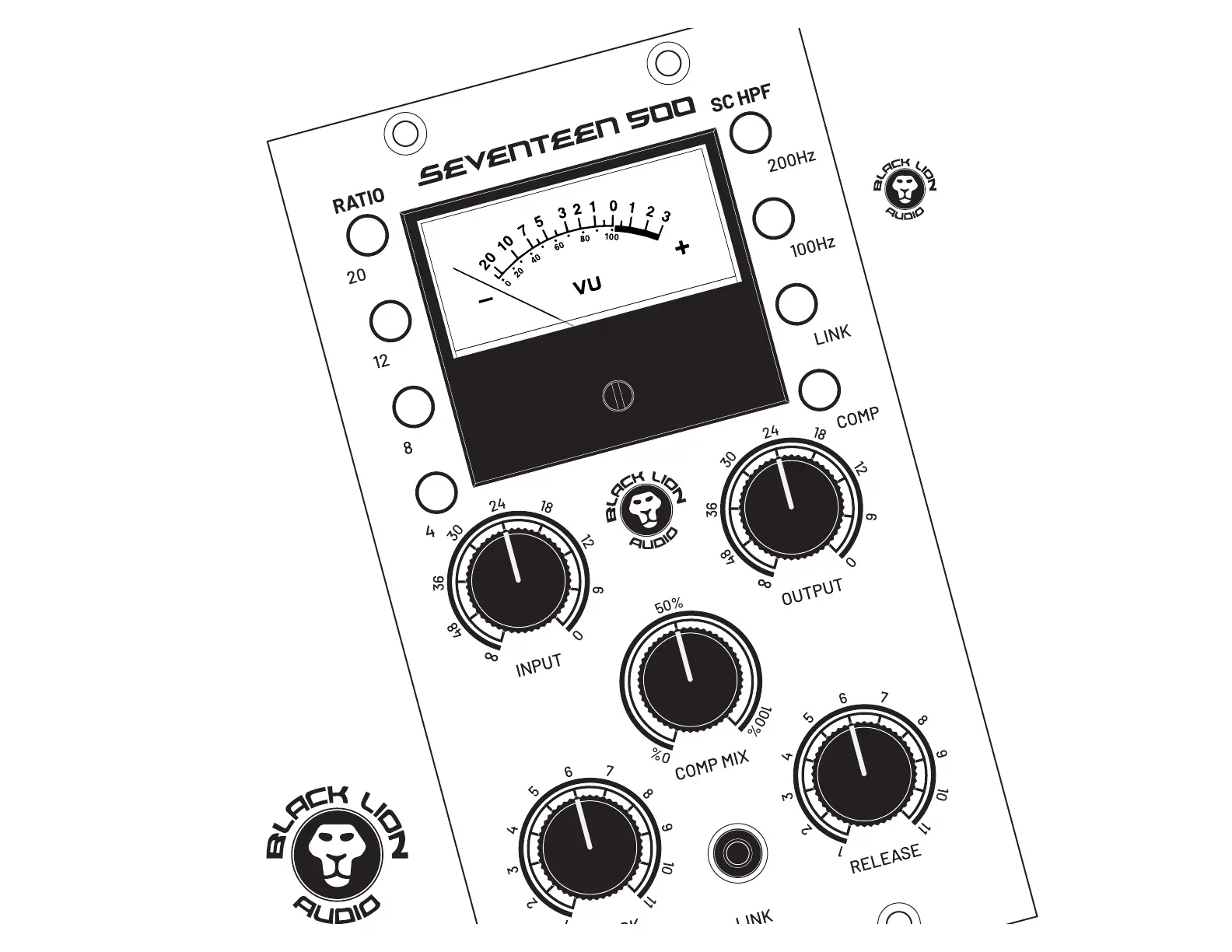

SEVENTEEN 500 500-SERIES FET LIMITING AMPLIFIER

Ownerâ€™s

Manual

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus that produce heat.

9. Use only attachments/accessories specied by the manufacturer

10. Use only with a cart, stand, tripod, bracket or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid in-

jury from tip-over.

11. Unplug this apparatus during lightning storms or when unused for

long periods of time.

12. Refer all servicing to qualied service personnel. Servicing is re-

quired when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been ex-

posed to rain or moisture, does not operate normally, or has been

dropped.

13. This apparatus shall not be exposed to dripping or splashing, and

no object lled with liquids, such as vases, shall be placed on the

apparatus.

14. Any changes or modications not expressly approved in this manu-

al could void your authority to operate this apparatus.

COMPLIANCE

The Black Lion Audio Seventeen 500 complies with all applicable

CE / RoHS / WEEE European Union directives.

Do not attempt to service this unit yourself, as it will void your warran-

ty. Please check your unit carefully upon receipt and return to place

of purchase immediately if there are any problems with the product.

After that, the standard Black Lion Audio 3 YEAR warranty will apply

to defects in materials and workmanship.

U.S.A.

Should your Black Lion Audio product require service,

please contact us on our customer service site:

https://www.blacklionaudio.com/contact. You must obtain an RA #

(Return Authorization number) from us before shipping a unit back to

us. This RA # must be clearly written on the outside of the box.

Please safely pack the units…It is best to use the original packing

materials. Black Lion Audio cannot be responsible for any damag-

es incurred in shipping to us due to poor packaging. PLEASE PACK

CAREFULLY and FULLY INSURE THE SHIPMENT.

INTERNATIONAL

For service or warranty assistance, please contact the Black Lion Au-

dio distributor in your country through the dealer from whom you pur-

chased this product.

LIMITED 3 YEAR WARRANTY

Black Lion Audio’s Seventeen 500 is warranted by Black Lion Audio to

be free from defects in materials and workmanship for the period of

THREE (3) YEARS to the original purchaser. In the event of such defects,

the product will be repaired without charge or, at our option, replaced

with a new one if delivered to Black Lion Audio prepaid, together with a

copy of the sales slip or other proof of purchase date. The warranty ex-

cludes problems due to normal wear, abuse, shipping damage or failure

to use the product in accordance with the specications.

All parts and labor are covered under this Limited Warranty. However,

if it is determined by Black Lion Audio that the device was damaged or

made defective through abuse, we reserve the right to charge the cus-

tomer for the cost of the repair.

Black Lion Audio shall not be liable for damages based upon inconve-

nience, loss of use of the product, loss of time, interrupted operation or

commercial loss or any other damages, whether incidental, consequen-

tial or otherwise. This warranty gives you specic legal rights, and you

may have other rights, which will vary from state to state.

This warranty is not transferable.

SPECIFICATIONS

Attack Continuously variable 20uS to 800uS

Release Continuously variable 1200mS to 50mS

Sidechain HPF: OFF, 100Hz, 200Hz

Ratio Pushbutton selected 4:1, 8:1, 12:1, 20:1 or any

other combination

Voltage ± 16v

Dimensions Width:76 mm (3”)

Height: 178 mm (5.25”)

Depth: 229 mm (9”)

Weight 1.47 kg (3.25 lbs)

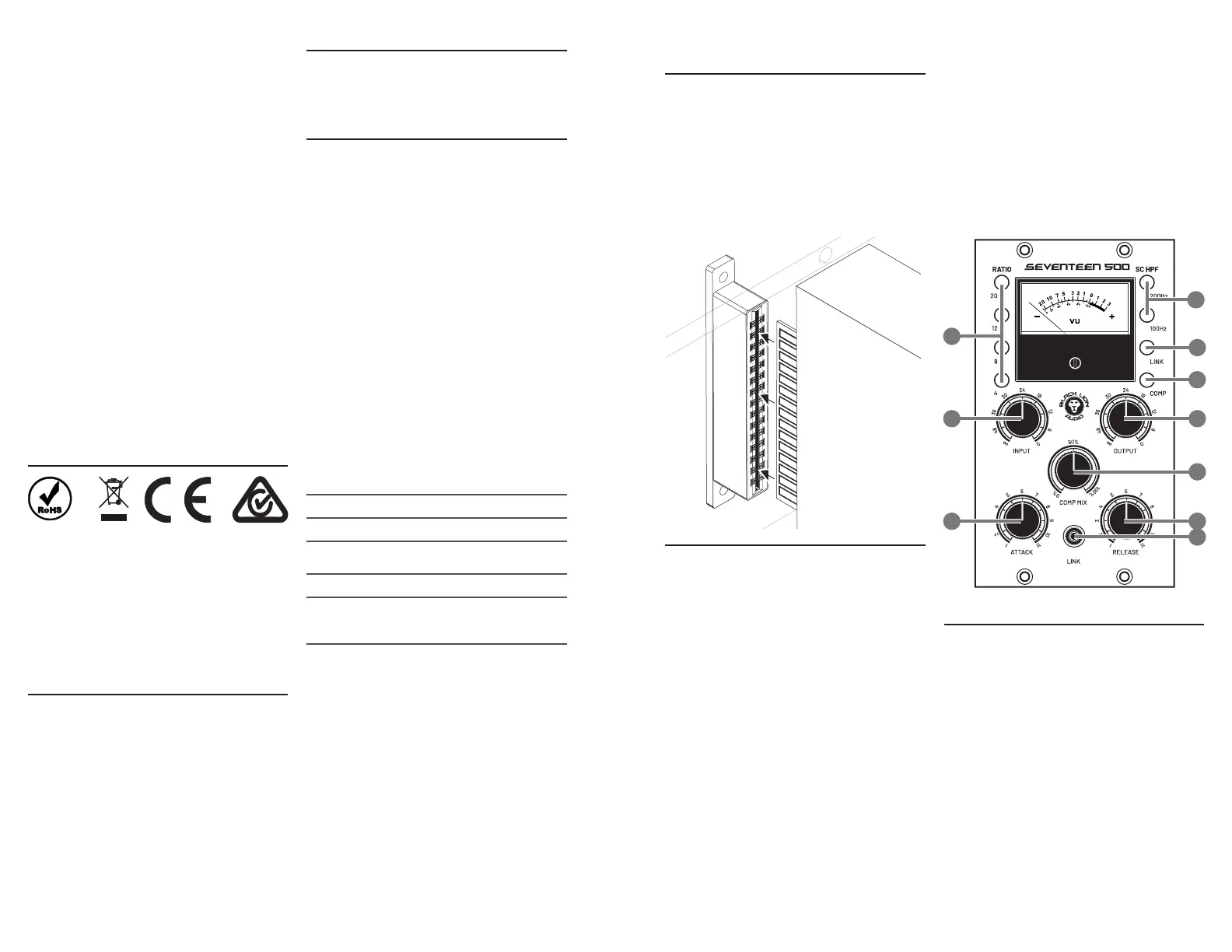

QUICK START GUIDE

INSTALLATION

1. Mute your studio monitors.

2. Power OFF the chassis.

3. Inspect Seventeen 500 and make sure nothing is surrounding the

card edge connector.

4. Carefully slide Seventeen 500 into an empty slot in your power

chassis.

5. Make sure the module connectors sits well into the mating Edac

chassis connector.

6. Secure the Seventeen 500 to the chassis using the four

front-mounted screws.

7. Power ON the power chassis.

INITIAL SETUP:

Using balanced XLR cables, connect the Seventeen 500’s inputs and

outputs from your 500-series chassis to your mixing bus or patch bay.

If you are using two Seventeen 500s in parallel (or stereo), connect the

two units using an RCA cable between the front-mounted RCA jacks.

Set all controls to full counter-clockwise position, and all pushbuttons

deselected or in the off position. Set the Bypass button to the on posi-

tion, and apply power.

Unmute the monitors, and verify that signal is passing to and from the

unit. Set the INPUT, OUTPUT, ATTACK and RELEASE controls to about

12 o’clock, set COMP MIX to full clockwise, select RATIO 4, and press the

Bypass button. Increase the INPUT until the meter is deecting a few

dB. Again, verify signal is passing through the unit. Done!

For proper performance, balanced XLR must be used for all inputs and

outputs.

A note on the Attack control:

The Attack control on the Seventeen 500 works a little differently than

you may have encountered on other ‘76-style compressors. Turning the

Attack knob to the left (counter-clockwise) will yield faster attack times;

slower times result when turning to the right (clockwise). We’ve found

this control scheme to be more intuitive; akin to a volume knob decreas-

ing level to the left and increasing to the right.

• Attack: Continuously variable 20uS to 800uS

• Release: Continuously variable 1200mS to 50mS

A note on stereo linking

The Link button activates the RCA input jack in the front of the module

for stereo pairing. The link button must be engaged on both units, with

an RCA cable attached between them to achieve successful pairing. The

Seventeen 500 does not utilize the internal link bus within some 500-se-

ries frames; the linking feature is completely independent.

When running a pair of Seventeen 500s via a stereo link, start by setting

both units to matched settings, as the detector circuits are the linked

elements - not the controls. Note that due to design limitations of the

‘76-style compressors, no two units will ever be 100% matched without

an external battery-powered balancing box. If you don’t have a balancing

box, you may need to make slight alterations to the Input and Output

controls to create perfect stereo matching.

CONTROLS

1. Input: Sets the threshold and controls the level at which the com-

pressor starts compressing

2. Output: Applies makeup gain to compressed signal to compensate

for signal lost during compression

3. Attack: Controls the amount of time it takes for the unit to react to

an incoming signal

4. Release: Controls the speed at which the compressor releases the

compressed signal

5. Comp Mix: Allows the user to blend the dry uncompressed signal

with the wet compressed signal to allow more natural sounding

compression

6. Ratio: Controls the amount of compression applied. (Yes, it does

all-buttons-in-mode, and other combinations. Experiment!)

7. Sidechain high-pass lter: Choose between 200 Hz and 100 Hz

cutoff for Sidechain input lter. Use this to prevent low-frequency

sounds from triggering the compressor.

8. Link: Use this to engage stereo link when connected to another

Seventeen 500. Be sure to engage the Link feature on both con-

nected units.

9. Comp: Engages/bypasses the compressor circuit.

10. RCA Stereo Link: Use standard 2-conductor RCA cable, required

for stereo linking.
