ASSEMBLY INSTRUCTIONS
ZENIT
®
SPIN16
16 MM TV-SPIGOT WITH FLIP MECHANISM
INTRODUCTION
The optionally available 0.63 inch TV spigot CLZSPIN16 is easy to attach to compatible spotlights and can be folded down and up without any tools when needed.
SAFETY INFORMATION
1. Please read this user manual carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Only use the TV spigot as properly intended.
KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL
THAT COULD BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

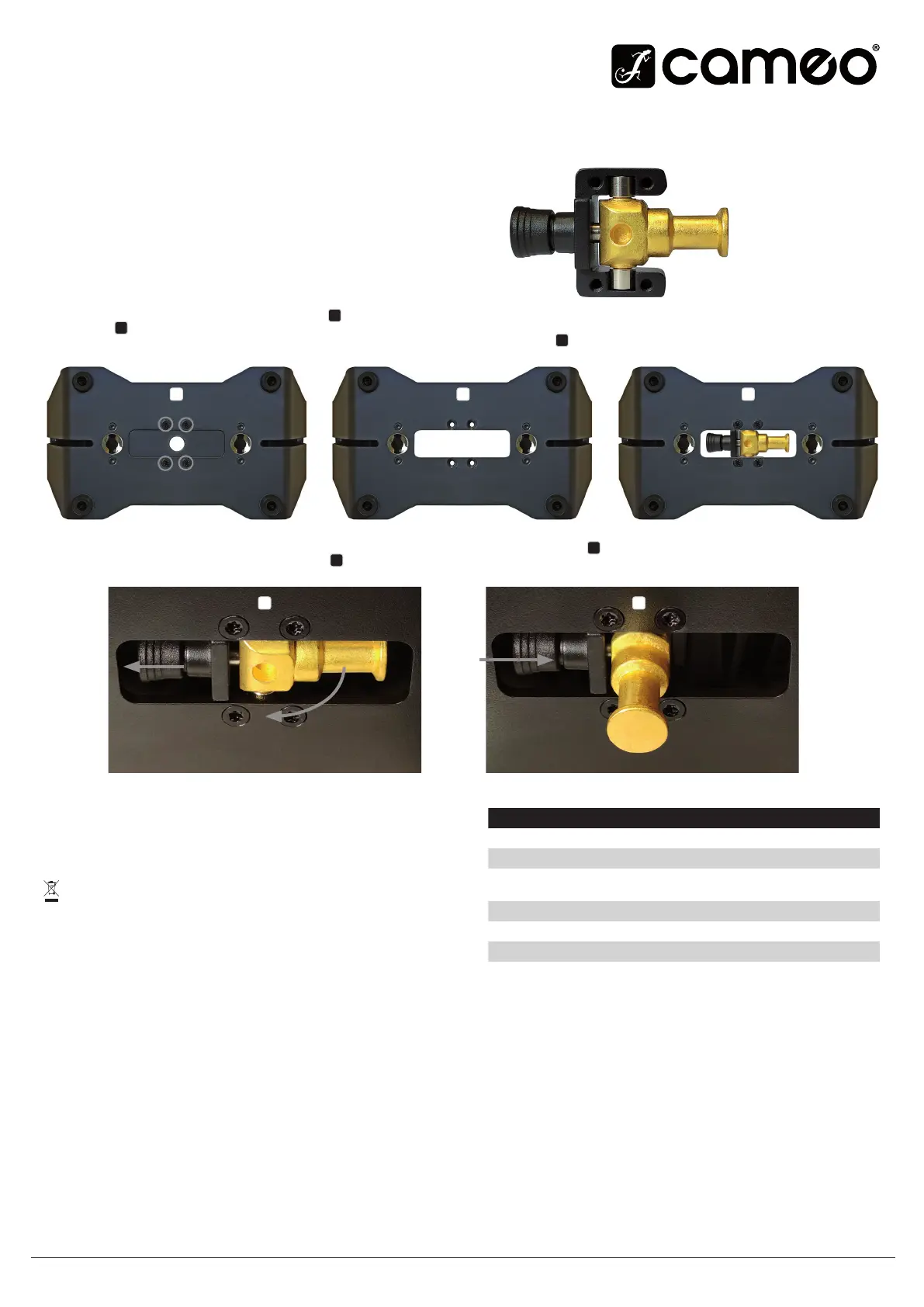

ASSEMBLY INSTRUCTIONS (EXAMPLE WITH FLAT PRO G2 SPOTLIGHT)
To install the TV spigot, remove the four screws marked in Figure
A
in the stand or mounting bracket, remove the mounting plate with the mounting hole from the bracket (Figure
B
), and insert the TV spigot
from behind onto the bracket so that the four screw holes in the mounting bracket and the four threads in the base of the TV spigot are aligned exactly on top of each other. Now screw the TV spigot on to the
spotlight’s mounting bracket using the four previously removed screws (Figure
C
).
To unfold the TV spigot, tug the spring-loaded locking bolt toward the arrow to pull it out of the locking hole (Figure
D
), fold the TV spigot forward and let the locking bolt engage in the locking hole, which is
offset by 90° (Figure
E
).
Article number: CLZSPIN16
Product type: Spotlight accessory
Type: 16 mm TV spigot, can be folded up and down without
any tools
Compatible spotlights: FLAT PRO G2 Series, Z120 G2, Z180 G2, ZP100 DTW,
ZP200 DTW
Color: Black / brass-colored
Material: Cast metal
Dimensions (W × H × D): 67.4 x 40.7 x 18 mm
Weight: 0.1 kg
SPECIFICATIONS
D E
MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_CAMEO.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Adam-HAll-Str. 1,
61267 Neu Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
