Side 1/24

V604s Be Version 04 12.12

Operating instructions

SINEAX V604s

Programmable multifunctional

transmitter

Camille Bauer AG

Aargauerstrasse 7

CH-5610 Wohlen/Switzerland

Phone +41 56 618 21 11

Fax +41 56 618 21 21

info@camillebauer.com

www.camillebauer.com

2 Operating instructions V604s Be Camille Bauer

Operating instructions

Programmable multifunctional transmitter SINEAX V604s

First read, then …

The unobjectionable and safe operation pre-

supposes that these operating instructions

have been read and understood!

Devices may only be disposed of in a pro-

fessional manner!

Contents

1. Functional description ................................................. 2

2. Connection to a PC and communication via

CB-Manager ................................................................ 2

3. Block diagram .............................................................. 3

4. Technical data .............................................................. 4

5. Signal ﬂ ow ................................................................... 8

6. Modbus interface ....................................................... 12

6.1 EIA-RS-485 Standard ......................................... 12

6.2 Coding and addressing ......................................12

6.3 Mapping .............................................................13

6.4 Device identiﬁ cation ...........................................13

6.5 Measured values ................................................ 14

6.6 Conﬁ guration parameters ..................................15

7. Electric connections .................................................. 22

8. Dimensional drawing ................................................. 24

9. Accessories ...............................................................24

10. Conformity declaration .............................................. 24

1. Functional description

V604s is a multifunctional transmitter for top-hat rail assem-

bly with the following main characteristics:

Measurement of DC voltage, DC current, temperature

(RTD, TC) and resistance

Sensor connection without any external jumpers

2 inputs (e.g. for sensor redundancy or difference

formation)

2 outputs (U and/or I)

DC-energy meter - function (with S0 output)

2 inputs can be linked with each other and allocated

to the 2 outputs which enables calculations and

sensor monitoring (e.g. prognostic maintenance of

sensors)

System capability: Communication via Modbus

interface

Freely programmable relay, e.g. for limit or alarm sig-

nalling

Digital output (optional)

AC/DC wide-range power supply unit

Pluggable high-quality screw or spring cage terminals

All settings of the instrument can be adapted to the measur-

ing task by PC software. The software also serves visualising,

commissioning and service.

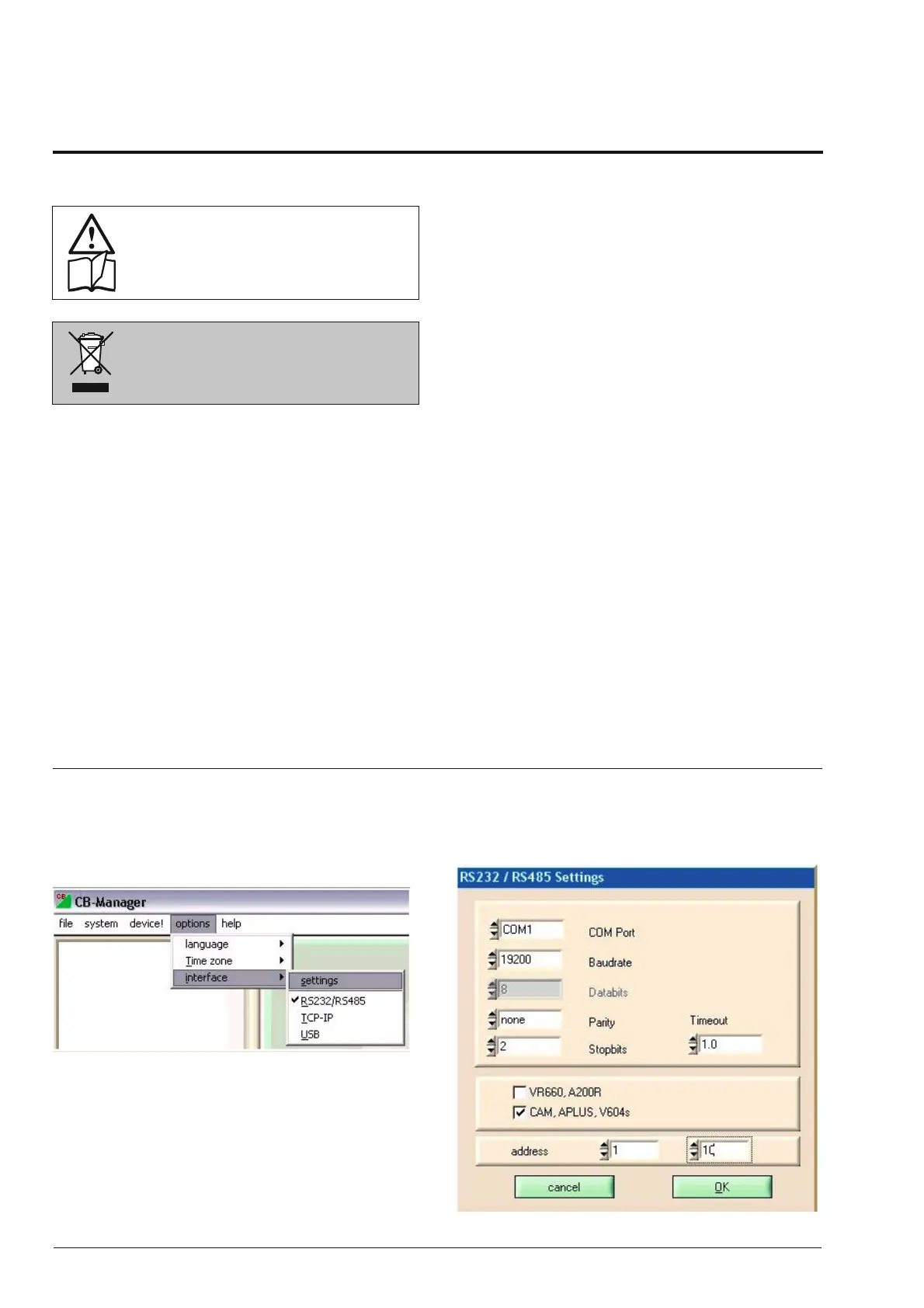

2. Connection of SINEAX V604s to a PC and communication via CB-Manager.

V604s communicates with a PC (CB-Manager) via an RS

232/RS485 interface and a MODBUS protocol.

Select the following settings in this respect:

Select the RS 232/ RS485 interface under Options / Inter-

face.

This is also applicable if an RS485/USB converter is used

and the converter is connected to the computer via the

USB connection.

Subsequently, enter the following settings under Options /

Interface / Settings:
