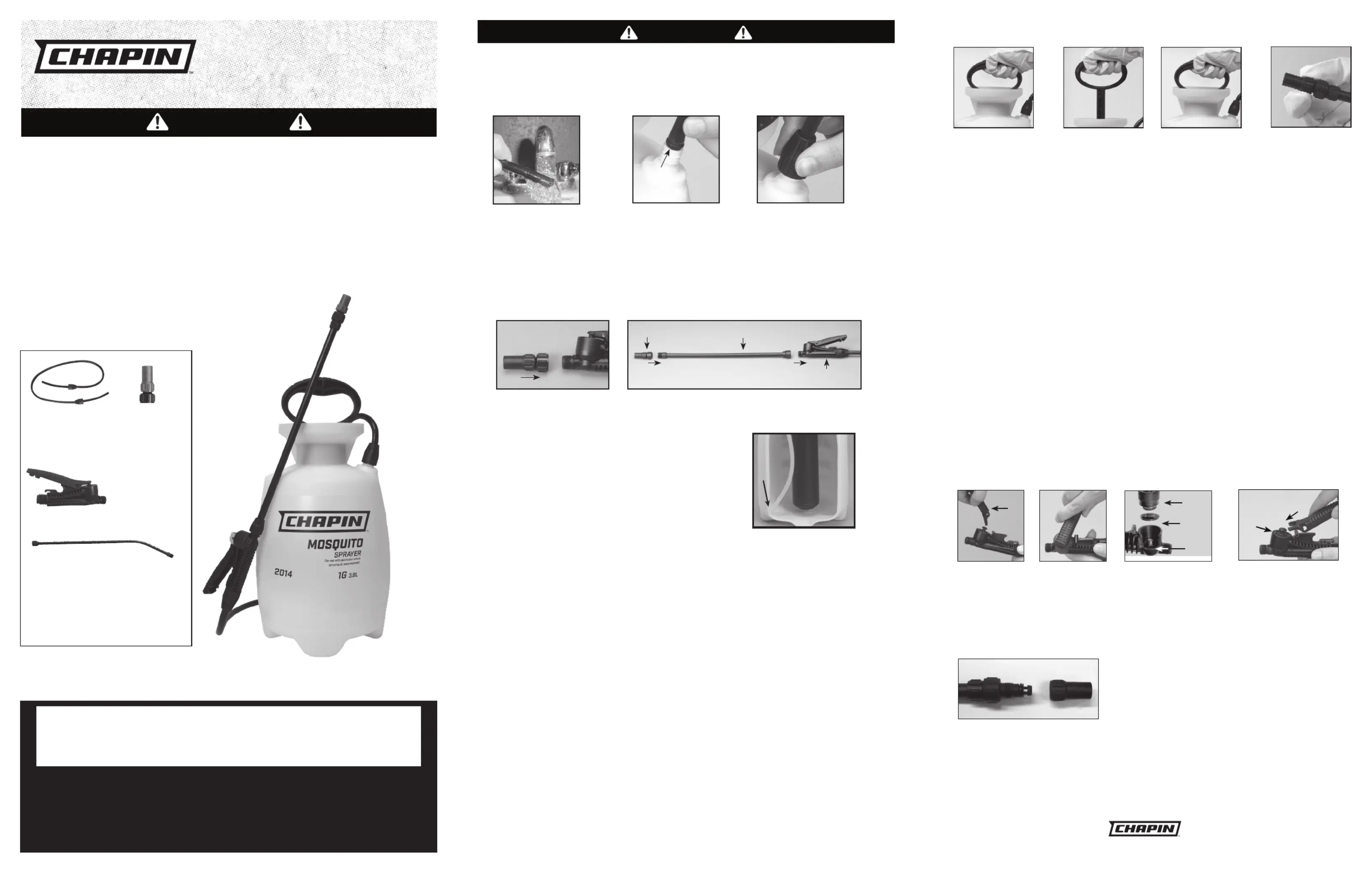

Side 1/2

Nozzle

Shut-off

Handle

Nozzle

Wand

Shut-off

Handle

6-2000

Shut-off Handle

Mango de cierre

Poignée du robinet

Parts, Piezas, Pièces

6-2001

Hose

Manguera

Tuyau

2. Nozzle

Attach nozzle to shut-off handle or extension wand.

4. Pre-Use Check

5. Filling

1) Turn pump handle counterclockwise and remove pumpDo:

2) Do: Prepare spray solution following all directions and safety warnings on chemical label.

3) Fill tank to no more than the proper gallon marker. Do NOT: overﬁll to accommodate pump.Do:

4) Check pump to make sure that no grass or dirt is stuck to barrel. Replace pump in tank and tighten securely.Do:

016297R0522

6-7749

Extension wand

Vara de extensión

Rallonge

1. Hose to Tank

3. Filter

The ﬁlter helps prevent clogging while spraying. It is located on the

end of the outlet tube inside your sprayer tank. To clean ﬁlter, remove

the discharge assembly from the tank (Fig. 3A). Make sure the ﬁlter is

positioned at the bottom of the tank as pictured.

Filter

To prevent hose from blowing off, hose must cover both barbs and touch

ﬂange (ﬁg. 1B) before hose nut is tightened (ﬁg. 1C).

Do: Place end of hose under

hot tap water for 1 minute.

This will soften the hose and

help insure the hose is pushed

all the way down to the ﬂange.

Do: Push hose until it

covers both barbs and

touches the ﬂange.

Do: Slide nut down over

threads. Turn nut clock-

wise as tight as possible.

1A 1B 1C

1C1C

Flange

3-6006

Nozzle

Boquilla

Buse

6. Pressurizing and Spraying

Do: Turn handle clockwise

to tighten. Push handle

down, turn 1/4 turn coun-

terclockwise to release.

Do: Pump until you feel

resistance.

Do: Push handle, down,

turn 1/4 turn clockwise to

lock. Begin spraying. Re-

pump sprayer as required

to maintain spray force.

6B6A 6C

Do: Turn end of

nozzle to adjust

spray pattern.

1) Check tightness of hose nut to be sure hose is securely attached to the tank outlet. Do:

2) Do: Inspect hose for deterioration, cracks, softness, or brittleness. If any of these conditions are found,

replace hose before using. Replace with original manufacturer’s parts only.

3) Remove pump (see Filling, Pressurizing and Spraying Instructions), inspect interior and exterior Do:

of tank for signs of deterioration of body and bottom. Any sign of deterioration indicates possible tank

weakening and could result in explosive bursting under pressure. If any of these signs are found, discard

tank immediately and replace. Do not attempt to patch leaks, etc., as this could result in serious injury.

4) Follow Filling, Pressurizing and Spraying Instructions, except use water only (Pump plunger 10-20 Do:

strokes and inspect for leaks).

5) Direct shut-off away from you and open to make sure discharge is not clogged. Do:

6) Do: If unit passes this test, release pressure (see Pressure Releasing Instructions), empty tank, and proceed

with Filling, Pressurizing and Spraying Instructions.

7) Inspect all metal parts including the wand, nozzle and ﬁttings for rust, corrosion and pitting. If any Do:

of these conditions are found, replace affected part with original manufacturer’s part before using.

Sk-1154-1

WARNING: Improper use or failure to follow instructions can result in explosive failure causing serious

eye or other injury. For safe use of this product you must read and follow all instructions. Do not leave a

pressurized sprayer in the hot sun. Heat can cause pressure build-up resulting in possible explosion.

Do not store or leave solution in tank after use. Always wear goggles, gloves, long sleeve shirt, long pants

and full foot protection when spraying. Never use any tool to remove pump if there is pressure in sprayer.

Never stand with face or body over top of tank when pumping or loosening pump to prevent ejecting pump

assembly and/or solution from striking and injuring you. Never pressurize sprayer by any means other than

the original pump. Do not attempt to modify this sprayer. Replace parts only with manufacturer’s original

parts. Never spray ﬂammable, caustic, acidic, chlorine, bleach or other corrosive solutions or heat,

pressure, or gas producing chemicals. Always read and follow chemical manufacturer’s instructions

before use with this sprayer as some chemicals may be hazardous when used with this sprayer.

WARNING

6-1925

Repair Kit (not included)

Juego de reparación (no incluido)

Kit de réparation (non inclus)

Note: Your particular sprayer may not include all parts pictured above.

Nota: Es posible que este pulverizador en particular no incluya todas las partes que se ilustran arriba.

Remarque : Votre pulvérisateur particulier pourrait ne pas inclure toutes les pièces illustrées plus haut.

WARNING

9. Troubleshooting

Tank pressurizes but does not spray.

WARNING:

Release pressure in tank before troubleshooting.

Clean shut-off (Fig. 9A- 9D)

Insert notches

from underside of

handle into plunger

grooves and turn

counterclockwise.

Tighten plunger clockwise until

ﬂush to top of shut-off body.

Do not over-tighten or unit may

not spray. Slide forks under

plunger, push handle down

until it snaps into place.

Pull handle

straight up.

Handle

Plunger ﬂush

with body

Clean Nozzle Assembly

Remove nozzle cap. Clean and re-assemble.

Remove plunger, diaphragm

and spring. Wash diaphragm

with mild detergent.

Reassemble: Hold shut-off

upright as shown, place spring

in hole, place diaphragm on

top of spring. Reassemble

plunger and tighten.

Plunger

Spring

Diaphragm

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.1-800-950-4458 www.chapinmfg.com

8. Care, Storage and Maintenance

7. To Release Pressure

1) With pump facing away, turn locked handle counterclockwise until air begins to escape. Do:

Stop turning handle when you hear air escaping.

2) Do: Stay away from the sprayer until all air has escaped.

1) Follow chemical manufacture’s instructions for cleaning. Rinse thoroughly with recommended solvent. Do:

Follow Filling, Pressurizing and Spraying Instructions, except pump unit only 8-10 strokes. Be sure that the

wand and nozzle are thoroughly rinsed after each use.

2) Do: Open shut-off and allow water to run through discharge assembly.

3) Release pressure (Follow Pressure Release Instructions), remove pump and empty sprayer. Do:

4) Do: Store sprayer tank upside down, with pump removed, in a warm dry location.

5) Periodically oil pump by dropping 10-12 drops of light oil down pump rod through opening in cover.Do:

BEFORE RETURNING THIS PRODUCT FOR ANY REASON, PLEASE CALL:

1-800-950-4458

When calling, please have the following information available: Sales receipt & model number. This number

connects you directly with the manufacturer of this product. Our Technical Support Team will be happy to help

you with any assembly, troubleshooting and replacement information you may need.

CONGRATULATIONS!

YOU HAVE JUST PURCHASED A QUALITY CHAPIN PRODUCT.

VISIT US ON THE INTERNET: WWW.CHAPINMFG.COM
