Side 1/2

018456R0522

2. Nozzle

For constant spraying, push down on shut-off handle and

move locking mechanism away from you. To release, squeeze

handle and move the locking mechanism back towards you

(Fig. 7A).

7. Fatigue-Free Spraying

7A7A

6-6000

Nozzle

Tobera

Buse

6-1866

Shut-off Handle

Mango de cierre

Poignée du robinet

6-7711

Extension wand

Vara de extensión

Lance de rallonge

Attach nozzle to shut-off handle or extension wand.

3. Filter

The ﬁlter helps prevent clogging while spraying. It is located on

the end of the white tube inside your sprayer tank.To clean ﬁlter,

remove the hose from the tank and lift out the outlet tube. Make

sure the ﬁlter is positioned at the bottom of the tank as pictured.

(Fig. 3A)

Filter

Cone spray

Stream spray

2C 2D

3A3A

Sk-1154-1

WARNING: Improper use or failure to follow instructions can result in explosive failure

causing serious eye or other injury. For safe use of this product you must read and follow all

instructions. Do not leave a pressurized sprayer in the hot sun. Heat can cause pressure build-

up resulting in possible explosion. Do not store or leave solution in tank after use. Always wear

goggles, gloves, long sleeve shirt, long pants and full foot protection when spraying. Never use

any tool to remove pump if there is pressure in sprayer. Never stand with face or body over top of

tank when pumping or loosening pump to prevent ejecting pump assembly and/or solution from

striking and injuring you. Never pressurize sprayer by any means other than the original pump. Do

not attempt to modify this sprayer. Replace parts only with manufacturer’s original parts. Never

spray ﬂammable, caustic, acidic, chlorine, bleach or other corrosive solutions or heat, pressure,

or gas producing chemicals. Always read and follow chemical manufacturer’s instructions

before use with this sprayer as some chemicals may be hazardous when used with this sprayer.

WARNING

6-6136

Hose

Manguera

Tuyau

6-3337

Straps

Tirantes

Sangles

6-4605

Pressure Relief Valve

Válvula de descarga de presión

Soupape de décompression

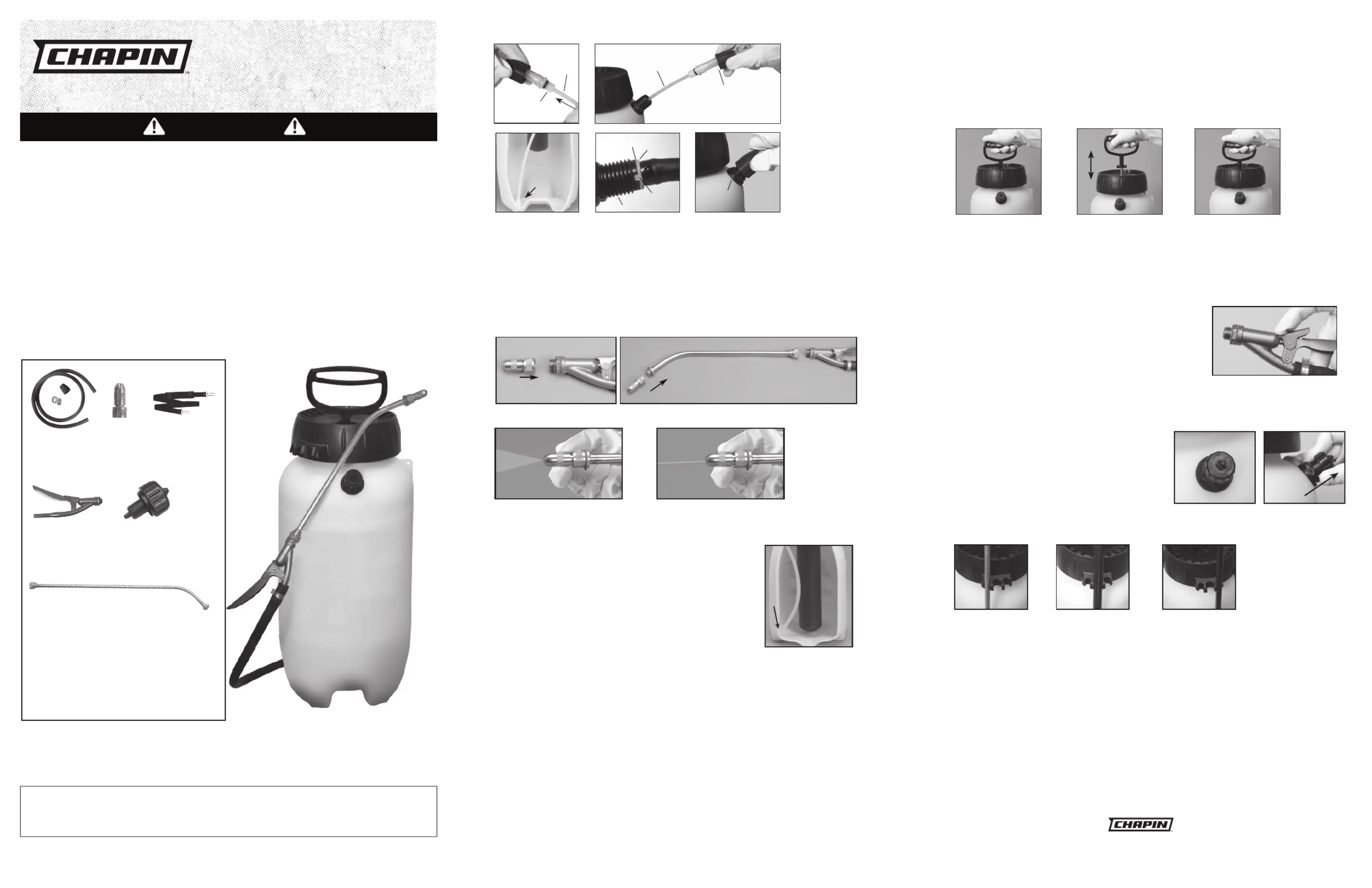

Parts, Piezas, Pièces

Note: Your particular sprayer may not include all parts pictured above.

Nota: Es posible que este pulverizador en particular no incluya todas las partes que se ilustran arriba.

Remarque : Votre pulvérisateur particulier pourrait ne pas inclure toutes les pièces illustrées plus haut.

Congratulations!

You have just purchased a quality Chapin product.

Call us @ 1-800-950-4458 or www.chapinmfg.com

6-4601

Repair Parts Kit Gaskets and Seals (not included),

Juego de piezas de reparación, empaquetaduras y

juntas (no incluido)

Kit de pièces de réparation, joints et garniture

d’étanchéité (non inclus)

1. Hose to Tank

Discharge/ Assembly

• Make sure white outlet tube is attached to outlet tube adapter (Fig. 1A).

• Insert the outlet tube portion of the discharge assembly into the tank adapter (Fig. 1B).

• Proper placement of white outlet tube (Fig. 1C).

• Firmly insert the outlet tube adapter into the tank adapter (Fig. 1D) Lining up tab with notches on

the tank adapter.

• Firmly tighten the retaining nut to the tank adapter (Fig. 1E).

Discharge

Assembly

Outlet

Tube

Retaining Nut -

Securely tightened.

1C 1D

Gap

Tank

Adapter

Outlet Tube

Adapter

Tab/

Notch

Outlet Tube

Adapter

Outlet

Tube

4. Pre-Use Check

1) Check tightness of hose nut to be sure hose is securely attached to the tank outlet. Do:

2) Do: Inspect hose for deterioration, cracks, softness, or brittleness. If any of these conditions are found,

replace hose before using. Replace with original manufacturer’s parts only.

3) Remove pump (see Filling, Pressurizing and Spraying Instructions), inspect interior and exterior of tank for Do:

signs of deterioration of body and bottom. Any sign of deterioration indicates possible tank weakening and could

result in explosive bursting under pressure. If any of these signs are found, discard tank immediately and replace.

Do not attempt to patch leaks, etc., as this could result in serious injury.

4) Follow Filling, Pressurizing and Spraying Instructions, except use water only (Pump plunger 10-20 strokes Do:

and inspect for leaks).

5) Direct shut-off away from you and open to make sure discharge is not clogged. Do:

6) Do: If unit passes this test, release pressure (see Pressure Releasing Instructions), empty tank, and proceed with

Filling, Pressurizing and Spraying Instructions.

7) Inspect all metal parts including the wand, nozzle and ﬁttings for rust, corrosion and pitting. If any of these Do:

conditions are found, replace affected part with original manufacturer’s part before using.

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

10. Care, Storage and Maintenance

1) Follow chemical manufacture’s instructions for cleaning. Rinse thoroughly with recommended solvent. Do:

Follow Filling, Pressurizing and Spraying Instructions, except pump unit only 8-10 strokes. Be sure that the

wand and nozzle are thoroughly rinsed after each use.

2) Do: Open shut-off and allow recommended solvent to run through discharge assembly.

3) Release pressure (Follow Pressure Release Instructions), remove pump and empty sprayer. Do:

4) Store sprayer tank upside down, with pump removed, in a warm dry location. Do:

5) Periodically oil pump by dropping 10-12 drops of light oil down pump rod through opening in cover.Do:

9. Wand Dock Clip

Choose the holder that ﬁts your wand.

5. Filling

1) Turn pump handle counterclockwise and remove pumpDo:

2) Do: Prepare spray solution following all directions and safety warnings on chemical label.

3) Fill tank to no more than the proper gallon marker. over ﬁll to accommodate pump.Do: Do NOT:

4) Check pump to make sure that no grass or dirt is stuck to barrel. Replace pump in tank and tighten securely.Do:

6. Pressurizing and Spraying

6A6A

6C6C

6B6B

Do: Turn handle clockwise

to tighten. Push handle

down, turn 1/4 turn

counterclockwise to

release.

Do: Pump until you

feel resistance.

Do: Push handle, down, turn 1/4 turn

clockwise to lock. Begin spraying. Re-

pump sprayer as required to maintain

spray force.

8. To Release Pressure

1) Your sprayer is equipped with a pressure relief/release

valve (Fig. 8A). To release pressure lift and hold the cap

until air is completely exhausted, OR, turn the valve

slowly counterclockwise until you hear air escaping

and wait air is completely exhausted (Fig. 8B).

2) Do: Stay away from the sprayer until all air has

escaped.

8A8A 8B

8B8B
