Side 1/2

018123R1021

2. Nozzle

Attach nozzle to extension wand (22790).

6-1898

Shut-off Handle

Mango de cierre

Poignée du robinet

6-6141

Hose Brown

Manguera Castaño

Tuyau Brun

6-7711

Extension wand

Vara de extensión, Rallonge (22180, 22170)

1-5941

Nozzle .5GPM

Tobera

Buse

6-3337

Straps

Tirantes

Sangles

6-7742

Extension wand

Vara de extensión, Rallonge (22790)

1-5797

Nozzle .5GPM

Tobera

Buse

Attach nozzle to shut-off handle or extension wand (22180, 22170).

1. Hose to Tank

Discharge/ Assembly

• Make sure white outlet tube is attached to outlet tube adapter (Fig. 1A).

• Insert the outlet tube portion of the discharge assembly into the tank adapter (Fig. 1B).

• Proper placement of white outlet tube (Fig. 1C).

• Firmly insert the outlet tube adapter into the tank adapter (Fig. 1D) Lining up tab with notches

on the tank adapter.

• Firmly tighten the retaining nut to the tank adapter (Fig. 1E).

Discharge

Assembly

Outlet

Tube

Retaining Nut - Se-

curely tightened.

1C 1D

Gap

Tank

Adapter

Outlet Tube

Adapter

Tab/

Notch

Outlet Tube

Adapter

Outlet

Tube

9. Care, Storage and Maintenance

1) Do: Follow chemical manufacture’s instructions for cleaning. Rinse thoroughly with

recommended solvent. Follow Filling, Pressurizing and Spraying Instructions, except pump unit

only 8-10 strokes. Be sure that the wand and nozzle are thoroughly rinsed after each use.

2) Do: Open shut-off and allow recommended solvent to run through discharge assembly.

3) Do: Release pressure (Follow Pressure Release Instructions), remove pump and empty sprayer.

4) Do: Store sprayer tank upside down, with pump removed, in a warm dry location.

5) Do: Periodically oil pump by dropping 10-12 drops of light oil down pump rod through opening

in cover.

5. Pressurizing and Spraying

Do: Turn handle

clockwise to tighten.

Push handle down,

turn 1/4 turn counter-

clockwise to release.

Do: Pump until

you feel resis-

tance.

Do: Push handle, down,

turn 1/4 turn clockwise

to lock. Begin spraying.

Re-pump sprayer as re-

quired to maintain spray

force.

5A5A

5C5C

5B5B

6. Fatigue-Free Spraying

For constant spraying, push down on shut-off handle

and move locking mechanism away from you. To

release, squeeze handle and move the locking

mechanism back towards you.

6A6A

7. To Release Pressure

1) Your sprayer is equipped with a pressure relief/

release valve (Fig. 7A). To release pressure lift and

hold the cap until air is completely exhausted, OR,

turn the valve slowly counterclockwise until you

hear air escaping and wait air is completely

exhausted Fig. 7B).

2) Do: Stay away from the sprayer until all air has

escaped.

7A7A 7B

7B7B

8. Wand Dock Clip

Choose the holder that ﬁts your wand.

6-4605

Pressure Relief Valve

Válvula de descarga de presión

Soupape de décompression

Sk-1154-1

WARNING: Improper use or failure to follow instructions can result in explosive failure causing serious

eye or other injury. For safe use of this product you must read and follow all instructions. Do not leave

a pressurized sprayer in the hot sun. Heat can cause pressure build-up resulting in possible explosion.

Do not store or leave solution in tank after use. Always wear goggles, gloves, long sleeve shirt, long pants

and full foot protection when spraying. Never use any tool to remove pump if there is pressure in sprayer.

Never stand with face or body over top of tank when pumping or loosening pump to prevent ejecting pump

assembly and/or solution from striking and injuring you. Never pressurize sprayer by any means other than

the original pump. Do not attempt to modify this sprayer. Replace parts only with manufacturer’s original

parts. Never spray ﬂammable, caustic, acidic, chlorine, bleach or other corrosive solutions or heat,

pressure, or gas producing chemicals. Always read and follow chemical manufacturer’s instructions

before use with this sprayer as some chemicals may be hazardous when used with this sprayer.

WARNING

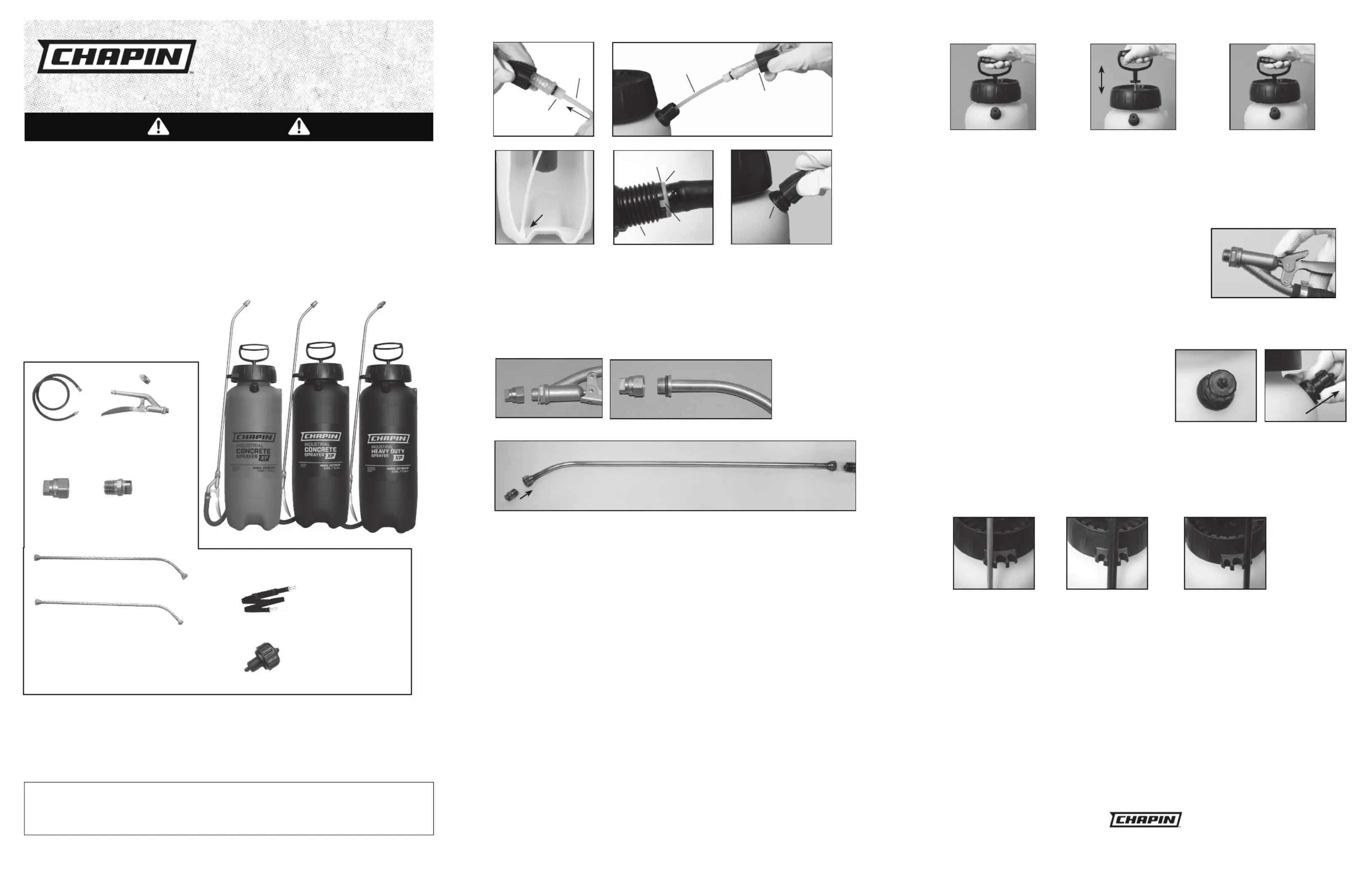

Parts, Piezas, Pièces

3. Pre-Use Check

1) Do: Check tightness of hose nut to be sure hose is securely attached to the tank outlet.

2) Do: Inspect hose for deterioration, cracks, softness, or brittleness. If any of these conditions are

found, replace hose before using. Replace with original manufacturer’s parts only.

3) Do: Remove pump (see Filling, Pressurizing and Spraying Instructions), inspect interior and

exterior of tank for signs of deterioration of body and bottom. Any sign of deterioration indicates

possible tank weakening and could result in explosive bursting under pressure. If any of these

signs are found, discard tank immediately and replace. Do not attempt to patch leaks, etc., as

this could result in serious injury.

4) Do: Follow Filling, Pressurizing and Spraying Instructions, except use water only

(Pump plunger 10-20 strokes and inspect for leaks).

5) Do: Direct shut-off away from you and open to make sure discharge is not clogged.

6) Do: If unit passes this test, release pressure (see Pressure Releasing Instructions), empty tank,

and proceed with Filling, Pressurizing and Spraying Instructions.

7) Do: Inspect all metal parts including the wand, nozzle and ﬁttings for rust, corrosion and pitting.

If any of these conditions are found, replace affected part with original manufacturer’s part

before using.

4. Filling

1) Do: Turn pump handle counterclockwise and remove pump

2) Do: Prepare spray solution following all directions and safety warnings on chemical label.

3) Do: Fill tank to no more than the proper gallon marker. Do NOT: over ﬁll to accommodate pump.

4) Do: Check pump to make sure that no grass or dirt is stuck to barrel. Replace pump in tank and

tighten securely.

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

Congratulations!

You have just purchased a quality Chapin product.

Call us @ 1-800-950-4458 or www.chapinmfg.com

6-4601

Repair Parts Kit Gaskets and Seals (not included)

Juego de piezas de reparación, empaquetaduras y juntas (no incluido)

Kit de pièces de réparation, joints et garniture d’étanchéité (non inclus)

Note: Your particular sprayer may not include all parts pictured above.

Nota: Es posible que este pulverizador en particular no incluya todas las partes que se ilustran arriba.

Remarque : Votre pulvérisateur particulier pourrait ne pas inclure toutes les pièces illustrées plus haut.

22790XP22170 XP22180XP
