INSTALLATION INSTRUCTIONS

for PULL-DOWN INFRA RED MODELS IFW-63 SERIES

5925 Heisley Road • Mentor, OH 44060-1833

Infra-red Lamps

IFW 63 Series

FL-2219

Rev. 2 (05/06) Page 1 of 2

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

ELECTRICAL SPECS:

VOLTS WATTS AMPS HERTZ PHASE NEMA

120 250 2.0 60 1 5-15

240 275 1.1 60 1 6-15

Warmer should be installed by an experienced

electrician.

U.L. and CSA REQUIREMENTS:

A. Wires of warmers to be connected to 75°C wire.

B. Wires are to be installed in conduit.

C. Warmers are not to be installed any closer than 1” from

a wall.

D. Warmers must be 16” above a combustible at least

surface.

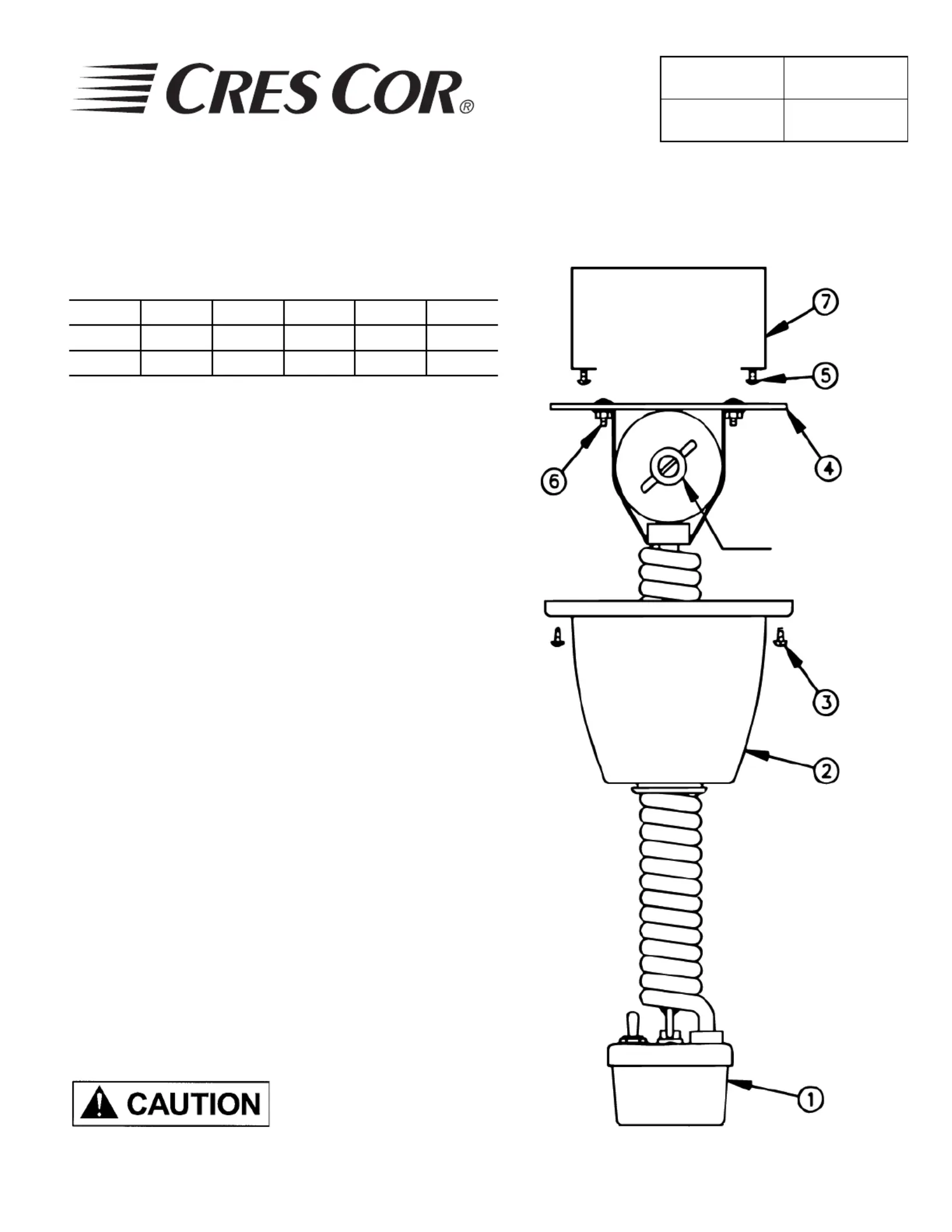

HOW TO INSTALL: (See ﬁ gure at right)

NOTE: Outlet box (7) and screws (5) are to be furnished by

customer.

Pull canopy (2) down over coil cord.

Attach ground wire from ceiling to the “GND” hole in

the plate (4) with screw (6).

Wire the warmer leads to the outlet box (7) leads.

Attach plate (4) to the outlet box (7) with screws (5).

Lower or raise the coil cord to the height you want.

Adjust the tension of the coil cord in the slot as shown.

(a) To increase tension, turn slot clockwise.

(b) To decrease tension, turn slot counter clockwise.

7. Pull up canopy (2) and screw it to the plate (4) with two

machine screws (3).

8. Screw lamp into socket.

DO PULL NOT

DOWN ON CORD

BEYOND THE STOP.

Adjust Coil

Tension

INSTALLATION INSTRUCTIONS

for PULL-DOWN INFRA RED MODELS IFW-63 SERIES

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Infra-red Lamps

IFW 63 Series

FL-2219

Rev. 2 (05/06) Page 2 of 2

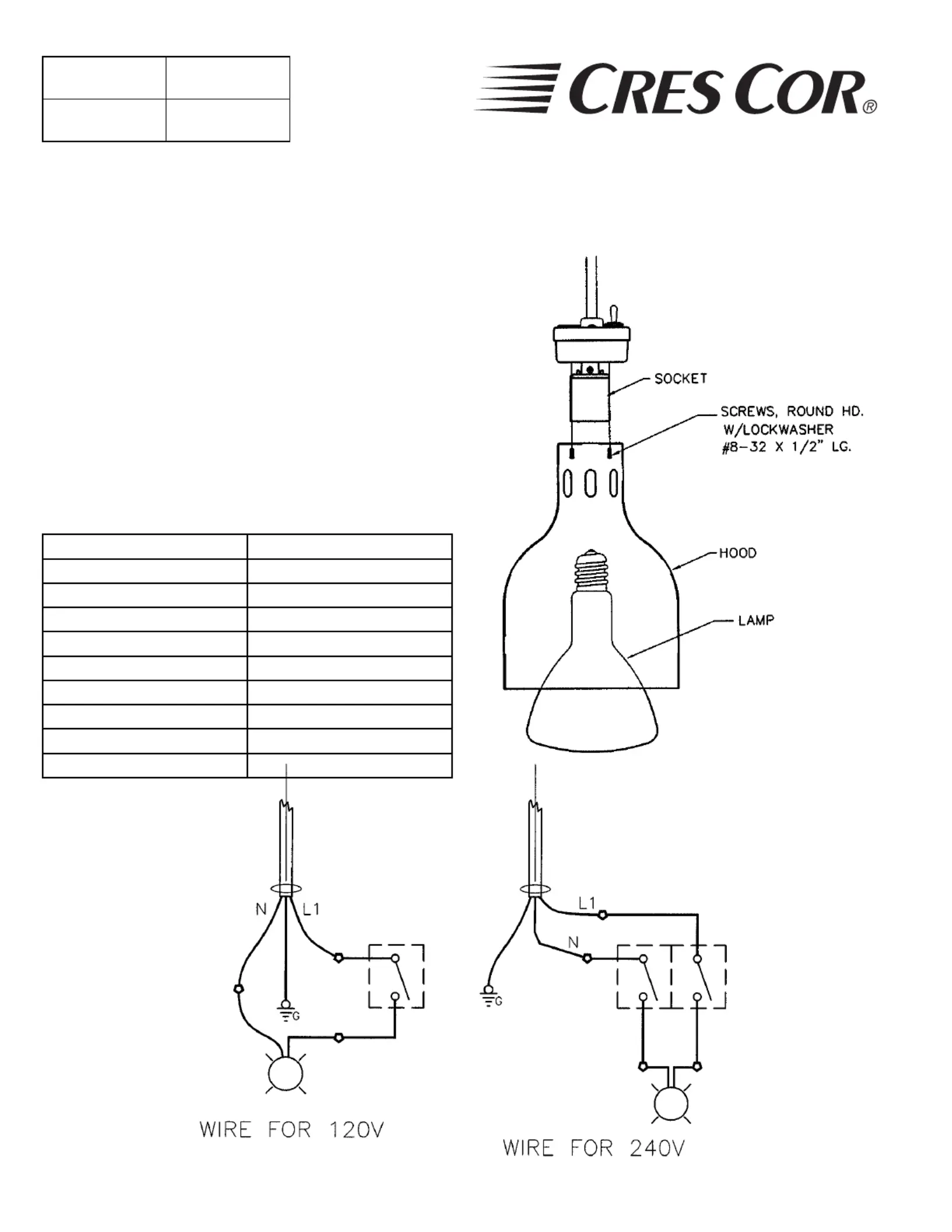

HOW TO INSTALL HOOD:

You will need a Phillips head (preferably magnetic)

screwdriver with a long neck.

Slide the hole in the top of the hood over the socket.

Look inside of the hood and line up two (2) hood

mounting holes with the holes in the arm assembly.

Put the screw provided on the screwdriver tip and

screw loosely into one hole and then into the other;

then tighten both screws.

Screw lamp into the socket.

REPLACEMENT PARTS:

DESCRIPTION CMP No.

Lamp, Red (120V) 0820-001

Lamp, White (120V) 0820-033

Lamp, Red (240V) 0820-014

Socket 0822-037

Switch (120V) 0808-002

Switch (240V) 0808-122

Reel/Pulley Assembly 1287-084

Coil Cord (IFW 63) 0834-006

Coil Cord (IFW 63L) 0834-007
