INSTALLATION INSTRUCTIONS
for PULL-DOWN INFRA RED MODELS IFW-63 SERIES
5925 Heisley Road • Mentor, OH 44060-1833
Infra-red Lamps
IFW 63 Series
FL-2219
Rev. 2 (05/06) Page 1 of 2
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
ELECTRICAL SPECS:
120 250 2.0 60 1 5-15
240 275 1.1 60 1 6-15
Warmer should be installed by an experienced
electrician.
U.L. and CSA REQUIREMENTS:
A. Wires of warmers to be connected to 75°C wire.
B. Wires are to be installed in conduit.
C. Warmers are not to be installed any closer than 1” from
a wall.
D. Warmers must be 16” above a combustible at least
surface.
HOW TO INSTALL: (See fi gure at right)
NOTE: Outlet box (7) and screws (5) are to be furnished by
customer.
Pull canopy (2) down over coil cord.
Attach ground wire from ceiling to the “GND” hole in
the plate (4) with screw (6).
Wire the warmer leads to the outlet box (7) leads.
Attach plate (4) to the outlet box (7) with screws (5).
Lower or raise the coil cord to the height you want.
Adjust the tension of the coil cord in the slot as shown.
(a) To increase tension, turn slot clockwise.
(b) To decrease tension, turn slot counter clockwise.
7. Pull up canopy (2) and screw it to the plate (4) with two
machine screws (3).
8. Screw lamp into socket.
1.
2.
3.
4.
5.
6.
DO PULL NOT
DOWN ON CORD
BEYOND THE STOP.
Adjust Coil
Tension
INSTALLATION INSTRUCTIONS
for PULL-DOWN INFRA RED MODELS IFW-63 SERIES
5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Infra-red Lamps
IFW 63 Series
FL-2219
Rev. 2 (05/06) Page 2 of 2

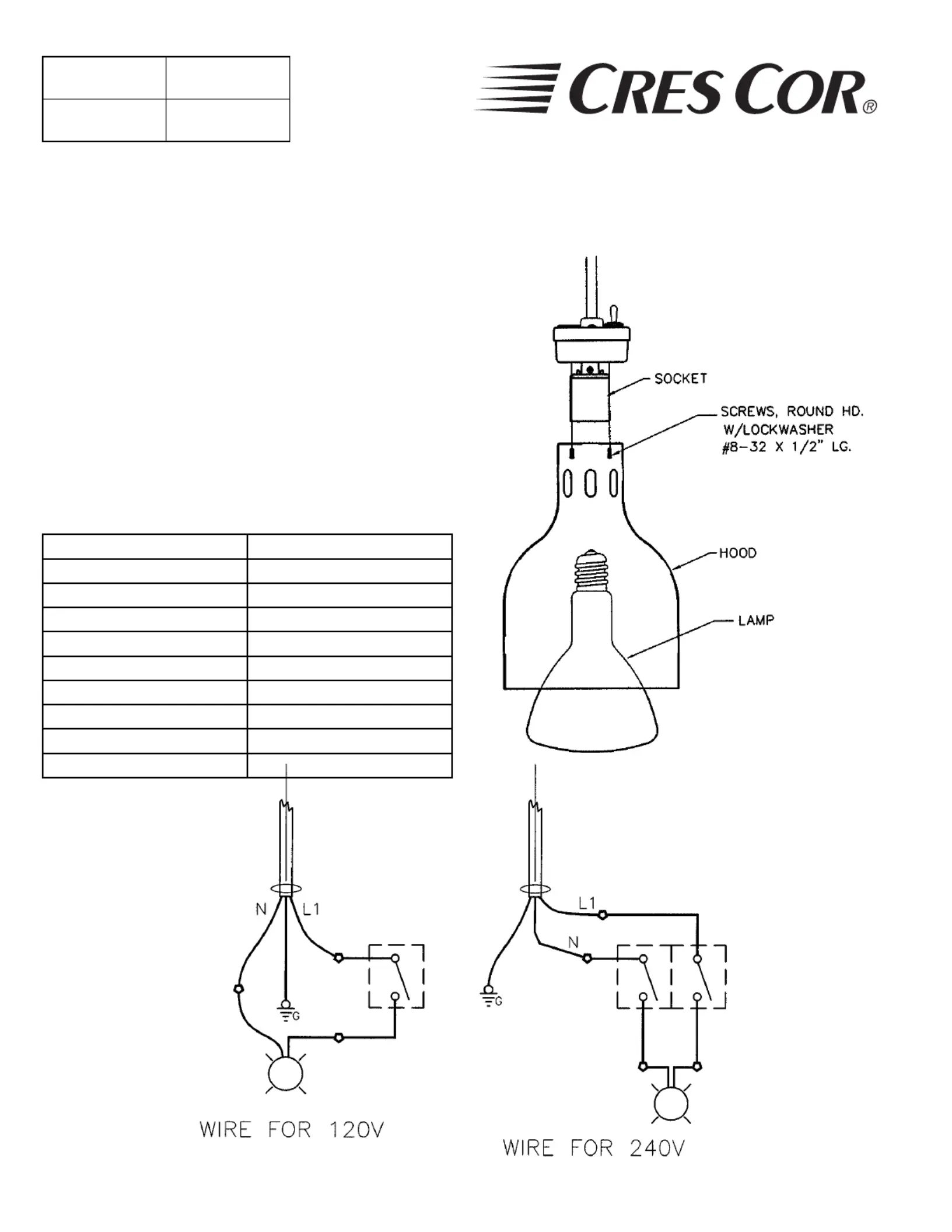

HOW TO INSTALL HOOD:
You will need a Phillips head (preferably magnetic)
screwdriver with a long neck.
Slide the hole in the top of the hood over the socket.
Look inside of the hood and line up two (2) hood
mounting holes with the holes in the arm assembly.
Put the screw provided on the screwdriver tip and
screw loosely into one hole and then into the other;
then tighten both screws.
Screw lamp into the socket.
1.
2.
3.
4.
REPLACEMENT PARTS:
DESCRIPTION CMP No.
Lamp, Red (120V) 0820-001
Lamp, White (120V) 0820-033
Lamp, Red (240V) 0820-014
Socket 0822-037
Switch (120V) 0808-002
Switch (240V) 0808-122
Reel/Pulley Assembly 1287-084
Coil Cord (IFW 63) 0834-006
Coil Cord (IFW 63L) 0834-007
