Side 1/3

CLTIBN-BLANK

Terminal Block & Module Locations (Single-wide Enclosure)

Functional Summary

The Crestron

CLTIBN-BLANK Terminal Block for

Breakers allows the installation of DIN rail-mounted

branch circuit breakers (supplied by others) in a Crestron

CAENIB automation enclosure. Every CLTIBN-BLANK

includes covers for unoccupied slots on the DIN rail and a

door kit that is installed on the cover of the CAENIB

enclosure. This door kit allows access to the circuit

breakers located on the CLTIBN-BLANK without

removing the cover of the CAENIB enclosure. An

adhesive label is also provided for identifying controlled

circuits.

Industry Compliance

This product complies with the essential requirements of

all applicable EU directives.

Installation

The terminal block must be mounted into a CAENIB

Enclosure by a licensed electrician, in accordance with all

national and local codes.

Terminal Block & Module Locations (Double-wide Enclosure)

CAUTION: This equipment is for indoor use only and

needs to be air-cooled. Mount in a well-ventilated area.

The ambient temperature must be 0°C to 40°C (32°F to

104°F). The relative humidity must be 0% to 90% (non-

condensing).

Terminal blocks are installed along the left side of single-

wide enclosures and along the outside edges (left and

right sides) of double-wide enclosures. Refer to the

illustrations shown in the next column when considering

the location of terminal blocks and modules within an

enclosure.

NOTE: To insure proper fit, terminal blocks must be

installed at the locations indicated in the latest version of

the CAENIB Installation Guide.

NOTE: Unless otherwise indicated, the lighting system

specified in this guide is modular, requiring assembly in

the field by a licensed electrician, in accordance with all

national and local codes.

Crestron Electronics, Inc. Installation Guide – DOC. 6586A

15 Volvo Drive Rockleigh, NJ 07647 (2018015)

Tel: 888.CRESTRON 05.07

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Terminal Block for Breakers Crestron CLTIBN-BLANK

2 •

•

•• Terminal Block for Breakers: CLTIBN-BLANK Installation Guide – DOC. 6586A

Breaker Installation

5. Grounding terminal blocks are available in the

cabinet for termination of ground wires. Tighten

to 4 Nm (2.5 - 6.0 mm

), 4.5 Nm (10.0 mm

), or

5.1 Nm (16 - 25 mm

Using the diagram below as reference, install DIN rail-

mounted circuit breakers in the CLTIBN-BLANK.

1. Using a Phillips screwdriver, remove the four

screws securing the cover plate to the

CLTIBN-BLANK and remove the cover plate.

6. Replace the cover plate that was removed during

step 1 of the installation procedure.

7. Insert plastic covers into unoccupied slots.

2. Mount DIN rail-mounted circuit breakers and

other DIN rail components on to the

CLTIBN-BLANK’s DIN rail.

Access Door Installation

After the terminal block has been installed and

successfully tested, the access door must be installed on

the CAENIB’s cover in the location of the terminal block.

NOTE: All DIN rail components must be

installed and connected according to

manufacturer’s specifications.

1. If a blank plate is installed, remove it by

removing the nuts that secure the plate to the

CAENIB cover. Remove the plate from the

mounting studs on the CAENIB cover.

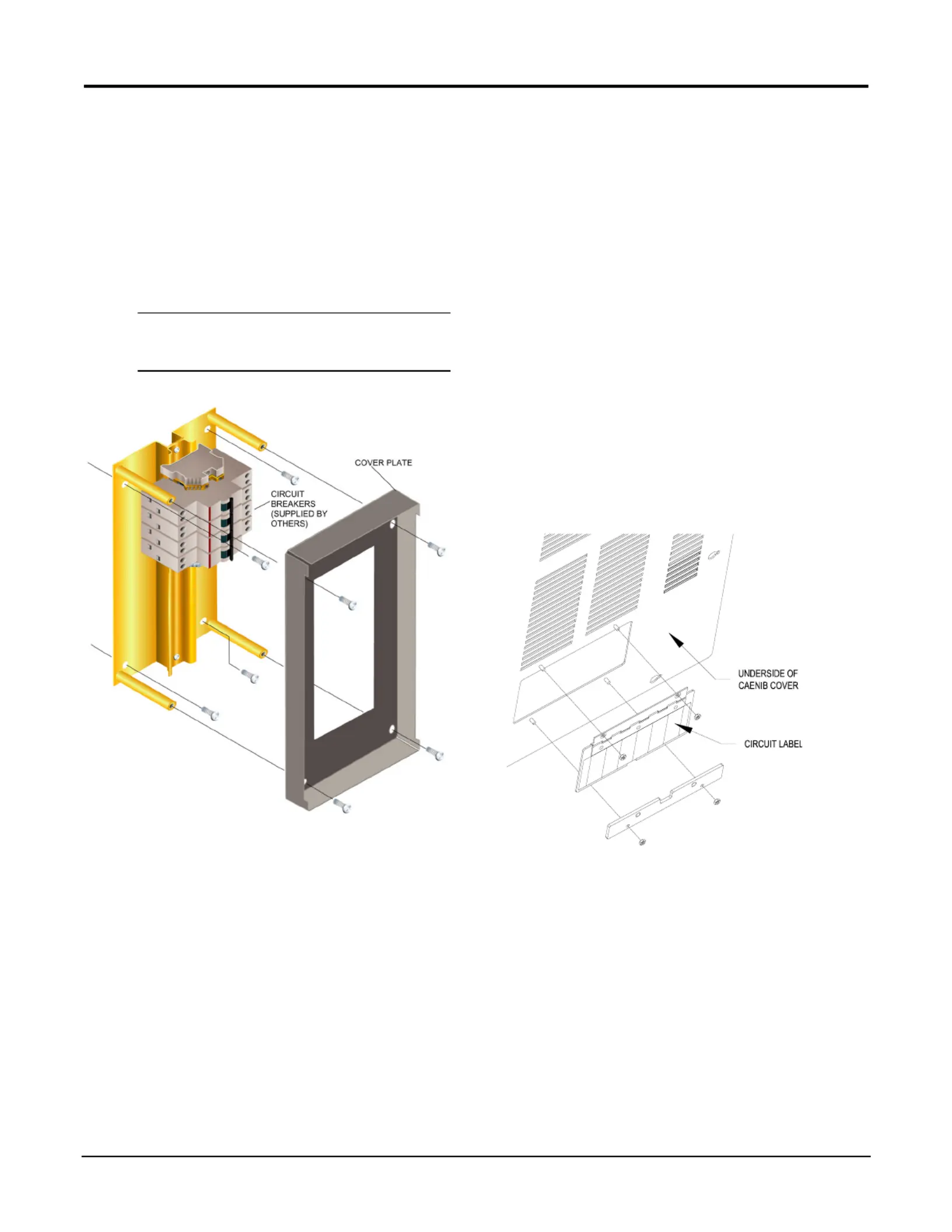

CLTIBN-BLANK Exploded View

2. Install the access door assembly as shown in the

following diagram.

Install Access Door Assembly (Underside of CAENIB Cover

shown)

3. Use the four supplied self-tapping pan Phillips

screws (8B x ¼-inch (6 mm) length) to secure

the terminal block to the Crestron Automation

Enclosure.

3. Secure the door assembly to the CAENIB cover,

by tightening the included nuts.

4. Open the access door and affix the included

blank circuit label to the door. Label the circuits

as required.

4. Make all required connections to the circuit

breakers.
