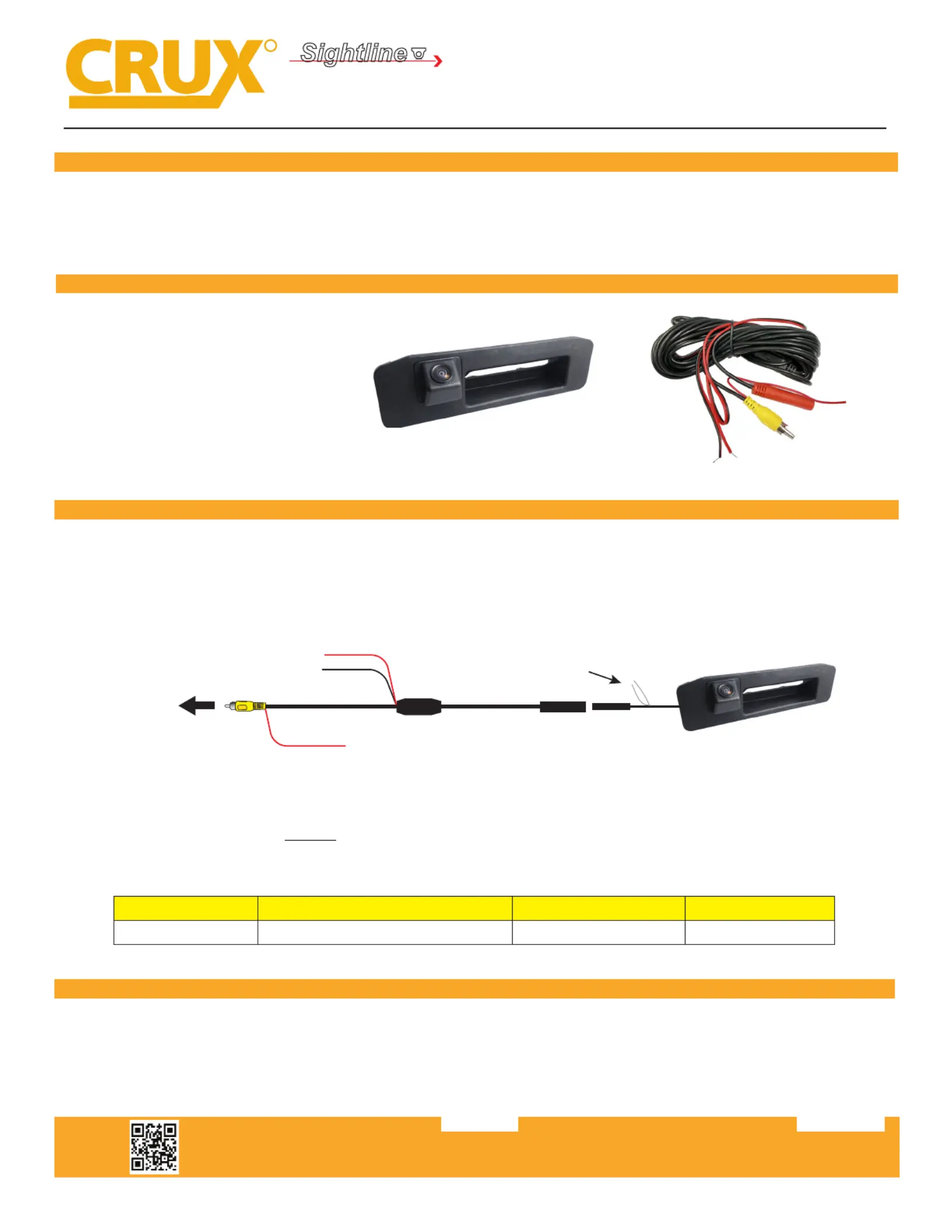

CMB-16G
Trunk Handle Camera for
MERCEDES BENZ GLK Class 2012-2016
- Replaces factory trunk handle.
- Selectable Parking Guide Line ON or OFF.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
R
Sightline
CAMERAS
1. Trunk handle camera
2. 20” extension cable
INSTALLATION INSTRUCTIONS:
1. Remove the trunk liner to gain access to the 2 screws holding the factory trunk handle.
2. Run the camera cable to the inside of the cabin towards the radio.
3. Make the power and video connecons to the RVC interface or the aermarket radio.
4. Test the camera for funconality before installing the new trunk handle with camera.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.032521
VEHICLE APPLICATIONS:
MERCEDES BENZ
2012-2016 GLK Class
1
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse
light wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not
being used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
White Parking Lines ON (default) OFF
