RVCAD-81T
Front and Rear View Integration Interface
for AUDI TT with 4G Systems
- Acvates Reverse camera input in Audi TT with 4G systems.
- Rear-view camera input with PDC seng.
- Front camera input with med acvaon/deacvaon seng.
- On-screen display and setup.

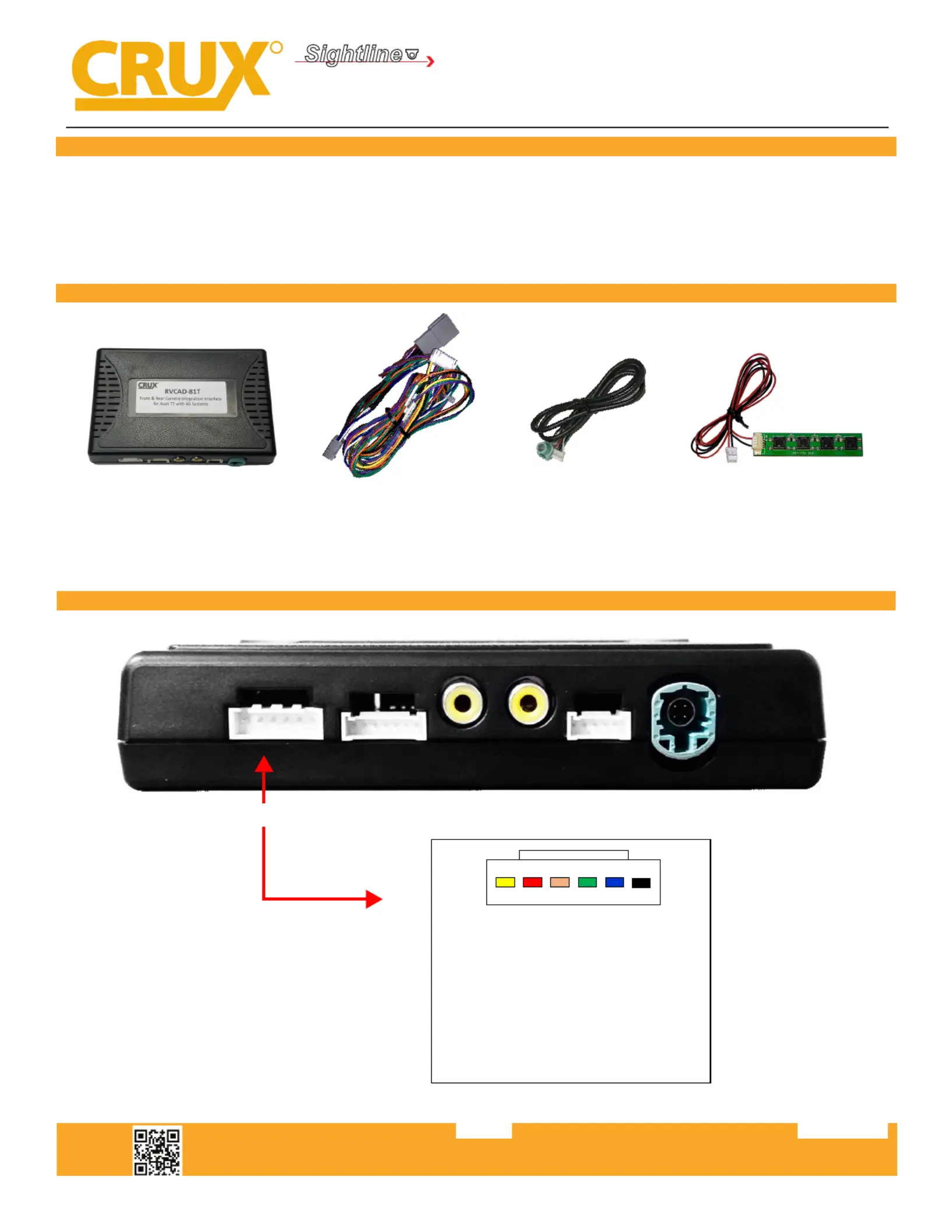

PARTS INCLUDED:
RCVAD-81T Module RVCAD-81T Harness LVDS Cable Programming Keypad
rev.0312201 of 6
Pow /CANer
POWER Harness
REARFRONT
ACC (Ye ow)ll
FRONT/REAR_POWER (Red)
CAN - HIGH ( ange)Or
CAN - LOW (Gr n)ee
MMI (Blue)
GND lack)(B
①②③④⑤
CONNECTOR PIN ASSIGNMENT:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RVCAD-81T
Front and Rear View Integration Interface
for AUDI TT with 4G Systems
2 of 6
rev.031220
R
INTERFACING SOLUTIONS
Sightline
REAR-VIEW INTEGRATION
DIP SWITCH SETTINGS:
DIP# FUNCTION SETTING
1 NO FUNCTION SET TO OFF
2NO FUNCTION SET TO OFF
3NO FUNCTION SET TO OFF
4 NO FUNCTION SET TO OFF
5
AUDI TT with 12” screen
ON
6 ON
7 ON
8OFF
DOWN is ON

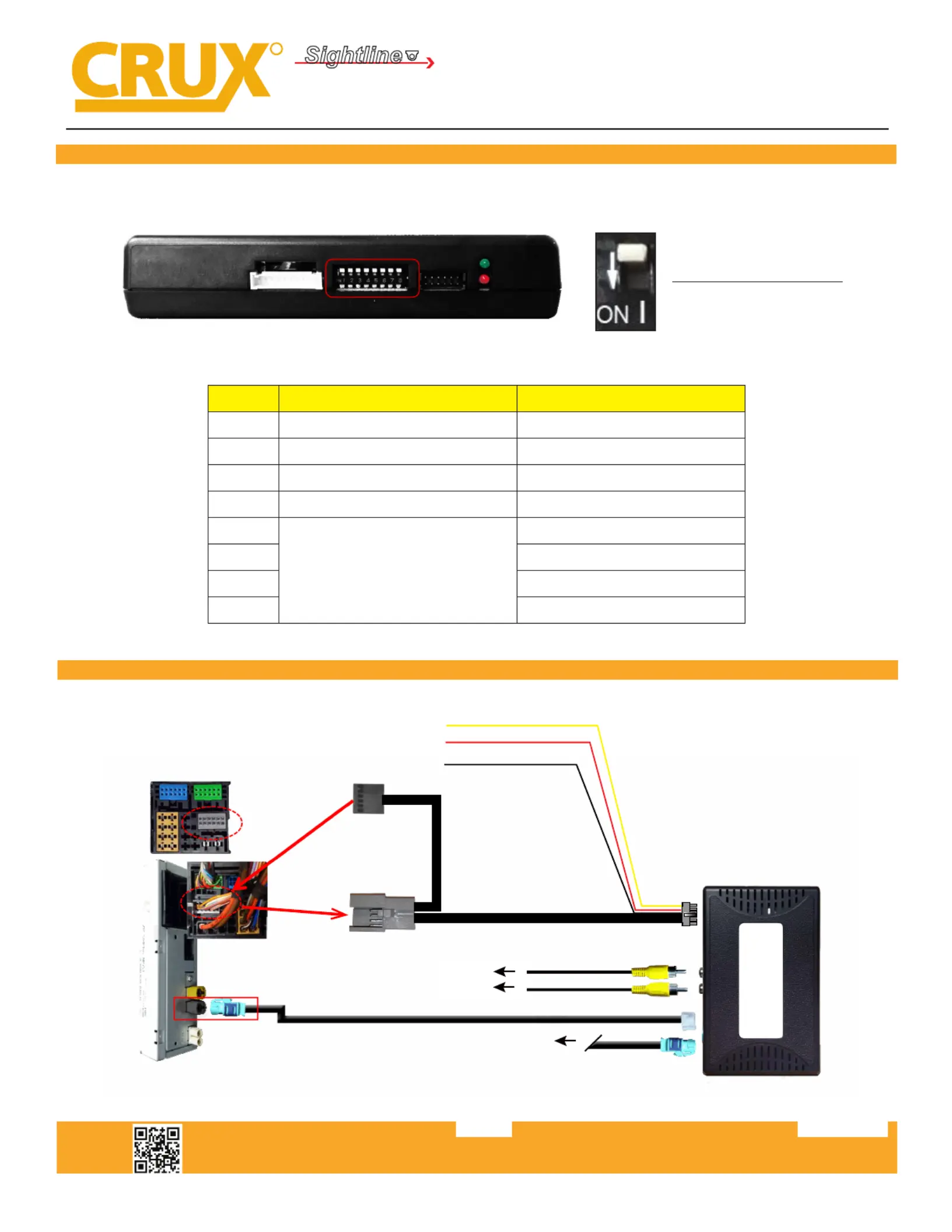

WIRING DIAGRAM:
ACC (Yellow)
Rear Camera Power (Red)
Ground (Black)
To OE Monitor
Connect to GRAY Connector
(DO NOT connect to Blue or
Green Connector)
RVCAD-81T
To Rear Camera
To Front Camera
