Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.100220

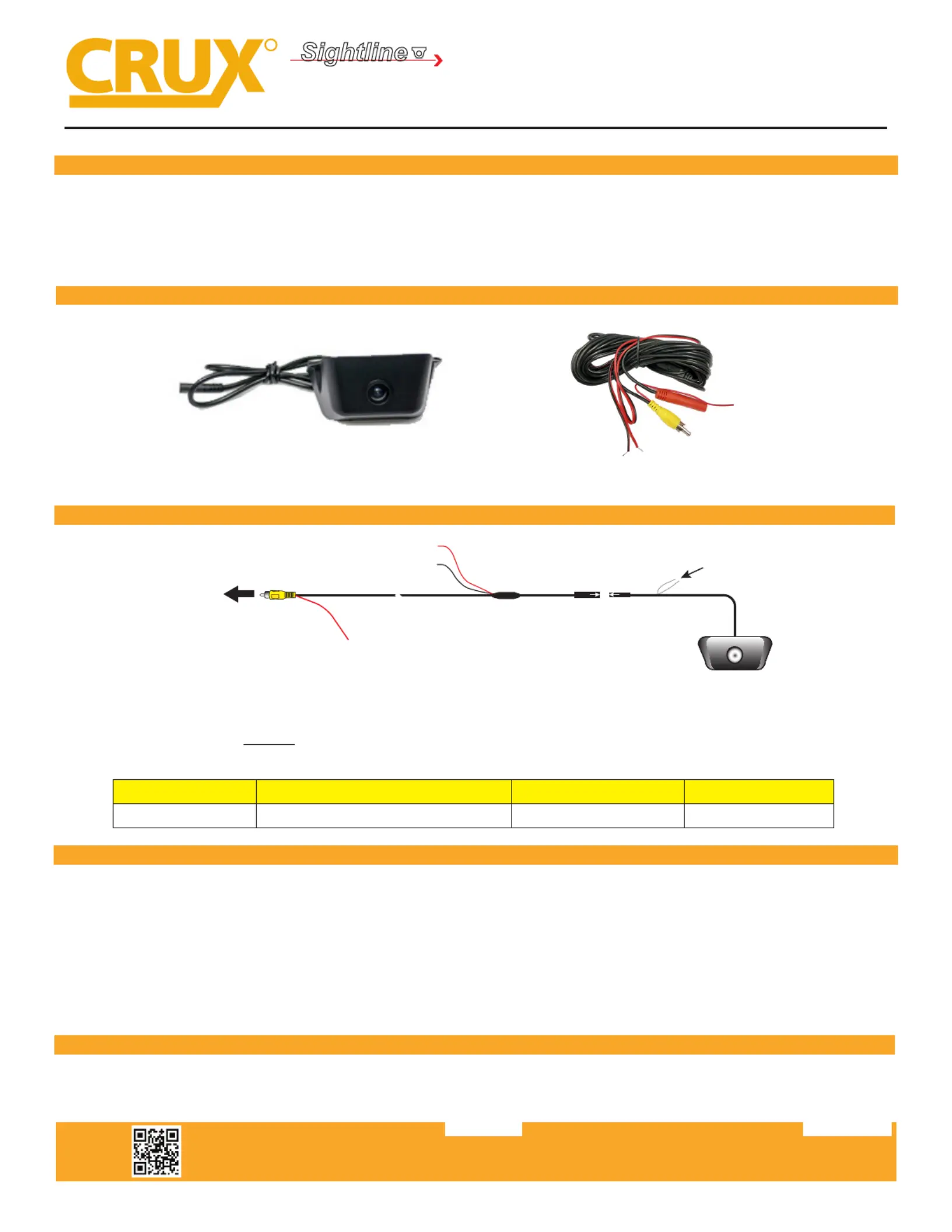

CCH-01G

Jeep Grand Cherokee Lip Mount Camera

2014 - 2017

- Installs on your Jeep Grand Cherokee’s rear hatch lip.

- 120° wide viewing angle.

- 0.4 Lux minimum for night driving.

- Selectable Parking Guide Line ON or OFF.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

CCH-01G CAMERA EXTENSION CABLE

INTERFACING SOLUTIONS

Sightline

CAMERAS

WHITE Wire

Parking Guideline

Regulator

Extension Coax Cable

GROUND

RED Wire (A)*

RED Wire (B)*

Make sure the arrows

line up and push in

the connectors well.

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

LIP MOUNT

CAMERA

1. The CCH-01G installs by the rear hatch release lever.

2. Run the camera cable to the inside of the rear hatch.

3. Connect the power of the camera according to the diagram above.

4. Connect the video cable of the camera to the extension cord provided.

5. Run the video extension cable to the back of the radio.

6. Connect the video cable to your aermarket radio’s camera input or to the rear view camera interface.

7. Put the gear in reverse to see the image from the camera.

INSTALLATION PROCEDURE:

1 of 1

*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light

wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being

used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.

Loop Wire Color Joined CutFuncon

White Parking Lines ON (default) OFF

VEHICLE APPLICATIONS:

2014 - 2017 Jeep Grand Cherokee

Produkt Specifikationer

Mærke:	CRUX
Kategori:	Bakkamera
Model:	CCH-01G
