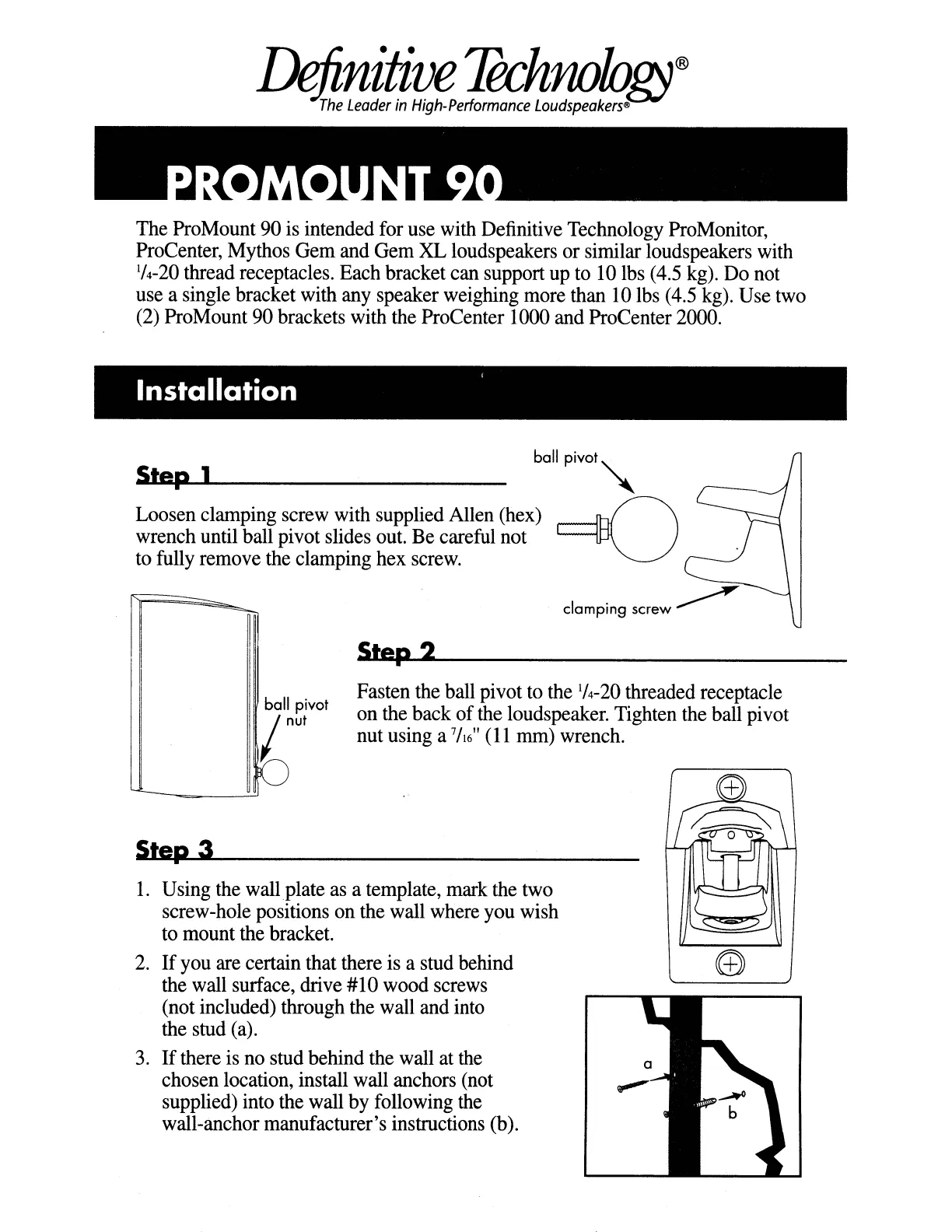

The ProMount 90 is intended for use with Definitive Technology ProMonitor,
ProCenter, Mythos Gem and Gem XL loudspeakers or similar loudspeakers with
1/4-20 thread receptacles. Each bracket can support up to 10 lbs (4.5 kg). Do not
use a single bracket with any speaker weighing more than 10 lbs (4.5 kg). Use two
(2) ProMount 90 brackets with the ProCenter 1000 and ProCenter 2000.
Step 1
Loosen clamping screw with supplied Allen (hex)
wrench until ball pivot slides out. Be careful not
to fully remove the clamping hex screw.
Step 2
Fasten the ball pivot to the 1/4-20 threaded receptacle
on the back of the loudspeaker. Tighten the ball pivot
nut using a 7/16" (11 mm) wrench.
Step 3
1. Using the wall plate as a template, mark the two
screw-hole positions on the wall where you wish
to mount the bracket.
2. If you are certain that there is a stud behind
the wall surface, drive #10 wood screws
(not included) through the wall and into
the stud (a).
3. If there is no stud behind the wall at the
chosen location, install wall anchors (not
supplied) into the wall by following the
wall-anchor manufacturer’s instructions (b).
PROMOUNT 90 USER’S GUIDE
Installation
ball pivot
clamping screw
ball pivot
nut
a
b
For more information on Definitive Technology Loudspeakers and accessories,
visit www.definitivetech.com, or email info@definitivetech.com.
Definitive Technology, Owings Mills, Maryland, USA. 410-363-7148
4. Always use two wall anchors and two screws per
bracket. We do not provide mounting screws or other
hardware because we do not know to what kind of
material you will be attaching the speaker.
5. For wood surfaces and studs, use wood screws; for
sheetrock or gypsum, you should use wall anchors;
for masonry, use masonry anchors.
Step 4
1. Connect the speaker wires to the loudspeaker.
2. Place the ball pivot into the wall bracket clamp.
3. Hold the loudspeaker securely with one hand and
tighten the clamping screw until you feel friction
between the ball pivot and the clamp, but not so
tight as to prevent easy aiming of the speaker.
4. Adjust the speaker to the desired angle and tighten
the clamping screw firmly.
5. Do not over-tighten as that may strip the screw threads.
6. attempt to adjust the speaker angle while the clamping screw is tight. Do not
7. To adjust the loudspeaker angle, loosen the clamping screw, adjust the position
and re-tighten the clamping screw.
It is our pleasure to offer assistance if you have any questions regarding your
ProMount 90 or its set-up. Please contact your nearest Definitive Technology deal-
er or call us directly at (800) 228-7148 (US & Canada), 01 (410) 363-7148
(all other countries), or e-mail info@definitivetech.com.
Technical Assistance
Visit us at www.definitivetech.com.
Installation continued
PROMOUNT 90 USER’S GUIDE
EPAT100208
