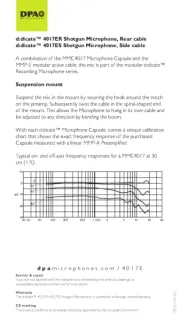

d:dicate™ 4017ER Shotgun Microphone, Rear cable
d:dicate™ 4017ES Shotgun Microphone, Side cable
A combination of the MMC4017 Microphone Capsule and the
MMP-E modular active cable, this mic is part of the modular d:dicate™
Recording Microphone series.
Suspension mount
Suspend the mic in the mount by securing the hook around the notch
on the preamp. Subsequently twist the cable in the spiral-shaped end
of the mount. This allows the Microphone to hang in its own cable and
be adjusted to any direction by bending the boom.
With each d:dicate™ Microphone Capsule, comes a unique calibration
chart that shows the exact frequency response of the purchased
Capsule measured with a linear MMP-A Preamplifier.

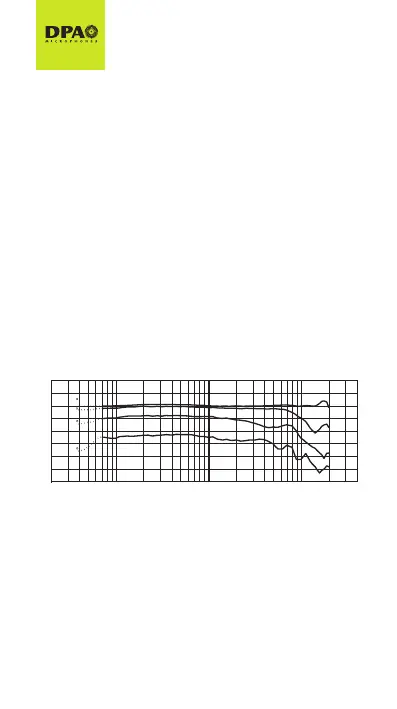

Typical on- and o-axis frequency responses for a MMC4017 at 30
cm (1 ft):
d p a m i c r o p h o n e s . c o m / 4 0 1 7 E
Service & repair
If you are not satisfied with the characteristics exhibited by this product, please go to
www.dpamicrophones.com/service for instructions.
Warranty
The d:dicate™ 4017ER-4017ES Shotgun Microphone, is covered by a five-year limited warranty.
CE marking
This product conforms to all relevant directives approved by the European Commision.
DPI-4017E-QG
4015C Compact Wide Cardioid Microphone
A combination of the MMC4015 microphone capsule and the MMP-
'TVIEQTPM½IVXLI'[MHIGEVHMSMHQMGMWTEVXSJ XLIQSHYPEV
DPA d:dicate
TM
series.
PERFORMANCE
8LI WYTTPMIH GEPMFVEXMSR GLEVX WLS[W XLI WTIGMEPP] XEMPSVIH
MRHMZMHYEP JVIUYIRG] VIWTSRWI SJ XLI 11' GETWYPI QIEWYVIH
[MXLEPMRIEV114%TVIEQT
8]TMGEPSRERHSJJE\MWJVIUYIRG]VIWTSRWIWSJ11'EXGQ
(2 ft) distance:
[[[HTEQMGVSTLSRIWGSQ'
DPI-4015C-QG
Service & repair
-J]SYEVIRSXWEXMW½IH[MXLXLIGLEVEGXIVMWXMGWI\LMFMXIHF]XLMWTVSHYGXTPIEWIGSRXEGX]SYVRIEVIWX(4%
Microphones representative for support.
Warranty
'MWGSZIVIHF]E½ZI]IEVPMQMXIH[EVVERX]
CE marking
8LMWTVSHYGXGSRJSVQW[MXLEPPVIPIZERXHMVIGXMZIWETTVSZIHF]XLI)YVSTIER'SQQMWWMSR
CLIP & WINDSCREEN
1SYRXXLIQMGMRXLIGPMTEXXLINYRGXMSRFIX[IIRQMGERH<06GSRRIGXSV
1SYRXXLI[MRHWGVIIREXXLIQMGLIEHEJXIVLEZMRKTPYKKIHXSXLI<06
connector.
4017ER d:dicate™ Shotgun Microphone, Rear cable
4017ES d:dicate™ Shotgun Microphone, Side cable
A combination of the MMC4017 mic capsule and the MMP-E modular
active cable, the 4017E is part of the modular DPA d:dicate™ Record-
ing Microphones series.
Suspension Mount
Suspend the mic in the mount by securing the hook around the notch
on the preamp. Subsequently twist the cable in the spiral-shaped end
of the mount. This allows the microphone to hang in its own cable and
be adjusted to any direction by bending the boom.
With each DPA microphone capsule, comes a unique calibration chart
that shows the exact frequency response of the purchased capsule
measured with a linear MMP-A preamp.
Typical on- and off-axis frequency responses for a MMC4017 at 30
cm (1 ft):
w w w . d p a m i c r o p h o n e s . c o m / 4 0 1 7
4017E is covered by five-year limited warranty.
DPI-4017E-QG
dB
10
0
-10
-20
-30
20 Hz 50 10 0200 5001 kHz2 5102040
0
30
60
90
Specifications
Directional pattern
Supercardioid, lobe-shaped
Principle of operation
Pressure gradient, with interference tube
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm
40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
Sensitivity, nominal, ±2 dB at 1 kHz
19 mV/Pa; -34.4 dB re. 1 V/Pa
Epuivalent noise level, A-weighted
Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
Max. SPL, peak before clipping
142 dB
Output impedance
100 Ω
Minimum load impedance
2 kΩ
Cable drive capability
100 m (328 ft)
Output balance principle
Signal balanced
Common Mode Rejection Ratio (CMRR)
> 40 dB
Power supply
48 V Phantom power (±4 V)
Current consumption
3.5 mAe
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Weight
109 g (3.8 oz)
Polarity
+V at Pin 2 for positive sound pressure
Operating temperature range
-40 to 45°C (-40 to 113°F)
Relative humidity
Up to 90%

Produkt Specifikationer

Mærke: DPA
Kategori: Mikrofon
Model: 4017ER
