Side 1/8

METAL,

VOLTAGE &

STUD DETECTOR

13818 – 501G INSTRUCTIONS FOR USE

Original Instructions

Version 1

1. Preface

These are the original product instructions. This document is part of

the product; retain it for the life of the product, passing it on to

subsequent holders. Read this manual in full before attempting to

assemble, operate, or maintain this product.

This Draper Tools manual describes the purpose of the product and

contains all the necessary information to ensure its correct and safe

use. Following all the instructions and guidance in this manual will

ensure the safety of both the product and the operator and increase

the lifespan of the product.

All photographs and drawings within this manual are supplied by

Draper Tools to help illustrate correct operation of the product.

Every eort has been made to ensure the information contained in

this manual is accurate. However, Draper Tools reserves the right to

amend this document without prior warning. Always use the latest

version of the product manual.

1.2 Revisions

Version 1: February 2018

First release

Version 2: June 2022

General content and formatting updates

Version 3: September 2023

Product specication update

As our manuals are continually updated, always ensure that the

latest version is used.

Download the latest version from:

drapertools.com/manuals

Permission is granted to reproduce this manual for personal and

educational use ONLY. Commercial copying, redistribution, hiring,

or lending is strictly prohibited.

No part of this manual may be stored in a retrieval system or

transmitted in any other form or means without written permission

from Draper Tools Limited.

In all cases, this copyright notice must remain intact.

1.4 Understanding the Safety Content

WARNING! – Situations or actions that may result in personal injury

or death.

CAUTION! – Situations or actions that may result in damage to the

product or surroundings.

Important: – Information or instructions of particular importance.

2. Warranty

Draper Tools products are carefully tested and inspected before

shipment and are guaranteed to be free from defective materials

and workmanship.

Should the tool develop a fault, return the complete tool to your

nearest distributor or contact Draper Tools directly. Contact

information can be found at the back of this manual.

Proof of purchase must be provided.

If, upon inspection, it is found that the fault occurring is due to

defective materials or workmanship, repairs will be carried out free

of charge.

This warranty period covers parts and labour for 12

months from the date of purchase. Where tools have been hired out,

the warranty period covers 90 days from the date of purchase.

This warranty does not apply to any consumable parts, batteries or

normal wear and tear, nor does it cover any damage caused by

misuse, careless or unsafe handling, alterations, accidents, or

repairs attempted or made by any personnel other than the

authorised Draper Tools repair agent.

In all cases, to make a claim for faulty workmanship or materials

within the standard warranty period, please contact or return the

product to the place of purchase. Proof of purchase may be

required.

If the place of purchase is no longer trading or if you experience any

diculties with your warranty, please contact Customer Services

with the product details and your proof of purchase. Contact details

can be found at the back of this manual.

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK 0923

– 2 –

If the tool is not covered by the terms of this warranty, repairs and

carriage charges will be quoted and charged accordingly.

This warranty supersedes any other guarantees expressed or implied and

variations of its terms are not authorised.

Your Draper Tools guarantee is not eective until you can produce, upon

request, a dated receipt or invoice to verify your purchase within the

guarantee period.

Please note that this warranty is an additional benet and does not aect

your statutory rights.

Draper Tools Limited

3. Specication

Stock No. 13818

Part No. 501G

Maximum wood detecting depth 10mm

Maximum metal detecting depth 25mm

Maximum live wiring detecting depth 35mm

Ambient condition. -20°C to 60°C below 80% RH

Battery 9V, PP3

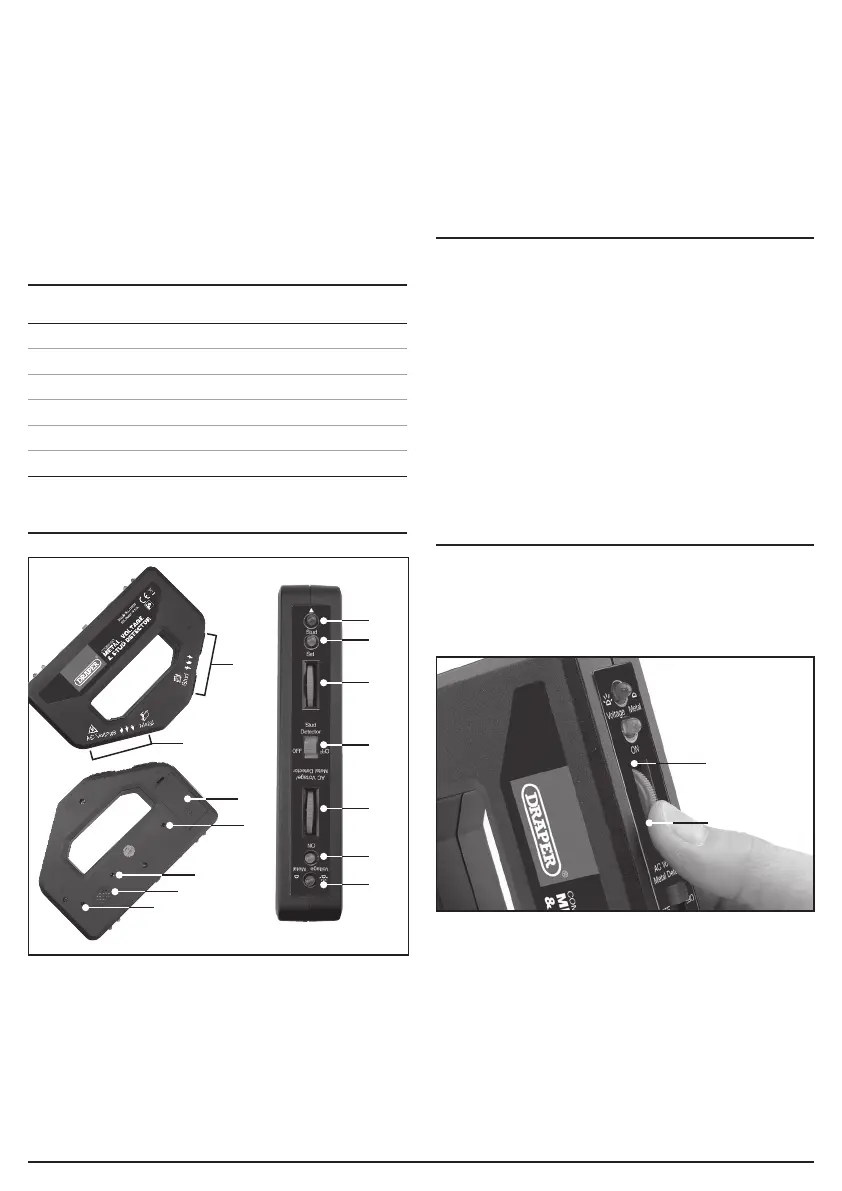

4. Product Identication

4.1 Product Overview

(1) Stud detection face

(2) Voltage/metal detection face

(3) Stud indicator (red)

(4) Stud indicator (green)

(5) Stud sensitivity dial

(6) Selector switch

(7) Voltage/metal sensitivity dial

(10)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(11)

(12)

(13)

(14)

(1)

(2)

(8) Power indicator (green)

(9) Voltage/metal indicator (red)

(10) Battery compartment cover

(11) Stud detector trimmer

(12) Voltage/metal detector trimmer

(13) Buzzer

(14) AC voltage detection adjuster (Factory adjustment only;

DO NOT tamper with this setting)

5. Health and Safety Information

• Read this manual in full before using this product.

• This device is intended for use as a guide ONLY.

− Lack of response from the detector does not guarantee the

absence of metal, currents or wall studs.

− Caution must still be exercised when working in walls and other

blind surfaces.

• DO NOT immerse this device in water or allow the battery to come

into contact with liquids.

• DO NOT abuse, mutilate or burn the battery.

• Check the device carefully before use.

− DO NOT use this product if it is damaged in any way or there is

evidence of battery leakage.

WARNING! This device emits a loud audible tone. Placing your ear over

the buzzer openings may cause hearing damage.

6. Operation and Use

Install a 9V PP3 battery before use; see 7.2 Replacing the Battery.

6.1 AC Voltage and Metal Detection

1. Hold the unit and rotate the voltage/metal sensitivity dial (7) fully

downwards.

1 Fig.

2. Move the selector switch (6) to the AC Voltage/Metal Detector

position; the power indicator (8) should illuminate.

Important: Ensure that the device is not positioned near any metal

objects or current-carrying conductors when you switch it on.

3. Rotate the sensitivity dial (7) upwards until the metal/voltage

indicator illuminates and the audible tone sounds, then reverse the

dial gently until the indicators switch o.

4. Hold the device so that the voltage detection face (2) is ush with the

wall and move it sideways across the surface.

(7)

(8)
