Features and specifications subject to change without notification. P/N 119539 Rev 1.1 7/11
EAGLE PA-10 10 WATT AMPLIFIER
INSTALLATION MANUAL
1.0 GENERAL.
The Eagle PA-10 provides up to 10 Watts of high quality clean audio output, ideal for Two Way Voice applications. Additionally, the
PA-10 is a great compact public address audio amplifier. It may be connected to a telephone system paging output, a microphone, or
even an ordinary single line phone set (see Basic PA system below). The audio source is amplified up to 10 watts, adjustable from an
on-board volume control. Remotely installed, it saves money by requiring only 22 - 24 gauge telco or alarm type wire. It operates on 12
to 24 volts AC or DC and can also drive multiple speakers.
2.0 SPECIFICATIONS.
Rated output: 10 Watts**
Operating Voltage & Current: 12 to 24 Volts AC or DC**
Speaker Load: 2 to 16 Ohms**
Current Draw: 50 to 800mA, load and volume level dependant
Input Impedance: 1000 Ohms nominal
Size: 3” x 3” x 1”
3.0 TERMINAL STRIP CONNECTIONS.
POWER: 12 to 24 VAC or VDC
INPUT: Connect to your audio source (e.g.: two way audio module speaker output)
SPEAKER: Connect to speaker output. Maintain 2 to 16 Ohms impedance
MUTE: Connect to NC relay connection (for two way audio applications.) Mutes when contacts are connected.
4.0 OPERATION.
Make connections to POWER, INPUT, and SPEAKER. Connect MUTE to switch or relay. Closing MUTE contacts mutes all
sound.
Adjust potentiometer to desired output level. Input level may need to be adjusted.

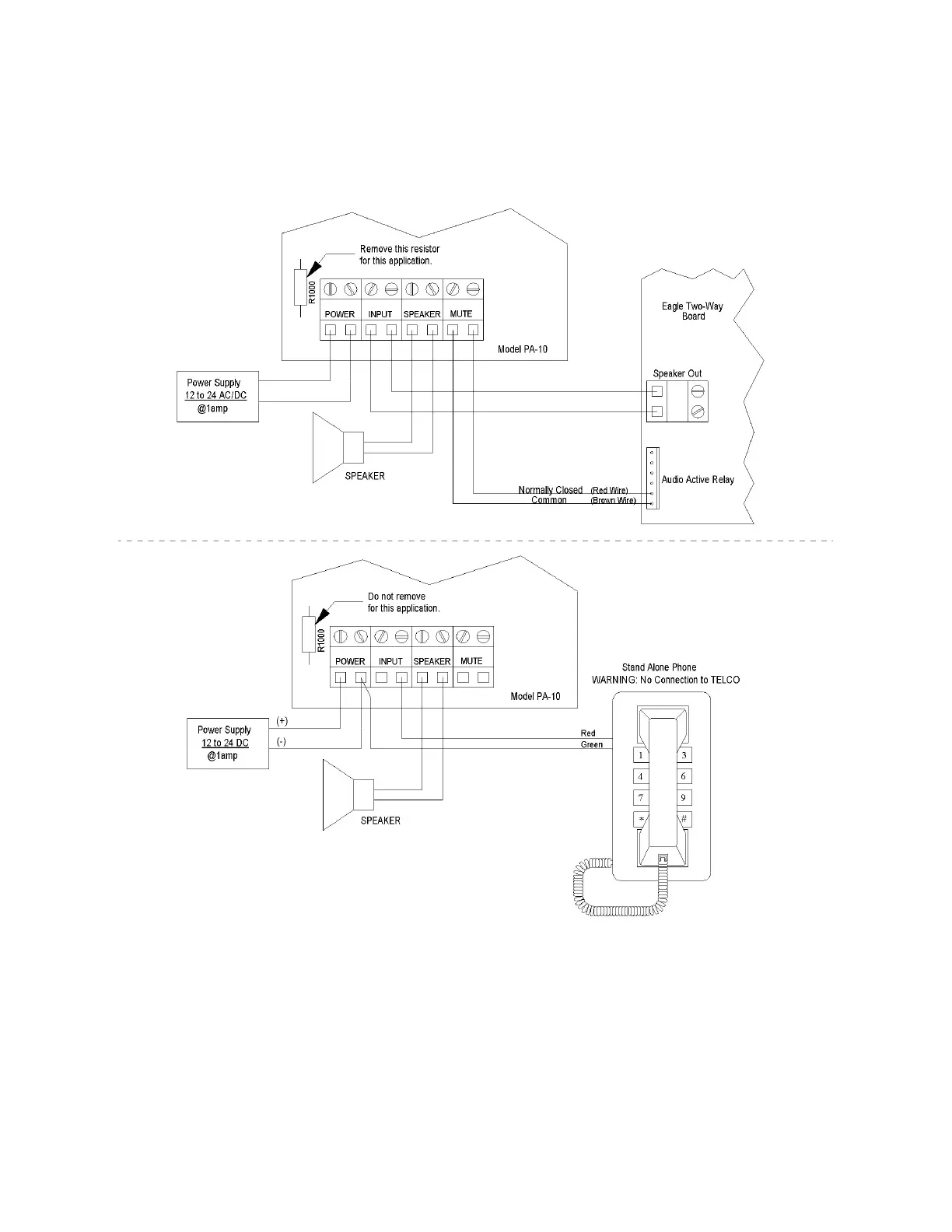

If used with an Eagle Two Way Audio Module, cut resistor R1000 (if installed).
If used in public address system, connect 1K ohm resistor between +POWER and opposite side of INPUT (side not attached to
phone) ONLY if not installed in board.
**NOTE: The Eagle PA-10 is primarily designed for short duration (intermittent) paging applications. For long durations, such as
playing music, you may need to reduce the volume output, or lower the power input voltage, or lower the speaker loading in
order to keep the PA-10 from overloading and shutting down.
TECHNICAL SUPPORT HOTLINE: 800.447.E
3
A
2
G
4
L
5
E
LIMITED WARRANTY
Eagle Alarm Verification Products, Inc. warrants that the products of its manufacture shall be free from defects in materials or workmanship to one year from the date of
invoice if such goods have been properly installed, are subject to normal proper use, and have not been modified in any manner whatsoever. Upon return of the
defective product to the nearest Eagle Alarm Verification Products dealer, Eagle Alarm Verification Products will, at its sole discretion, either repair or replace, at no
cost to the customer, such goods as may be of defective material or workmanship. Customers outside the United States are to return products to their distributor for
repair.
EAGLE ALARM VERIFICATION PRODUCTS, INC. SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING FROM LOSS OF PROPERTY OR OTHER DAMAGE OR LOSSES OWING TO THE FAILURE OF EAGLE ALARM VERIFICATION PRODUCTS'
PRODUCTS BEYOND THE COST OF REPAIR OR REPLACEMENT OF ANY DEFECTIVE PRODUCTS.
EAGLE ALARM VERIFICATION PRODUCTS INC. MAKES NO WARRANTY OF FITNESS OR MERCHANTABILITY AND NO OTHER WARRANTY, ORAL OR
WRITTEN, EXPRESS OR IMPLIED, BEYOND THE ONE YEAR WARRANTY EXPRESSLY SPECIFIED HEREIN.
