SERVICE MANUAL- M128

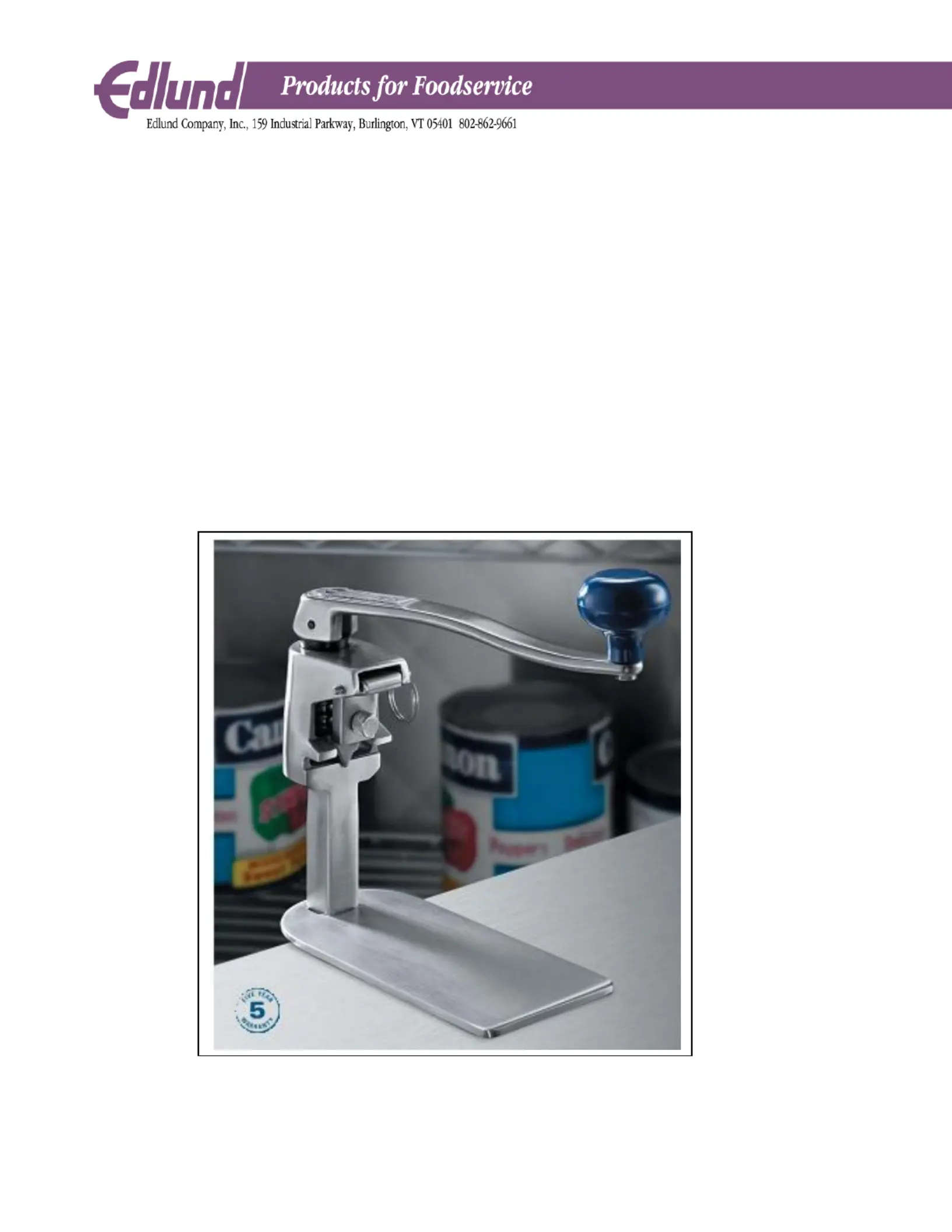

MODEL #S-11 MANUAL CAN OPENER

Model S-11 Can Opener Assembly Procedure

The Model S-11 can opener will be assembled according to the following procedure:

I. Model S-11 Handle and Arbor Assembly

(A942) (Fig. 1 and Fig. 2)

Insert arbor (A050) into slot at end of handle assembly (A943). Align holes and secure by pressing knurled pin (P026) flush

with side of handle assembly.

II. Model S-11 Knife holder Assembly

(A941) Fig. #1 and Fig. #2

Slide the S-11 "O" seal (R085) over the knife retaining screw (S276) until the seal is against the knurled screw head. Place

the knife (K032) against the front of the tang of the knife holder, H063, align the holes and secure in place using the knife

retaining screw (S276). End of knife must slide under the slot at the top of the tang.

III. Model S-11 Main Assembly

Fig. 1 and Fig. 2

Place the spring (S275) down inside top hole in the slide bar assembly (A941/A941L). Place the spool (S274) on top of the

spring and slide the gear (G030) into the gear slot of the slide bar. Slide the arbor of the handle and arbor assembly (A942)

down through the spool and the spring and thread gear onto the end of the arbor by retaining the gear and turning the handle

and arbor assembly clockwise when viewed from the top of the handle.

Lift the handle and slide the ears of the knife holder assembly (A946) into space between the flanges of the spool. Align the

hole in the knife holder with the holes in the slide bar and secure using pull pin (P169).

Inspect using test instructions EC1067A.

IV. Can Opener Maintenance

1. Knife Replacement Procedure -The knife (K032) must be checked periodically to make sure that there aren’t any nicks

or visible wear on the edge. When a nick or groove can be felt with the fingernail, the knife should be reversed to use the

unused edge or it should be replaced.

To reverse the knife, raise the handle and remove the pull pin (P169). Remove the knife holder assembly (A946). Remove

the knife retaining screw (S276) and turn the knife over and retain with the knife retaining screw. Place knife holder

assembly back into slot in spool, align holes and insert pin (P169). The can opener is now ready for operation.

"O" seal should be replaced each time the knife is replaced. A new seal is included with each knife.

2. Gear Replacement Procedure - Gear should be replaced when it will no longer turn a can or the gear starts to remove

metal from the bead of the can. To remove the gear, place a soft screw or nail on the right side of the gear between the gear

and the edge of the gear slot, to hold the gear, and turn handle and arbor assembly counter clockwise. Remove gear and

clear gear slot of all food and can residue.

Place the new gear (G030) into the gear slot with stamped words "Edlund Up" toward top of slide bar. Slide arbor down

through the spool and spring and thread gear onto the end of the arbor by retaining the gear and turning the handle and arbor

clockwise looking down onto handle.

3. Spool Replacement

- If knife doesn't rotate far enough away from the drive gear to allow the knife to penetrate the can

lid when the can opener is used, then the spool may need to be replaced.

To replace the spool, raise the handle and remove the knife holder assembly as in knife replacement procedure. Remove the

handle and arbor assembly as in the tear replacement procedure, replace the worn spool with a new one and reassemble the

can opener.

If there is any questions about proper operation of this can opener, inspect using test instruction EC1067A.
