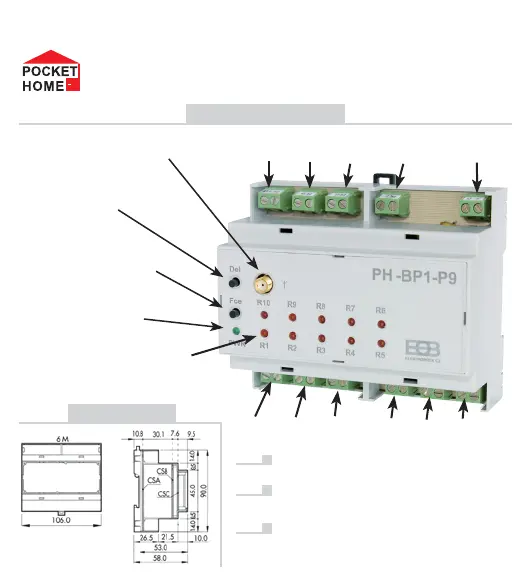

BASIC DESCRIPTION

output

R10

output

input

+5V

Del button

Fce button

PWR diode

R1-R10 diodes

status indication of output

contacts R1-R10

power supply indication

to choose channel R1-R9

antenna with SMA connector

at 433.92 MHz

to delete codes

DIMENSIONS

R1-R10 output contacts are

potential-free (voltage-free)

Max. number of 10 thermo-valves can

be connected to one output

The receiver is able to receive signals

from 9 transmitters (thermostats) at the

most

The 9-channel receiver PH-BP1-P9 in connection with the PH-BP1-V transmitters is used for

wireless control of individual rooms (zone control) in a ﬂ oor heating system. There is no need

to install any connecting cables between the receiver and transmitters (room thermostats)!

The entire set can be included in the PocketHome

® system and all zones controlled from a

single point by means of a central unit and/or through a PC. In that case it is ﬁ rst necessary

to activate the PH-BP1-V transmitter in the central unit (see the PH-BP1-V manual)! In objects

which do not necessitate central control the assembly can also work autonomously without

a central unit.

FUNCTION

The main function of the receiver is controlling the distributor thermo-valves according to the

requirements received from the corresponding transmitters. The receiver is able to receive

signals from 9 transmitters at the most. If a heating requirement is sent from a cer tain zone, a

relay switches at the pertinent output to control a thermo-valve. Simultaneously, the R10 pump

relay is switched. If all thermo-valves are shut off, the pump switches off automatically.

WIRING DIAGRAM

Power supply +5V:

We recommend using

1) The AD05, +5V/2.5A/DC, for

socket installation

2) AD05-DIN, +5 V/2.5 A/DC

on the DIN-bar

Thermo-valves:

Use thermo-valves of the NC type

(closed without current).

Example: type SEH30.23

Pump:

Connect according to the pump

type in conformity with the

manufacturer’s instructions!
