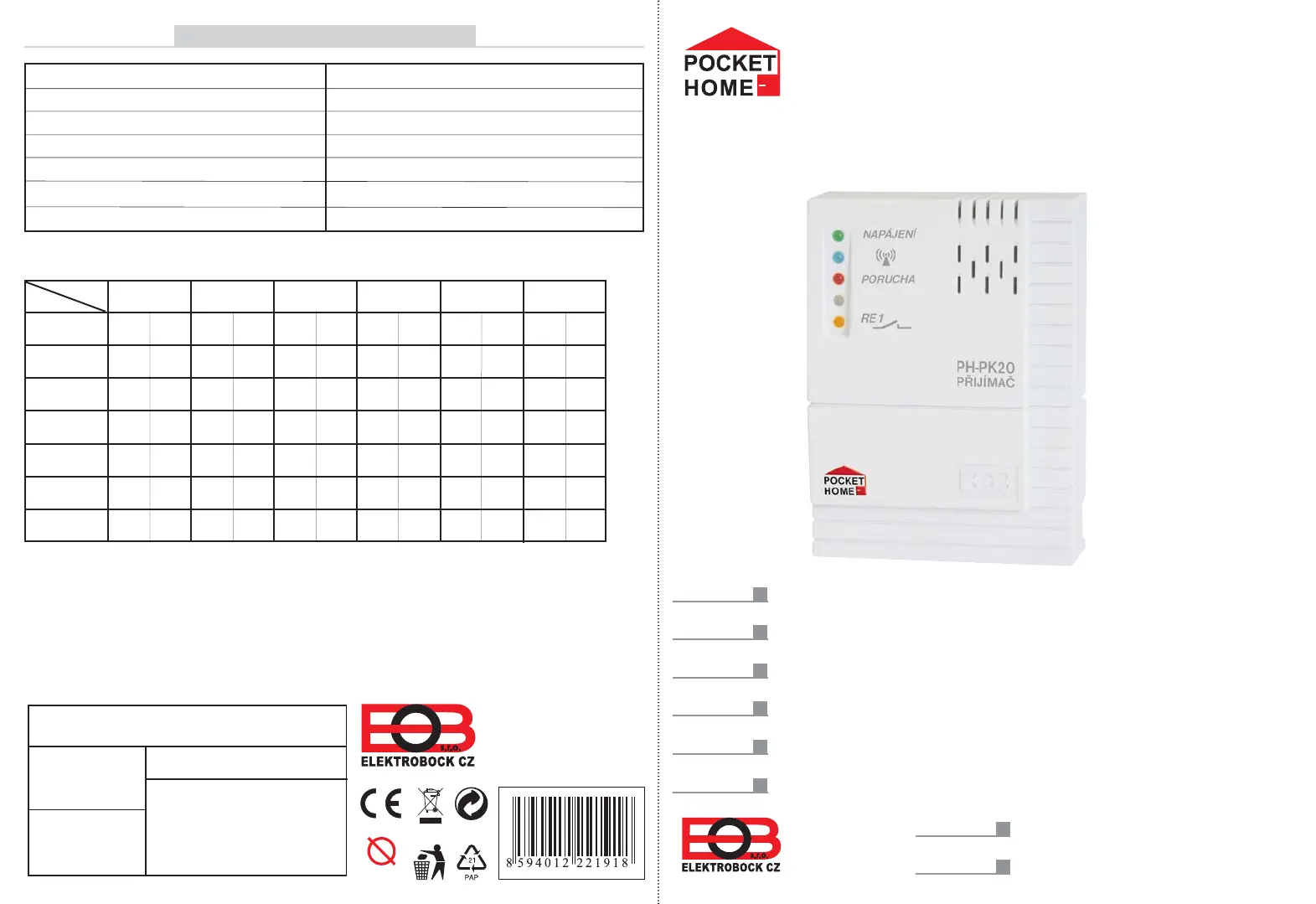

Side 1/3

PH-PK20

WIRELESS RECEIVER FOR BOILER

Wireless receiver for boiler control

PocketHome® system component

Two-way radio communication on 433.92 MHz

Indication of state by coloured LED

Superior component is the central unit PH-CJ37

Power supply 230 V/ 50 Hz

Operating instructions PH-PK20

version 10.01

WALL-MOUNTED

TECHNICAL CHARACTERISTICS

Power supply 230 V/ 50 Hz

Communication type two-way

Frequency 433,92 MHz

Range 300 m (in open space), 35 m (in built-up area)

Protection IP20

Output relay, max.5 A/ 250 VAC

Working temperature 0 to 40°C

CERTIFICATE OF GUARANTEE

(guarantee period for the product amounts to 2 years)

product No.: date of sale:

stamp of shop:

examined by:

MADE IN CZECH REPUBLIC

Send PH-PK20 for guarantee and after-guarantee service

to manufacturer’s address.

ELEKTROBOCK CZ s.r.o.

Blanenská 1763

Kuřim 664 34

Tel./fax: +420 541 230 216

www.elbock.cz

in compliance with RoHS

LEAD FREE

ES CONFORMITY DECLARATION

We, ELEKTROBOCK CZ s.r.o., herewith declare that the PH-PK20 product is in compliance with principal

requirements and further respective stipulations of the directive 1999/5/ES.

Issued: 1.09.2007

CHART FOR YOUR RECORDS

Sun

days

interval

Sat

Fri

Thu

Wed

Tue

Mon

2 3 4 5 6

SET TEMPERATURES/HOURS

DESCRIPTION OF CONTROL ELEMENTS

START UP PROCEDURE IN THE PocketHome ®SYSTEM

- check correct of receiver connection to boiler

and el. network

- push briefly FUNCTION SWITCH

for ca 1s (blue and red LED blinking intermittently)

- press ” Test ” in ACTIV mode for receiver on the

central unit (see instructions for PH-CJ37)

- for correct code learning blue and red LED blink

simultaneously

- during 1min. the receiver is activated in the

PocketHome system and is priority-controlled

from the PH-CJ37 central unit!

output clips

for boiler

power feed

clips

FUNCTION

SWITCH

Indication LED's:

GREEN LIT UP

- correct connection to el. network

BLUE BLINKING

- sending or receiving signal

RED BLINKING

- empty E-EPROM memory

RED LIT UP

- FAILURE (if no signal is received in ca 6

hours from the transmitter, will witch to 2

min. ON and 8 min. OFF regime)

BLUE+RED BLINKING ALTERNATELY

- code determination regime

BLUE+RED BLINKING CONCURRENTLY

- code was learnt

ORANGE LIT UP

- relay 1 switched on

MOUNTING

BOILER

We recommend that the installation should be carried out by person with

a relevant electro-technician's qualification!

- lift off front cover of receiver

according to figs 1,2

- attach receiver to wall (or directly to

installation box)

- turn off main switch

- connect according to chart (use clips

for room thermostat - 2 wires)

- connect receiver to 230V/50Hz

el. network

- zturn on main switch and green LED

will light up – receiver ready for further

setting.

installation holes

for KU/KP68

Before receiver activation it is necessary to have the central unit set and ready

according to instructions for PH-CJ37!

1. RECEIVER ACTIVATION -ESTABLISHING COMMUNICATION WITH THE CENTRAL UNIT

If communication is not successfully established:

- push FUNCTION BUTTON for 5s to delete

E-EPROM memory (RESET) (all LED's are lit

up and after 2s only red light start to blink –

empty memory)

- repeat the whole code-learning procedure

Fig.1

Fig.2

230 V/ 50 Hz
