Bus pushbutton B4T55

30 000 290 - 1

Bus pushbutton for single mounting

80x80x15mm. For connection to

FTS14TG pushbutton gateway.

Only 0.2 watt standby loss.

B4T55 bus 4-way pushbutton in

E-design, only 16mm high.

The scope of supply comprises a mount-

ing base, an attachment frame with

snapped-on electronics, a frame R, a

rocker and a double rocker.

The double rocker permits entry of

4 evaluable signals, but the rocker

allows only 2 signals.

At the rear, a 20cm long red/black bus

line is routed externally. Red terminal to

BP, black to BN of a pushbutton gateway

FTS14TG.

Up to 30 bus switches and/or FTS61BTK

pushbutton bus couplers can be con-

nected to terminals BP and BN of an

FTS14TG pushbutton gateway. The per-

mitted maximum line length is 200m.

The RLC device enclosed with the

FTS14TG must also be connected to the

terminals BP and BN on the bus switch

or pushbutton bus coupler furthest away.

A voltage of 29V DC is supplied to the

connected B4 over a 2-wire pushbutton

bus which is also used for data transfer.

Please use only conventional bus or

telephone lines.

Confirmation telegrams from actuators

are displayed by 4 resp. 2 yellow LEDs

when the actuator IDs are entered by the

PCT14 in the ID table of the FTS14TG.

Use the sleeves in the 55mm socket box

for screw mounting.

Only skilled electricians may install

this electrical equipment otherwise

there is the risk of fire or electric

shock!

Temperature at mounting location:

-20°C up to +50°C.

Storage temperature: -25°C up to +70°C.

Relative humidity:

annual average value <75%.

Installation: Screw on mounting plate.

First attach the frame and then snap on

the mounting frame with the electronics

(labelling 0 must be above). When you

fit the rocker, the 0 mark on the rear

must always be on top.

We recommend stainless-steel counter-

sunk screws 2.9x25mm, DIN 7982 C,

for screw connections. Both with rawl

plugs 5x25mm and with 55mm switch

boxes.

Rocker:

top sends 0x70

bottom sends 0x50

Double rocker:

top left sends 0x30

bottom left sends 0x10

top right sends 0x70

bottom right sends 0x50

Operating mode rotary switches of the

FTS14TG:

Pos. 2, 3, 4: Every pushbutton of the

B4T55 has the same ID.

Recommended setting for ES functions

with direction pushbutton.

Pos. 5, 6, 7: Every pushbutton of the

B4T55 has a separate ID.

Prescribed setting with ER functions.

Issue device address for B4T55:

1. Connect the first B4T55 to the BP and

BN bus terminals.

The LED on the B4T55 lights up red.

2.Turn the rotary switch on the FTS14TG

to Pos. 1.

After the FTS14TG issues the address,

its lower LED lights up green.

3.Turn the rotary switch on the FTS14TG

to Pos. 2 to 7.

The LED on the B4T55 lights up green.

4.Only then connect the second B4T55

and repeat the procedure from 2, etc.

A device address 0 (as-delivered state)

can only be issued to one B4T55.

The address is always issued in ascend-

ing order 1-30.

When a B4T55 is replaced and the

rotary switch on the FTS14TG is turned to

Pos. 1, the new B4T55 automatically re-

ceives the same device address and the

system runs as before without requiring

further teach-in.

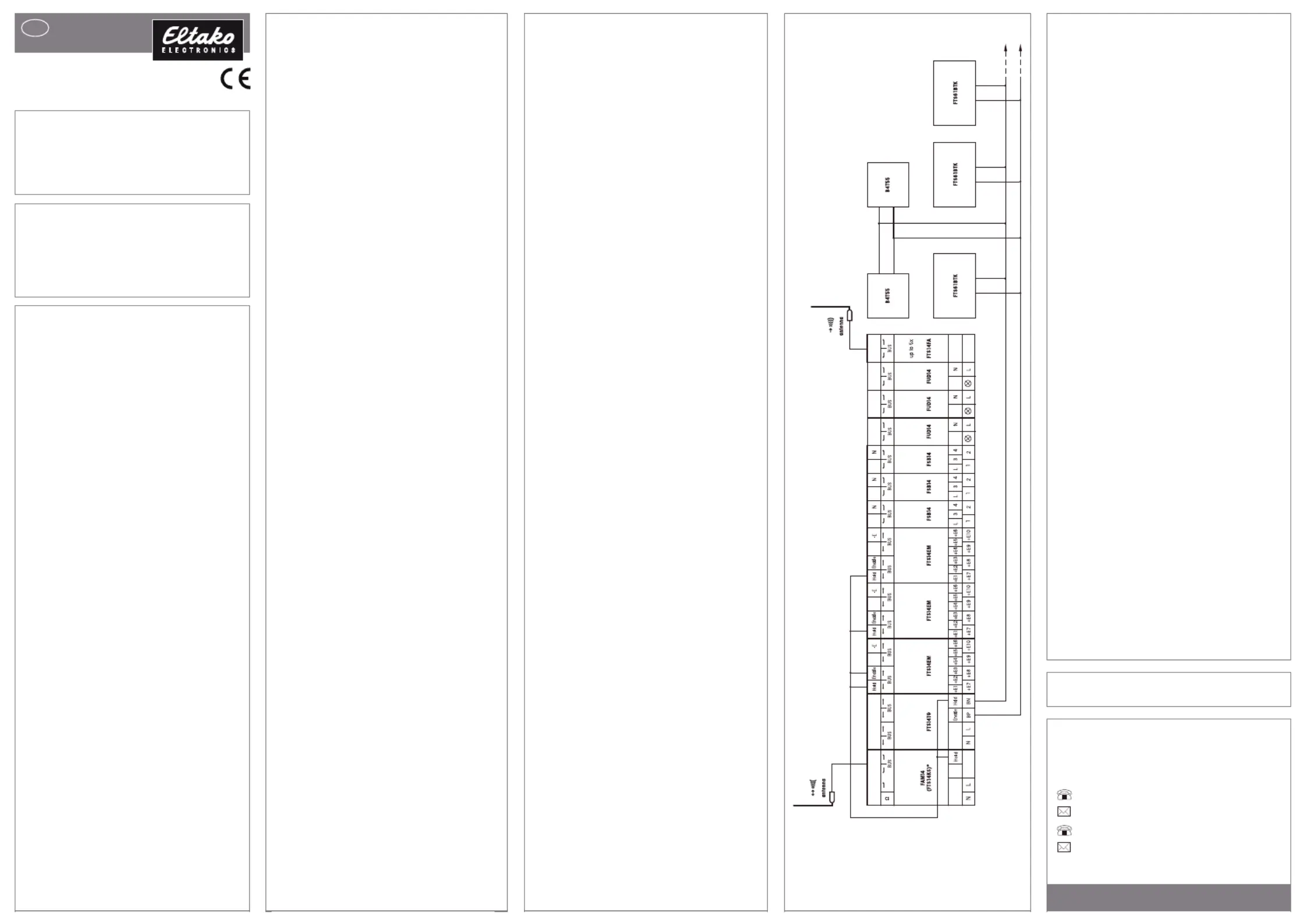

Typical connection

* alternatively FTS14KS without

bidirectional wireless

The second terminating resistor supplied

with the FAM14 or FTS14KS must be

plugged into the last bus user. Use the

PCT14 PC tool to make additional actuator

setting options for conventional pushbut-

tons. An FTS14TG pushbutton gateway

can be connected decentrally to up to

30 B4T55 bus switches and FTS61BTK

pushbutton bus couplers each with 4

pushbutton inputs. A single 2-wire line

supplies the pushbutton bus coupler with

power and also transfers the pushbutton

data. The user may select any topology

for the 2-wire connection.

Clear device address of a B4T55:

1. Connect only one B4T55 to the BP

and BN bus terminals.

The LED on the B4T55 lights up

green.

2. Turn the rotary switch on the

FTS14TG to Pos. 9.

After the device is cleared, the lower

LED on the FTS14TG lights up green

and the LED on the B4T55 lights up

red.

LED display:

LEDs off: There is no power supply over

the 2-wire bus.

Red LED lights up: Power is supplied

over the 2-wire bus. The B4T55 has no

device address yet or the bus is defective.

Green LED lights up: B4T55 has a de-

vice address and is ready to operate.

Use a jumper to disable the green LED off.

Eltako GmbH

D-70736 Fellbach

Technical Support English:

Michael Thünte +49 176 13582514

thuente@eltako.de

Marc Peter +49 173 3180368

marc.peter@eltako.de

eltako.com

20/2017 Subject to change without notice.

Must be kept for later use!
