Input module

FTS14EM

Input module for the Eltako RS485 bus,

10 control inputs for universal control

voltage. Only 0.1 watt standby loss.

Modular device for DIN-EN 60715 TH35

railmounting. 2 modules = 36 mm wide,

58 mm deep.

Connection to the Eltako-RS485 bus. Bus

cross wiring and power supply with jumper.

Operation in conjunction with FTS14KS or

FAM14.

A 12 V DC voltage is supplied from a switching

power supply unit FSNT14-12V/12W which

has a width of only 1 module.

10 control inputs +E1 to +E10/-E electrically

isolated from the supply voltage. Control

voltage: 8..230 V UC.

The control inputs can be either activated

for pushbuttons (delivery state), window-

door contacts or motion detectors.

From the production week 21/19 the signals

of the control inputs can be inverted.

Control inputs for pushbuttons:

telegrams of pushbuttons will be generated

(e.g. 0x70). Each FTS14EM can be set to UT

(= universal pushbutton) or RT (= direction

pushbutton) on the lower rotary switch.

Control inputs for window-door contacts:

telegrams of the window-door contact FTK

are generated (EEP D5-00-01). If the input is

driven by the contact with the control voltage

Temperature at mounting location:

-20°C up to +50°C.

Storage temperature: -25°C up to +70°C.

Relative humidity:

annual average value <75%.

30 014 060 - 3

Only skilled electricians may install this

electrical equipment otherwise there is

the risk of  re or electric shock!

valid for devices from production week

11/21 (see bottom side of housing)

to be applied externally, the telegram 'window

open' is generated. If the windows-door

contact is opened, the telegram 'window

open' is generated. As with the wireless

sensor FTK, the status telegram is repeated

every 15 minutes.

Control inputs for motion detectors:

telegrams of the wireless motion/brightness

sensor FBH are generated (EEP A5-08-01),

wherein the brightness value is always 0. If

the input is driven by the motion-detectors-

contact with the control voltage to be

applied externally, the telegram 'motion' is

generated. If the contact is opened, the

telegra 'no motion' will be generated. As

with the wireless sensors FBH, the status

telegram is repeated every 15 minutes.

Each telegram of a contact input has to be

taught-in with an identi cation number (ID)

into one or more actuators according to the

operating instructions.

Function rotary switches

The lower rotary switch de nes the group

to which an FTS14EM belongs. A total of 5

groups are available (1, 101, 201, 301 and 401)

each with 100 IDs. The upper rotary switch

(0 to 90) sets the ID within a group. The ID

range within a group results from the com-

bination of upper and lower rotary switches

and must be set differently on each FTS14EM.

Maximum ten FTS14EMs form a group. There-

fore, a total of 50 FTS14EMs comprising 500

pushbuttons or contacts are possible in one

RS485 bus.

To generate the necessary teach-in telegrams

for teaching-in into the actuators, the re-

quested group has to be selected on the

upper and lower rotary switch. For push-

buttons in the range UT or RT or for window-

door contacts and motion sensors in the

range RT. Then con rm the required control

input.

In operation, the same group must be selected

in the range UT or RT for push buttons or UT

for window/door contacts and motion sensors.

The LED below the upper rotary switch  ashes

brie y, when a connected contact is closed.

Optional: An FAM14 wireless antenna module

(from Wireless Building System) which is only

two modules wide can also be installed.

Actuators can then be activated via the

FTS14EM by wireless pushbuttons and

contacts, hand-held transmitters and wireless

sensors in addition to conventional buttons.

As the FAM14 has an integrated switch mode

power supply unit, the FTS14KS is no longer

required for power supply in this con guration.

The bidirectional FAM14 also permits a

Smart Home central unit SafeIV to evaluate

feedback messages from the actuators

transferred by wireless. Each actuator status

is then displayed and can also be changed.

Connecting the HOLD terminals of all devices

regulates bus access and prevents collisions.

The telegrams of the FTS14EM and FTS14KEM

can also be sent to the Eltako Wireless Building

with the optional wireless output module

FTS14FA.

All hold terminals of the FTS14EM must be

connected to the hold terminal of the

FTS14KS or FAM14.

When 1 to 10 FTS14EMs are used, the HOLD

terminal on one FTS14EM must be connected

to the Enable terminal.

When 11 to 20 FTS14EMs are used, the

HOLD terminal on two FTS14EMs must be

connected to the Enable terminal.

When 21 to 30 FTS14EMs are used, the

HOLD terminal on three FTS14EMs must be

connected to the Enable terminal.

When 31 to 40 FTS14EMs are used, the

HOLD terminal on four FTS14EMs must be

connected to the Enable terminal.

When 41 to 50 FTS14EMs are used, the

HOLD terminal on  ve FTS14EMs must be

connected to the Enable terminal.

Activate the inputs for pushbuttons (factory

setting):

turn the lower rotary switch within 3 seconds

5 times to the left stop, the LED goes on during

2 seconds.

Activate the inputs for window/door con-

tacts: turn the upper rotary switch within

3 seconds 5 times to the left stop, the LED

goes on during 4 seconds.

Activate the inputs for motion sensors:

turn the upper rotary switch within 3 seconds

5 times to the right stop, the LED goes on

during 6 seconds.

Invert the signals of the control inputs:

Turn the bottom rotary switch within 3 seconds

5 times to the right, the LED lights up for

2 seconds.

By activating the control inputs for buttons,

window-door contacts or motion detector

the inversion is cancelled.

10 control inputs = 10 universal push-

buttons UT:

E1 = 0x70 (FT4- top right)

E2 = 0x50 (FT4- bottom right)

E3 = 0x30 (FT4- top left)

E4 = 0x10 (FT4- bottom left)

E5 = 0x70

E6 = 0x50

E7 = 0x30

E8 = 0x10

E9 = 0x70

E10 = 0x50

If the control input E10 is controlled with a

switch, a wireless pushbutton telegram is

generated cyclically every 5 minutes.

10 control inputs = 5 direction push-

buttons RT:

E1/E2 send 70/50 (= pushbutton right side

top/bottom)

E3/E4 send 30/10 (= pushbutton left side

top/bottom)

E5/E6 send 70/50

E7/E8 send 30/10

E9/E10 send 70/50

IDs are generated in 'quasi-decimal' num-

bering in order to make it easier to convert

terminal numbering to the button IDs to be

entered in PCT14.

The ID numbers are therefore identical to

the input numbers. You only need to add

1000.

Lower rotary switch on UT:

Each input has a separate ID.

IDs of  rst group:

0x1001..0x1010 (pushbutton 1..10)

0x1011..0x1020

0x1021..0x1030

0x1031..0x1040

0x1041..0x1050 (pushbutton 41..50)

0x1051..0x1060

0x1061..0x1070

0x1071..0x1080

0x1081..0x1090

0x1091..0x1100 (pushbutton 91..100)

IDs of second group:

0x1101..0x1110 (pushbutton 101..110)

0x1111..0x1120

0x1121..0x1130

0x1131..0x1140

0x1141..0x1150 (pushbutton 141..150)

0x1151..0x1160

0x1161..0x1170

0x1171..0x1180

0x1181..0x1190

0x1191..0x1200 (pushbutton 191..200)

..etc.. until group 5

Lower rotary switch on RT:

IDs are combined in pairs. There are no odd

numbers. Numbering (in steps of 2) is simpler

with even numbers than with odd numbers.

Pushbutton 1..10

E1 und E2 = 0x1002

E3 und E4 = 0x1004

E5 und E6 = 0x1006

E7 und E8 = 0x1008

E9 und E10 = 0x1010

Pushbutton 11..20

E1 und E2 = 0x1012

E3 und E4 = 0x1014

E5 und E6 = 0x1016

E7 und E8 = 0x1018

E9 und E10 = 0x1020

..etc.

Attention: if several inputs for

switches, window/door contacts

or motion sensors are used, the

control voltage must be ≥ 24 V.

Technical data

Control voltage: Control current:

8 V AC/DC 1.4 mA/2.5 mA

12 V AC/DC 2.3 mA/4.0 mA

24 V AC/DC 5.0 mA/9.0 mA

230 V AC/DC 5 (100) mA/5 (100) mA

(<5 s)

Parallel capacitance 0.9 µF (3000 m)

(approx. length)

control lead at 230 V

Standby loss 0.1 W

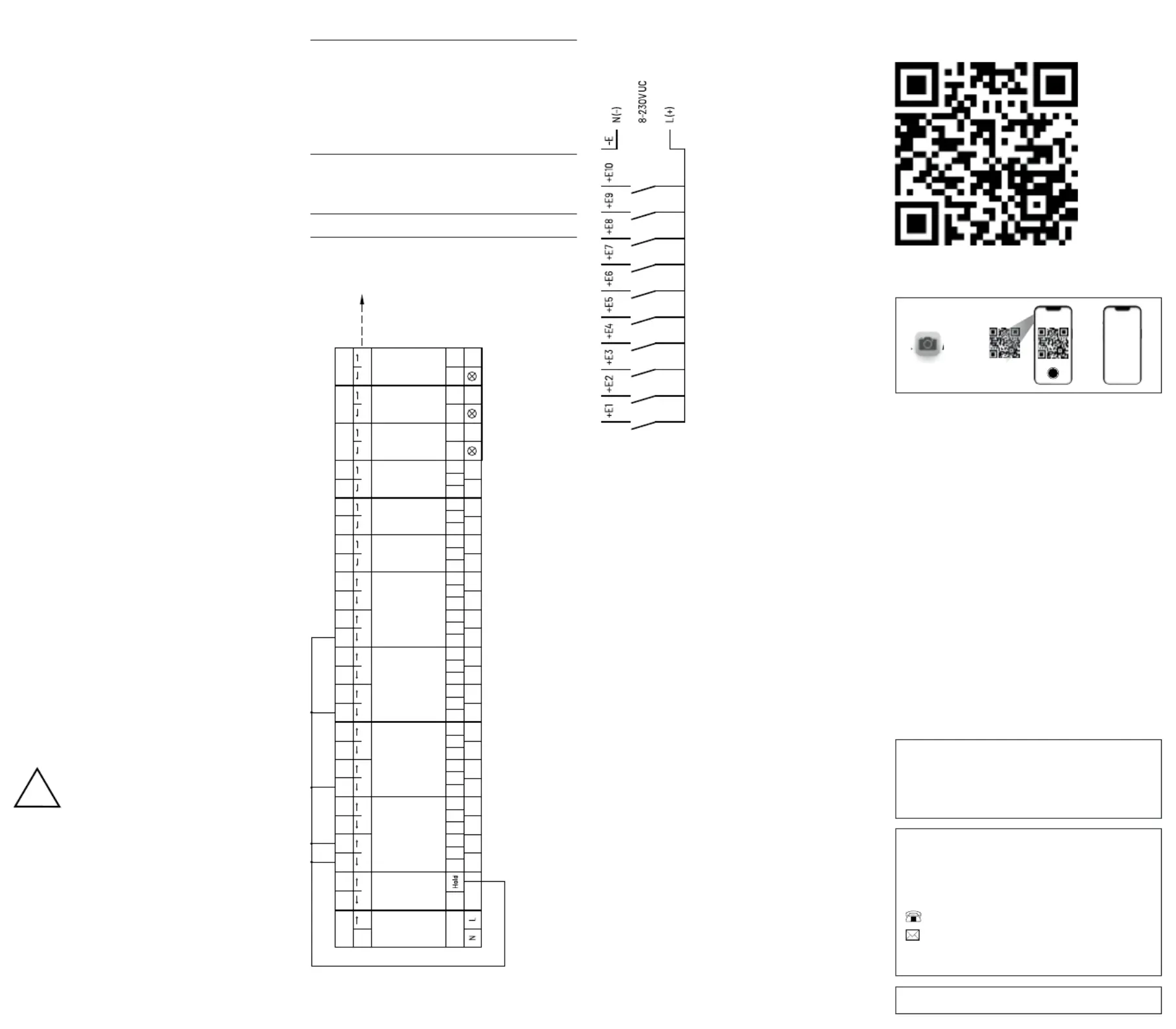

Typical connection

+E8

+E5+E4+E3+E2 +E6

-E

+E1

+E7 +E10+E9

FTS14EM

BUS BUS

Hold Enable

+E8

+E5+E4+E3+E2 +E6

-E

+E1

+E7 +E10+E9

FTS14EM

BUS BUS

Hold Enable

+E8

+E5+E4+E3+E2 +E6

-E

+E1

+E7 +E10+E9

FTS14EM

BUS BUS

Hold Enable

+E8

+E5+E4+E3+E2 +E6

-E

+E1

+E7 +E10+E9

FTS14EM

BUS BUS

Hold Enable

L 3 4

FSB14

BUS

L 3 4

FSB14

BUS

L 3 4

FSB14

BUS

FUD14

BUS

FUD14

BUS

FUD14

BUS

FTS14KSFSNT14

1 1 1

BUS

GND +12V

Manuals and documents in further

languages:

http://eltako.com/redirect/FTS14EM

1. App 2. 3.

www.

Must be kept for later use!

We recommend the housing for

operating instructions GBA14.

Eltako GmbH

D-70736 Fellbach

Technical Support English:

+49 711 94350025

technical-support@eltako.de

eltako.com

13/2023 Subject to change without notice.

The second terminator which is included in

the FST14KS has to be plugged to the last

actuator.

Control inputs FTS14EM
