Wireless actuator

Universal dimmer switch

FUD71L/1200 W-230 V

30 100 846 - 3

Universal dimmer switch, power MOSFET up

to 1200 W. Automatic lamp detection. With

adjustable minimum brightness and dimming

speed. With switching operation for light

alarm clocks, children's rooms and snooze

function as well as constant light regulation

and master-slave mode. Also with light scene

control by PC or wireless pushbuttons. Enc-

rypted wireless, bidirectional wireless and

repeater function are switchable. Only 0.7

watt standby loss.

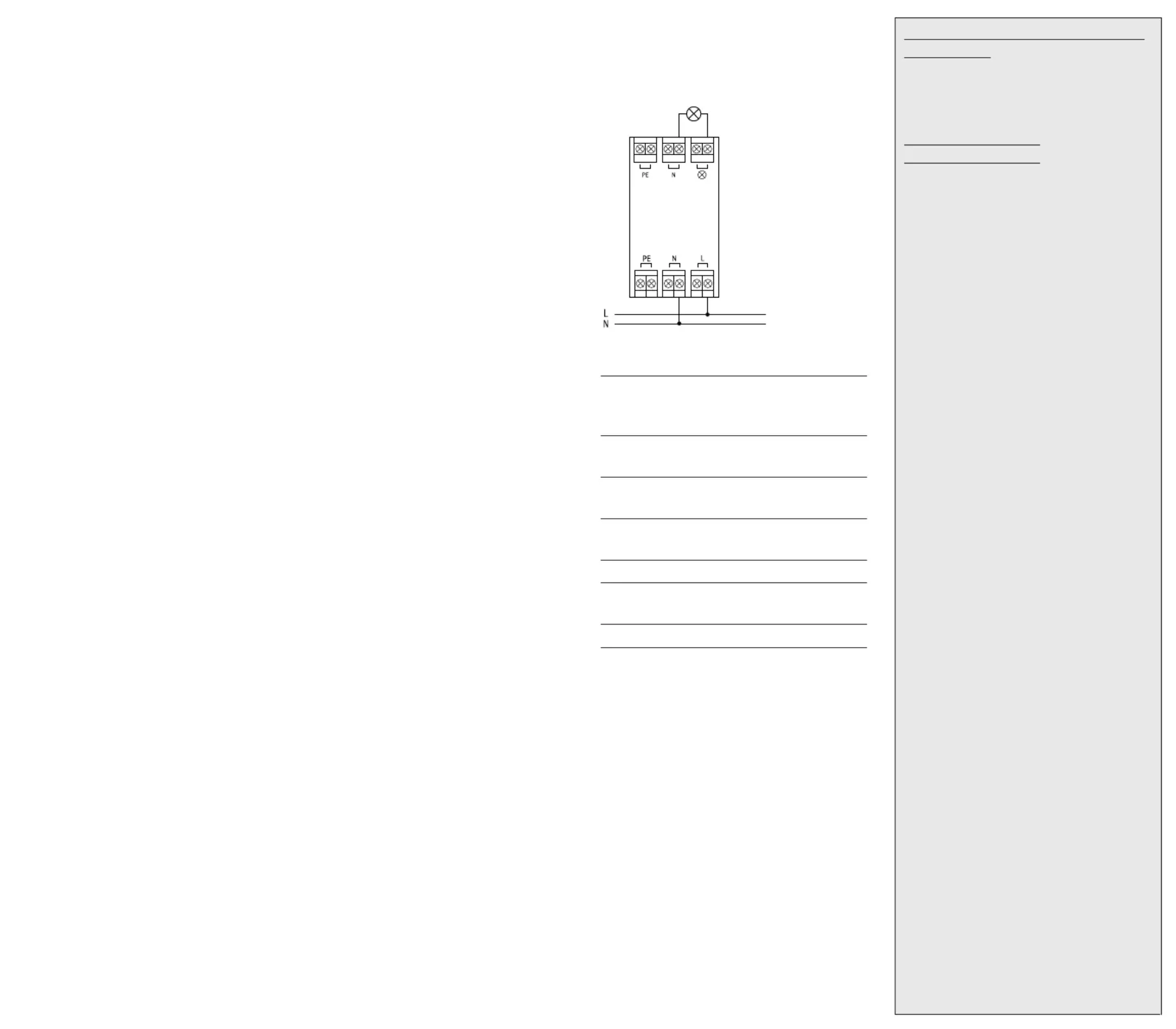

Mounting in the 230 V power supply cord, e.g.

in false ceilings and lamps. 252 mm long,

46 mm wide und 31 mm high.

Universal dimmer switch for lamps up to

1200 W, depending on ventilation conditions.

Dimmable energy saving lamps ESL and

dimmable 230 V LED lamps, additionally de-

pending on the lamps electronics.

Zero passage switching with soft ON and

soft OFF to protect lamps.

The brightness level is stored on switch-off

(memory).

In case of a power failure the switch position

and the brightness stage are stored and may be

switched on when the power supply is restored.

Automatic electronic overload protection

and overtemperature switch-off.

Encrypted sensors can be taught in.

You can switch on bidirectional wireless

and/or a repeater function.

Temperature at mounting location:

-20°C up to +50°C.

Storage temperature: -25°C up to +70°C.

Relative humidity:

annual average value <75%.

Only skilled electricians may install this

electrical equipment otherwise there is

the risk of re or electric shock!

valid for devices from production week

50/16 (see bottom side of housing)

Every change in state and incoming central

command telegrams are conrmed by a wi-

reless telegram. This wireless tele gram can

be taught-in in other actuators, in universal

displays FUA55 and in the GFVS software.

The current dimming value is also displayed

in % in the GFVS-Software.

Function rotary switches

The upper rotary switch determines the

operation, whether automatic lamp detection

or special comfort positions should work:

AUTO allows the dimming of all lamp types.

EC1 is a comfort position for energy saving

lamps, which which by design must be tur-

ned on with an increased voltage so that

they switch on again in cold state when

dimmed down.

EC2 is a comfort position for energy saving

lamps, which by design won't switch on

again when dimmed down. Therefore Me-

mory is switched off in this position.

LC1 is a comfort position for dimmable 230 V

LED lamps, which by design won't be dimmed

down enough in the AUTO position (trailing

phase angle) and therefore has to be forced

to leading phase angle.

LC2 and LC3 are comfort positions for dim-

mable 230 V LED lamps like LC1 but with dif-

ferent dimming curves.

In positions EC1, EC2, LC1, LC2 and LC3 in-

ductive (wound) transformers may not be

used. In addition, the maximum number of

dimmable LED lamps may be lower by design

than in the AUTO position.

LC4, LC5 and are comfort positions for LC6

LED lamps like AUTO but with different dim-

ming curves.

PCT is a position for special functions which

were set up using the PCT14 PC Tool. The

PCT14 link is hooked up using the data

transformer DAT71.

The minimum brightness (fully dimmed

down) is adjustable with the middle %

rotary switch.

The dimming speed is adjustable using the

lower dimming speed rotary switch.

The pushbuttons can be either taught-in

as direction pushbuttons or universal

pushbuttons: As direction pushbutton

'switch on and dim up' is on one side and

'switch off and dim down' on the other side.

A double-click on the switch on side triggers

the automatic dimming up to full brightness

with dim speed time. A double-click on the

switch off side triggers the snooze function.

The children's room function is triggered on

the switch on side. As a universal push-

button the direction change is made by

briey releasing the push button.

Switching for light alarm clocks: An ap-

propriately taught-in timer wireless signal

starts the wake-up function by switching on

the lighting at lowest brightness and slowly

dimming up to maximum brightness over a

period of 30 minutes. The dimming process

is stopped by tapping briey, e.g. on the

hand-held transmitter. In the settings EC no

switching for light alarm clocks is possible.

Switching operation for children's rooms

(universal switch or direction switch on the

switch-on side): If the light is switched on

by holding down the pushbutton, it starts at

the lowest brightness level after approx. 1

second and dims up slowly as long as the

pushbutton is held down without modifying

the last stored brightness level.

Snooze function (universal switch or

direction switch on the switch-off side):

With a double impulse the lighting is dim-

med down from the current dimming positi-

on to the minimum brightness level and

switched off. The current dimming position

as well as the adjustable minimum brightness

level determine the dimming time (max. = 60

minutes) which can be reduced as required.

It can be switched off at any time by short-

time control commands during the lighting is

dimmed down.

Light scenes on the PC are set and

retrieved using the Wireless Visualisation

and Control Software GFVS. One or several

FUD71 devices must be taught in on the PC

as dimming switches with percentage

brightness values.

A resettable staircase time switch function

with RV = 2 minutes can be called by a push-

button taught-in as a staircase pushbutton.

Brightness level settings can be called during

teach-in with single light scene pushbuttons.

A twilight pushbutton can be implemented

using a taught-in FAH. Switch-on can be

performed dependent on motion and bright-

ness with up to 4 FBH devices.

Wireless pushbutton Central ON:

The impulse length is not important. The push-

button switches on with the memory value.

Wireless pushbutton Central OFF:

The impulse length is not important. The

pushbutton switches off.

Staircase light pushbutton:

The staircase light pushbutton switches on

with a memory value and starts an RV time

of 2 minutes at the end of which the device

switches off. Press the pushbutton again to

restart.

FTK as NO contact:

When the window is opened, the light is

switched on. When the window is closed,

the light is switched off.

FTK as NC contact:

When the window is opened, the light is

switched off. When the window is closed,

the light is switched on.

Either a FBH or a FHD60 can be taught-in

as master:

FBH as Master: (automatic brightness con-

trol) When a wireless motion/brightness

sensor FBH is taught-in, the switching

threshold is dened by the lower rotary

switch during teach-in.

The switching threshold switches on the

lighting with memory value depending on

the brightness (in addition to motion) (from

approx. 30 Lux in OFF position to approx.

300 Lux in ON position). When the FBH in

taught-in in the ON position, it is only evalu-

ated as a motion detector.

A return delay of 2 minutes is preset in the

FUD71.

By switching-off or dimming with pushbut-

ton, the FBH is deactivated. Central push-

button, scene pusbhbutton and 'dimming

value' by PC also lead to deactivation. A

short press on the switch-on side of the di-

rection pushbutton, the FBH is reactivated.

FBH as Slave: The FBH is only evaluated as

motion detector.

Semi-automatic motion detection with

taught-in FB65B wireless motion sensor

(factory setting): After switching on via

pushbutton, the 5 minutes delay time

starts, within this time the delay will

restart

after each detected motion. 5 minutes

after

the last detected motion it will switch off. If

a motion is detected 5 minutes after swit-

ching off, it will automatically switch on

again. After this time only a pushbutton can

switch on. The pushbutton is allowed to

switch off at any time, then the motions are

no more evaluated.

Fully automatic motion detection with

FB65B taught-in wireless motion sensor:

If the actuator should switch on automatically

when motion is detected, e.g. in rooms

without daylight, replug the jumper to 'active'

on the FB65B device. When motion is no

longer detected, the device switches off

automatically after the 5 minutes release

delay time expires. Press the pushbutton at

any time to switch the device on or off.

When motion is detected, the device switches

on again automatically.

FHD60 as Master: (automatic brightness

control off) When a wireless brightness and

twilight sensor FHD60 is taught-in, the swit-

ching threshold is dened by the lower

rotary button during teach-in. The swit-

ching threshold switches the lighting off

depending on the brightness. Switch-on is

only possible by pressing the push button.

FHD60 as twilight switch: (automatic

brightness control off) When a wireless

brightness and twilight sensor FHD60 is

taught-in, the switching threshold is de-

ned by the lower rotary switch during

teach-in. The switching threshold switches

the lighting on or off depending on the

brightness (from approx. 0 Lux in OFF posi-

tion to approx. 50 Lux in ON position). If the

brightness threshold is under shot, switch-on

uses the memory value. Switch-off takes

place at a brightness of > 200 Lux.

FHD60 as twilight dimmer: (automatic

brightness control off) When a wireless

brightness and twilight sensor FHD60 is

taught-in, the minimum dimming value is

dened in % by the lower rotary switch. The

switching threshold is the value to which

the lighting is dimmed down in darkness

(OFF = minimum dimming value to ON = ma-

ximum dimming value). If the brightness

undershoots a xed limit, switch-on takes

place at maximum dimming value. If the

brightness drops, the dimming value is also

reduced. When the brightness rises again,

the dimming value also increases. If the

brightness exceeds the xed limit, the ligh-

ting is switched off.

Constant light control with FHD65:

(The automatic brightness control automa-

tically switches on when teaching-in of the

FHD65) The required brightness is adjusted

by a pushbutton, then the rst received

brightness value of the FHD65 is the target

brightness, it is maintained constant auto-

matically by the FUD71 by incoming bright-

ness values of the FHD65. After each

change in brightness (dimming) with push-

button, the subsequently received bright-

ness value of FHD65 will be the new target

brightness. If the target brightness is

adjusted with a 'direction pushbutton for

target brightness', this is xed, a change in

brightness with the pushbutton is then

overruled by the xed target brightness. If

additionally a FBH is taught-in as a slave, it

is switched on when motion and target

brightness are fallen short and switched off

when not in motion or target brightness is

exceeded. By switching off with pushbut-

ton, the automatic control by FBH or FHD65

is disabled. Central pushbutton, scene

pushbutton

and 'dimming value' by PC also lead to

deactivation. The automatic control is

reactivead by w short press on the switch-

on side of the direction button.

Storing of target brightness:

Press 'direction pushbutton for target

brightness' above. The current brightness

that has been sent from the FHD65 is

stored.

Deletion of target brightness:

Press 'direction pushbutton for target

brighntess' below.

The red LED accompanies the teach-in

process and indicates control commands in

operation by ashing briey.

The green LED ashes briey when a con-

rmation telegram is sent.

Typical connection

Technical data

Incandescent and up to 1200 W

halogen lamps

230 V (R)

Inductive up to 1200 W

2)3)

transformers (L)

Electronic up to 1200 W

2)3))

transformers (C)

Dimmable energy up to 1200 W

saving lamps ESL

Dimmable LEDs up to 1200 W

Max./min. temperature +50°C/-20°C

at mounting location

Standby loss (activ power) 0.7 W

For lamps with a maximum of 150 W.

Per dimmer it is only allowed to use max. 2 inductive

(wound) transformers of the same type, furthermore

no-load operation on the secondary part is not

permitted. Possibly the dimmer switch will be dest-

royed! No load-switching-off on the secondary part is

allowed. The parallel operation of inductive (wound) and

capacitive (electronic) transformers is not allowed!

When calculating the load 20% loss has to be consi-

dered for inductive (wound) transformers and 5%

loss in addition to the lamp load

Affects the maximum switching power.

Usually applies for dimmable energy saving lamps and

dimmable 230 V LEDs. Due to differences in the lamps

electronics, there may be limited dimming range, switch

on and off problems dependent on the manufacturer

and a restriction on the maximum number of lamps;

especially if the connected load is very low (for 5W-LEDs).

The comfort positions EC1, EC2, LC1, LC2 and LC3 opti-

mize the dimming range, which, however, only gives a

maximum power up to 300W. No inductive (wound)

transformers may be dimmed in these comfort positions.

Teaching-in wireless sensors in wirel-

ess actuators

All sensors must be taught-in in the ac-

tuators so that they can detect and

execute commands.

Teaching-in actuator

FUD71L/1200 W-230 V

The teach-in memory is empty on delive-

ry from the factory. If you are unsure

whether the teach-in memory contains

something or not, you must rst clear

the memory contents completely: Set

the middle rotary switch to CLR. The LED

ashes at a high rate. Within the next 10

seconds, turn the upper rotary switch

three times to the right stop (turn clock

wise) and then turn back away from the

stop. The LED stops ashing and goes

out after 2 seconds. All taught-in sen-

sors are cleared. Clear individual

taught-in sensors in the same way as in

the teach-in procedure, except that you

set the middle rotary switch to CLR

instead of LRN, and operate the sensor.

The LED previously ashing at a high ra-

te goes out.

Clear device conguration: Set the

middle rotary switch to CLR. The red LED

ashes at a high rate. Within the next 10

seconds, turn the upper rotary switch six

times to the left stop (turn anticlockwise)

and away again. The red LED goes out.

The factory settings are restored.

Teaching-in sensors:

A total of 120 memory locations are

available.

1. Set the top rotary switch to the required

teach-in function:

AUTO = timer as wake-up light;

Teach-in FHD65, FHD60 or FBH as master.

EC1 = 'central off';

Teach-in second FBH, FB65B as slave.

EC2 = universal switch;

Teach-in third FBH, FB65B as slave.

LC1 = 'central on';

Teach-in fourth FBH, FB65B as slave.

LC2 = Teach in direction pushbutton,

direction pushbutton are automatically

taught-in fully when pressed. Depen-

ding on where the button is pressed,

the functions for switch-on and dim-up

are dened on one side and switch-off

Produkt Specifikationer

Mærke:	Eltako
Kategori:	Ikke kategoriseret
Model:	FUD71L

Har du brug for hjælp?

Hvis du har brug for hjælp til Eltako FUD71L stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Eltako Manualer

Eltako MS Manual

31 August 2024

Eltako FUD61NP-230V Manual

30 August 2024

Eltako FT4F-rw Manual

30 August 2024

Eltako FT4F-wg Manual

30 August 2024

Eltako DL-PD-300W-RLC-HS Manual

30 August 2024

Eltako DSZ15DM-3x80A Manual

30 August 2024

Eltako FTN14 Manual

30 August 2024

Eltako FT55R Manual

30 August 2024

Eltako FUD71L Manual

30 August 2024

Eltako FTS14EM T Manual

30 August 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Hozelock 5102 Manual

2 August 2025

ART 310 Manual

2 August 2025

Gorenje KAS53ZDCINVFT Manual

2 August 2025

Gorenje KAS35ZDCINVFT Manual

2 August 2025

Navman MY450LMT Manual

2 August 2025

Navman MiVue 745 Manual

1 August 2025

Hitachi WR22SE Manual

1 August 2025

Synology M2D20 Manual

1 August 2025

Fluke FibertLert-125 Manual

1 August 2025

Buffalo GC882 Manual

1 August 2025
