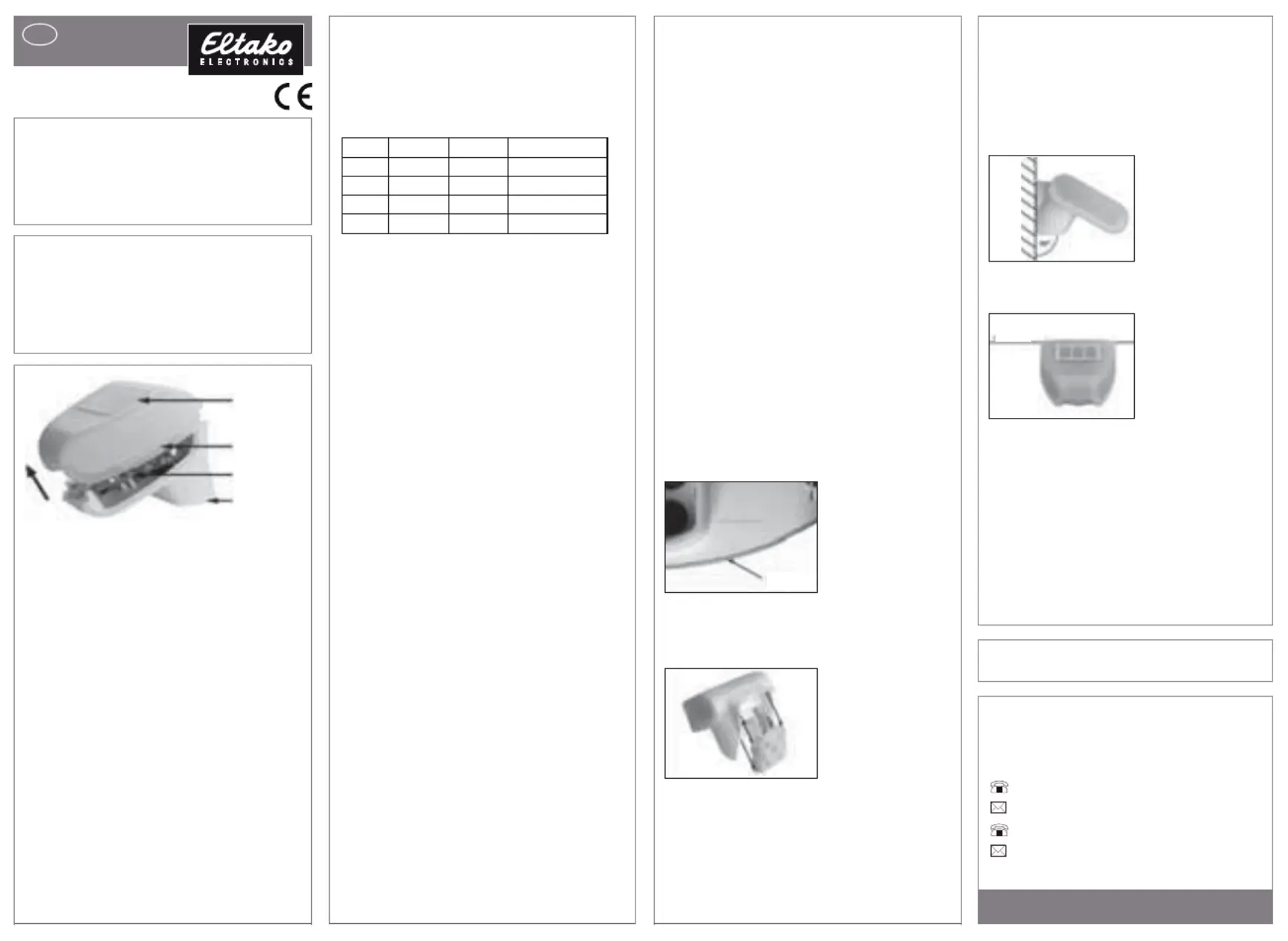

Mounting preparation

First fix the wall mount vertically to the

wall or pole. The bore holes should have

a spacing of 22mm and a diameter of

5mm. Snap on the multisensor cover

comprising the rain sensor using the

catches on the bottom left and right

edges. Remove the cover from the multi-

sensor. Take care not to rip off the wires

connecting the PCB in the bottom part

and the rain sensor in the cover (wire

and connector).

Feed the connecting wire through the

rubber seal on the bottom of the multi-

sensor and connect to the terminals

provided.

Mounting

Close the housing by fitting the cover

over the bottom part. The cover must

engage on the left and right with a

distinct click.

Check whether the cover and bottom

part are correctly engaged. The figure

shows the multisensor from below.

Push the housing from above into the

mount fitted to the wall. The mount

catches must engage in the housing rails.

To remove, lift the multisensor out of the

mount by pulling it against the resistance

of the catches.

Catch

The multisensor contains a combined

wall/pole mount. On delivery, the mount

is fixed to the rear of the housing by

adhesive strips.

Fix the mount vertically to the wall or

pole.

The multisensor must be attached to a

vertical wall (or a pole).

The multisensor must be mounted

horizontally in a transverse position.

Wall

pole

Horizontal

Multisensor MS

Installation instructions

The multisensor may only be operated as

a fixed device, i.e. only in mounted state

and after completion of all installation

and startup work. It may only control a

multifunctional sensor relais MSR12, the

weather gateway FWG14MS or the

Weather data transmitter module FWS61.

The power supply is done by SNT12-

230V/24 VDC or SNT61-230V/24VDC.

The power supply line of the multisensor

may be max. 100m long. Connection is

per commercial telephone wire (J-Y(ST)Y

2x2x0.8 or equivalent). Do not open the

multisensor if water (rain) can penetrate.

Even a few drops will render it unusable.

Unsnap

cover and lift off

Cover with

integrated

rain sensor

Cover

snap-on

PCB

Housing

base part

20 000 084 - 1

Only skilled electricians may install

this electrical equipment otherwise

there is the risk of fire or electric

shock!

Temperature at mounting location:

-20°C up to +50°C.

Storage temperature: -25°C up to +70°C.

Relative humidity:

annual average value <75%.

Wiring the terminal incorrectly may

destroy the multisensor or any electronic

devices connected to it.

Take care of the correct connection!

Overview of the terminals

To make it easier to fit, wire up the

multisensor completely and close the

cover tight before you snap it onto the

mount fixed to the wall.

When fitting, make sure you do not

damage the temperature sensor (small

PCB on the bottom of the housing). Do

not rip off or bend the wire connection

between the PCB and the rain sensor.

Location

Select a mounting position on the build-

ing where wind, rain and sun will be

detected properly. Do not place any

structural parts above the multisensor

from which water can drip onto the rain

sensor after it has stopped raining or

snowing. The multisensor may not be

positioned in the shadow of building

components or trees. Leave a clearance

of at least 60cm under the multisensor

to measure the wind correctly and pre-

vent snow from covering the sensor.

Normally the multisensor should point

south. If this is not possible due to local

conditions, it may point in another direc-

tion. The weighting of the direction for

light and twilight can be modified using

the multifunctional sensor relay MSR12.

MS MSR12 FWS61 FWG14MS

1 -> MS1 1 (+) + from SNT

2 -> MS2 2 (-) - from SNT

A -> MSA A RSA

B -> MSB B RSB

Eltako GmbH

D-70736 Fellbach

Technical Support English:

Michael Thünte +49 176 13582514

thuente@eltako.de

Marc Peter +49 173 3180368

marc.peter@eltako.de

eltako.com

03/2017 Subject to change without notice.

Must be kept for later use!
