Side 1/2

Maximum current 3x80 A. Standby loss 0.5 watt per path only.

Modulair device for DIN-EN 60715 TH35 rail mounting in distribution cabinets with IP51 protection

class. 4 modules = 70 mm wide and 58 mm deep.

Accuracy class B (1%). With S0 interface as standard.

It measures active energy by means of the current between input and output. The internal

power consumption of 0.5 watt active power per path is neither metered nor indicated. Like

all meters without declaration of conformity (e.g. MID), this meter is not permitted for billing.

1, 2 or 3 phase conductors with max. currents up to 80A can be connected. The inrush current

is 40 mA.

The N terminal must always be connected.

The consumption value is stored in non-volatile memory and is displayed again immediately

after a power failure.

The 7 segment LC display is also legible twice within a period of 2 weeks without power

supply.

Power consumption is shown by a bar  ashing at a rate of 100 times per kWh.

Designed as standard for using as double-tariff meter: Switch over to a second tariff by applying

230 V to terminals E1/E2.

On the right next to the display are the keys MODE and SELECT.

Press them to scroll through the menu. First the background lighting switches on. The dis-

play then shows the total active energy per tariff, the active energy of the resettable memory

RS1 or RS2 as well as the instantaneous values of consumption, voltage and current per phase.

Error message (false)

When the phase conductor is missing or the current direction is wrong 'false' and the cor-

responding phase conductor are indicated on the display.

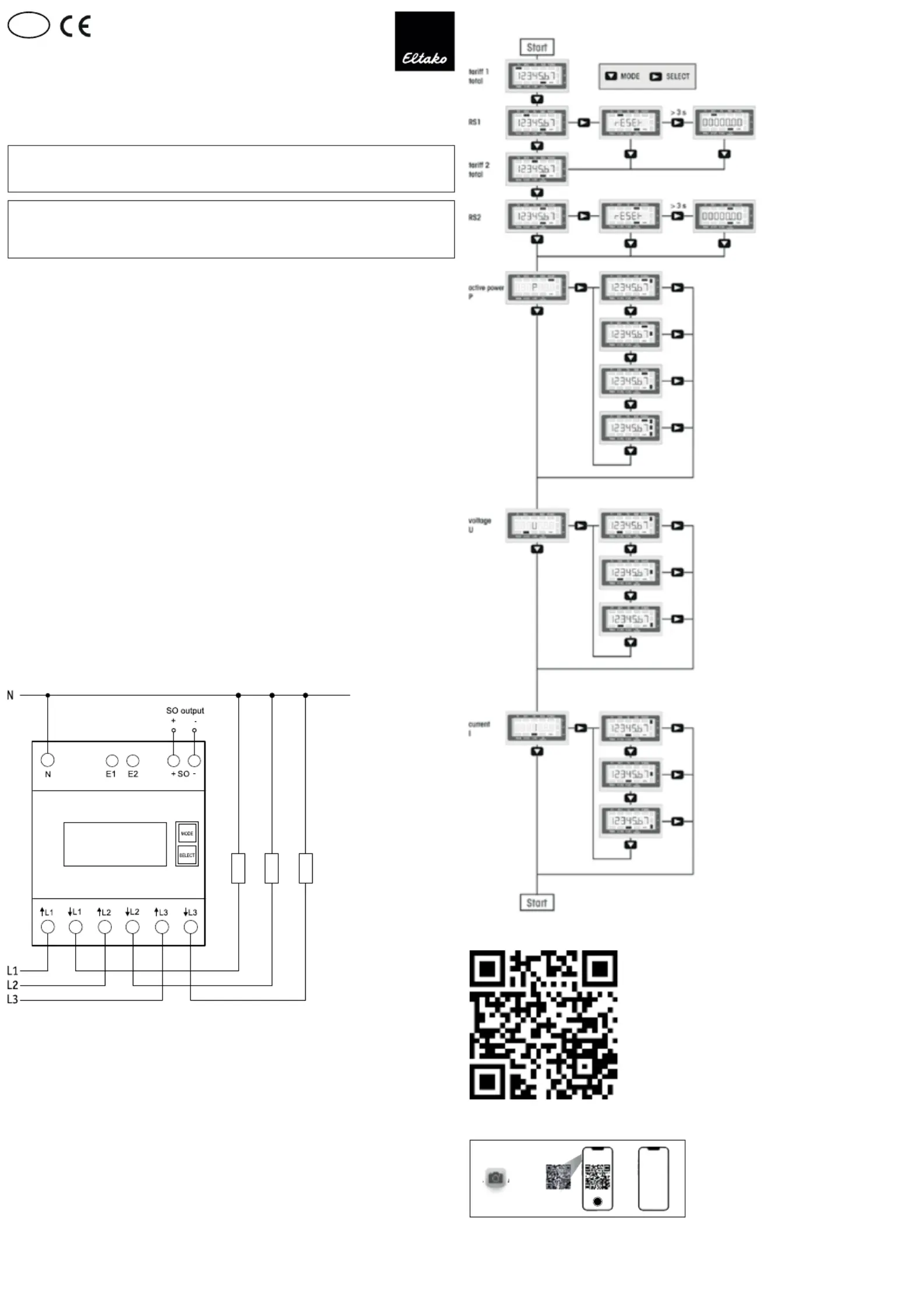

Typical connection:

4-wire-connection 3x230/400 V

Three-phase energy meter DSZ15DE-3x80A with display,

without MID

Temperature at mounting location: -25°C up to +55°C.

Storage temperature: -25°C up to +70°C.

Relative humidity: annual average value <75%.

28 380 615 - 1

Only skilled electricians may install this electrical equipment otherwise there is the risk

of  re or electric shock!

Menu guidance

Manuals and documents in further languages

http://eltako.com/redirect/DSZ15DE-3*80A

1. App 2. 3.

www.

Technical data

Rated voltage, extended range 3x230/400 V, 50 Hz,

-2O%/+15%

Reference current

ref

(Limiting current

max

) 3x10 (80) A

Internal consumption active power 0.5 W per path

Reading LC display 7 digits,

therefrom 1 or 2 digits after the decimal point

Accuracy class ±1% B

Inrush current according to accuracy class B 4O mA

Operating temperature -25/+55°C

Interface Pulse interface S0 according to DIN EN 62053-31,

potential free by opto-coupler,

max. 30 V DC/2O mA and min. 5 V DC,

impedance 100 ohms,

pulse length 30 ms, 1000 Imp./kWh

Terminal cover sealable Terminal cover clap

Protection degree lP50 for mounting in distribution cabines

with protection class IP51

Maximum conductor cross section

L terminals 25 mm

N terminals 16 mm

S0 terminals and tariff terminals 6 mm

Recommended torque

L terminals 2,0 Nm (max. 2,5 Nm)

N terminals 1,5 Nm (max. 2,0 Nm)

S0 terminals and tariff terminals 0,8 Nm (max. 1,2 Nm)

EN 50470

Mechanical environmental conditions class M1

Electromagnetic environmental conditions class E2

The carrying capacity of cables and wires is de ned in DIN VDE 0298-4.

The torques for screw terminals are mentioned in DIN EN 60999-1.

To avoid damages at the energy meter, the recommended torque values for each terminal must not be exceeded

Must be kept for later use!

We recommend the housing for operating instructions GBA14.

Eltako GmbH

D-70736 Fellbach

Technical Support English:

+49 711 94350025

technical-support@eltako.de

eltako.com

42/2022 Subject to change without notice.
