Universal dimming actuator IP

EUD62NPN-IP/110-240V

Eltako Connect App download:

https://eltako.com/redirect/eltako-connect

Universal dimming actuator. With power

MOSFET.

Dimmable 230 V LED lamps in 'phase

cut-off' mode up to 300 W or in 'phase control'

mode up to 100 W depending on ventilation

conditions. 230 V incandescent lamps and

halogen lamps up to 300 W depending on

ventilation conditions

. No minimum load.

Only 0.7 watt standby loss.

For installation. 49 x 51 mm wide, 25 mm deep.

The terminals are plug-in terminals for

conductor cross-sections of 0.2 mm

2.5 mm

Zero passage switching with soft ON and

soft OFF to protect lamps.

Supply voltage, switching voltage and control

voltage local 110-240 V.

The brightness level is stored on switch-off

(memory).

built for

30 062 002 - 2

Temperature at mounting location:

-20°C up to +50°C.

Storage temperature: -25°C up to +70°C.

Relative humidity:

annual average value <75%.

Only skilled electricians may install this

electrical equipment otherwise there is

the risk of  re or electric shock!

supp

y vo

tage

s, t

s sw

off in de ned mode.

Automatic electronic overload protection and

overtemperature switch-off.

With control input for a mains voltage control

button that may be installed in front of it.

Glow lamp current is not permitted.

This actuator is Apple-certi ed and can

therefore be taught in Apple Home.

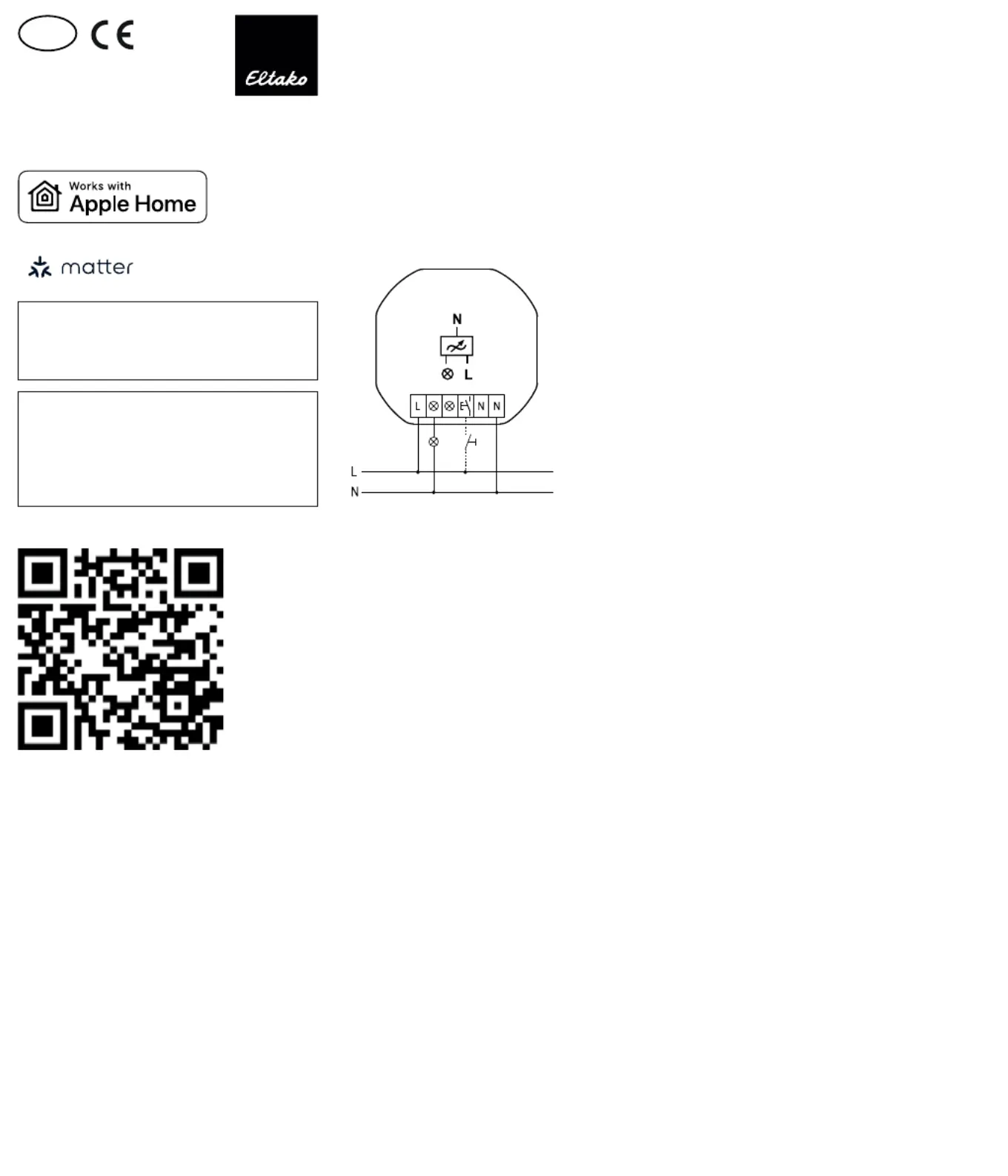

Typical connection

Add device to Apple Home:

ɀ Only 2.4 GHz Wi-Fi frequency bands are

supported.

ɀ Recommended: Commissioning close to

the main router.

2. Connected switch/button: press 8x brie y

(< 1 sec.) and 1x long (> 1.5 sec. and < 5 sec.).

A signal tone sounds for the last two short

closing actions.

The reset con rmation beeps are delayed by

15 seconds with this option.

! Outside of the time window, the device is

simply restarted !

Option 3:

1. The device is disconnected from the supply

voltage.

2. Apply supply voltage, wait for the signal

tone and disconnect the supply voltage

within 5 seconds.

3. Repeat step 2 a total of 5 times.

4. The sixth time the supply voltage is swit-

ched on, the successful factory reset is

con rmed by 3 short and 3 long beeps.

Over-the-Air (OTA) Firmware Updates:

ɀ If the device is connected to the Internet, it

will immediately search for possible updates.

Updates are then requested cyclically every

12 hours.

ɀ Data transfer between the Eltako update

server and the device meets the highest

security standards.

ɀ Before an update is installed, it is checked

whether it is correctly encrypted, validated

and undamaged.

ɀ Updates are downloaded and installed, but

only activated when no important process is

running and no load is switched. The restart

required for this takes a few seconds and

goes unnoticed.

ɀ If an update fails or leads to device insta-

bility, the system automatically switches

back to the previous  rmware version and

waits for a new update.

O ine  rmware updates:

The device supports o ine  rmware updates

via REST API. More information on this on the

product website.

1. Apply mains voltage and wait for the signal

tone.

Wait 15 seconds until all modules have started.

3. Open the Apple Home app.

4. In the upper right corner press the '+' symbol

and select 'Add device'.

5. Scan the Apple Home QR code. It can be

found on the back of the device and on the

QR code card in the packaging.

6. The Apple Home app will guide you through

the remaining steps.

Important!

After a successful connection, an update is

automatically searched for, installed and the

device restarts.

Factory reset:

3 short and 3 long beeps will beep to con rm

the reset:

Option 1:

Via the Eltako Connect app.

Option 2:

1. Apply supply voltage

(time window of 5 minutes be

ins)

Technical data

Dimmable Trailing edge

230 V LED lamps up to 300 W

Leading edge

up to 100 W

Incandescent and up to 300 W

halogen lamps

230 V (R)

Inductive up to 300 W

2) 3)

transformers (L)

Electronic up to 300 W

2) 3)

transformers (C)

Dimmable energy saving up to 300 W

lamps ESL

Max./min. temperature +50°C/-20°C

at mounting location

Standby loss (activ power) 0.7 W

Applies to lamps of max. 150 W.

Per dimmer it is only allowed to use max. 2 inductive

(wound) transformers of the same type, furthermore

no-load operation on the secondary part is not

permitted. The dimmer might be destroyed. There-

fore do not permit load breaking on the secondary

part. Operation in parallel of inductive (wound) and

capacative (electronic) transformers is not permitted!

When calculating the load a loss of 20% for inductive

(wound) transformers and a loss of 5% for capacitive

(electronic) transformers must be considered in

addition to the lamp load.

Affects the max. switching capacity.

Usually applies for dimmable energy saving lamps

and dimmable 230 V LED lamps. Due to differences in

the lamps electronics, there may be limited dimming

range, switch on and off problems dependent on the

manufacturer and a restriction on the maximum

number of lamps; especially if the connected load is

very low (for 5 W-LEDs).

To control this HomeKit-enabled accessory, the latest

version of iOS or iPadOS is recommended.

Use of the Works with Apple badge means that an

accessory has been designed to work speci cally with

the technology identi ed in the badge and has been

certi ed by the developer to meet Apple performance

standards. Apple is not responsible for the operation of

this device or its compliance with safety and regulatory

standards.

Apple, Apple Home, and HomeKit are trademarks of

Apple Inc., registered in the U.S. and other countries

and regions.

Frequency 2.4 GHz

Transmit power max. 100 mW

Hereby, Eltako GmbH declares that the radio

equipment type EUD62NPN-IP/110-240V is

in com pliance with Directive 2014/53/EU.

The full text of the EU declaration of con-

formity can be accessed via the QR code or

the internet address under 'Documents'.

Must be kept for later use!

Eltako GmbH

D-70736 Fellbach

Technical Support English:

+49 711 943 500 25

technical-support@eltako.de

eltako.com

32/2023 Subject to change without notice.

Manuals and documents in further languages:

http://eltako.com/redirect/EUD62NPN-IP*110-240V
