Side 1/16

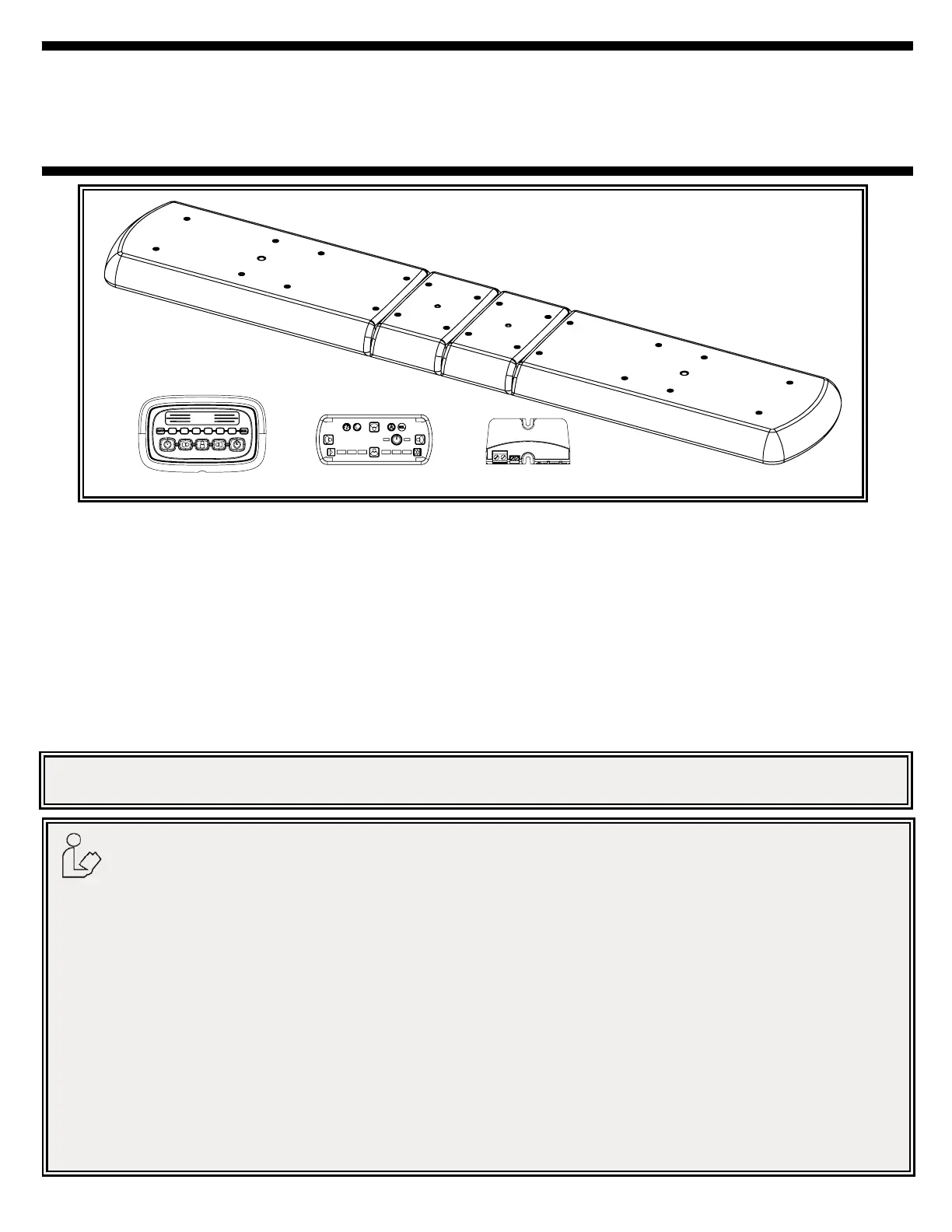

Page 1 of 16

IMPORTANT! Read all instructions before installing and using. Installer: This manual must be

delivered to the end user. This manual assumes installation by a suitably qualied Automotive Technician.

Installation and Operation Instructions

12+ Series Vantage™ Lightbars

Lightbar Control Options

Introduction:

12+ Series Lightbars are versatile and powerful warning devices suitable for a range of vehicle types and duties. There are numerous op-

tions and lengths available. The lightbars can either be mounted permanently to the vehicle or mounted using an optional roof mounting kit.

The 12+ Series Lightbar features a durable aluminu dules: Warning modules, Stop-Tail-Turn modules, and white Alley/Takedown/Worklight

modules.

Unpacking and Pre-Installation:

Carefully remove the lightbar and place it on a at surface. Examine the unit for transit damage and locate all parts. If damage is found or

parts are missing, contact the transit company. Do not use damaged or broken parts.

Ensure the lightbar voltage is compatible with the planned installation.

Do not install and/or operate this safety product unless you have read and understand the safety

information contained in this manual.

1. Proper installation combined with operator training in the use, care and maintenance of emergency warning devices are essential to

ensure the safety of emergency personnel and the public.

2. Emergency warning devices often require high electrical voltages and/or currents. Exercise caution when working with live electrical

connections.

3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current

arcing, which can cause personal injury and/or severe vehicle damage, including re.

4. Proper placement and installation is vital to the performance of this warning device. Install this product so that output performance of

the system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system

without losing eye contact with the roadway.

5. It is the responsibility of the vehicle operator to ensure daily that all features of this product work correctly. In use, the vehicle operator

should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors),

people, vehicles or other obstructions.

6. The use of this or any other warning device does not ensure all drivers can or will observe or react to an emergency warning signal.

Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, drive

against trafc, respond at a high rate of speed, or walk on or around trafc lanes.

7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws

regarding emergency warning devices. Therefore, the user should check all applicable city, state, and federal laws and regulations.

The manufacturer assumes no liability for any loss resulting from the use of this warning device.

8. This product may contain high intensity LEDs staring directly into these lights could result in temporary and/or permanent vision

impairment.

Page 2 of 16

Installation & Mounting:

Mounting

Before proceeding with installation, plan all wiring and cable

routing. Select the mounting location for the lightbar on a

at, smooth surface and center the unit across the width of

the vehicle. The mounting location for the lightbar should

be chosen such that the lightbar is level and visibility to

approaching trafc is optimized. Mounting should be such that

there is no less than ½” clearance between the roof and the

lightbar at any point.

Caution:

When drilling into any vehicle surface, make sure that the area

is free from any electrical wires, fuel lines, vehicle upholstery,

vehicle support members, etc. that could be damaged.

Specications:

Length.................48”,54”,60”,72”

Height..................2.5” Width: 11”

Voltage................12-24VDC

Current Draw.......Single Color LED Module = 0.45A Avg. @ 12.8VDC

Dual Color LED Module = 0.90A Avg. @ 12.8VDC

LED STT(pair) = 0.25A Avg.@ 12.8VDC

LED AL,TD,WL (pair) = 1.80A Avg. @ 12.8VDC

Flash Patterns.....48 (See chart)

WARNING!

Failure to install or use this product according to manufacturer’s recommendations may result in property

damage, serious bodily/personal injury, and/or death to you and those you are seeking to protect!

NOTE: Unless otherwise congured, lightbars containing dual color modules will operate such that patterns referencing

“Front” will operate color 1 and patterns referencing “Rear” will operate color 2; e.g. on an EZ1206AR dual color

module, amber is color 1 and red is color 2.

Safety Director Flash Pattern Chart

Sequence Description SAE J595

1 Left N/A

2 Left Build N/A

3 Right N/A

4 Right Build N/A

5 Center Out N/A

6 Center Out Build N/A

7 Wig Wag Class 1

8 Class 1Quad Alternate

9Quad Alternate Center Pulse N/A

10 Class 1Single Alternate

11 Single Alternate Center Pulse N/A
