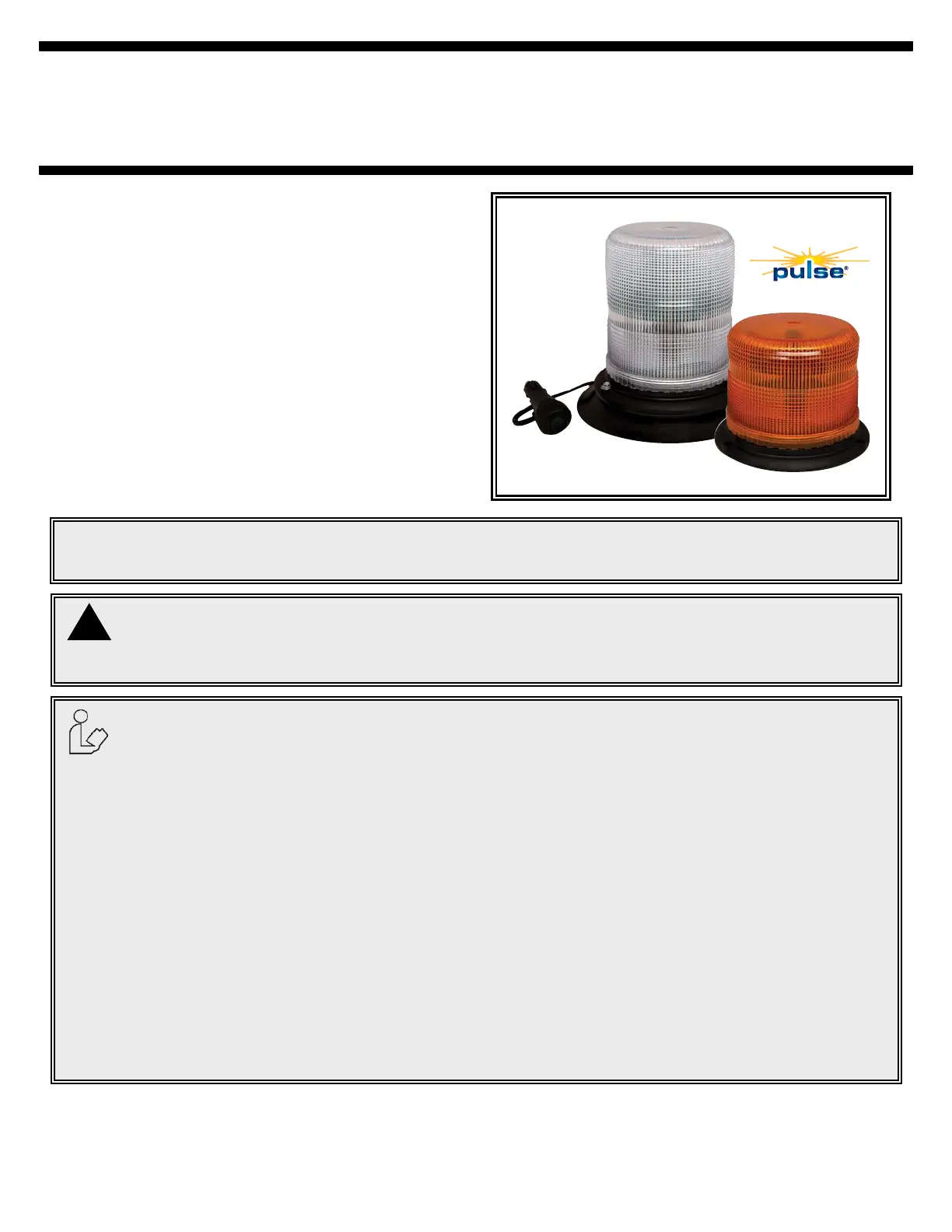

The 7945 & 7950 series LED beacons are designed to

meet SAE J845 Class II specications (Amber and Clear

only). The 7945 & 7950 features 12-48 VDC operation, 3

bolt mounting ange, integrated 1” pipe mount, & optional

vacuum-magnet mount.

Page 1 of 4

Do not install and/or operate this safety product unless you have read and understand the

safety information contained in this manual.

1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices

are essential to ensure the safety of you and those you are trying to protect.

2. Exercise caution when working with live electrical connections.

3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause

high current arcing, which can cause personal injury and/or severe vehicle damage, including re.

4. Proper placement and installation are vital to the performance of this warning device. Install this product so that out-

put performance of the system is maximized and the controls are placed within convenient reach of the operator so

that s/he can operate the system without losing eye contact with the roadway.

5. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In

use, the vehicle operator should ensure the projection of the warning signal is not blocked by vehicle components

(i.e., open trunks or compartment doors), people, vehicles, or other obstructions.

6. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning sig-

nal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before enter-

ing an intersection, driving against trafc, responding at a high rate of speed, walking on or around trafc lanes.

7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and

obeying all laws regarding warning signal devices. Therefore, the user should check all applicable city, state, and fed-

eral laws and regulations. The manufacturer assumes no liability for any loss resulting from the use of this warning

device.

WARNING!

Failure to install or use this product according to manufacturer’s recommendations may result in property

damage, serious bodily/personal injury, and/or death to you and those you are seeking to protect!

IMPORTANT! Read all instructions before installing and using. Installer: This manual must be

delivered to the end user.

Installation Instructions

360° LED Beacon

Caution: When drilling into any vehicle surface,

make sure that the area is free from any electrical wires,

fuel lines, vehicle upholstery, etc. that could be damaged.

Specications:

Size: 7945: 6.0” dia. x 4.8” high

7950: 6.0” dia. x 6.8” high

Weight: approx. 3 lbs.

Input Voltage: 12-48 VDC system

Input Current: 0.5A @ 12.8 VDC

Maximum power consumption: 6.4 Watts

Temp. Range: -30°C to +50°C

Carefully remove the beacon and place it on a at surface. Examine

the unit for transit damage, and locate all parts. If damage is found,

or parts are missing, contact the transit company. Do not use dam-

aged or broken parts.

Permanent Mounting:

Select the desired location on a at surface for the LED beacon to

be mounted. The visibility of the ash and ease of wiring access

should be taken into consideration in the selection of the mounting

location.

1. Using the base gasket as a template, mark the three mount-

ing hole locations (see Figure 1).

2. Drill the holes using a 7/32” drill size.

3. A fourth hole may be drilled for wire access as shown in Fig-

ure 1, or the wires may be routed through the slot in the base

for external access.

4. Connect the power wires as shown in the wiring section (see

Figure 3).

5. Mount the beacon with #8 hardware.

Pipe Mounting:

The 7945 & 7950 series base comes with 1” NPT threads for pipe

mounting.

Figure 1

Temporary Mounting, Vacuum-Magnet Mount:

The 7945 & 7950 series beacons are available as vacuum-magnet

mount (7945X-VM & 7950X-VM) units. The Vacuum-Magnet Mount

feature includes a suction cup on the bottom of the beacon, with a

magnet inside of the suction cup, for a secure, temporary mount. The

beacon should be placed in the center of the roof where the least

amount of curvature occurs. Before installing, make sure there is

no debris on the bottom of the beacon or on the roof of the vehicle,

which could reduce the holding power of the suction cup and mag-

net. Place and remove the beacon without sliding to avoid scratching

the paint on the vehicle. After placement, the beacon should adhere

rmly to the surface. If the unit slides or moves easily, a proper in-

stallation has not been obtained. To release the vacuum, lift the tab

to release the airlock (see Figure 2). To protect the Vacuum-Magnet

Mount assembly, return beacon to the box when not in use. Do not

attempt to attach the beacon to an ice-covered surface.

Page 2 of 4

Important! This unit is a safety device, and it must be

connected to its own seperate, fused power point to as-

sure its continued operation should any other electrical

accessory fail.

WARNING!

Maximum recommended vehicle speed for safe operation

using the Vacuum Mount model is 65 mph (104 km/h), when tted

to the center of a vehicle roof of steel construction. Higher speeds

could cause the mount to fail, resulting in the beacon ying off

of the vehicle, which could cause damage to other vehicles, and

injury or death to the passengers. The vacuum-magnet mount is not

intended as a permanent mounting for the beacon. The vacuum-

magnet mount unit must be mounted on a at smooth magnetic

surface (i.e. no berglass, ribbed style roofs, etc.). Insure that the

magnet is kept clean.

Figure 2

Installation & Mounting:
