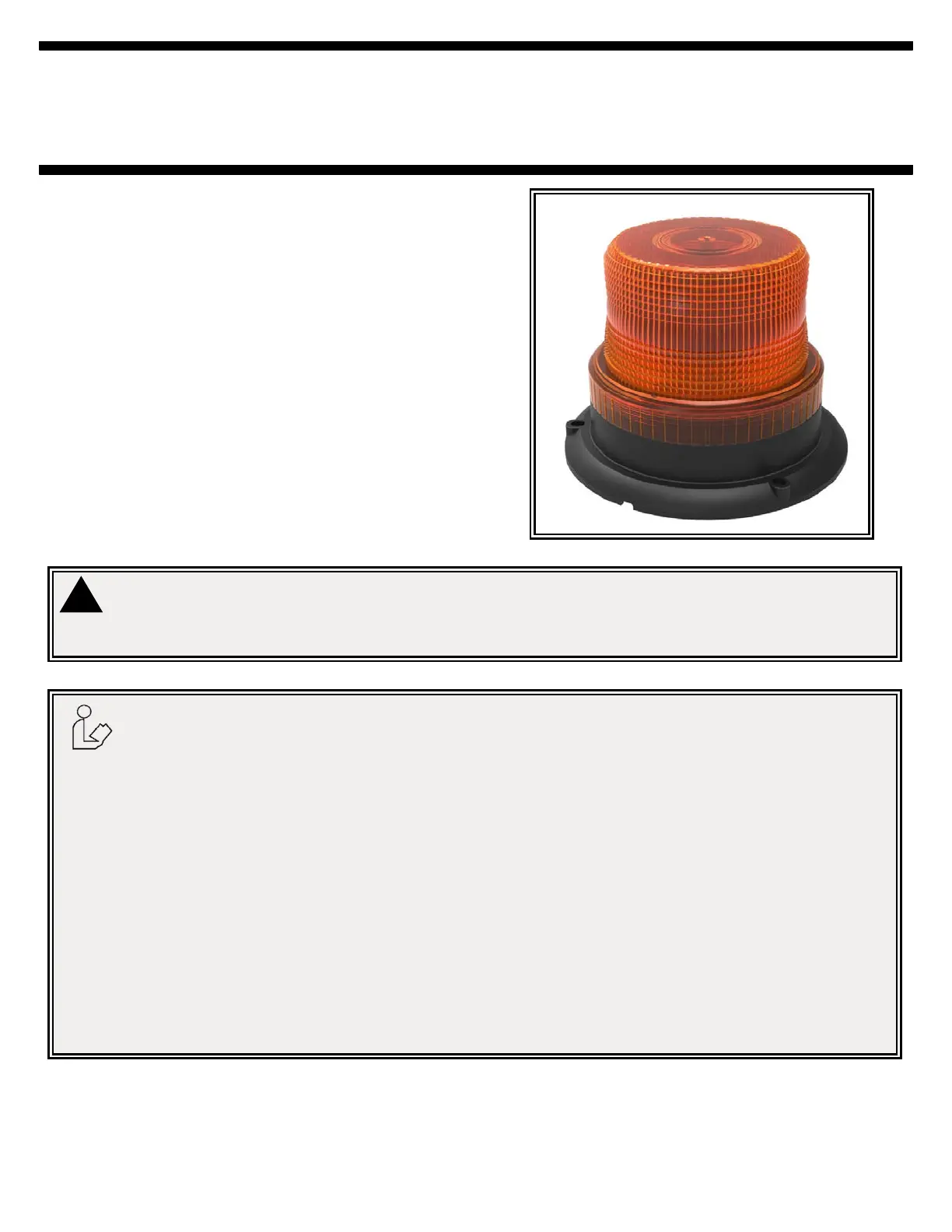

A low prole LED beacon with a long, maintenance-free

service life. These beacons are ideal for industrial vehicle

applications and feature a 12-80 VDC operating range.

Do not install and/or operate this safety product unless you have read and understand the

safety information contained in this manual.

1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices

are essential to ensure the safety of you and those you are trying to protect.

2. Exercise caution when working with live electrical connections.

3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause

high current arcing, which can cause personal injury and/or severe vehicle damage, including re.

4. Proper placement and installation are vital to the performance of this warning device. Install this product so that output

performance of the system is maximized and the controls are placed within convenient reach of the operator so that

s/he can operate the system without losing eye contact with the roadway.

5. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In

use, the vehicle operator should ensure the projection of the warning signal is not blocked by vehicle components (i.e.,

open trunks or compartment doors), people, vehicles, or other obstructions.

6. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning signal.

Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an

intersection, driving against trafc, responding at a high rate of speed, walking on or around trafc lanes.

7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obey-

ing all laws regarding warning signal devices. Therefore, the user should check all applicable city, state, and federal

laws and regulations. The manufacturer assumes no liability for any loss resulting from the use of this warning device.

WARNING!

Failure to install or use this product according to manufacturer’s recommendations may result in property

damage, serious bodily/personal injury, and/or death to you and those you are seeking to protect!

Page 1 of 3

Installation and Operation Instructions

LED Beacon

Specications:

Size: Permanent Mount W: 5.1” x H: 4.2”

Magnet Mount W: 5.1” x H: 4.3”

Weight: Permanent Mount 0.6 lb.

Magnet Mount 1.6 lb.

Voltage: 12-80 VDC systems

Current Draw: 150 mA

Pulse 8: 85 FPM

Important! This unit is a safety device, and it must be con-

nected to its own separate, fused power point to assure its

continued operation should any other electrical accessory fail.

Page 2 of 3

WARNING!

Maximum recommended vehicle speed for safe oper-

ation using the Magnet Mount model is 65 mph (104

km/h) on a well maintained road, when tted to the

center of a vehicle roof of steel construction. Higher

speeds could cause the mount to fail, resulting in the

beacon ying off of the vehicle, which could cause

damage to other vehicles and injury or death to the

passengers.

The magnet mount is not intended as a permanent mounting

for the beacon. The magnet mount unit must be mounted on

a magnetic surface (i.e. no berglass, etc.). Insure that the

magnet is kept clean.

Installation & Mounting:

Carefully remove the beacon and place it on a at surface. Ex-

amine the unit for transit damage, broken lenses, etc. If damage

is found, contact the transit company or distributor. Do not use

damaged or broken parts.

Mounting:

Permanent

Position the unit in the desired mounting location. Using the base

as a template, mark the mounting hole locations. Drill three 3/16”

mounting holes, and drill one hole for power wire routing. The use

of a grommet is recommended for wires passing through compart-

ment walls. Mount the beacon using #10 hardware.

Mounting:

Temporary, magnet

Comes complete with a magnet, a fteen foot cord and a ciga-

rette lighter plug. A magnet mount kit is also available.

Note: These units are not sealed on the bottom. For

operation in an extremely moist environment or as added

protection against moisture, sealing the wire exit hole on

the bottom with a pliable caulking material is

recommended.

Note: Operating the vehicle without the lens installed on the

product may result in damage that will NOT be covered under

warranty

Wiring:

The wiring for this conguration is as shown in Figure 1 below.

The positive line must have a 3 amp fuse, as shown. A switch

may be used to control the on/off function

RED WIRE

SWITCH

(USER SUPPLIED)

FUSE (3 AMP)

(USER SUPPLIED)

BATTERY

GROUND GROUND

BLACK WIRE

CAUTION: HIGH VOLTAGE. Before servicing light, turn

“OFF” power and wait ve minutes.
