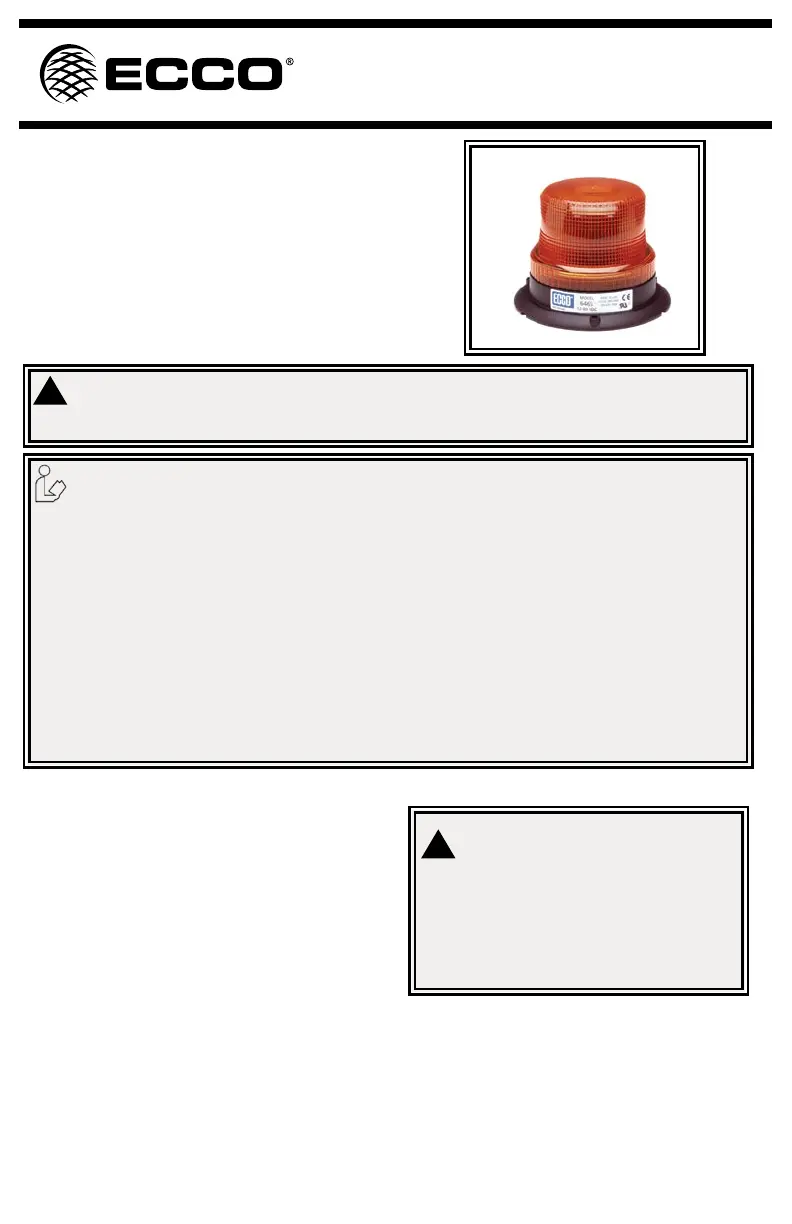

ECCO’s 6465 Series is a low prole LED beacon with a long,

maintenance-free service life. 6465 Series beacons are ideal for

industrial vehicle applications and feature a

12-80 VDC operating range.

Page 1 of 2

1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to ensure

the safety of you and those you are seeking to protect.

2. Exercise caution when working with live electrical connections.

3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing,

which can cause personal injury and/or severe vehicle damage, including re.

4. Proper placement and installation are vital to the performance of this warning device. Install this product so that output performance of the

system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system without losing

eye contact with the roadway.

5. Do not install this product or route any wires in the deployment area of an air bag. Equipment mounted or located in an air bag deployment

area may reduce the effectiveness of the air bag or become a projectile that could cause serious personal injury or death. Refer to the

vehicle owner’s manual for the air bag deployment area. It is the responsibility of the user/operator to determine a suitable mounting location

ensuring the safety of all passengers inside the vehicle particularly avoiding areas of potential head impact.

6. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle operator

should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors), people,

vehicles or other obstructions.

7. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning signal. Never take the right-

of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against trafc, respond-

ing at a high rate of speed, or walking on or around trafc lanes.

8. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws regarding

warning signal devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The manufacturer as-

sumes no liability for any loss resulting from the use of this warning device.

Do not install and/or operate this safety product unless you have read and understand the safety information

contained

Failure to install or use this product according to manufacturer’s recommendations may result in property damage, serious injury, and/or death to

those you are seeking to protect!

WARNING!

Specications:

Size: Permanent Mount W: 5.1” x H: 4.2”

Magnet Mount W: 5.1” x H: 4.3”

Weight: Permanent Mount 0.6 lb.

Magnet Mount 1.6 lb.

Voltage: Model 6465X 12-80 VDC systems

Model 6465X-MG 12-24 VDC systems

Current Draw: 100 mA

Flash Rate: Pulse 8 ash mode: 85 FPM

WARNING!

Maximum recommended vehicle speed for safe operation using

the Magnet Mount model is 65 mph (104 km/h) on a well main-

tained road, when tted to the center of a vehicle roof of steel con-

struction. Higher speeds could cause the mount to fail, resulting

in the beacon ying off of the vehicle, which could cause damage

to other vehicles and injury or death to the passengers.

The magnet mount is not intended as a permanent mounting for the

beacon. The magnet mount unit must be mounted on a magnetic sur-

face (i.e. no berglass, etc.). Insure that the magnet is kept clean.

Installation & Mounting:

Carefully remove the beacon and place it on a at surface. Ex-

amine the unit for transit damage, broken lenses, etc. If damage

is found, contact the transit company or distributor. Do not use

damaged or broken parts.

Mounting:

Permanent, Model 6465

Position the unit in the desired mounting location. Using the base

as a template, mark the mounting hole locations. Drill three 3/16”

mounting holes, and drill one hole for power wire routing. The use of

a grommet is recommended for wires passing through compartment

walls. Mount the beacon using #10 hardware.

Installation and Operation Instructions

6465 LED Beacon

Important! This unit is a safety device, and it must be connected to its own

separate, fused power point to assure its continued operation should any

other electrical accessory fail.

920-0166-00 Rev. E Page 2 of 2

Mounting:

Temporary, Model 6465-MG

Model 6465-MG comes complete with a magnet, a fteen foot cord and a

cigarette lighter plug. A magnet mount kit is also available for Model 6465.

Note: These units are not sealed on the bottom. For operation in

an extremely moist environment or as added protection against

moisture, sealing the wire exit hole on the bottom with a pliable

caulking material is

recommended.

Note: Operating the vehicle without the lens installed on the

product may result in damage that will NOT be covered under

warranty.

Wiring:

The wiring for this conguration is as shown in Figure 1 below. The positive

line must have a 3 amp fuse, as shown. A switch may be used to control the

on/off function.

RED WIRE

SWITCH

(USER SUPPLIED)

FUSE (3 AMP)

(USER SUPPLIED)

BATTERY

GROUND GROUND

BLACK WIRE

FIGURE 1

Replacement Parts:

Description Part No.

Lens: Amber R6400LA

Blue R6400LB

Clear R6400LC

Green R6400LG

Red R6400LR

CAUTION: HIGH VOLTAGE. Before servicing light, turn

“OFF” power and wait ve minutes.
