Source Four User Manual • 1
Source Four
User Manual
HPL lamps
Do not use lamps other than the HPL in Source Four fixtures.
Use of lamps other
than HPL will void UL/cUL safety compliance and your warranty
.
Lens locations
The different lenses used in the
Source Four are not interchangeable.
When installing a new lens, refer to
the illustration below for proper
placement. Also, remember to have
the lens’ color designator dot facing
the color frame.
Lamp code Watts Volts Initial Lumens Color temp. Average rated life
HPL 750/115
750 115 21,900 3,250º K 300 hour
HPL 575/115 575 115 16,520 3,250º K 300 hour
HPL 575/115X 575 115 12,360 3,050º K 2,000 hour
HPL 575/120 575 120 16,460 3,250º K 300 hour
HPL 375/115 375 115 10,540 3,200º K 300 hour
HPL 375/115X 375 115 8,068 3.000º K 1000 hour
HPL 550/77* 550 77 16,170 3,250º K 300 hour
HPL 550/77X* 550 77 12,160 3.050º K 2,000 hour
HPL 750/220 750 220 19,400 3,200º K 300 hour
HPL 750/230 750 230 19,400 3,200º K 300 hour
HPL 750/240 750 240 19,400 3,200º K 300 hour
HPL 575/230 575 230 14,900 3,200º K 400 hour
HPL 575/240 575 240 14,900 3,200º K 400 hour
HPL 575/230X 575 230 11,780 3,050º K 1500 hour
HPL 575/240X 575 240 11,780 3,050º K 1500 hour
HPL 375/230X 375 230 7,800 3,050º K 1000 hour
HPL 375/240X 375 240 7,800 3,050º K 1000 hour
Table 1:
HPL lamp reference
*To be used with ETC Dimmer Doubler™
19° (6x16)
Red dot
26° (6x12)
Black dot
36° (6x9)
Dotless
50° (4.5x6)
Yellow dot

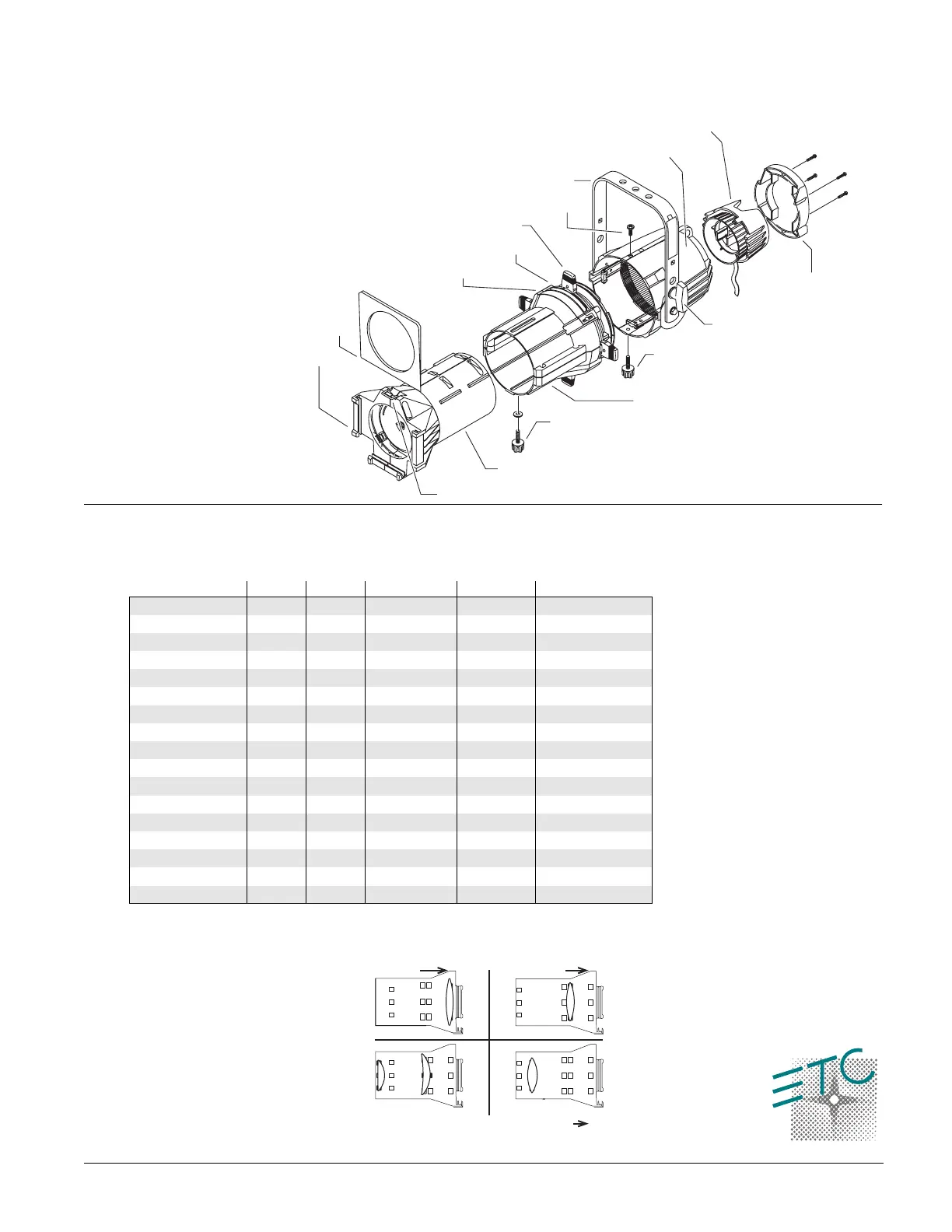

Figure 1
Retainin
g
cli
p
Color frame holder
Color frame
Drop-in iris slot
Pattern holder slot
Shutters
Retainer bolt
Yoke
Insulated handle
Yoke locking knob
Barrel rotation knob
Barrel
Beam focus knob
Lens tube
Reflector housing
Lamp housing
Note:
Safety cable is included
for cUL applications.
ª
2 • Source Four User Manual
Installing or replacing the HPL lamp
A lamp must be installed before you use the fixture.
Note:
Verify that the HPL lamp you intend to install is suitable for your facility's
voltage; 115-, 120-, 230-, and 240-volt HPL lamps are available. See the
above table. Operating HPL lamps above their rated voltage reduces lamp
life and can cause premature lamp failure.
Replace the lamp if it becomes damaged or thermally deformed.
1.
Disconnect power to the Source Four before installing the lamp.
2.
Loosen the knurled bolt on the back of the lamp housing and pull the housing
out.
3.
Holding it by the base, remove the HPL lamp from its box.
Note:
To avoid premature lamp failure, do not touch the lamp glass. If you do,
clean it carefully with rubbing alcohol and a clean lint-free cloth before
operation.
4.
Line up the flat sides of the lamp base with the retention brackets on either side
of the socket as show in
Figure 2
.
5.
Push down on the lamp base until the lamp seats firmly. (When properly
installed, the top of the lamp's base will be even with the top edges of the
retention brackets).
Caution!
Improperly installed lamps cause premature lamp failure and socket
problems.
6.
Press lamp retaining clip across lamp base to secure.
7.
Reinstall the lamp housing by aligning the bolt hole and tightening the knurled
bolt.
Centering and adjusting the lamp
The two concentric knobs located on the lamp housing allow you to align the lamp
and adjust its field (
Figure 3
). The outer knob centers the lamp within the reflector.
The inner knob adjusts the lamp's field.
1.
Turn on the Source Four and aim it at a flat surface.
2.
Unlock and loosen the outer knob by turning it counterclockwise.
3.
Gently move the outer knob from side to side and up and down until the lamp is
centered within the reflector.
4.
Once the lamp is centered, turn the outer knob clockwise to lock it in place.
5.
Finally, turn the inner knob either clockwise or counterclockwise to achieve an
optimum flat field.
Focusing the beam
1.
Loosen the beam focus knob located under the barrel as shown in
Figure 4
.
2.
Slide the lens tube forward or backward to achieve the desired beam edge.
3.
Once the fixture is focused, tighten the beam focus knob.
WARNING!
Let the lamp cool before replacing.

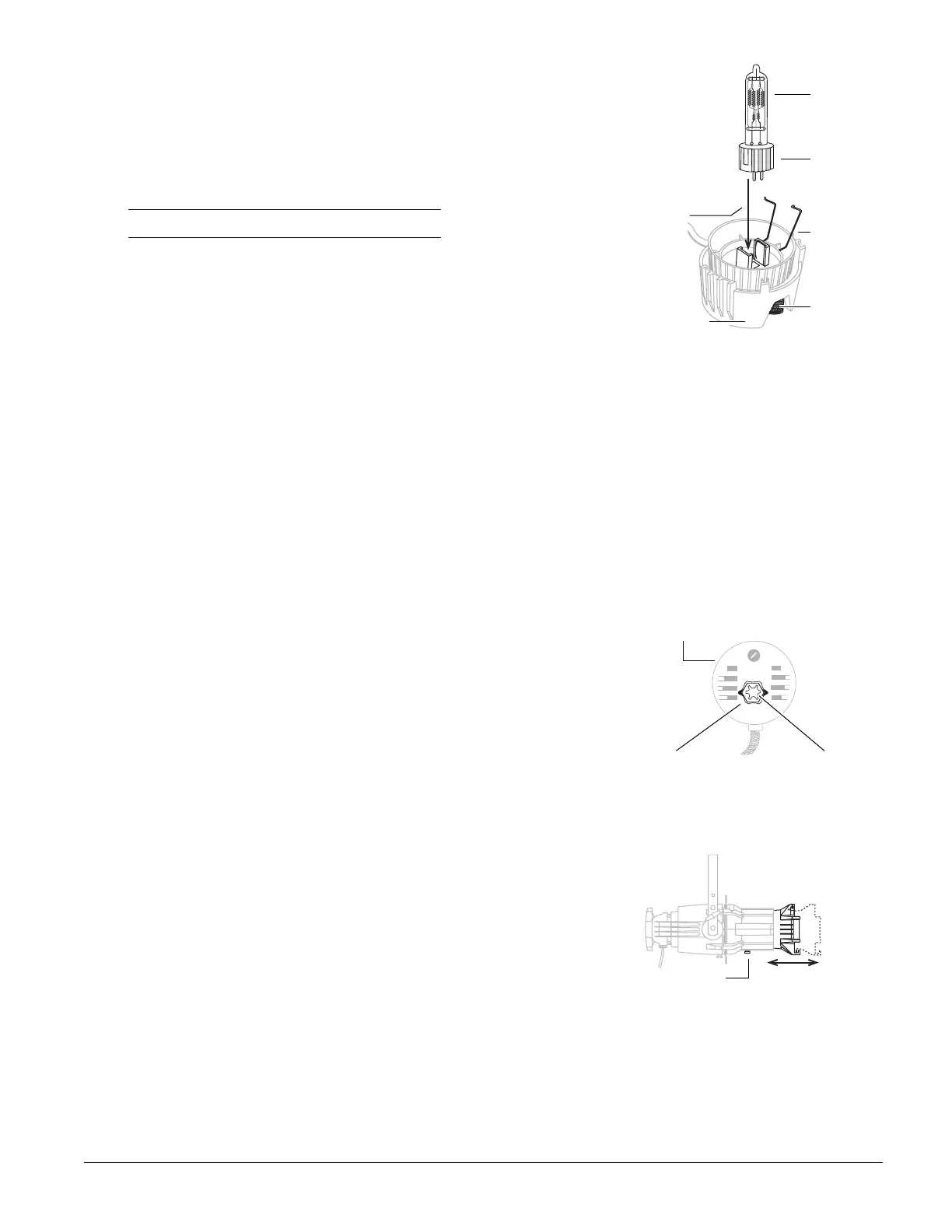

Figure 2
HPL Lamp
Lamp base
Lamp
retaining clip
Knurled bolt
Lamp housing
Lamp
retention
brackets
Figure 3
Rear lamp housing
Center within the
reflector (outer knob)
Adjust peak or flat field
(inner knob)
Figure 4
Beam focus knob
