Side 1/6

Thank you for purchasing this RS232/422/485 Combo Serial to

USB Adapter (hereinafter referred to as ). It is an “ ”Adapter

intelligent expansion module that connects to a PC or server

via the Universal Serial Bus (USB), providing high-speed serial

connectivity. The serial ports are fully compatible with

RS232/422/485 standard by the bundled virtual COM port

drivers. With its flexible mounting options, it is an ideal solution

for most critical applications.

EX-1331VIS

RS232/422/485 to USB2.0 Adapter, w/

Isolation and Surge Protection

1. Introduction

2. Connector Layout

Power/Activity

LED

USB type-B connector

(Rear Panel)

TB5: RS422/485 connector

Male DB9: RS232 connector

Detachable mounting kit

RS232/422/485 to USB Adapter, w/ Isolation and Surge Protection 2.0

Features:

✓ Provides 1 /422/485 Serial Ports over USB Port RS232

✓ Provides 1 DSUB-9 Connector for RS232 and 1 TB-5 for

RS422/485 signals

✓ Supports USB2.0 High Speed (480Mbps) Data Rate

✓ Supports USB Screw Lock Mechanism Enhances Reliability

✓ Baud Rate from 300 bps to 921.6Kbps

✓ Supports 7,8 Data Bits

✓ Odd, Even, Mark, Space, or None parity mode

✓ Supports 1, or 2 Stop Bits

✓ Supports USB Bus Power

✓ Supports 2,500Vrms Isolation and 15KV ESD Protection

✓ 4 Modes: RS232, RS422, 4-Wire and 2-Wire RS485

✓ Supports Win98, Me, XP, CE, Win2000 , Vista and , 2003

Windows 7 and 8

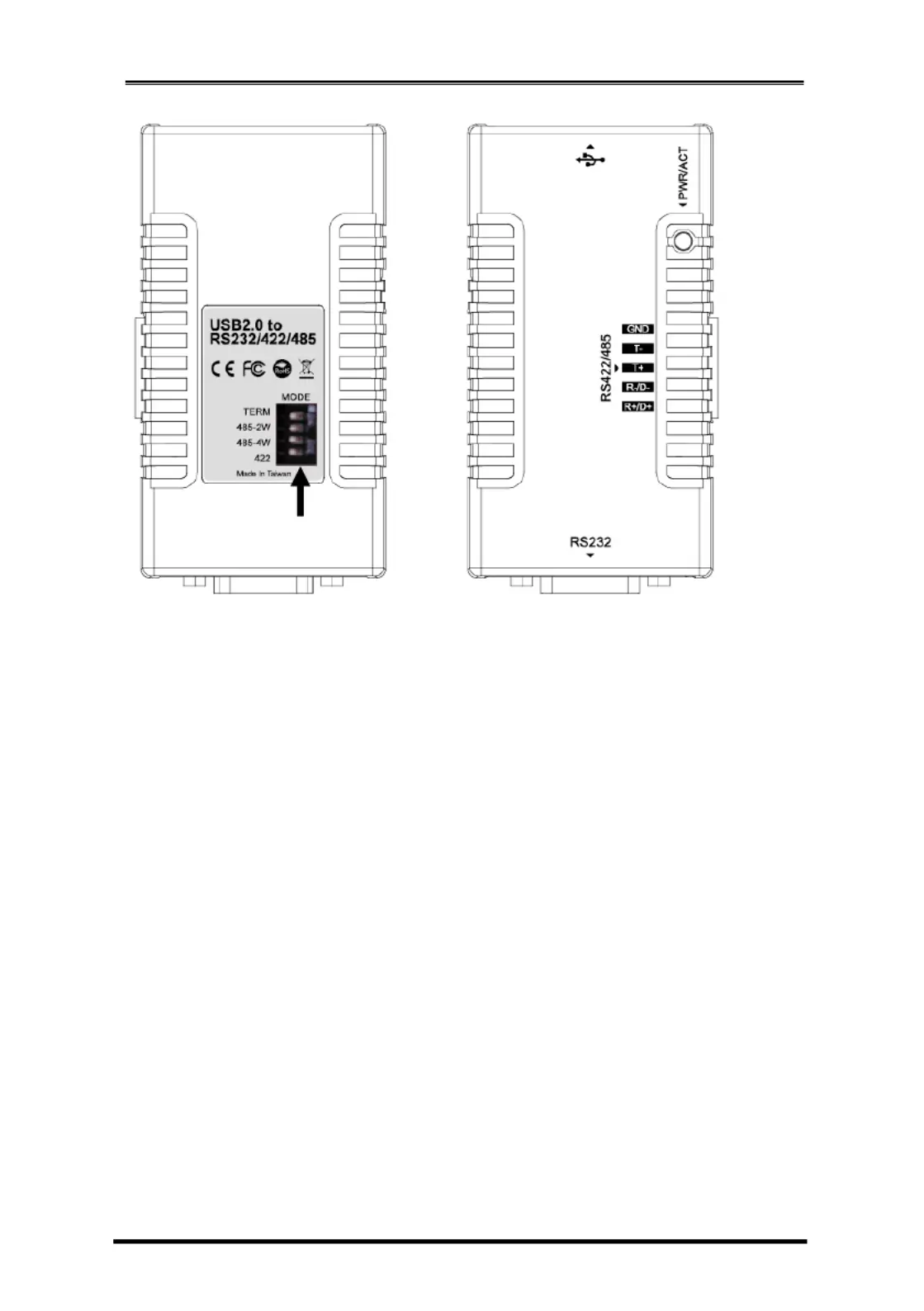

RS422/485 Mode

Switch

Produkt Specifikationer

Mærke:	EXSYS
Kategori:	Ikke kategoriseret
Model:	EX-1331VIS
Bredde:	82 mm
Dybde:	44 mm
Højde:	22 mm
Vægt:	300 g
Produktfarve:	Grå
Opbevaringstemperatur (T-T):	-40 - 75 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Antal USB 2.0-porte:	1
Driftstemperatur (T-T):	0 - 55 °C
Bæredygtighedscertifikater:	RoHS
Understøttede Linux-operativsystemer:	Ja
Værtsgrænseflade:	USB
Intern:	Ingen
Seriel grænsefladetype:	RS-232/422/485
Antal serielle porte:	1
Output-grænseflade:	Seriel
Dataoverførselshastighed (maks.):	0.0009216 Gbit/sek.
FIFO (først ind, først ud):	16 B
