Side 1/4

Thank you for purchasing this USB Host to RS232 Adapter Cable (the

“ ”Adapter Cable ). It is designed specifically to support Android Open

Accessory protocol. The Adapter Cable connects to a USB device on

the Android platform, establishes the USB connection, enumerates

Open Accessories, and then provides a bridge from the USB host port

to a UART interface. All necessary USB and Android Open Accessory

protocol is incorporated in the chip built-in the Adapter Cable, so

that users can quickly and easily establish a USB connectivity link and

have a basic UART (RXD, TXD, RTS, and CTS signals) interface for their

applications .

Android Open Accessory Protocol is supported in Android

Honeycomb (3.1) and later versions, with the benefit that data can

be transmitted and received without additional driver support.

EX- 1305

USB Host to Android RS232 Adapter Cable

w/ DB9 Male Connector

1. Introduction

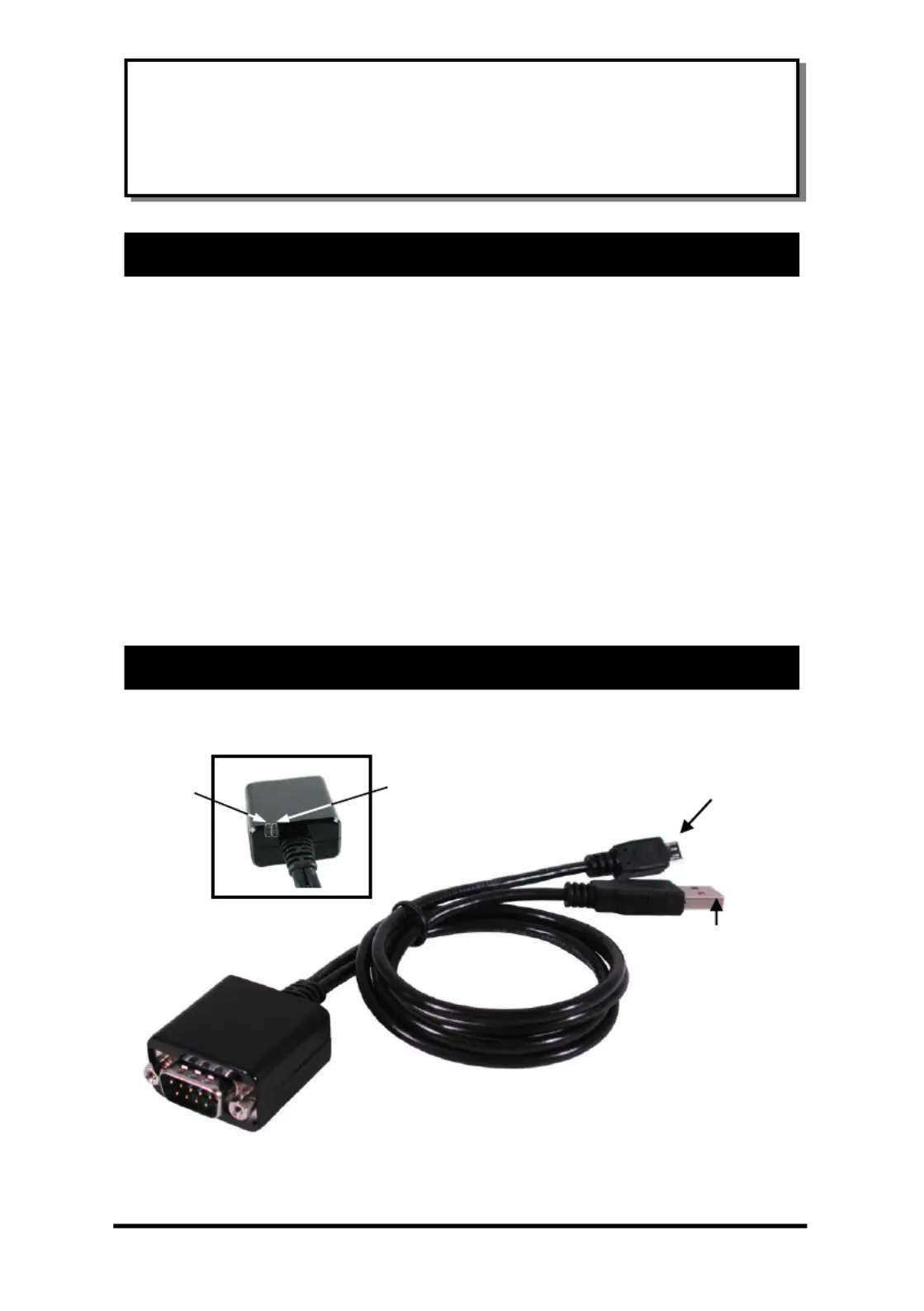

2. Connector Layout

RXD LED

Indicator

T Android Devico e

Micro-USB Connector

From AC/DC

Power Adapter,

+5V, USB Type-A

Connector

TXD LED

Indicator

USB Host to Android RS232 Adapter Cable, w/ DB9 Male Connector

Features:

✓ Provides 1 RS232 Serial Port over USB Host Port

✓ Provides Power Source to the Android Device via the Y-Cable

Configuration

✓ Supports Battery Charging the Android Device with SDP (Standard

Downstream Port) Mode

✓ Easy Serial Port Expansion for Android Devices

✓ Supports UART Signals: TXD, RXD, RTS and CTS

✓ Provides General HyperTerm UART Utility Apps;

Easily Adaptable to a Console Function:

◼ Supports CTS/RTS Flow Control

◼ Baud from 300 to 921600 With CTS/RTS Flow Control

◼ Baud from 300 to 115200 Without Flow Control

◼ Save File and Send File Functions

✓ Provides 1 Nut-type DB9-Male Connector

✓ Supports Android Platform Supporting Android Open

Accessory Mode (version 3.1 onwards and some v2.3.4 )

1. Connect the Micro-USB end of the Adapter Cable to your

Android Device s Charging/USB connector. ’

2. Plug the USB Type-A end of the Adapter Cable into the USB

Battery Charging Adapter (not shipped with the Adapter Cable,

should have come with your Android Device)

3. Connect the RS232 Serial Device to the DB9 male connector of

the Adapter Cable by a Serial Cable.

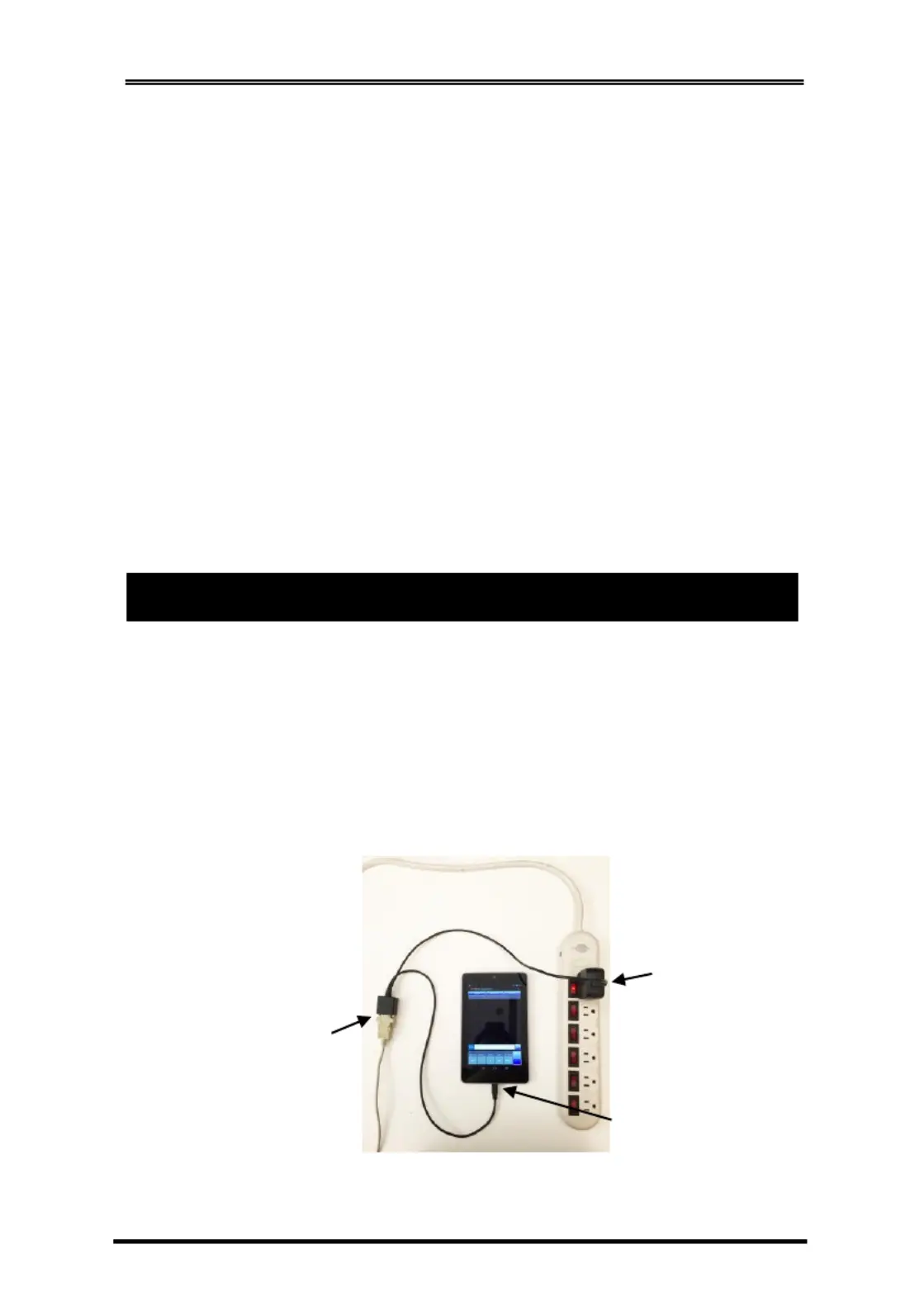

3. Installing the Adapter Cable

Type-A to USB

Power Adapter

Micro-USB to the

Android Device

DB9 male to the

RS232 device via

the serial cable

Produkt Specifikationer

Mærke:	EXSYS
Kategori:	Ikke kategoriseret
Model:	EX-1305
Vægt:	200 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-40 - 75 °C
Driftstemperatur (T-T):	0 - 55 °C
Certificering:	CE, FCC
Kabellængde:	1.8 m
Bæredygtighedscertifikater:	RoHS
Stik 1:	USB A + Micro USB
Stik 2:	RS-232
Stik 1 køn:	Hanstik
Stik 2 køn:	Hunstik
Data-bits:	7, 8
Stop bits:	1, 2
Relativ luftfugtighed:	5 - 95 %
