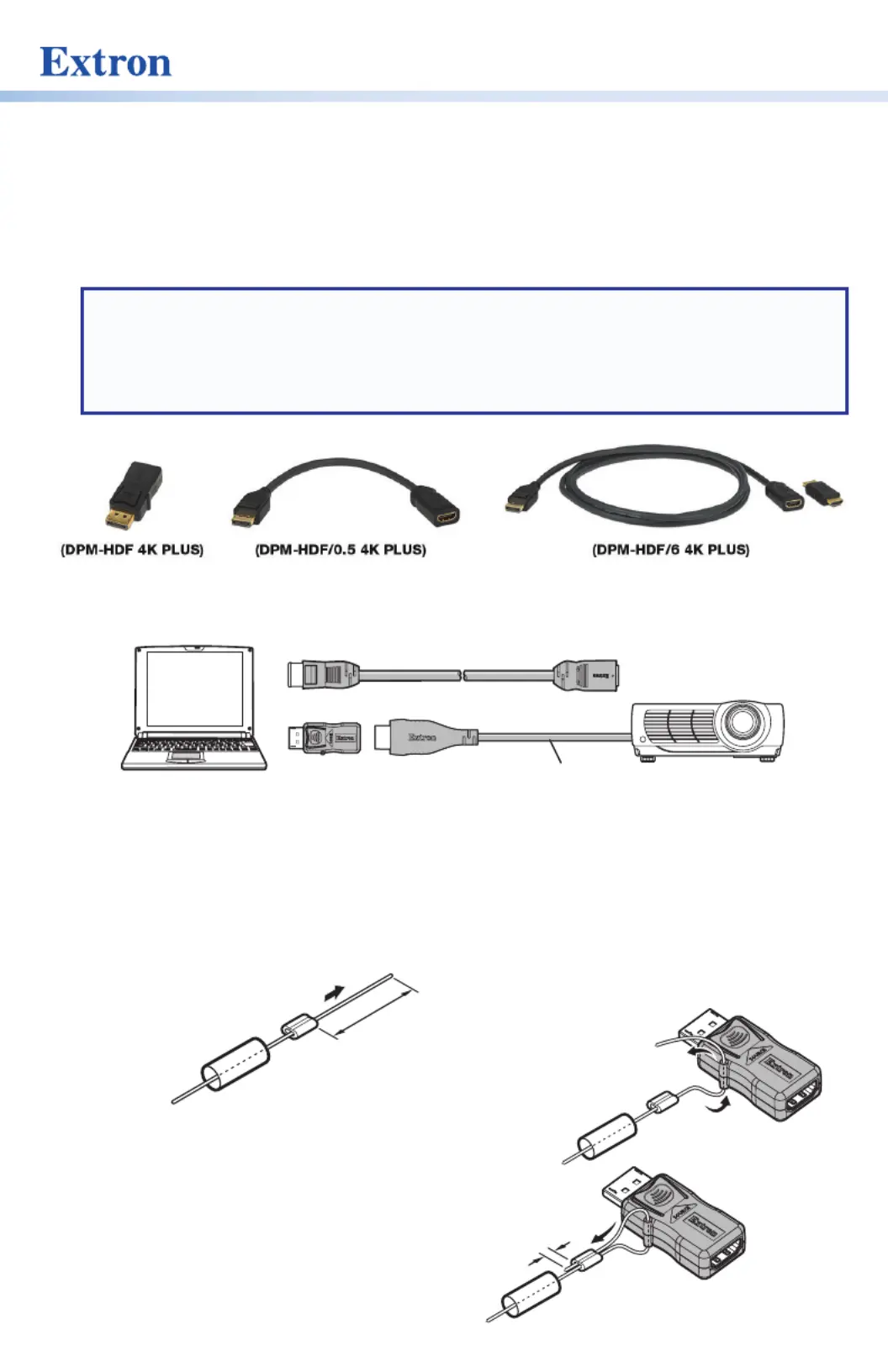

DP to HDMI 4K PLUS Adapters • Installation Guide

The Extron DP to HDMI 4K PLUS adapter, pigtail, and cable are one-way DisplayPort adapters

that allow conversion and transmission of digital signals from any DisplayPort enabled source to

an HDMI sink. The adapters support resolutions up to 4096x2160 at 60 Hz 4:4:4, with EDID and

HDCP information passed through between the source and the display.

NOTES:

• The cables are unidirectional and not intended to convert an HDMI source to output a

DisplayPort signal.

• The cables must be used directly at the DisplayPort source. Do not use additional

cables or adapters between the source output and the DP end of the cable.

Application Diagram

Ext nro

DP to HDMI 4K PLUS

Active Adapter

HDMI

Cable )(25’

Source

Laptop with

D t isplayPor Output

Projector w/HDMI Inpu

Sink

SOURCE

DP to HDMI 4K Plus l ePigtai or Cabl

- -OR

LockIt Cable Adapter Tether

To prevent the adapter from being lost or stolen, attach an optional LockIt Cable Adapter Tether

(available at www.extron.com) to link the cable and adapter together, as follows:

2.0" (51 mm)

Thread the wire through

the heat shrink tube and

metal sleeve.

Leave 2 inches (51 mm) of free wire.

SOURCE

Loop the wire through the

side ring of the Adapter.

SOURCE

1/4" (6.4 mm)

Thread the wire back through the metal sleeve and

tighten the wire allowing about 1/4 inch (6.4 mm)

of the short end of the cable to extend past the

metal sleeve.

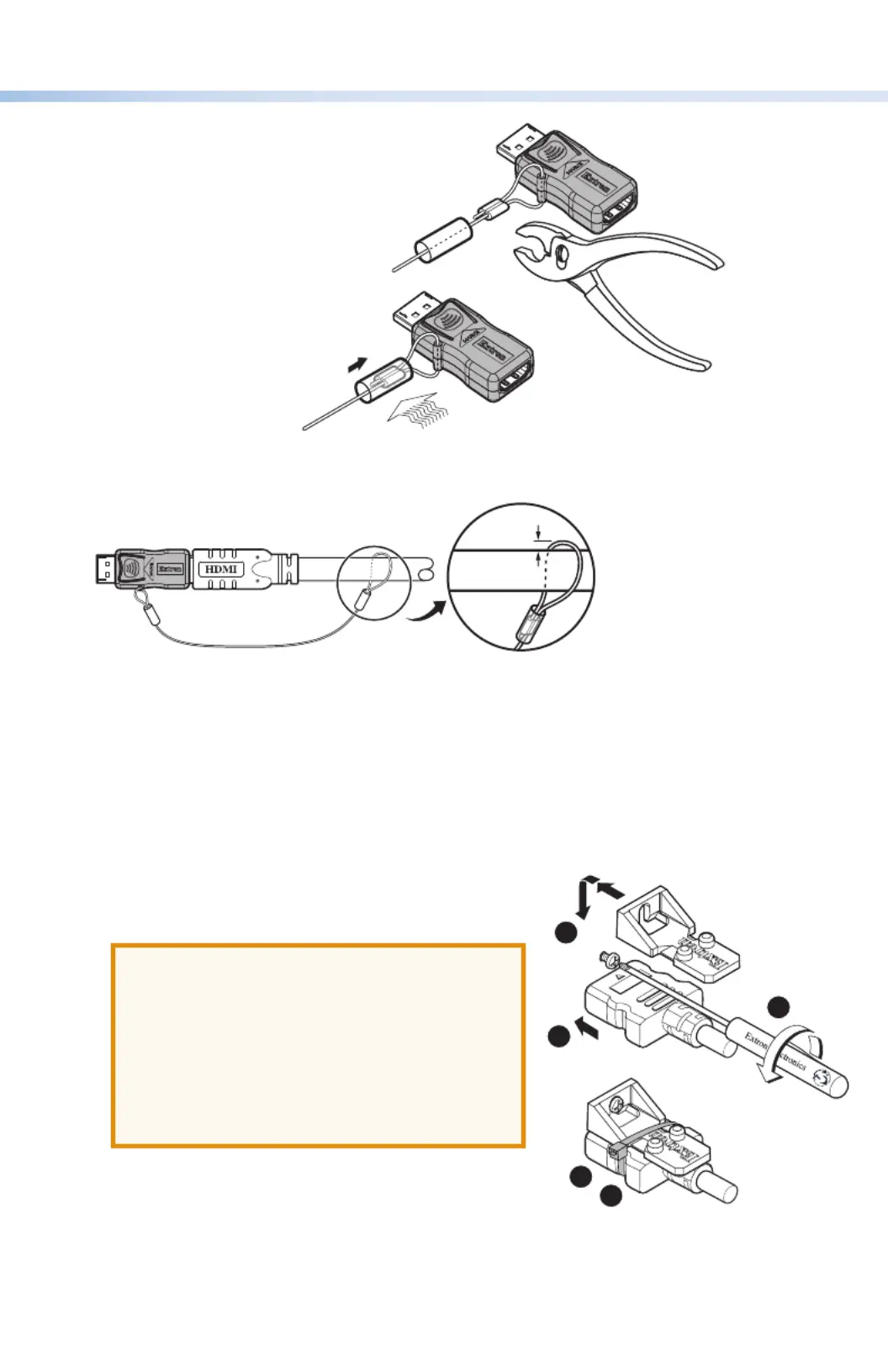

DP to HDMI 4K PLUS Adapters • Installation Guide (Cont.)

68-3055-01

Rev. 07 18B

All trademarks mentioned are the property of their respective owners.

SOURCE

Crimp the metal loop with a pair of pliers to secure

the wire in place. Be sure to crimp both sides.

SOURCE

1/8"

(3.2 mm)

Slide the tube over the metal sleeve

and heat shrink it in place.

Repeat steps 1 through 7 to secure

the other end of the wire to a cable.

To avoid damaging the cable,

allow about 1/8 inch (3.2 mm)

of space between the wire and

the cable.

Use a heat gun to securely fasten the heat shrink tube

over the metal sleeve.

Once secured, connect the adapter to the source.

LockIt Lacing Bracket

Use the LockIt Lacing Bracket to securely fasten an HDMI cable to a device as follows:

Plug the HDMI cable into the rear panel HDMI port.

Loosen the HDMI connection mounting screw from the panel, enough to allow the LockIt

lacing bracket to be placed over it. The screw does not need to be removed.

Place the LockIt lacing bracket on the screw and

against the HDMI connector. Then, tighten the

screw to secure the bracket.

ATTENTION:

• Do not overtighten the HDMI connector

mounting screw. The shield it fastens to is

very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du

connecteur HDMI. Le blindage auquel elle

est attachée est très n et peut facilement

être dénudé.

Loosely place the included tie wrap around the

HDMI connector and the LockIt lacing bracket as

shown.

While holding p2-he connector securely against the lacing bracket, use pliers or similar tool to

tighten the tie wrap. Then, remove any excess length.
