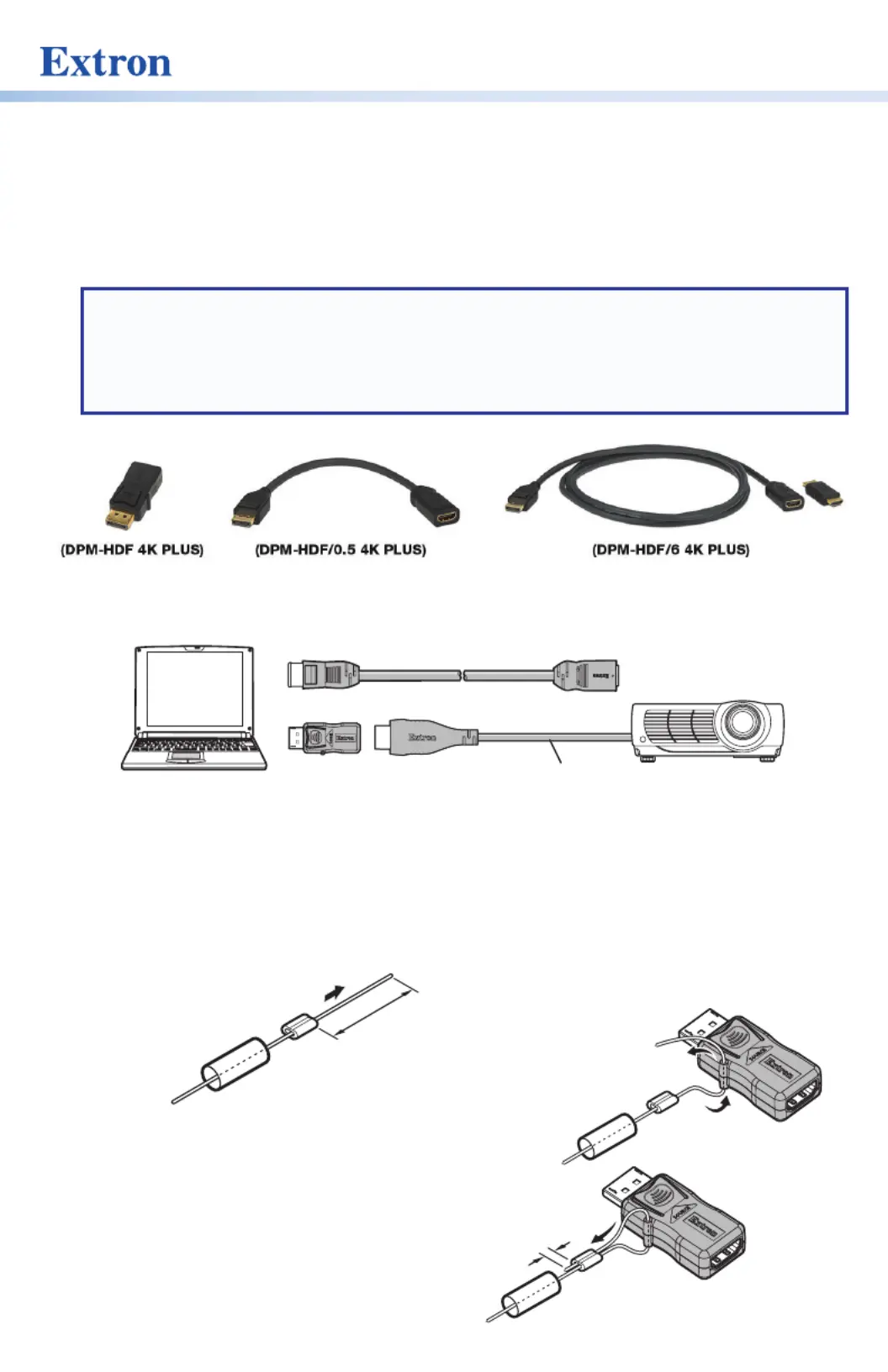

DP to HDMI 4K PLUS Adapters • Installation Guide
The Extron DP to HDMI 4K PLUS adapter, pigtail, and cable are one-way DisplayPort adapters
that allow conversion and transmission of digital signals from any DisplayPort enabled source to
an HDMI sink. The adapters support resolutions up to 4096x2160 at 60 Hz 4:4:4, with EDID and
HDCP information passed through between the source and the display.
NOTES:
• The cables are unidirectional and not intended to convert an HDMI source to output a
DisplayPort signal.
• The cables must be used directly at the DisplayPort source. Do not use additional
Application Diagram
Ext nro
Ext nro
DP to HDMI 4K PLUS
Active Adapter
HDMI
Cable )(25’
Source
Laptop with
D t isplayPor Output
Projector w/HDMI Inpu
t
Sink
e
SOURCE
DP to HDMI 4K Plus l ePigtai or Cabl
- -OR
LockIt Cable Adapter Tether
To prevent the adapter from being lost or stolen, attach an optional LockIt Cable Adapter Tether
(available at www.extron.com) to link the cable and adapter together, as follows:
2.0" (51 mm)
1
2
Thread the wire through
the heat shrink tube and
metal sleeve.
Leave 2 inches (51 mm) of free wire.
E
E
SOURCE
SOURCE
3
Loop the wire through the
side ring of the Adapter.
E
E
SOURCE
SOURCE
1/4" (6.4 mm)
4
Thread the wire back through the metal sleeve and
tighten the wire allowing about 1/4 inch (6.4 mm)
of the short end of the cable to extend past the
metal sleeve.

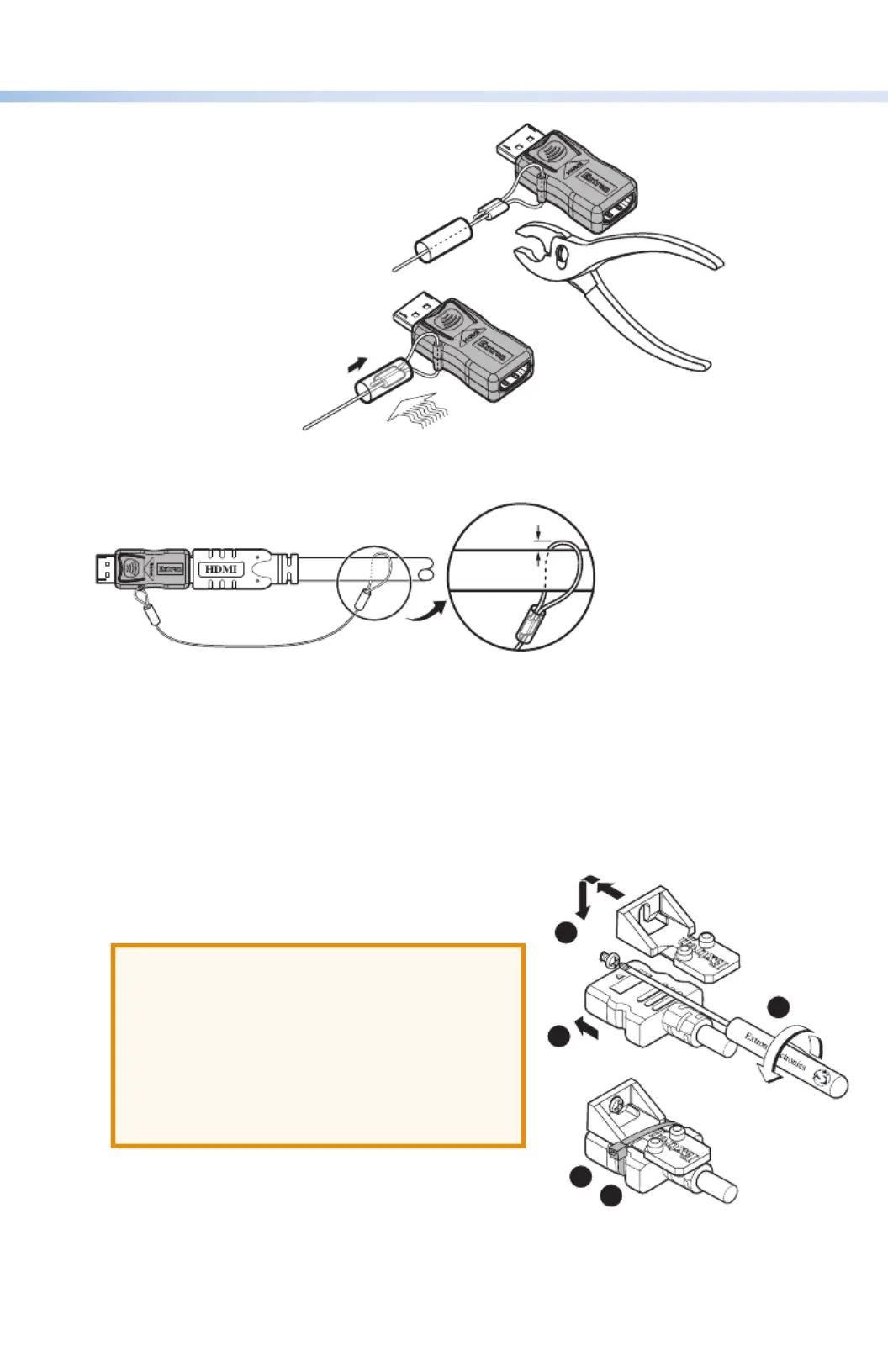

DP to HDMI 4K PLUS Adapters • Installation Guide (Cont.)
68-3055-01
Rev. 07 18B
© 2018 Extron Electronics — All rights reserved. www.extron.com
All trademarks mentioned are the property of their respective owners.
E
E
SOURCE
SOURCE
5
Crimp the metal loop with a pair of pliers to secure
the wire in place. Be sure to crimp both sides.
E
E
SOURCE
SOURCE
6
e
SOURCE
8
1/8"
(3.2 mm)
9
Slide the tube over the metal sleeve
and heat shrink it in place.
Repeat steps 1 through 7 to secure
the other end of the wire to a cable.
To avoid damaging the cable,
allow about 1/8 inch (3.2 mm)
of space between the wire and
the cable.
7
Use a heat gun to securely fasten the heat shrink tube
over the metal sleeve.
¢
Once secured, connect the adapter to the source.
LockIt Lacing Bracket
Use the LockIt Lacing Bracket to securely fasten an HDMI cable to a device as follows:
1
Plug the HDMI cable into the rear panel HDMI port.
2
Loosen the HDMI connection mounting screw from the panel, enough to allow the LockIt
lacing bracket to be placed over it. The screw does not need to be removed.
3
Place the LockIt lacing bracket on the screw and
against the HDMI connector. Then, tighten the
screw to secure the bracket.
ATTENTION:
• Do not overtighten the HDMI connector
mounting screw. The shield it fastens to is
very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du
connecteur HDMI. Le blindage auquel elle
est attachée est très n et peut facilement
être dénudé.
4
Loosely place the included tie wrap around the
HDMI connector and the LockIt lacing bracket as
shown.
5
While holding p2-he connector securely against the lacing bracket, use pliers or similar tool to
tighten the tie wrap. Then, remove any excess length.
1
2
3
4
5
