A03-A04

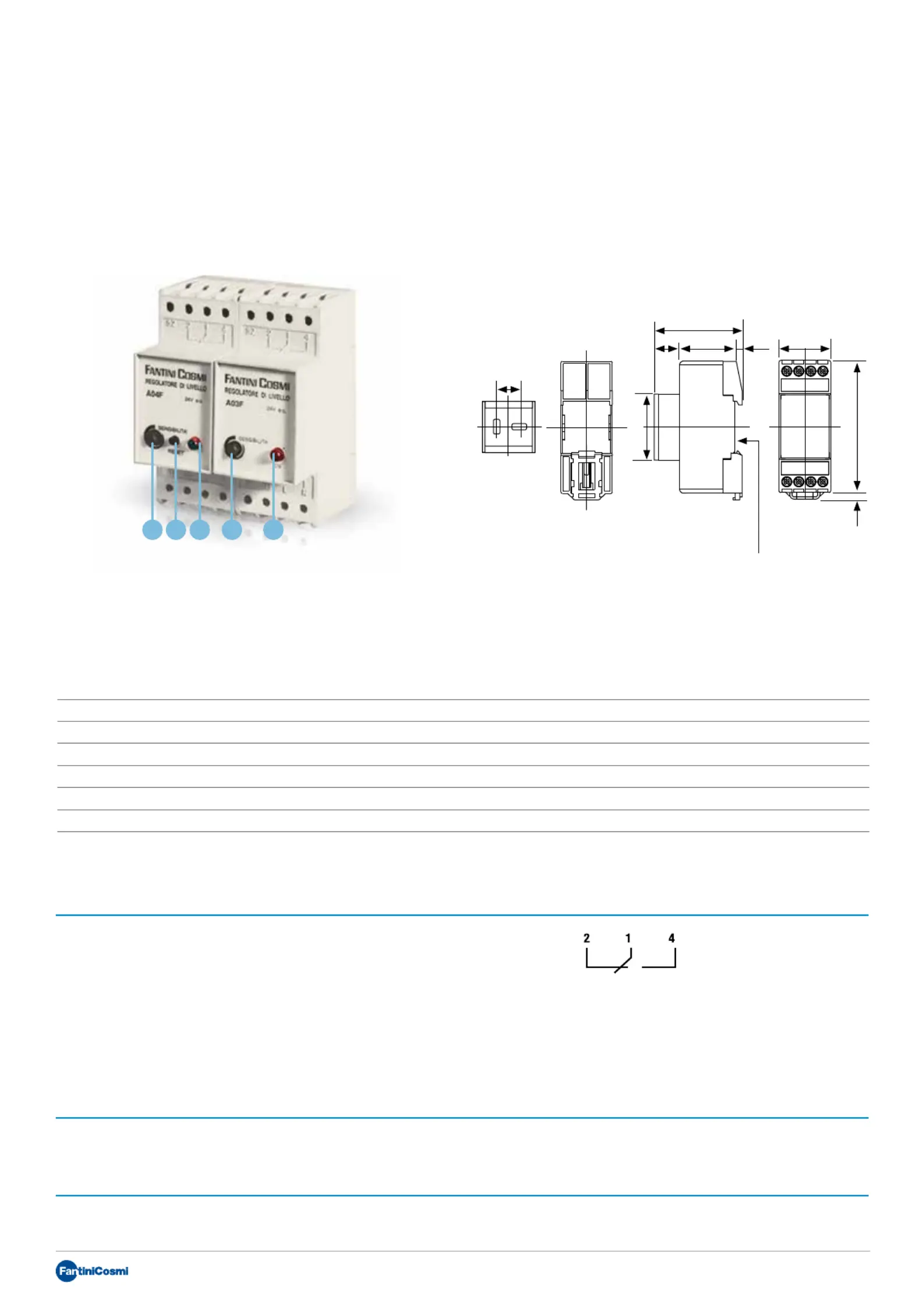

Electronic level controls with probes for conductive liquids

Electronic level controls with probes to control and monitor the level of conductive liquids. Suitable to control au-

toclave pumps, steam generator pumps, tanks filling and emptying etc.

1 SENSITIVITY - 2 MANUAL RESET - 3 ALARMS

mounting on 35 mm rail EN 50022-3 DIN 46277-3

ELECTRICAL FEATURES

Voltage between the electrodes: 8 Va.c.

Adjustable detection range from 2 to 20 k W.

Cable section 1mm

, maximal cable length 800 mt, insulation 600 Va.c.

Insulation resistance: 100 M V.

Dielectric strength 1.500 Va.c. in 1 min.

Output connection through electromagnetic SPDT relay.

Consumption: 4VA.

Level increase:

1-2 opens

1-4 closes

Level decrease:

1-4 opens

1-2 closes

HOMOLOGATION AND STANDARDS

Conformity with CEI-EN 60947-5-1 standards.

INSTALLATION

Fixing by clip-on to 35 mm rail EN 50022-3, DIN 46277-3 or using plates, supplied for surface installation.

Dimensions (mm)

905

19 36 355

3 321 1

POWER SUPPLY CONTACT

RATING

250Vac

OPERATING

TEMPERATURE

PROTECTION

DEGREE

AVAILABILITY

Electronic level controls

A03F 24 Vac 5A - AC12 -10 ÷ 50 °C IP20 in stock

A03M 230 Vac 5A - AC12 -10 ÷ 50 °C IP20 in stock

Shutdown level controls with manual reset

A04F 24 Vac 5A - AC12 -10 ÷ 50 °C IP20 in stock

A04M 230 Vac 5A - AC12 -10 ÷ 50 °C IP20 in stock

OPERATION

Level controls operation depends on liquid conductivity, therefore are not suitable for use with liquids such as oil, diesel fuel, gasoline,

lubricating oils and other oil derivates, distilled water etc.

The level is determined by the length of the electrodes of three probes: two are required for the level differential, one, the longest, to

ensure conductivity (if the tank is not metallic).

FEATURES

Controller’s modular case is manufactured in shockproof thermoplastic material, designed for side by side multi-installations. Knob

to adjust the sensibility according to the liquid to be controlled.

ACCESSORIES

code UA03Y waterproof box IP65

SOME ALLOWED LIQUIDS

LIQUID TYPE RESISTANCE cm LIQUID TYPE RESISTANCE cmΩ Ω

drinking water milk5 ÷ 10kΩ ~ 1kΩ

water from the well buttermilk2 ÷ 5kΩ ~ 1kΩ

river water fruit juices2 ÷ 15kΩ ~ 1kΩ

rain water vegetable juices15 ÷ 20kΩ ~ 1kΩ

sewage water soups0.5 ÷ 2kΩ ~ 1kΩ

sea water wine~ 0.03kΩ ~ 2.2kΩ

salt water beer~ 2.2kΩ ~ 2.2kΩ

natural water/hard water coffee~ 5kΩ ~ 2.2kΩ

chlorinated water soup foam~ 5kΩ ~ 18kΩ

condensate water ~ 18kΩ

SOME NOT ALLOWED LIQUIDS

LIQUID TYPE

demineralised water

deionised water

gasoline

oil

liquefied gases

paraffin

ethanol

varnishes

liquids with high alcohol content

N.B. resistance values from the table are approximate
