HOMOLOGATION AND STANDARDS

Complies with CEI- EN 60947-5-1 standards.

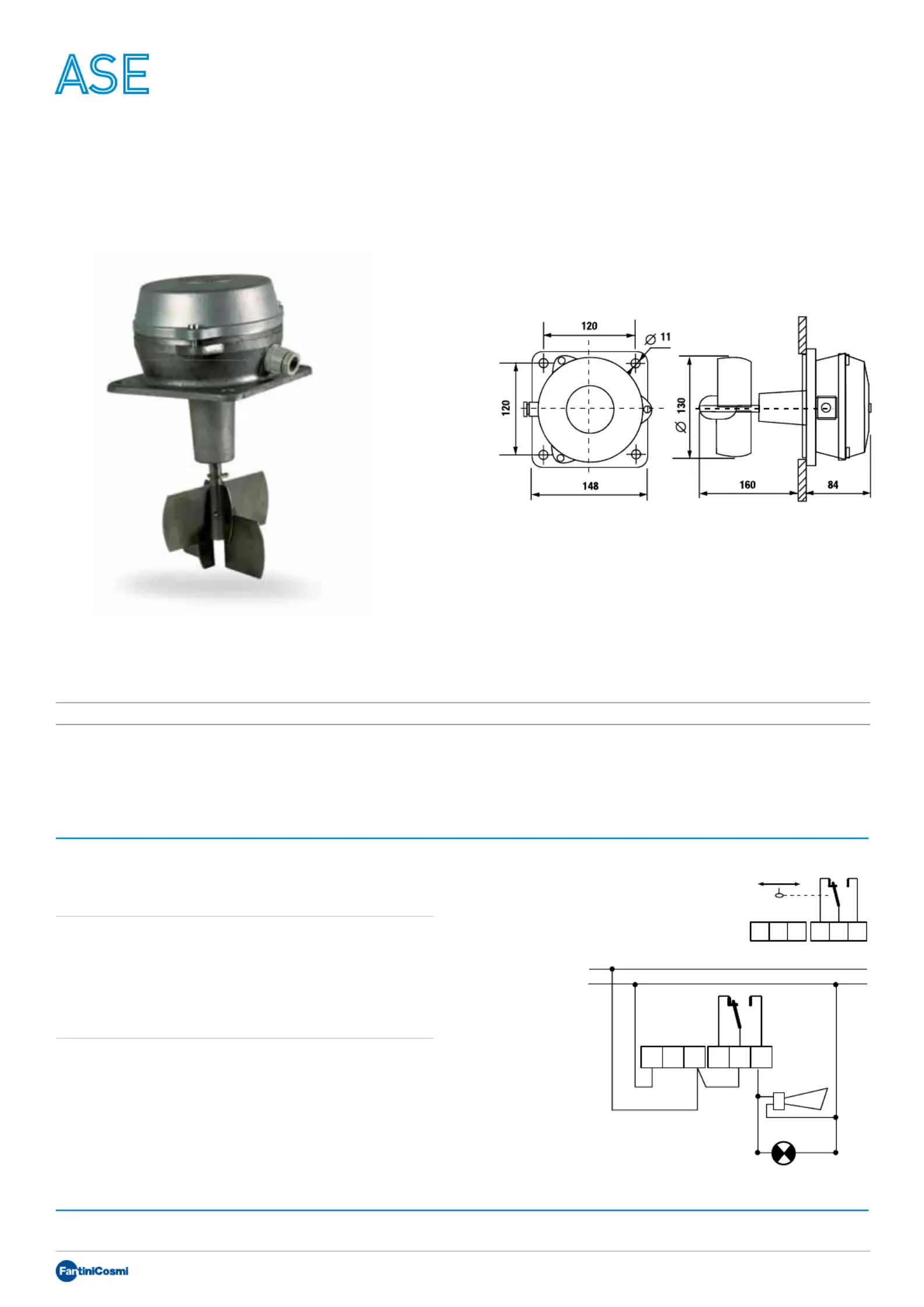

ASE

Bladed level controls for powders and granules

Suitable to control the level of powders and granules in storages or tanks, for high and low level signalling, for

transporter control, for feeders, etc.

ELECTRICAL FEATURES

Synchronous motor: 4.5VA, supply voltage 230 50Hz.Vac

2 SPDT microswitches: one for motor control, one for operation.

NC C NO

N L

Level

decreases-increases

NC C NO

N L

230Vca 50Hz

Alarm

signals

Nominal insulation tension Ui 380Vac

Continuous duty nominal current Ith 10A

Operating nominal current Ie: 220V- 250Va.c.

Resistive load AC-12 - 10A

Inductive load AC-15 - 4A

Direct current DC-13 0,2A -

Dimensions (mm)

Type Level

differential

Power

supply

Operating

temperature

Protection

degree

ASE blades 50 fixed 230 Vac -20 ÷ 80 °C IP54

INSTALLATION

Flange connection suitable for horizontal and vertical installation.

Connection through motor’s power supply terminal block.

Connect the microswitch for automatic level adjustment.

Activate the electric motor for free rotation of the propeller.

Propeller blocking should unlock the microswitch.

It is recommended to install ASE away from storages loading places and away from the presence of materials with high specific gra-

vity, protecting by a reflective device the shaft and the propeller.

OPERATION

Elements, that determine the operation are the synchronous motor and its torque.

The material impedes propeller rotation to a stop.

Suitable to control materials (such as granules and powders) with a specific gravity of approximately 0,7 kg/dm

When the material hampers the screw rotation, the electric motor with the force of its torque acts on the microswitch, which closes

or opens the electrical circuit (24 ÷ 280Vac 10A) while the second microswitch shuts down the motor disconnecting the power supply.

Reducing the level, the propeller is released and through the return spring the motor and microswitches automatically pass into the

initial position.

N.B. If you want to use for control a second microswitch, used voltage should be the same with motor’s supply voltage.

FEATURES

Aluminium alloy body.

Stainless steel 4-blade propeller.

Clutch shaft mounted on sealed ball bearings.

Output connections with shockproof thermoplastic cable gland G 1/2” .

Storage and transport temperature: -25 ÷70°C.

Unit weight: 2.2 Kg.

MAXIMUM LEVEL

Device installation usually is carried out on the head side of the

tank.

MINIMUM AND MEDIUM LEVEL

Usually, the device is mounted horizontally.

For small tanks, extending axle you can mount as well on the

head side.

For lightweight materials and fluids are used screws with large

blades. For large sizes materials are required screws with fle-

xible blades.

HIGH LEVEL

SIGNALLING

LOW LEVEL

SIGNALLING

PROTECTIVE

DEFLECTOR
