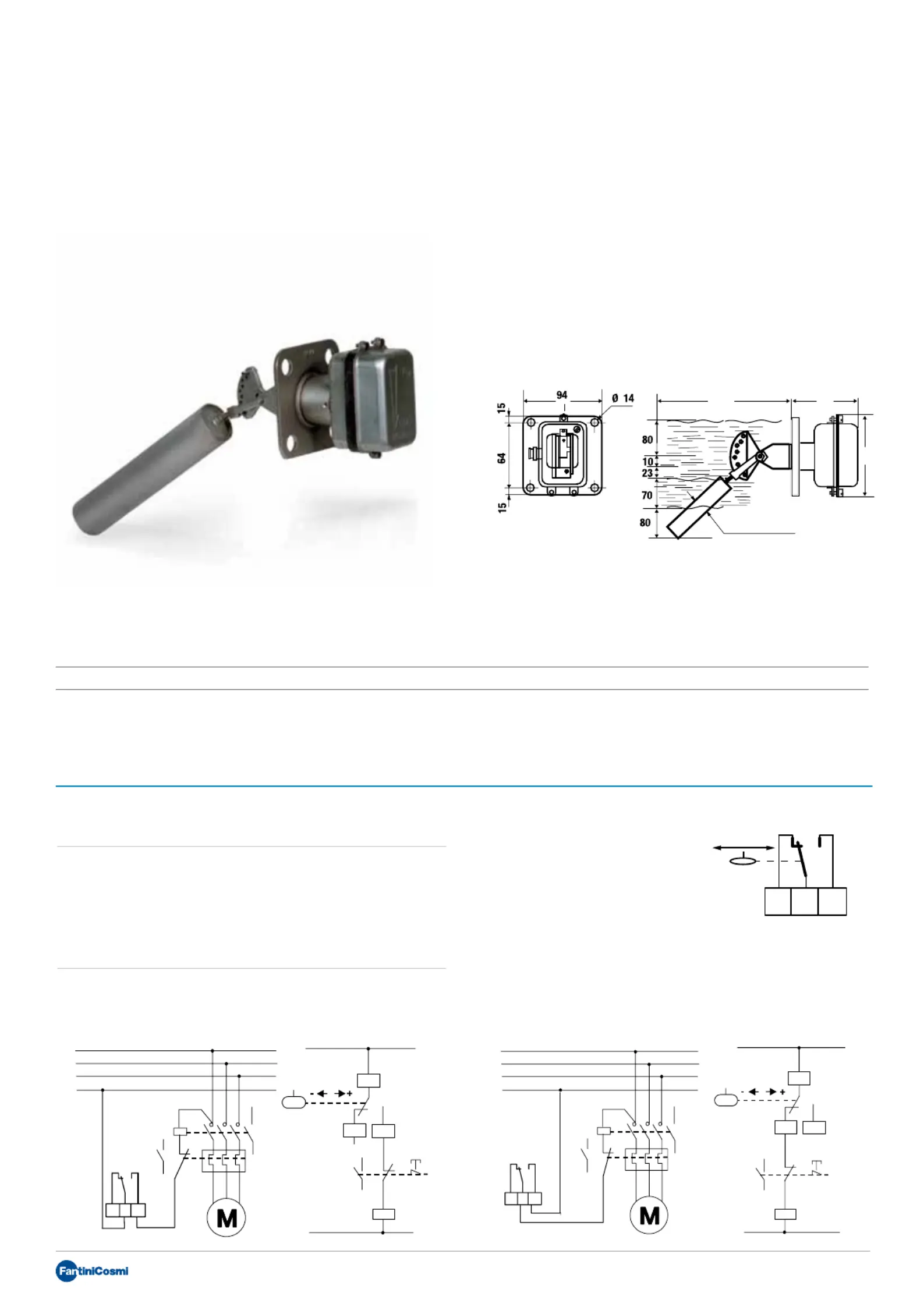

AD22

Magnetic level control for under pressure systems up to 10 bar

Suitable to control and adjust liquid level in small under pressure tanks (6 bar) such as sterilizers, autoclaves,

steam machines, drink vending machines etc.

ELECTRICAL WIRING FOR EMPTYING PUMP ELECTRICAL WIRING FOR FILLING PUMP

NC C

1 3

4 6

NC(2)

NO(3)

C(1)

97 95

98 96

97 95

AD22

level

R - RESET

0 - STOP

1 3

2 4 6

NC(2)

NO(3)

C(1)

97 95

98 96

97 95

NC C

AD22

level

R - RESET

0 - STOP

ELECTRICAL FEATURES

SPDT microswitch.

Electrical connection with 6,35 Faston (supplied).

NC C NO

Nominal insulation tension Ui 380Vc.a.

Continuous duty nominal current Ith 10A

Operating nominal current Ie: 220V- 250Va.c.

Resistive load AC-12 - 10A

Inductive load AC-15 - 3A

Direct current DC-13 0,2A -

Level decreases-

increases

7 9

100

Ø 38x180

Dimensions (mm)

Level

differential

Maximum

operating

pressure

Material

in contact with

the liquid

Contacts

rating

Flange

connection

Protection

degree

AD22 25 ÷ 175 6 bar stainless steel 10(3)A 250Vca PN6 IP54

HOMOLOGATION AND STANDARDS

Complies with CEI- EN 60947-5-1 standards.

FEATURES

Housing made of pressed stainless steel

Float made of stainless steel AISI 304.

Floating connection made of stainless steel AISI 430.

Connections between the float and the level control made in stainless steel AISI 316

Output connections with brass cable glands G 3/8.

Storage and transport temperature: -25 ÷ 70 °C.

Unit weight: 1,2 Kg.

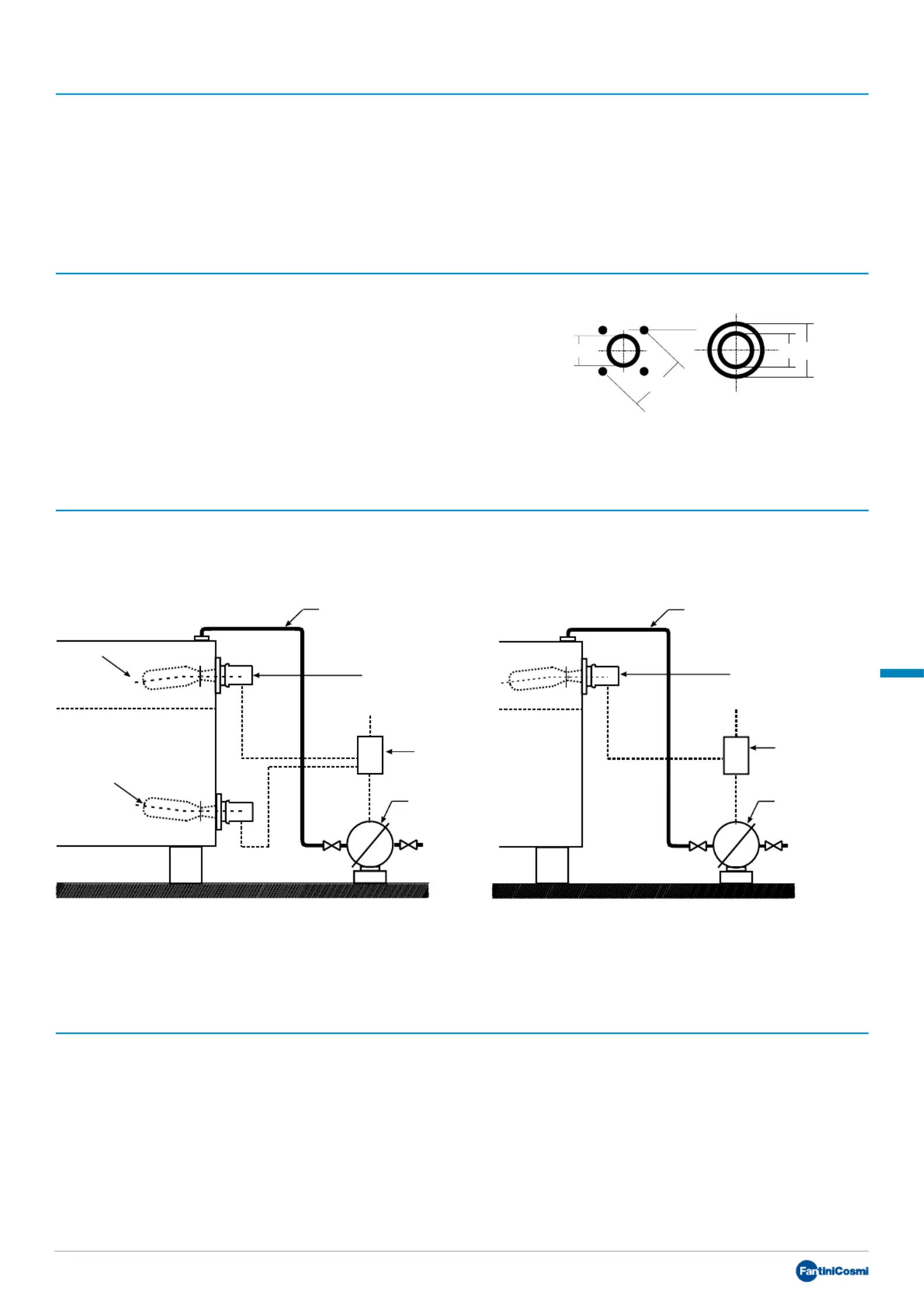

INSTALLATION

Flange connection UNI 2223 - DIN32 - PN6.

Fastening to the reservoir through a welded flange PN 6-DN 32.

Coupling dimensions UNI 2223-67 with enlarged central hole

(fig. 1).

Sealing with 1 mm thickness gasket (fig. 2).

N° 4 holes Ø 14, through-hole or threaded M12

OPERATION

Operation by means of repulsion of two permanent magnets in opposition.

Controlled liquid must have a specific gravity from 0,7 to 1,1 kg/dm³ .

When level increases: C-NC opens, C-NO closes.

INSTALLATION EXAMPLE

pipeline pipeline

level control

power supply

actuator

pump

reservoir

Fig.2

48 48 70

Figure 1

Figure 2
