Side 1/2
22

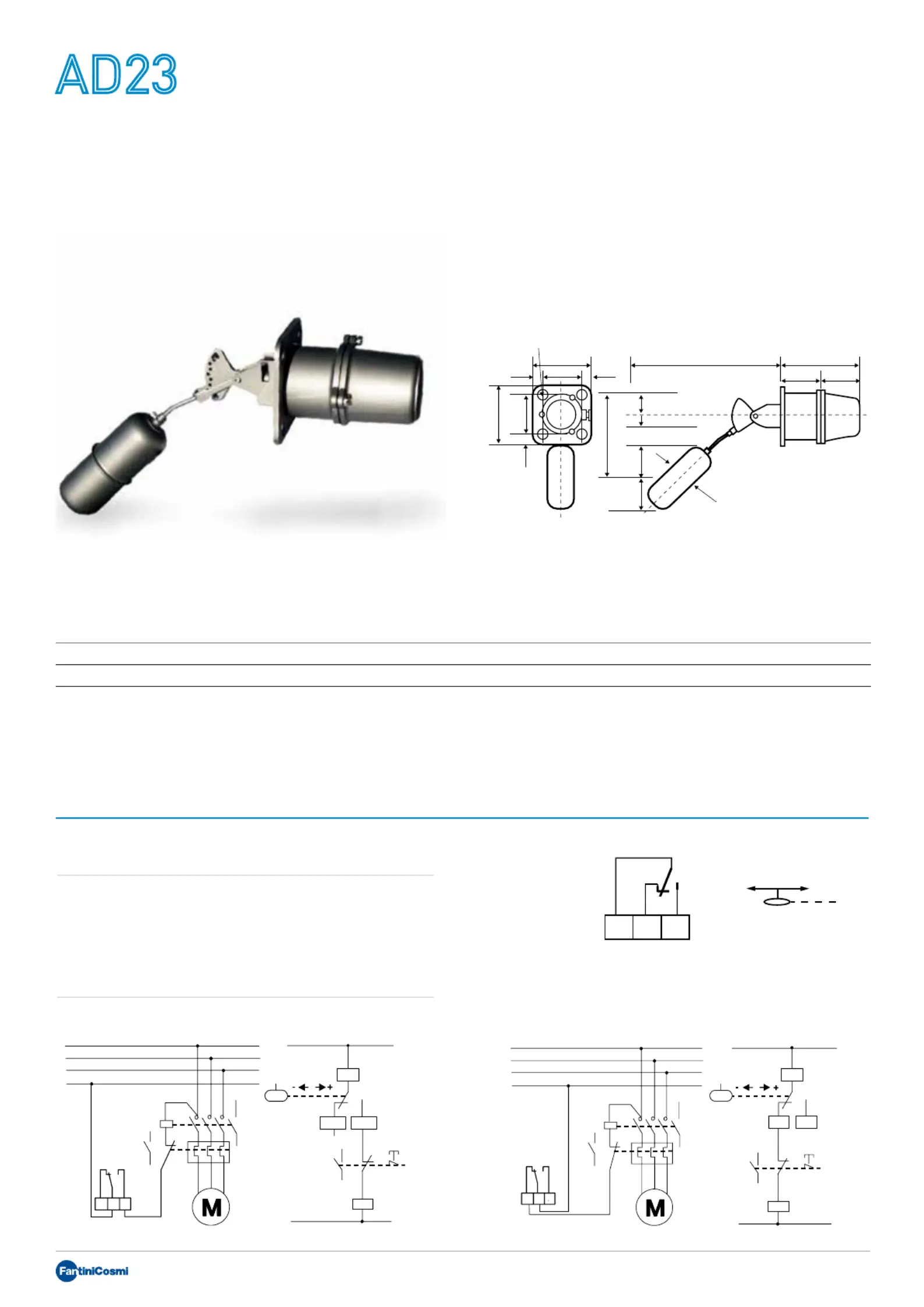

AD23
Magnetic level controls for under pressure systems up to
6/16 bar
Suitable to control and adjust liquid level in small under pressure tanks (6 bar) such as sterilizers, autoclaves,
steam machines, drink vending machines etc.
ELECTRICAL FEATURES
SPDT microswitch.
Nominal insulation tension Ui 380Va.c.
Continuous duty nominal current Ith 15 A
Operating nominal current Ie: 250v- 250Va.c.
Resistive load AC-12 - 15A
Inductive load AC-15 - 10A
Direct current DC-13 0,25A -
L
R
S
T
N
N
C(1)
NC(2) NO(3)
98
2 1
3
96
97 95
97
98
A2
A1
95
96
2 4 6
1 3 5 13
14
level
R - RESET
0 - STOP
R
S
T
N
N
L
C(1)
NC(2) NO(3)
98
2 1 3
96
97 95
97
98
A2
A1
95
96
2 4 6
1 3 5 13
14
level
R - RESET
0 - STOP
ELECTRICAL WIRING FOR EMPTYING PUMP
ELECTRICAL WIRING FOR FILLING PUMP
C(1)
NC(2)
NO(3)
Уровень умен.
Level decreases-
increases
250
80
max 180 mm
min
70 20 10
80
94
Ø 14
115
50 65
Ø 45x120
15
15
15
64
64
94
Dimensions (mm)
Level
differential
mm
Maximum
operating
pressure
Maximum
liquid
temperature
Material
in contact with
the liquid
Flange
connection
Protection
degree
AD23 20 ÷ 180 6 bar 150 stainless steel PN6 IP54
AD23A 20 ÷ 180 6 bar 150 stainless steel (teflon coating) PN6 IP54
23
HOMOLOGATION AND STANDARDS
Complies with CEI- EN 60947-5-1 standards.
INSTALLATION
Flange connection UNI 2223 - DIN32 - PN6 or PN16 (AD23B-AD23C).
Fastening to the reservoir through a welded flange.
Coupling dimensions UNI 2223.
FEATURES
Stainless steel body.
Float and connection flange in stainless steel.
Output connections with brass cable glands G 3/8.
Storage and transport temperature: -25 ÷ 70 °C.
Unit weight: 1,2 Kg.
OPERATION
Operation by means of repulsion of two permanent magnets in opposition.
Controlled liquid must have a specific gravity from 0,7 to 1,1 kg/dm³.
When level increases: C-NC opens, C-NO closes.

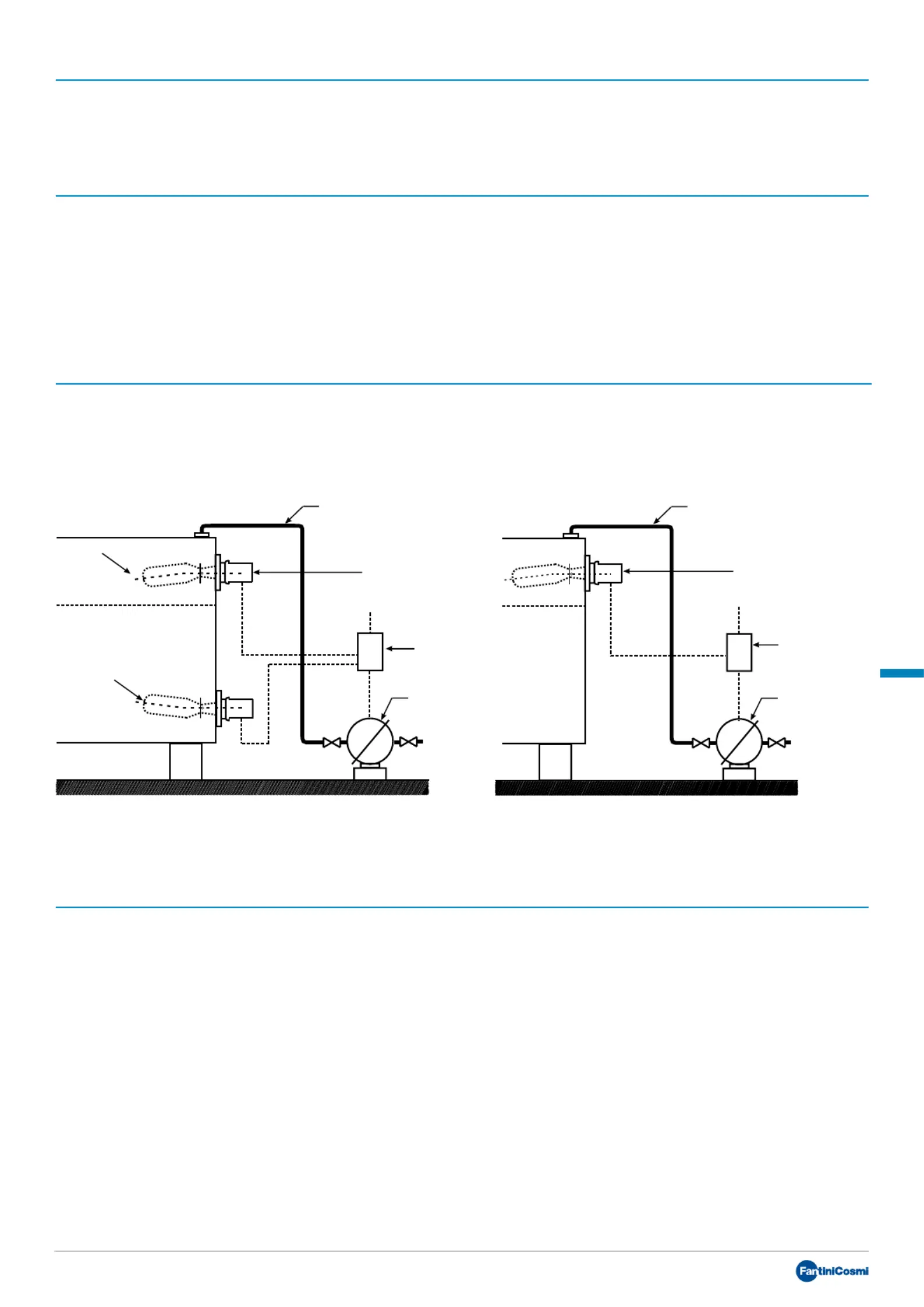

INSTALLATION EXAMPLE
INSTALLATION EXAMPLE
pipeline
pipeline
level control
level control
power supply
power supply
actuator
actuator
pump pump
reservoir
reservoir
