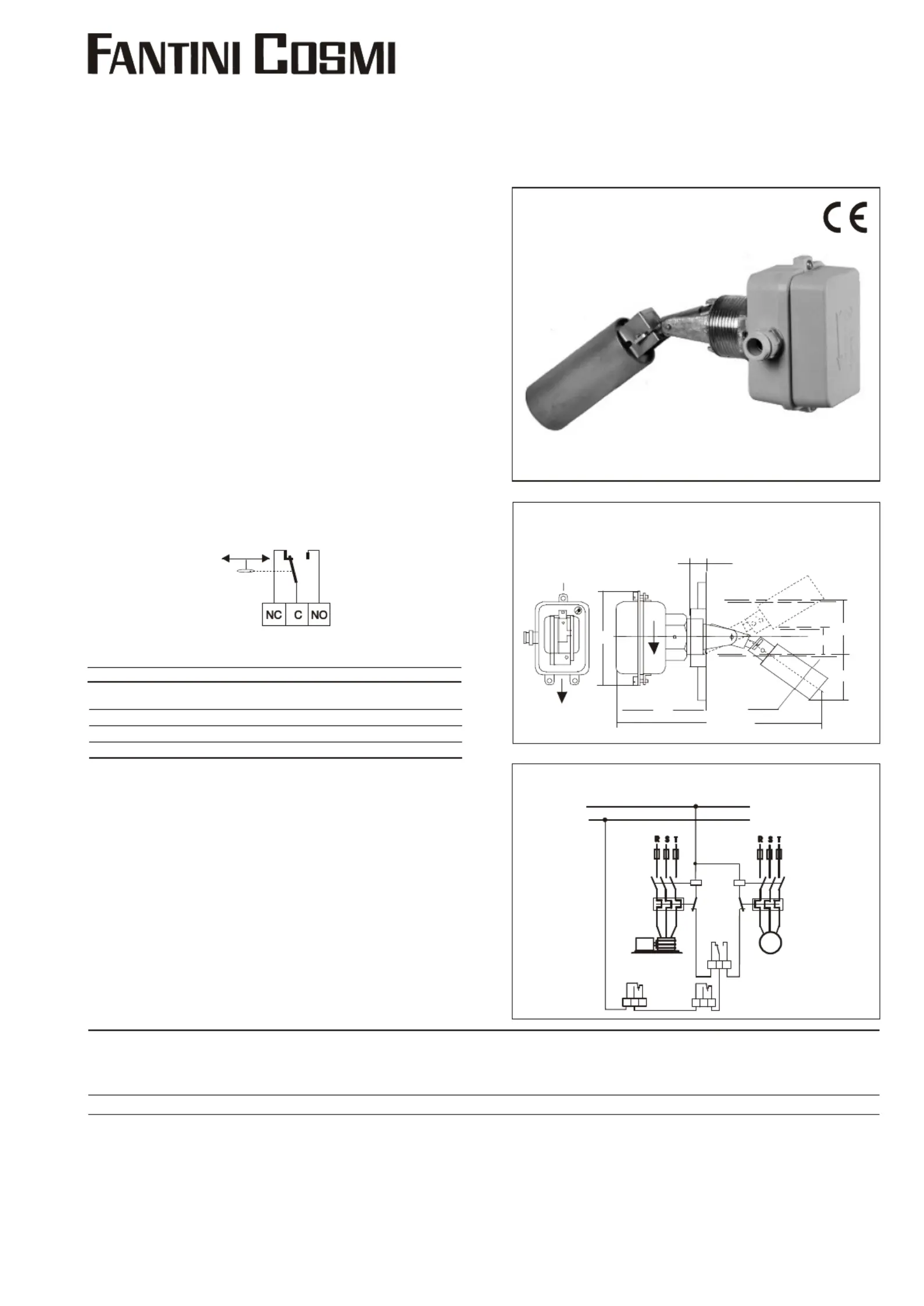

EXAMPLE CONNECTION FOR THE AUTOMATIC

RESET OF AIR IN PLENUM CHAMBER IN TANKS

PUMP

COMPRESSOR

(ELECTROVANNE)

V ~

B01C

B12CN

B13CN

B70A

B11AN

AD52P

ALIMENTAZIONE

MAGNETIC LIQUID LEVEL CONTROL AD52P

9910

FEATURES

Liquid level device suitable to:

-control and monitor the fluid level in open and under pressure tanks

until 10 bars.

-signal liquid level for alarms (bells, lamps, etc)

Suitable for liquid with specific weight between 0,9 - 1,1 kg/dm

Enclosure in antishock, thermoplastic material

IP54 protection degree

Body in green brass alloy

Non toxic thermoplastic material float Ø 38x70

Operation by permanent magnects in opposition

1 1/4 BSP male connection; key 36mm

6,3mm faston electrical connection

3/8 BSP cable gland

TECHNICAL FEATURES

-According to CEI EN 60947-5-1 standards

-Transport and storage maximum allowable temperature: 70°C

INSTALLATION

It's reccomended to seal the connection with teflon.

To screw the body in order that seal and position are exactly in

vertically towards the indication marked on the cover.

ACCESSORIES

-Stainless steel float Ø 38x90.....................................EAD01

-Suitable for liquid until 110°C

SPECIAL EXECUTIONS (only for qty; pls ask for offer)

-1" BSP male connection and no toxic

-thermoplatic float Ø 30x100.....................................AD52PS1

ELECTRICAL FEATURES

SPDT microswitch

in accordance with

CSA standards.

DECREASING LEVEL:

- opens C - NO

- closes C - NC

INCREASING LEVEL:

- closes C - NO

- opens C - NC

Nominal isulation tension Ui 380V~

Continuous duty nominal current Ith 10A

Operating nominal current Ie:

220V - 250V~

Resistive load AC-12 - 10A

Inductive load AC-15 - 3A

Direct current DC-13 0,2A -

TYPE

AD52P

Level

differential

20 - 55

* FOR THE CONTROL OF DRIN KABLE WATER: 85°C MAX SUGGESTED.

N.B. The liquid level control is preset for a differential of To obtain the max differential remove the...20 mm: 1

(see overall dimensions)

Max working

pressure

bar

Max temperature

of the liquid

°C

0 to 100 *

Weight

each

kg.

0.6

We reserve the ingh to make modification without prior notice

SIZE

VERTICAL

24 max.

100

MIN.

MAX.

Ø 38x70

225

Livello

dimin. aum.

Via dell'Osio, 6 20090 Caleppio di Settala MI

International calls Tel. ++39 02 95682222 Fax +39 02 95307006

E-mail:export@fantinicosmi.it http//www.fantinicosmi.com
