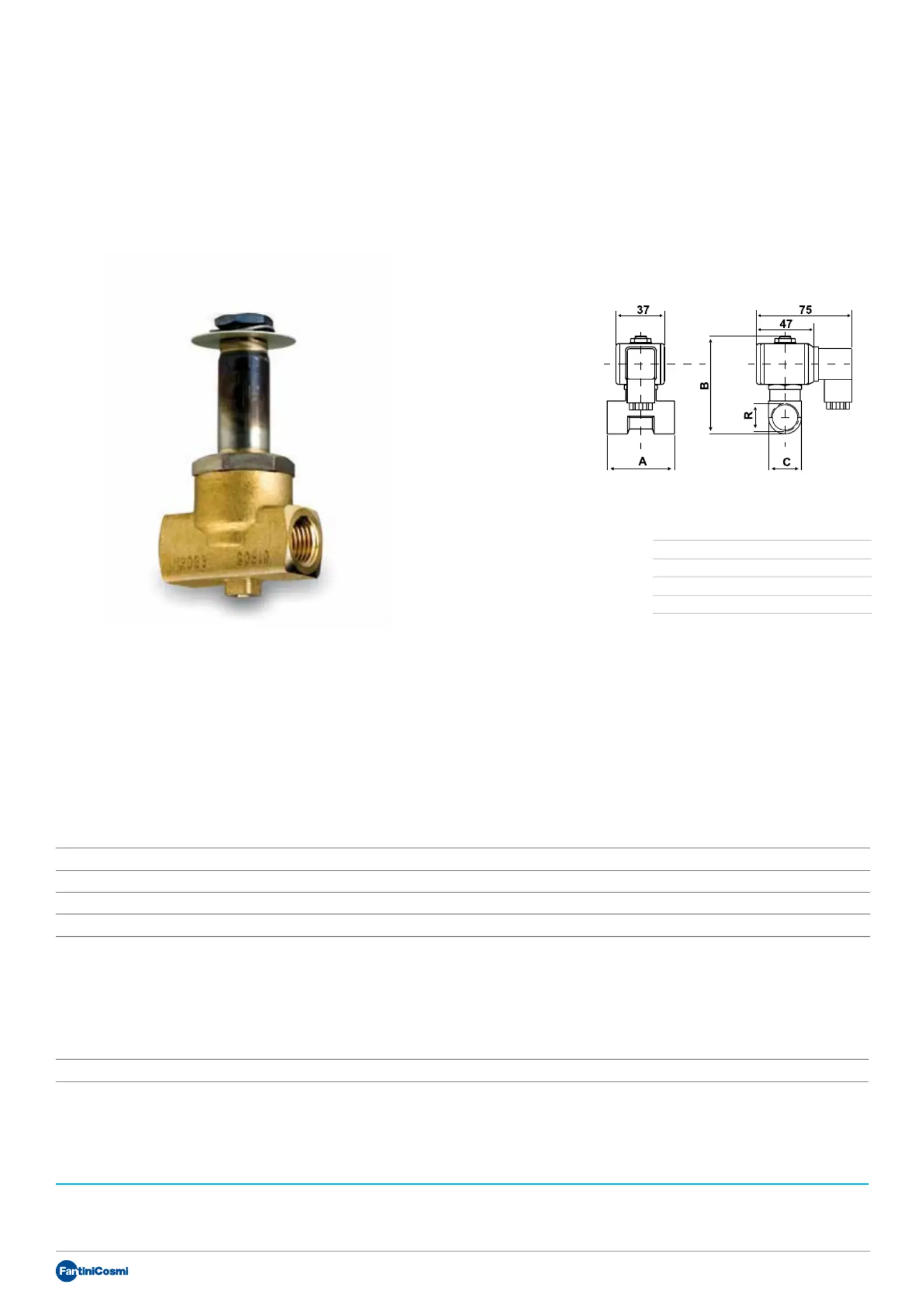

M20

Direct operation solenoid valve bodies, normally-closed

Solenoid valves suitable for water, air, fuel-oil, inert gases and other fluids non-corrosive for copper alloys, with

viscosity up to 2° Engler.

type A B C

M20B3 40 74 17

M20C5 53 78.5 26

M20D5 53 78.5 26

M20E7 60 94 52

N.B. Dimensions and weights are including

the coils.

INSTALLATION

Female threaded connection from G 1/4 to G 3/4.

Quick connection connector for the coils.

Dimensions (mm)

Kv = water flow in m³/h with pressure drop of 1 bar (1 bar = 100kPa).

Passage orifice

diameter

Closing

time

Female

connection

Kv Maximum

differential pressure

Testing pressure

(DIN2401) PN

VN 0,85VN

M20B3 3 mm 10 msec G 1/4 0.27 m³/h 16 10 25 bar

M20C5 5 mm 10 msec G 3/8 0.612 m³/h 6 2 25 bar

M20D5 5 mm 10 msec G 1/2 0.612 m³/h 5 2 25 bar

M20E7 7 mm 10 msec G 3/4 1 m³/h 2.5 1.8 25 bar

Control coil

included

24V

Connector Passage orifice

Female connection

M20C51 IM22 1578501 5 G 3/8

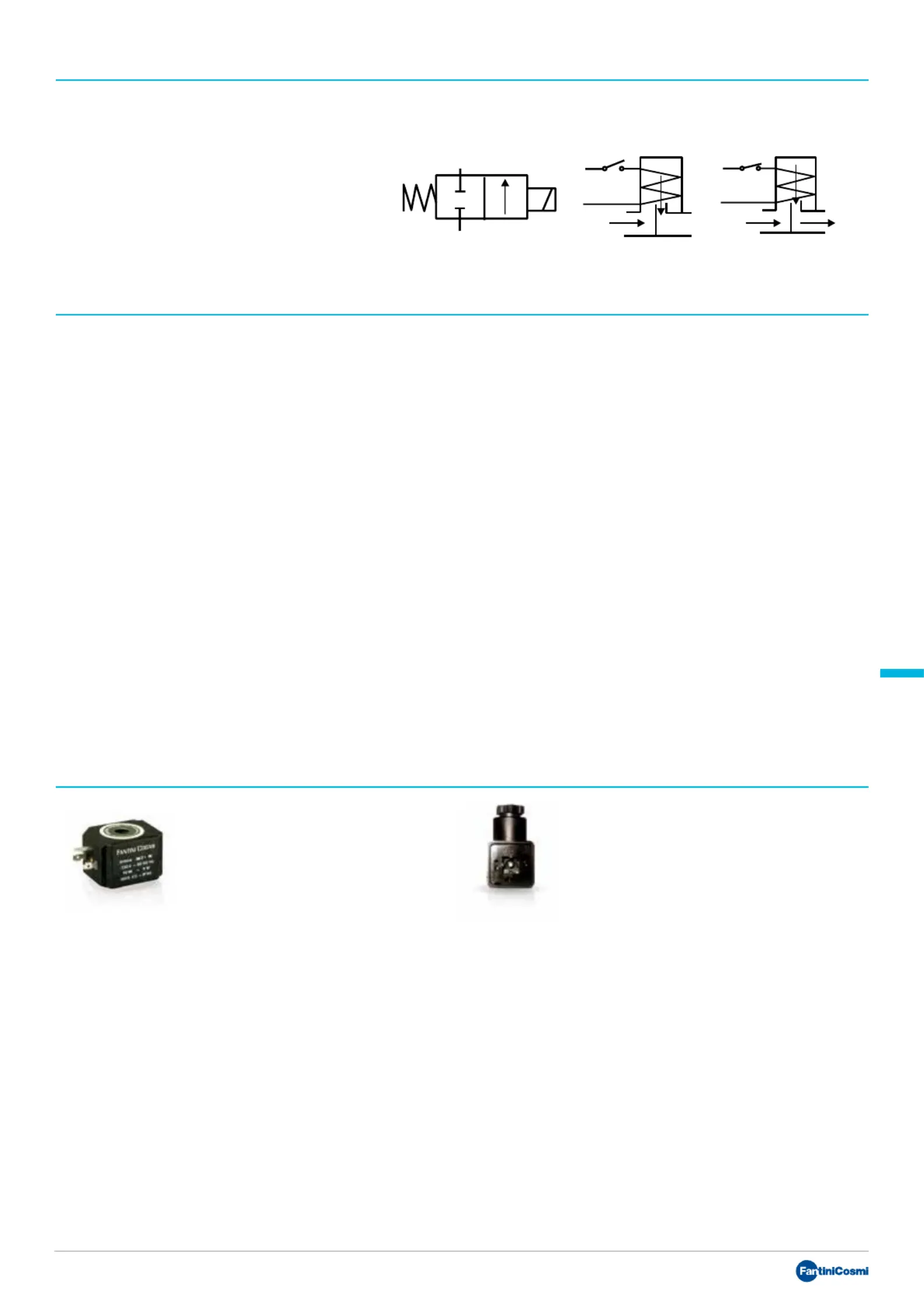

OPERATION

2-way execution, normally-closed.

Direct action operation.

When the coil is energized, the shutter opens instantly letting the fluid to pass as shown in the figure.

FEATURES

Minimum operating limit -15%Vn.

Maximum operating limit +10%Vn.

Closing time 10 msec.

Brass-forged valve body.

Internal parts in stainless steel (17% CR).

Gaskets in VITON (fluoroelastomer).

Temperature of the controlled fluid: -10 ÷140°C.

Testing pressure PN (DIN 2401) 25 bar.

With coil in d.c. the indicated pressure should be reduced by 60%.

Unit weights:

M20B3 0.34 Kg

M20C5 0.40 Kg

M20D5 0.36 Kg

M20E7 0.70 Kg

ELECTROMAGNETS

The control coils are supplied separately from valve bodies.

See page IM2, series tensions, technical specifications and the codes for ordering.

ACCESSORIES

1578501

Quick connection connector DIN 43650,

suitable for all IM2 coils.

Cable gland Pg9 (cable diameter 6÷8 mm).

Pg11 cable gland thread;

Adjustable cable outlet in 4 positions every 90°.

IM21D

Control coil 12Vac 50/60Hz

IM21F

Control coil 24Vac 50/60Hz

IM21H

Control coil 110Vac 50/60Hz

IM21M

Control coil 230Vac 50/60Hz

IM22

Control coil 24Vdc

(with coil in d.c. the indicated pressure

should be reduced by 60%)
