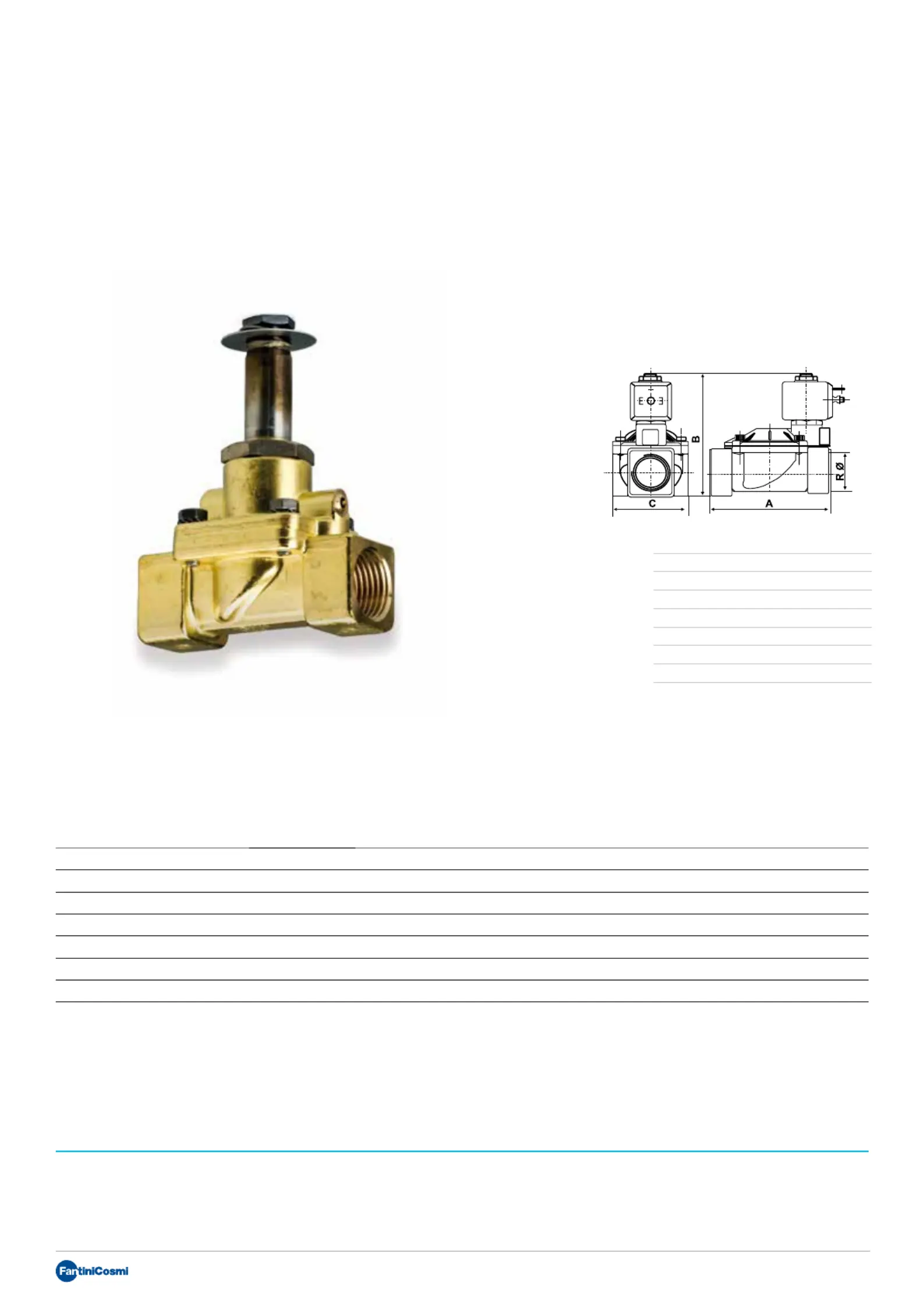

M23

Servo-assisted diaphragmvalve bodies, normally-closed

Solenoid valves suitable for large flow capacity, suitable for water, air, fuel-oil, inert gases and other non-corrosive

fluids, for copper alloys fluids with viscosity up to 2° Engler.

INSTALLATION

Female threaded connection from G 3/8 to G 2.

The valves can be installed in any position.

Kv = water flow in m³/h with pressure drop of 1 bar (1 bar = 100kPa).

type A B C

M23C13 69 2,5 40

M23D13 72 94,5 40

M23E20 100 100 65

M23F25 104 105,5 65

M23G35 145 127 102

M23H40 145 127 102

M23I50 173 141 118

N.B. Dimensions and weights are

including the coils

Dimensions (mm)

Passage orifice

diameter

Female

connection

m³/h

Closing time

DP of 1 bar

Minimum

differential

pressure

Maximum

differential

pressure

Testing

pressure

(DIN2401) PN

M23C13 13 mm G 3/8 3 1 sec. 20 bar 0.1 bar 25 bar

M23D13 13 mm G 1/2 3 1 sec. 20 bar 0.1 bar 25 bar

M23E20 20 mm G 3/4 8.4 1.5 sec. 20 bar 0.1 bar 25 bar

M23F25 25 mm G 1 9.6 1.5 sec. 20 bar 0.1 bar 25 bar

M23G35 35 mm G 1 1/4 25.2 2.5 sec. 10 bar 0.1 bar 16 bar

M23H40 40 mm G 1 1/2 30 3 sec. 10 bar 0.1 bar 16 bar

M23I50 50 mm G 2 37.2 3.5 sec. 10 bar 0.1 bar 16 bar

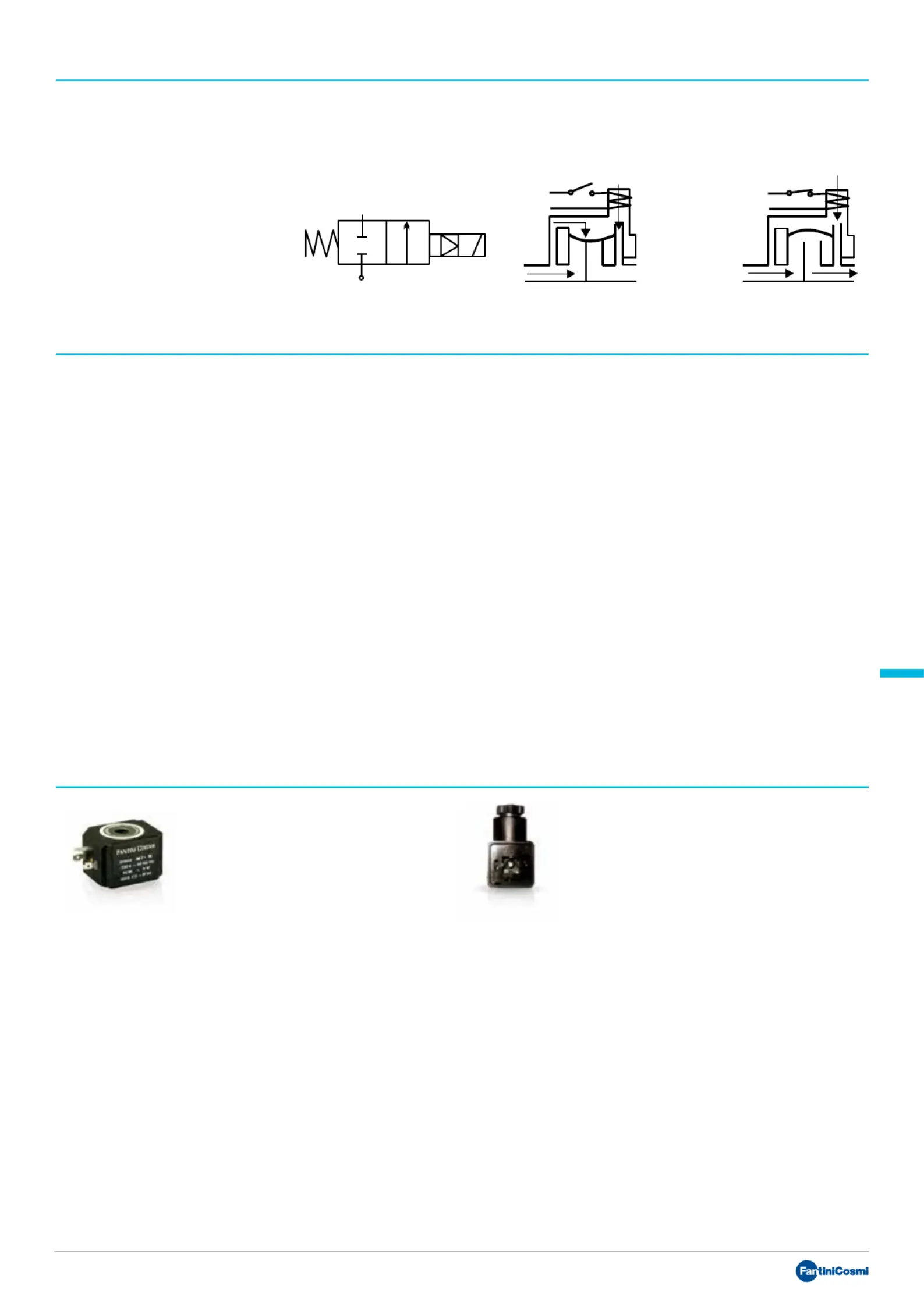

OPERATION

2-way execution, normally-closed.

Indirect operation with blocked servo-membrane.

The fluid under pressure before the valve enters the space above the membrane, pressing it against the seat, blocking the passage.

When the coil is energized, the pilot plug opens discharging the flow, therefore the media lifts the membrane disc, opening passage

orifice of the fluid.

FEATURES

Press-forged brass valve body OT58 UNI 5705.

Gaskets in NBR (Buna N) - Viton.

Rod in stainless steel AISI 304.

Core in stainless steel AISI 430F.

Spring in stainless steel AISI 302.

Antivibration brass ring.

Operating temperature: -10 ÷ 90°C.

Unit weights:

M23C13 0.55 Kg

M23D13 0.58 Kg

M23E20 1.02 Kg

M23F25 1.10 Kg

M23G35 3.15 Kg

M23H40 2.90 Kg

M23I50 4.3 Kg

ELECTROMAGNETS

The control coils are supplied separately from valve bodies.

See page IM2, series tensions, technical specifications and the codes for ordering.

ACCESSORIES

IM21D

Control coil 12Vac 50/60Hz

IM21F

Control coil 24Vac 50/60Hz

IM21H

Control coil 110Vac 50/60Hz

IM21M

Control coil 230Vac 50/60Hz

IM22

Control coil 24Vdc

(with coil in d.c. the indicated pressure

should be reduced by 60%)
