M29

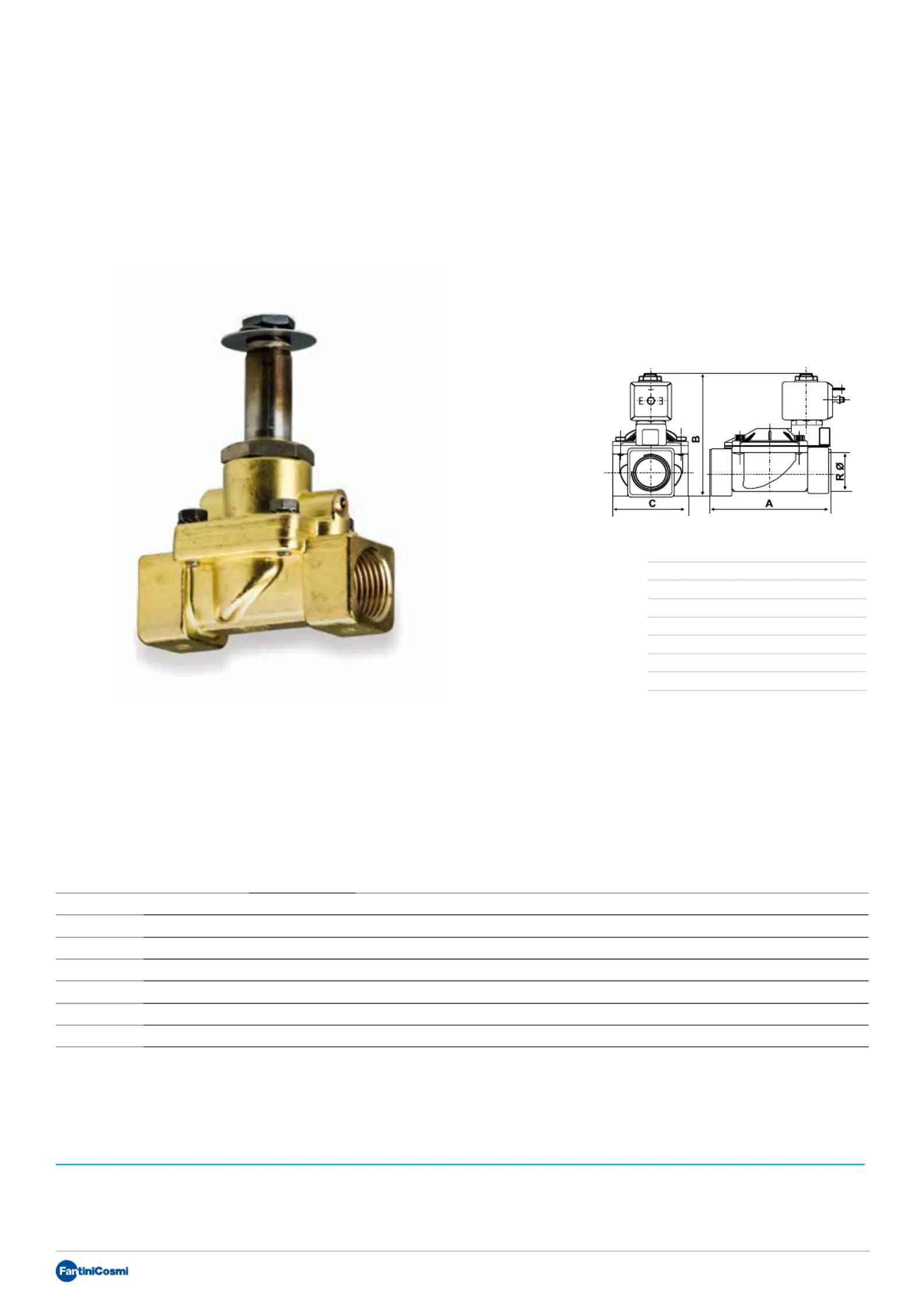

Servo-assisted diaphragmvalve bodies, normally-open

Solenoid valves suitable for large flow capacity, suitable for water, air, fuel-oil, inert gases and other non-corrosive

fluids, for copper alloys fluids with viscosity up to 2° Engler.

INSTALLATION

Female threaded connection from G 3/8 to G 2.

The valves can be installed in any position.

type A B C

M29C13 69 2,5 40

M29D13 72 94,5 40

M29E20 100 100 65

M29F25 104 105,5 65

M29G35 145 127 102

M29H40 145 127 102

M29I50 173 141 118

N.B. Dimensions and weights are

including the coils.

Dimensions (mm)

Passage orifice

diameter

Female

connection

m³/h

Closing time

DP of 1 bar

Minimum

differential

pressure

Maximum

differential

pressure

Testing

pressure

(DIN2401) PN

M29C13 13 mm G 3/8 3 1 sec. 20 bar 0,1 bar 25 bar

M29D13 13 mm G 1/2 3 1 sec. 20 bar 0,1 bar 25 bar

M29E20 20 mm G 3/4 8,4 1,5 sec. 20 bar 0,1 bar 25 bar

M29F25 25 mm G 1 9,6 1,5 sec. 20 bar 0,1 bar 25 bar

M29G35 35 mm G 1 1/4 25,2 2,5 sec. 10 bar 0,1 bar 16 bar

M29H40 40 mm G 1 1/2 30 3 sec. 10 bar 0,1 bar 16 bar

M29I50 50 mm G 2 37,2 3,5 sec. 10 bar 0,1 bar 16 bar

Kv = water flow in m³/h with pressure drop of 1 bar (1 bar = 100kPa).

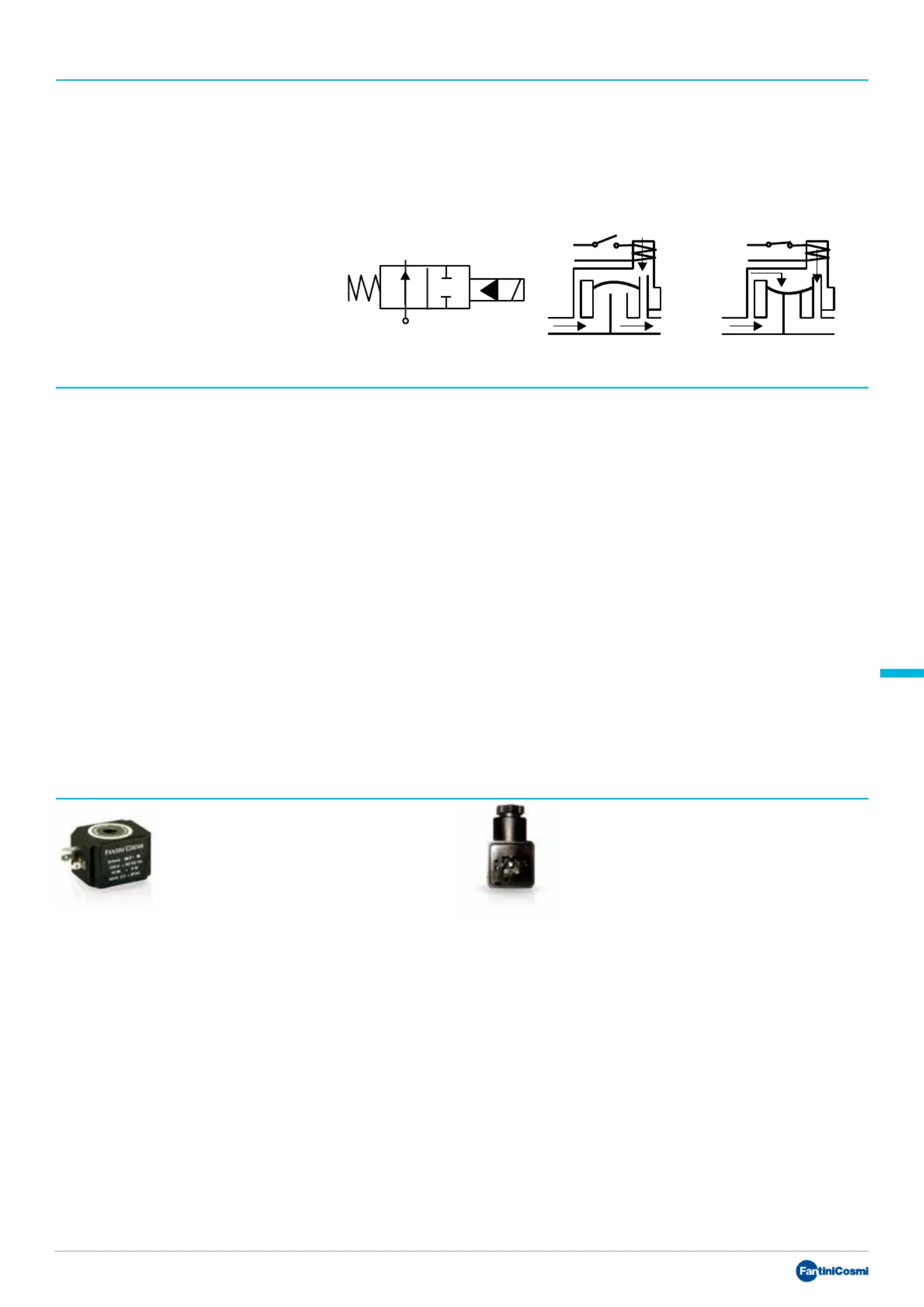

OPERATION

2-way execution, normally-open.

Indirect operation with blocked servo-membrane.

The fluid under pressure before the valve passes freely above and below the diaphragm, in the passage orifice of the valve and in the

pilot plug orifice.

When the coil is energized, the pilot plug closes and the fluid under pressure before the valve enters the space above the membrane,

pressing it against the seat, blocking the passage.

N.B. Minimum operation pressure between the upper and lower limit should be 0,1 bar.

FEATURES

Press-forged brass valve body OT58 UNI 5705.

Gaskets in NBR (Buna N) - Viton.

Rod in stainless steel AISI 304.

Core in stainless steel AISI 430F.

Spring in stainless steel AISI 302.

Antivibration brass ring.

Operating temperature: -10 ÷ 90°C.

Ambient maximum temperature 50°C.

Unit weights:

M29C13 0,56 Kg

M29D13 0,58 Kg

M29E20 1,05 Kg

M29F25 1,11 Kg

M29G35 3,12 Kg

M29H40 2,87 Kg

M29I50 4,26 Kg

ELECTROMAGNETS

M29 valve bodies are working exclusively with IM29 coil, which is supplied separately from the valve body, look page 10 for technical

specifications and the codes for ordering.

ACCESSORIES

IM29A

Control coil 12Vac 50/60Hz

IM30A

Control coil 12Vdc

(with coil in c.c. the indicated pressure

should be reduced by 60%)

IM29F

Control coil 24Vac

IM29M

Control coil 230Vac 50/60Hz

1578501

Quick connection connector DIN 43650,

suitable for all IM2 coils.

Cable gland Pg9 (cable diameter 6÷8 mm).

Pg11 cable gland thread;

Adjustable cable outlet in 4 positions every 90°.
