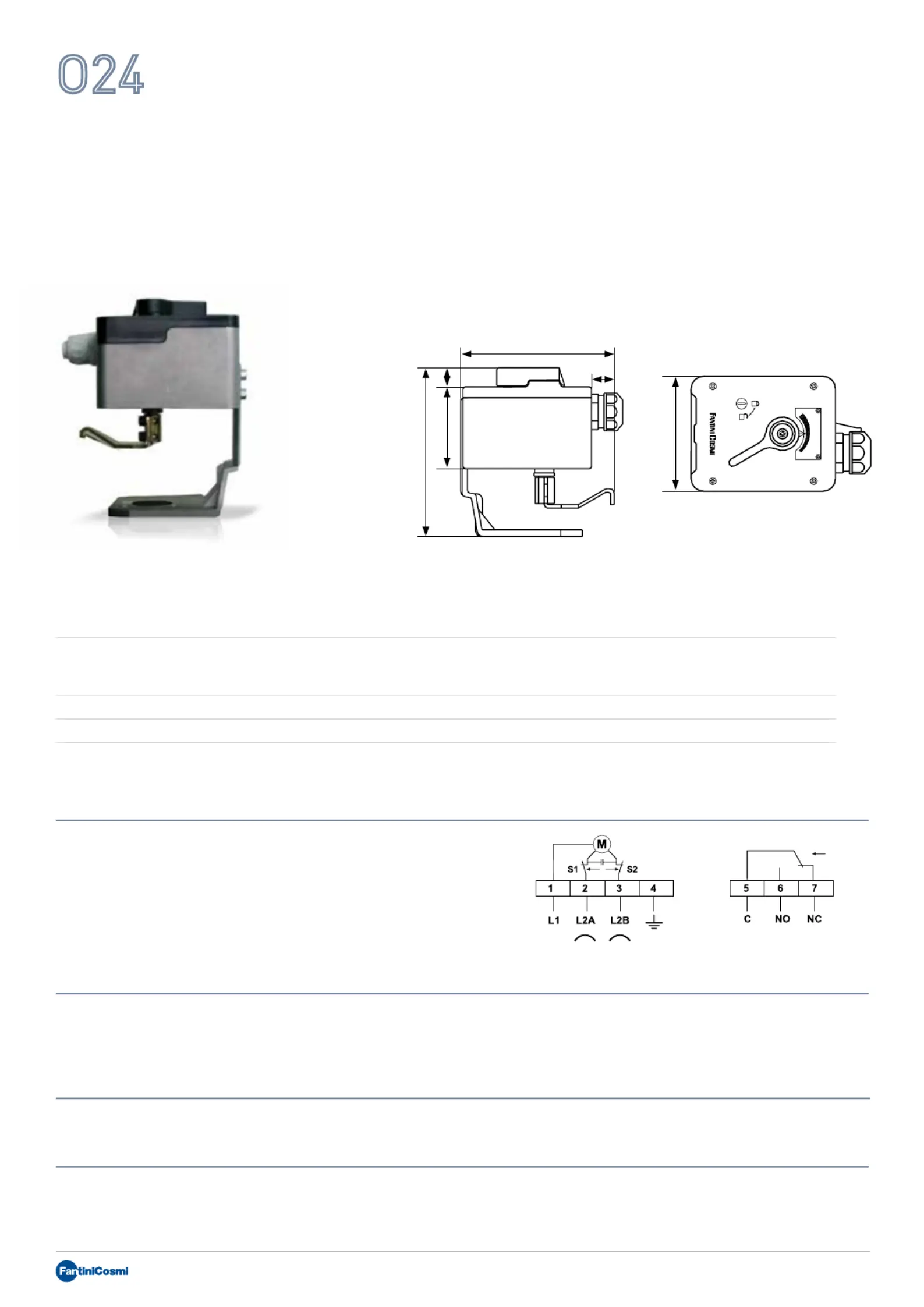

Side 1/2

102

Single-phase synchronous motor with bidirectional rotation. Suitable to control 3-way and 4-way mixing valves

and for generic controls.

O24

Electric servomotors for mixing valves

STANDARDS AND HOMOLOGATIONS

Conformity with EN 60335-1 standard.

INSTALLATION

The device is connected to the valve using the appropriate T0-- kit suitable for the specific valve type (not supplied).

For making the electrical wiring is sufficient to remove the indicator and the cover and to connect the terminals according to the wiring

diagram. Once the device is mounted on the valve, for bringing it in the desired position you must use the handle T0-- supplied with

the coupling kit.

OPERATION

The unit executes an angle of rotation of 90°, once it reaches one of two extreme points, the electric circuit is opened by the relative

limit microswitch.

Rotation Rated Power supply Consumption Operating Protection

time for torque of the single-phase temperature degree

90° Nm synchronous motor VA

O24A 10 minutes 15 230Vac 50/60Hz 4 0 ÷ 50 IP40

O24B 5 minutes 15 230Vac 50/60H 4 0 ÷ 50 IP40

ELECTRICAL FEATURES

Power supply: 230Vac 50Hz.

Power consumption: 4W.

Contacts rating: 6(2)A 250Vac (micro aux).

135

1772

Dimensions (mm)

140 ÷ 170 adjustable

micro aux (optional) O24AUX

103

FEATURES

Coupled with the most common valves from DN15 to DN100 and from G1“to G2”, for the ZC (Fantini Cosmi) series up to DN150.

Single-phase synchronous motor with bidirectional rotation.

Bottom and device bracket in die-cast aluminum.

Cover and indicator made of thermoplastic material.

Angle of rotation equal to 90°.

Possibility of manual operation.

Adjustable height of the bracket, max 30mm.

Possibility to add an auxiliary microswitch for pump control, signaling etc. (optional).

Rotation torque: 15Nm.

Insulation class: I.

Screw terminals.

Fitting for smooth pipes and for spiral ducts Pg13.5.

Reversible plate.

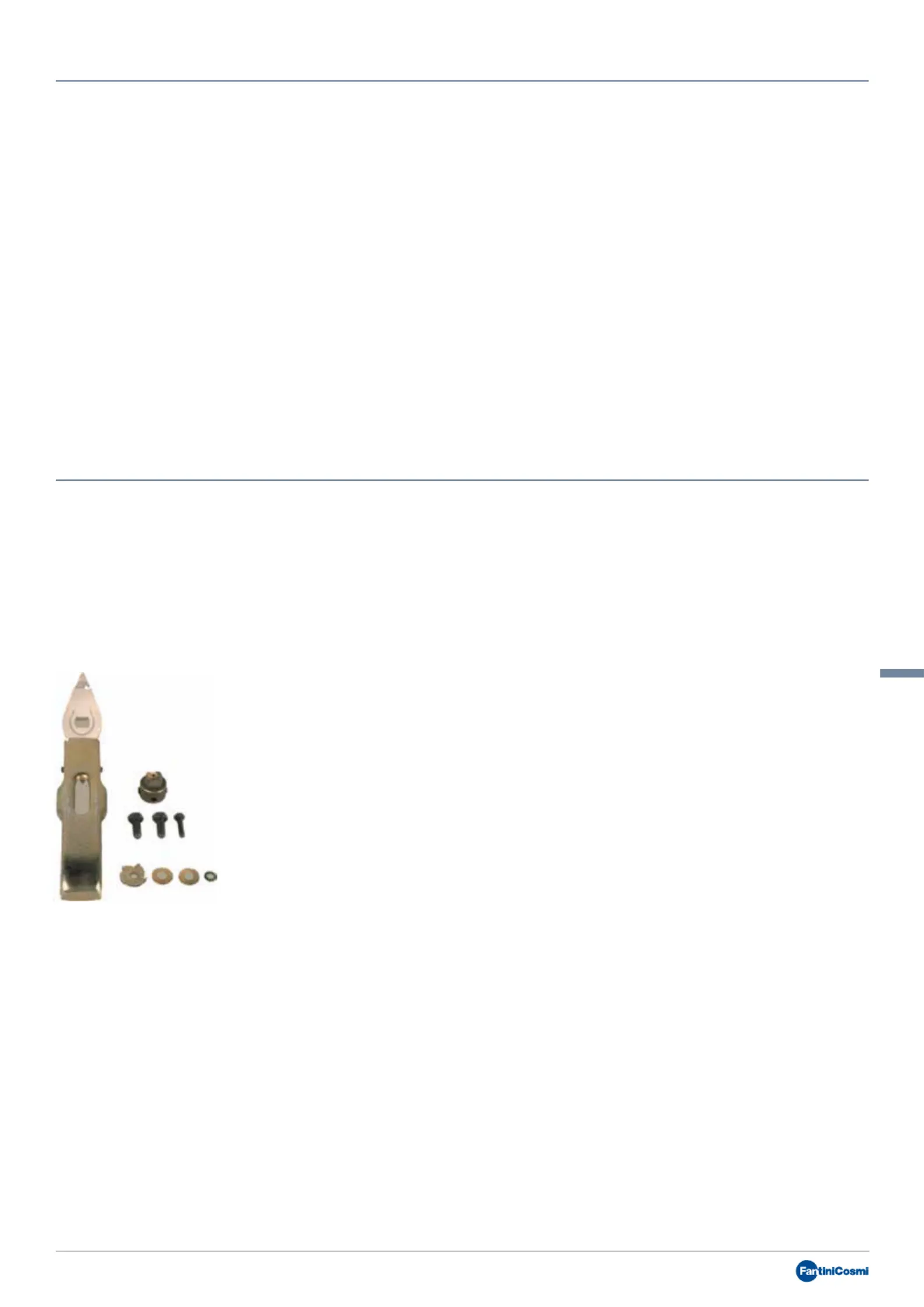

ACCESSORIES

O24 servocontrols must be mounted on valve bodies types Z59 - Z60 - Z61 - Z62 - Z63 - Z64 by means of the coupling/linkage kit

T01A. It is possible to mount O24 servocontrols upon many valves available on the market, using the specific coupling groups listed

below.

The linkage is very simple and is not necessary to have a perfect concentricity between motor shaft and valve body shaft.

Furthermore, it is always possible to manually operate the valve, releasing the handle of the coupling group from the servocontrol.

T01A

For FANTINI - BUCHE

- L&S SERIE 2 valves

T01B

For MUT valves

T01D

For FANTINI -LAZZARI Ø 12

- SIEMENS valves

T01E

For CENTRA -

HONEYWELL Ø 20,8 valves

T01F

For VILB Ø 11 valves

T01G

For STARK Ø 12 valves

T01H

For LOELL Ø 20 valves

T01L

For WIMAT Ø 14 valves

T01M

For VEMA Ø 12 valves

T01N

For BESSER Ø 12 valves

T01P

For COSTER 75 Ø 16 valves

T01Q

For COSTER 73 Ø 12 valves

T01R

For IVK Ø 14 valves

T01S

For SAUTER Ø 16 valves

T01Z

For MIXETTE Ø 12 valves

T02A

For VEMA Ø 10 valves

T02B

For VILB Ø 25 valves

T02C

For JUCKER Ø 14 valves

T02H

For MAJMAR valves

024AUX

KIT for mounting an auxiliary contact
