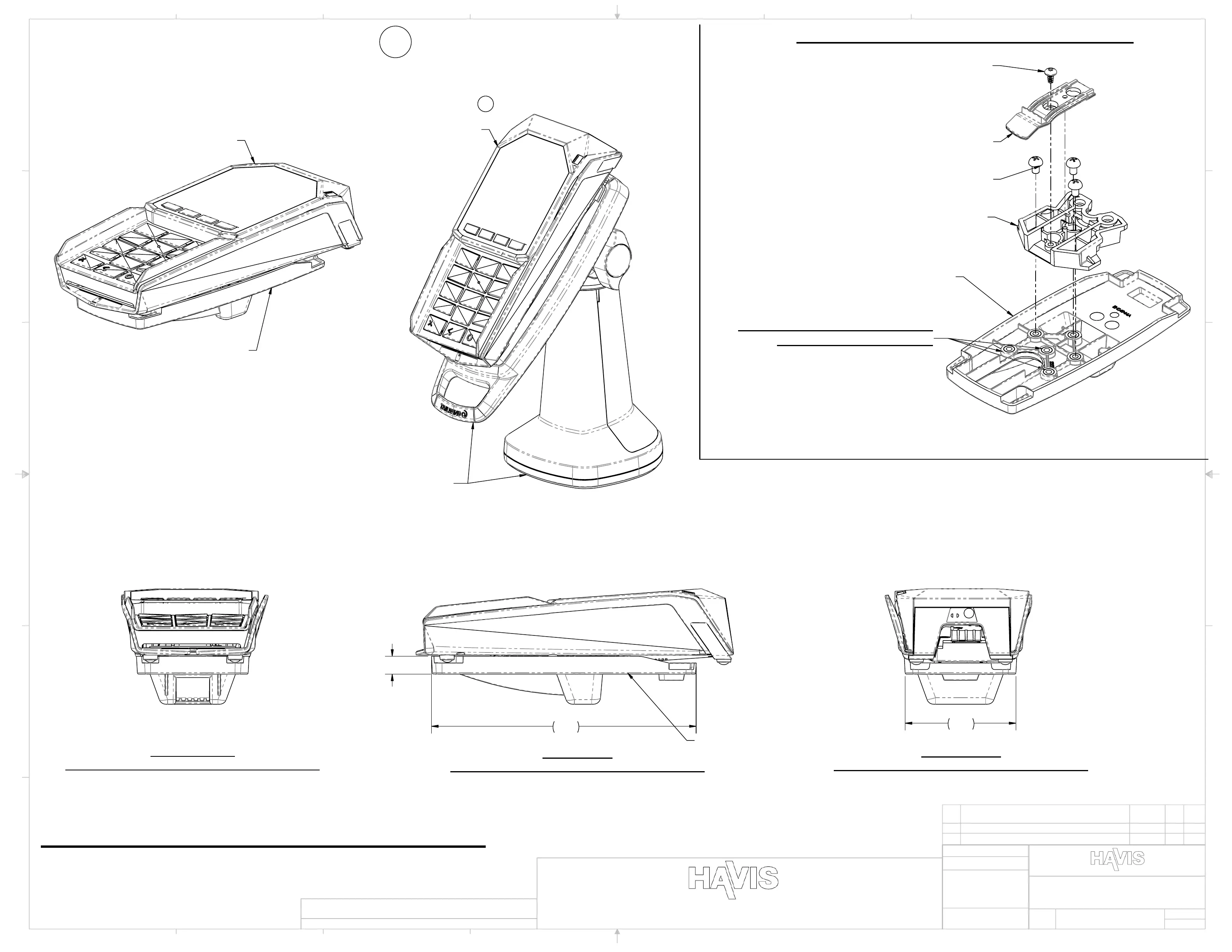

BACKPLATE
(FITS TAILWIND FLEXIPOLE STANDS)
3X M4 X 6MM LONG
PHILLIPS PAN HEAD SCREWS
PARTS INCLUDED WITH CST00166 & CST00166a
INTERFACE BRACKET (UPM)
FOR INGENICO LANE 3000, 5000(V2),
7000, 8000, DESK 1500
RELEASE LEVER
#6 X 1/4" LONG
TORX PLASTITE SCREW
LOWER 3 HOLES FOR
CST00166a
INGENICO LANE 5000 (V2)
FRONT VIEW,
WITH INGENICO LANE 3000/DESK 1500
INGENICO LANE 3000/DESK 1500
(SUPPLIED BY CUSTOMER)
BACKPLATE
REVISION B CHANGES =
B
(1 CHANGE)
5.91
.397
SIDE VIEW,
WITH INGENICO LANE 3000/DESK 1500
BACKPLATE
2.47
BACK VIEW,
WITH INGENICO LANE 3000/DESK 1500
INGENICO LANE 3000/DESK 1500
(SUPPLIED BY CUSTOMER)
TAILWIND FLEXIPOLE STAND
(PURCHASED SEPARATELY)
B
SHEET 1, INGENICO LANE 3000 & DESK 1500
(SEE SHEET 2 FOR INGENICO LANE 5000(V2), 7000 & 8000)
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
B
REV. DESCRIPTION DATE BY CHK'D
C. BENSON
CST00166
BACKPLATE,
WITH INGENICO INTERFACE BRACKET (UPM),
TAILWIND FLEXIPOLE COMPATIBLE
INGENICO LANE 3000, 5000(V2), 7000, 8000,
DESK 1500
SHEET 1 OF 2
REV.
DWG. NO.
C
SIZE
TITLE
DATE
DRAWN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
HAVIS AND REPRODUCTION IN PART OR IN WHOLE WITHOUT
THE WRITTEN PERMISSION
OF IS PROHIBITED.HAVIS
CUSTOMER VERIFICATION AND AUTHORIZATION
CUSTOMER APPROVAL
(SIGNATURE REQUIRED):
DATE
09/24/2018
A
RELEASE FOR PROTOTYPE
9/24/18
CDB
ALL DIMENSIONS ARE IN INCHES UNLESS STATED OTHERWISE.
JEB
ARSARS
02/14/19
REVISED/UPDATED TEXTURED FINISH,
INGENICO DESK 1500 NOTES ADDED
B
FRONT VIEW
WITH INGENICO LANE 5000 (V2)
INGENICO LANE 5000 (V2)
(SUPPLIED BY CUSTOMER)
SIDE VIEW
WITH INGENICO LANE 5000 (V2)
BACKPLATE
INGENICO LANE 5000 (V2)
(SUPPLIED BY CUSTOMER)
ISOMETRIC VIEW
WITH INGENICO LANE 5000 (V2)
INGENICO LANE 7000
(SUPPLIED BY CUSTOMER)
FRONT VIEW
WITH INGENICO LANE 7000
INGENICO LANE 8000
(SUPPLIED BY CUSTOMER)
FRONT VIEW
WITH INGENICO LANE 8000
SIDE VIEW
WITH INGENICO LANE 7000
BACKPLATE
SIDE VIEW
WITH INGENICO LANE 8000
BACKPLATE
INGENICO LANE 7000
(SUPPLIED BY CUSTOMER)
ISOMETRIC VIEW
WITH INGENICO LANE 7000
INGENICO LANE 8000
(SUPPLIED BY CUSTOMER)
ISOMETRIC VIEW
WITH INGENICO LANE 8000
SHEET 2, INGENICO LANE 5000(V2), 7000 & 8000
(SEE SHEET 1 FOR INGENICO LANE 3000/DESK 1500)
CST00166
CST00166a
CST00166
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
B
REV. DESCRIPTION DATE BY CHK'D
C. BENSON
CST00166
BACKPLATE,
WITH INGENICO INTERFACE BRACKET (UPM),
TAILWIND FLEXIPOLE COMPATIBLE
INGENICO LANE 3000, 5000(V2), 7000, 8000,
DESK 1500
SHEET 2 OF 2
REV.
DWG. NO.
C
SIZE
TITLE
DATE
DRAWN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
HAVIS AND REPRODUCTION IN PART OR IN WHOLE WITHOUT
THE WRITTEN PERMISSION
OF IS PROHIBITED.HAVIS
CUSTOMER VERIFICATION AND AUTHORIZATION
CUSTOMER APPROVAL
(SIGNATURE REQUIRED):
DATE
09/24/2018
A
RELEASE FOR PROTOTYPE
9/24/18
CDB
ALL DIMENSIONS ARE IN INCHES UNLESS STATED OTHERWISE.
JEB
ARSARS
02/14/19
SEE SHEET 1 FOR NOTES
