Side 1/2

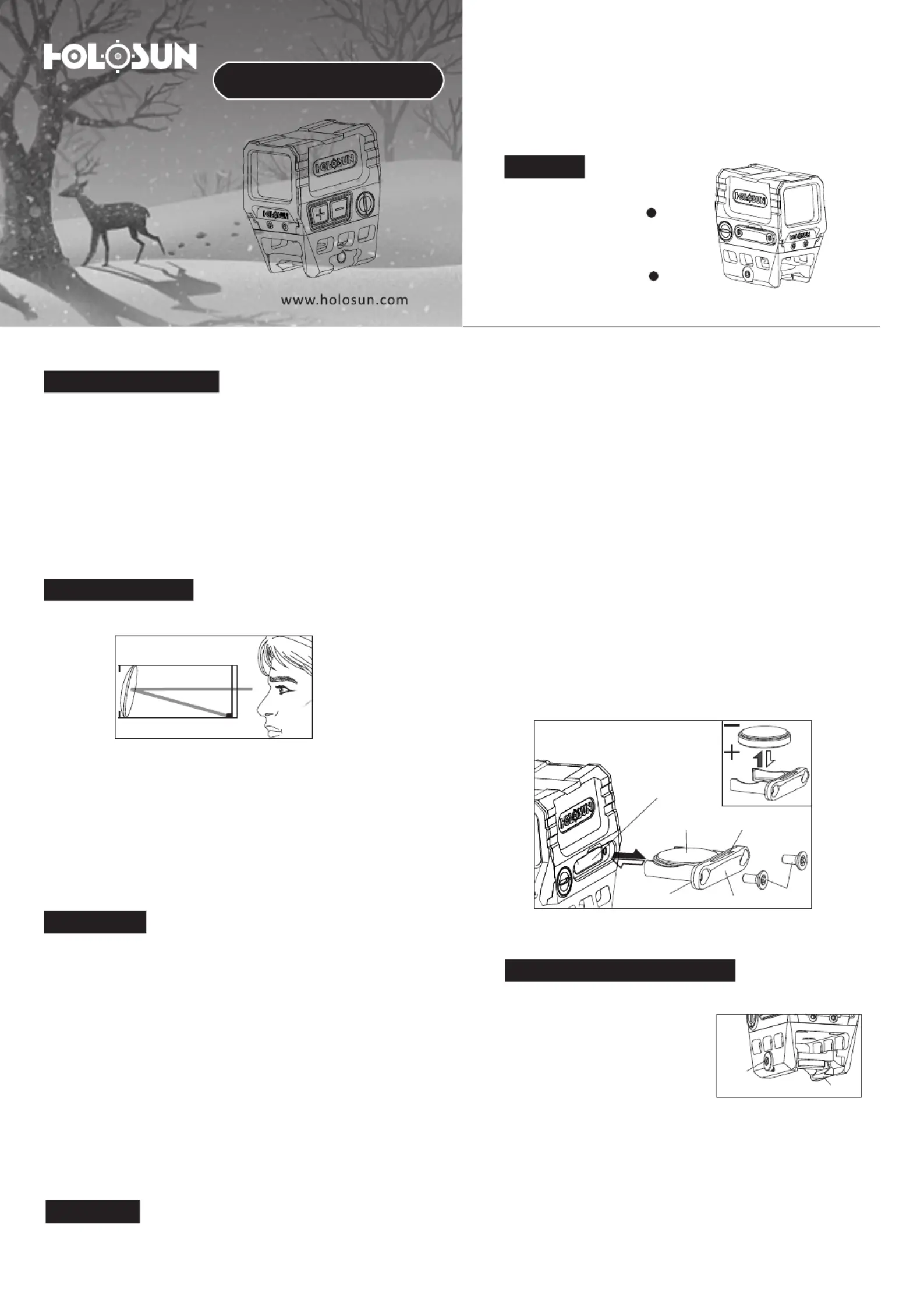

Fig 1 AEMS CORE Reflex Sight

Model

Important Notices

Features

Thank you for purchasing the Reflex Sight AEMS CORE

from HOLOSUN. The is an advanced enclosed AEMS CORE

micro sight with a 2MOA dot reticle housed in a Aluminum

body. It features a motion sensor and battery power.

Before operation, please read the User Manual carefully.

1. Advanced LED technology: Up to 50,000 hours

2. Parallax free with unlimited eye relief

3. 2MOA Dot

4. Shake Awake sensor

5. 10 Daylight & 2 Night Vision compatible brightness

settings

6. Rechargeable internal battery

7. Window Size: 0.87” x 1.1” (inches)

8. Solid 7075 aluminum Body

9.1.63” Center Dot Height (Lower 1/3 Co-witness)

10. Waterproof: IP67

1. Ensure the firearm is unloaded and cleared by removing all

ammunition and magazines from firearm and verifying an

empty chamber before installation or battery

replacement.DO NOT ATTEMPT TO INSTALL THIS SIGHT KIT

ON A LOADED FIREARM.

2. Please keep the packaging should you need to make a

warranty claim.

Objective Lens

A canted objective lens is part of the design of

reflex/reflective optical sights. In order to create a proper

reflection of the reticle/dot the objective lens must be

perpendicular to the LED. Because the LED is mounted off to

one side, the objective lens will be canted in that direction.

Fig2

Battery

Installation onto Firearm

1.The AEMS CORE is compatible

with any firearm with a Picatinny

mounting rail. If your firearm

does not have a Picatinny rail,

contact a qualified gunsmith.

UUs

sse

eer M

r M

r Mr Ma

aan

nnu

uua

aal

AEMS CORE

your purchase.

2. A high quality battery can power the2MOA dot for up to

50,000 hours at a mid setting.

Caution: Do not use a rechargeable battery.

3.Battery Replacement(Fig3):

a. Removing the battery :

I. Remove the battery tray screws.

ii. Use the included tool as a lever in the top battery tray slot

to remove the battery tray and battery.

b. Battery installation :

I. Insert the battery into the battery tray with the POSITIVE

side facing DOWN.

ii. Insert and press the tray into the battery compartment.

iii. Tighten the battery tray screw.

Caution:

The loss or damage of the seal ring may cause moisture to

enter into the compartment which could damage the

product.

Fig 3

Clamp

screw head Clamp

Fig 4

2. Using the included T10 Torx tool, loosen the cross bolt and

then attach the sight onto the Picatinny rail in an appropriate

position. Apply forward pressure towards the muzzle and

tighten the clamp screw to 20 inch/lbs using non-permanent

thread lock.(Fig4)

Advanced Enclosed

Micro Sight

AEMS CORE 110101 -

AEMS CORE 120101 -

RED Dot

Green Dot

Screw

Battery tray

Seal ring

Battery Slot

Battery

compartment

1. One high quality CR2032 Lithium battery is included with

Fig5

1) The sight has been zeroed at the factory. mechanically

2) The elevation adjust is of the sight ment on the right side

(battery side). The windage adjustment is the left side of on

the housing (button side). Adjustment can be performed

using the supplied tool (see Fig ).6

3) 0.5 MOA Windage & Elevation adjustments per click.

4) 0.5

Each adjustment click has a value of approximately

MOA or 1/2- inch at 100 yards (1/4" at 50y; 1/8" at 25y).

When zeroing at 50 yards, if your impacts are 2 inches low

and 1 inch right, you will need to adjust Elevation 8 clicks UP

(clockwise) and Windage 4 clicks LEFT (counterclockwise).

5) The maximum adjustment range is ±50MOA.

AEMS CORE- 11 01 01

AEMS CORE- 12 01 01

Holosun Technologies Inc.

www.holosun.com

CCu

uus

sst

tto

oom

mme

eer S

r S

r Sr Se

eer

rrv

vvi

iic

cce

We provide a limited lifetime warranty from the date of

purchase on parts and workmanship to the original

purchaser. At our sole discretion, we will repair or replace

products found to be defective under normal use without

charge, excluding any delivery costs, which will be born by

purchaser. We will not be liable for incidental,

consequential, or special damages arising out of or in any

connection with the use or performance of this product. This

warranty is void if the product has been misused, modified,

neglected, or disassembled prior to its return. Please refer to

www.holosun.com for current and complete warranty

information and other conditions.

This device is a precision instrument that deserves

reasonably cautious care. The following tips are provided to

ensure a long product life. The optical lenses are multicoated

optical glass. When cleaning the lenses, blow away any dust

on the surface, wet the lens with lens cleaner or clean water,

then wipe away smudges with lens tissue, soft cotton or a

microfiber cloth. Avoid touching the glass surface with dry

cloth or tissue paper. Do not use organic solvents such as

alcohol or acetone. No special maintenance is needed for the

housing surface. Do not try to dismantle the device as the

internal parts are specially cleaned and sealed and with an

anti-fog treatment. Any such attempt will void the warranty.

Phone: (909) 594-2888

Fax: (909) 598-4888

E-mail: warranty@holosun.com

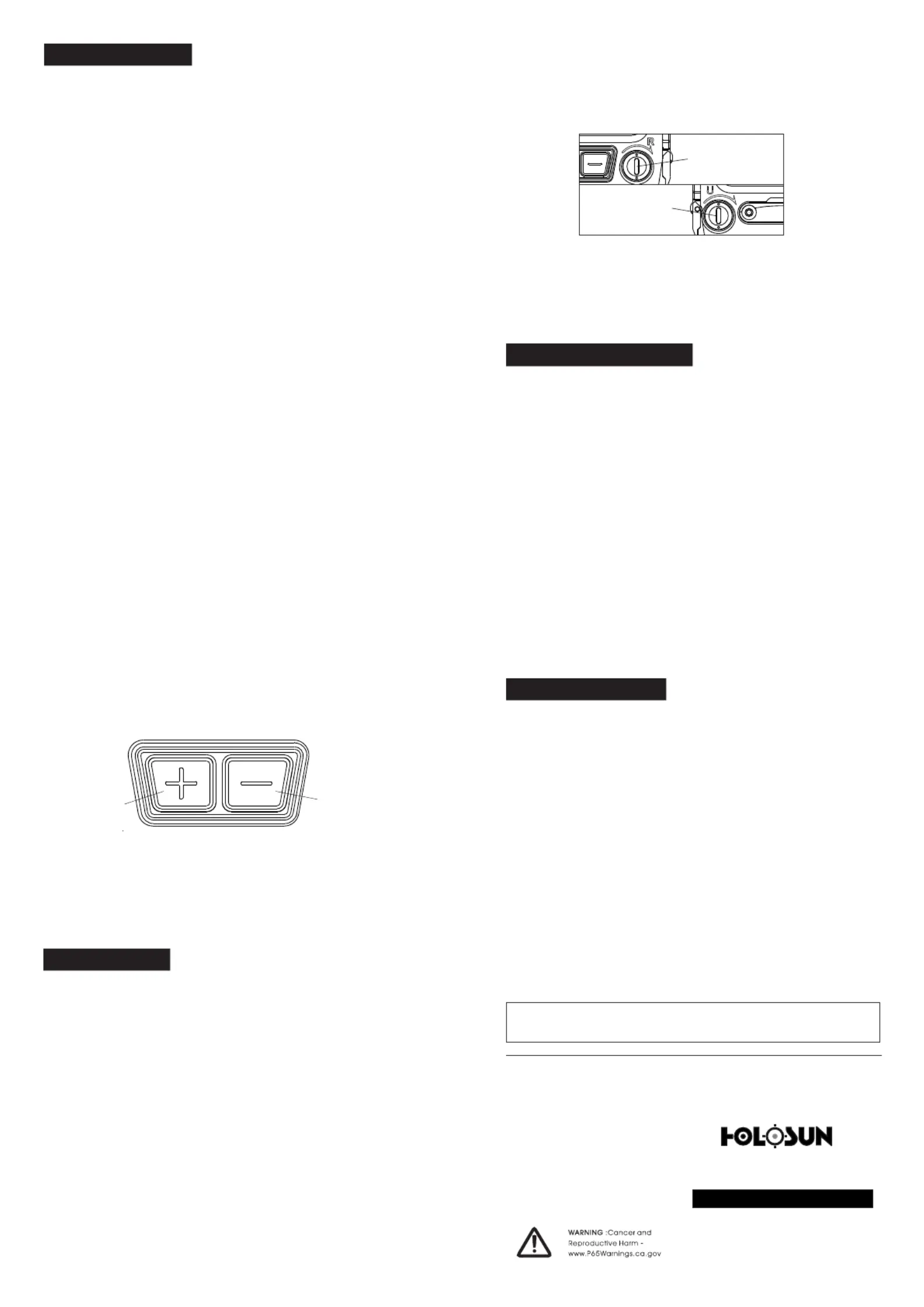

Zero Setting

Maintenance & care

Limited warranty

Fig 6

Caution: If you feel the knobs can no longer be rotated, you

may have reached the mechanical limit of the adjustment

turret. Do not try to rotate the knobs further if you feel a

bind or you may cause damage.

Sight Operation

1.Switch on: Press and release either brightness button

("+"or"-") to turn on the sight, See Fig 5.

2.Power off: Press the"+"and"-" buttons simultaneously to

turn the power and motion sensor off (this will disable Shake

Awake).

3.Operation mode:

Brightness adjustment: There are 12 reticle brightness

setting levels in manual mode. Settings 1 and 2 are NV

compatible and setting 12 is the brightest. Press ”+” or ”-” to

increase or decrease the brightness.

4. Sleep timer setting:

1) Please note that your red dot will automatically enter into

sleep mode after 10 minutes of no movement.

2) The sight will instantaneously wake up and turn on with

any motion detected to the last saved settings.

3) The default sleep timer setting is 10 min, but can be

changed to one of four total settings.

i. Press and hold the “+” button for 10 seconds to enter time

adjustment mode. There are 4 options: 10 min, 1h, 12h or the

sleep mode is disabled.

ii. Press and release either “+” or “-” button to set the time.

The LED will blink (1=10 min, 2=1h, 3=12h, or 4=disable sleep

mode).

iii. Press the “+” and “-” buttons simultaneously to save the

time setting and power off the sight.

5. Note:

1) Memory function: The sight will remember the last saved

brightness setting when powered on and off.

2) Low battery Warning: If the battery voltage is below

2.2Vdc, the reticle will blink slowly.

Ver:A0

Brightness

Increase Brightness

Decrease

Windage

Adjustment

Elevation

Adjustment

Advanced Enclosed

Micro Sight

For more information about Holosun, our Terms of Use and

Sale, and our Privacy Policy, please visit holosun.com.

If you run out of adjustment range, contact your gunsmith or

Holosun for assistance.
