Side 1/2
Model
1
2
R
R
R
RRe
e
e
eef
f
f
ffl
l
l
lle
e
e
eex S
x S
x S
x Sx Si
i
i
iig
g
g
ggh
h
h
hht
t
t
tt
www.holosun.com
U
U
U
UUs
s
s
sse
e
e
eer
r
r
rr'
'
'
''s M
s M
s M
s Ms Ma
a
a
aan
n
n
nnu
u
u
uua
a
a
aal
l
l
ll

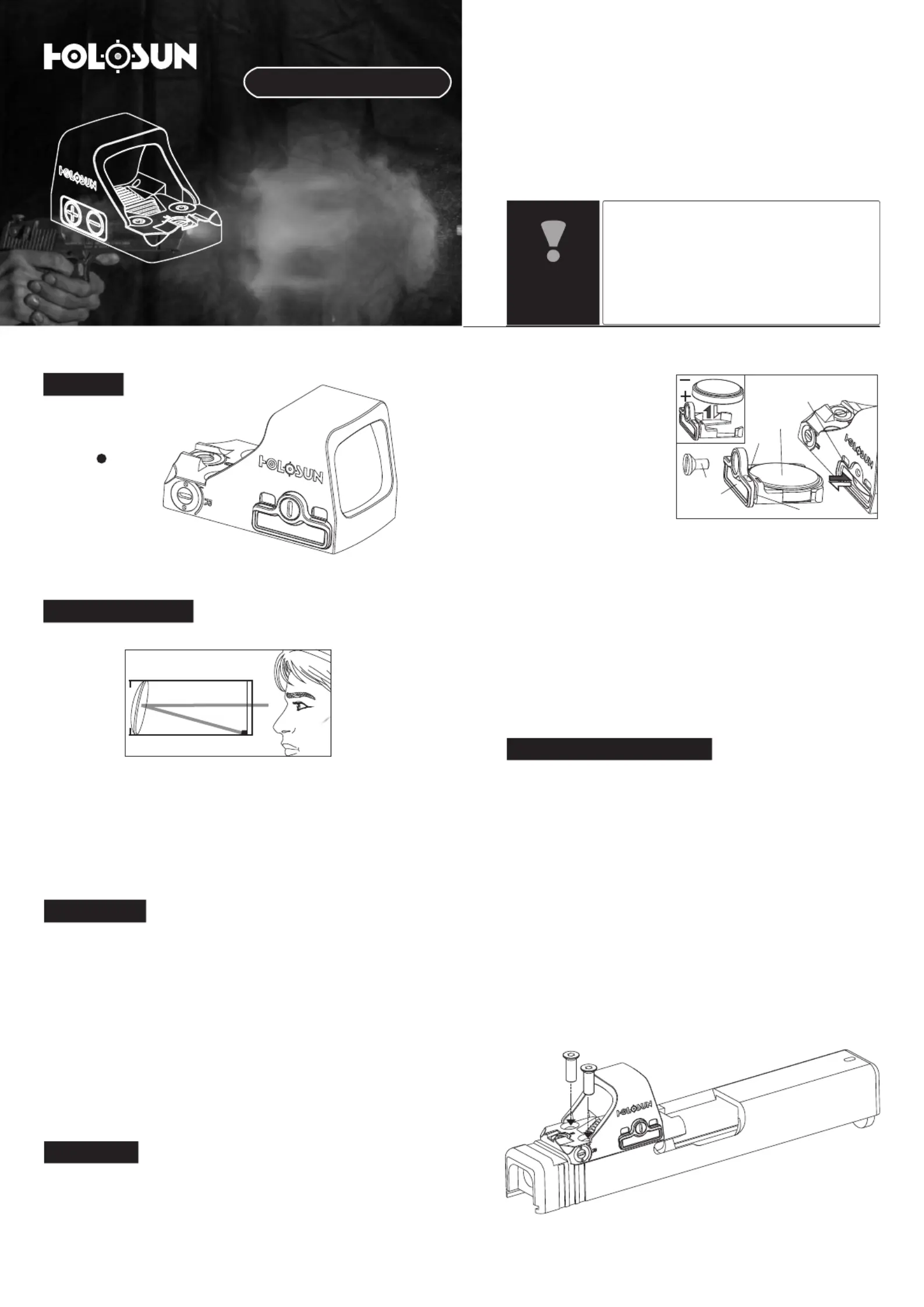

HE407K-GR X2 Reflex sightFig 1
50000 hours (dot)at setting
6.
3.Battery
Replacement(Fig4):
a. Removing the battery :
I. Remove the battery tray
screw.
ii. Use the included tool as
a lever in the battery tray
1. Ensure the firearm is unloaded and safe
by removing all ammunition and magazines
from the firearm and verify an empty
chamber before installation and battery
replacement.
2. Please keep the packaging should you
need to make a warranty claim.
Features
1) Ultra compact size for concealed carry applications.
2) 6MOA Dot.
TM
3) Shake Awake - Motion on with last setting recall.
4) Parallax free, unlimited eye relief.
5) CNC milled 7075 Aluminum Housing.
6) 10 day light and 2 night vision compatible brightness
settings.
7) Window Size 0.58x0.77 inches.
8) IP67 Certified.
Objective Lens
Fig2
A canted objective lens is part of the design of
reflex/reflective optical sights. In order to create a proper
reflection of the reticle/dot the objective lens must be
perpendicular to the LED. Because the LED is mounted to the
side of the internal tube the objective lens will be canted in
that direction.
slots to remove the battery tray and battery.
b. Battery installation :
I. Insert the battery into the battery tray with the POSITIVE
side facing DOWN.
ii. Insert and press the tray into the battery compartment.
iii. Tighten the battery tray screw.
Caution:
The loss or damage of the seal ring may cause water to leak
into the compartment which could damage the product.
Important
Notices
Thank you for purchasing the HOLOSUN HE407K-GR X2 Open
Reflex sight. This open reflex sight is sized for use on either a
pistol or rifle. The stream lined design and compact size
make it the ideal sight for concealed carry. Before operation,
please read the User's Manual carefully.
Installation on the Slide
NOTE: HE407K-GR is compatible with some standard
mounting solutions currently available. For a footprint
drawing, contact Holosun.
1. Place the HE407K-GR on a compatible slide cut or adapter
plate (this varies based on your slide configuration).
2. Use either the included screws or screws supplied with
your slide or from your gunsmith and tighten to 15 INCH/lbs
using a non-permanent (medium/blue) thread locker. (Fig5)
3. Verify proper clearances and firearm function prior to use.
1. One high quality CR1632 Lithium battery is included with
purchase.
Caution: Do not use a rechargeable battery.
2. A high quality battery can power this device for up to
Battery
Fig 5
6 MOA Dot
HE407K-GR
Screw
Battery
tray
Seal ring
CR 1632
Slot
Battery
compartment
3
4
Fig 6

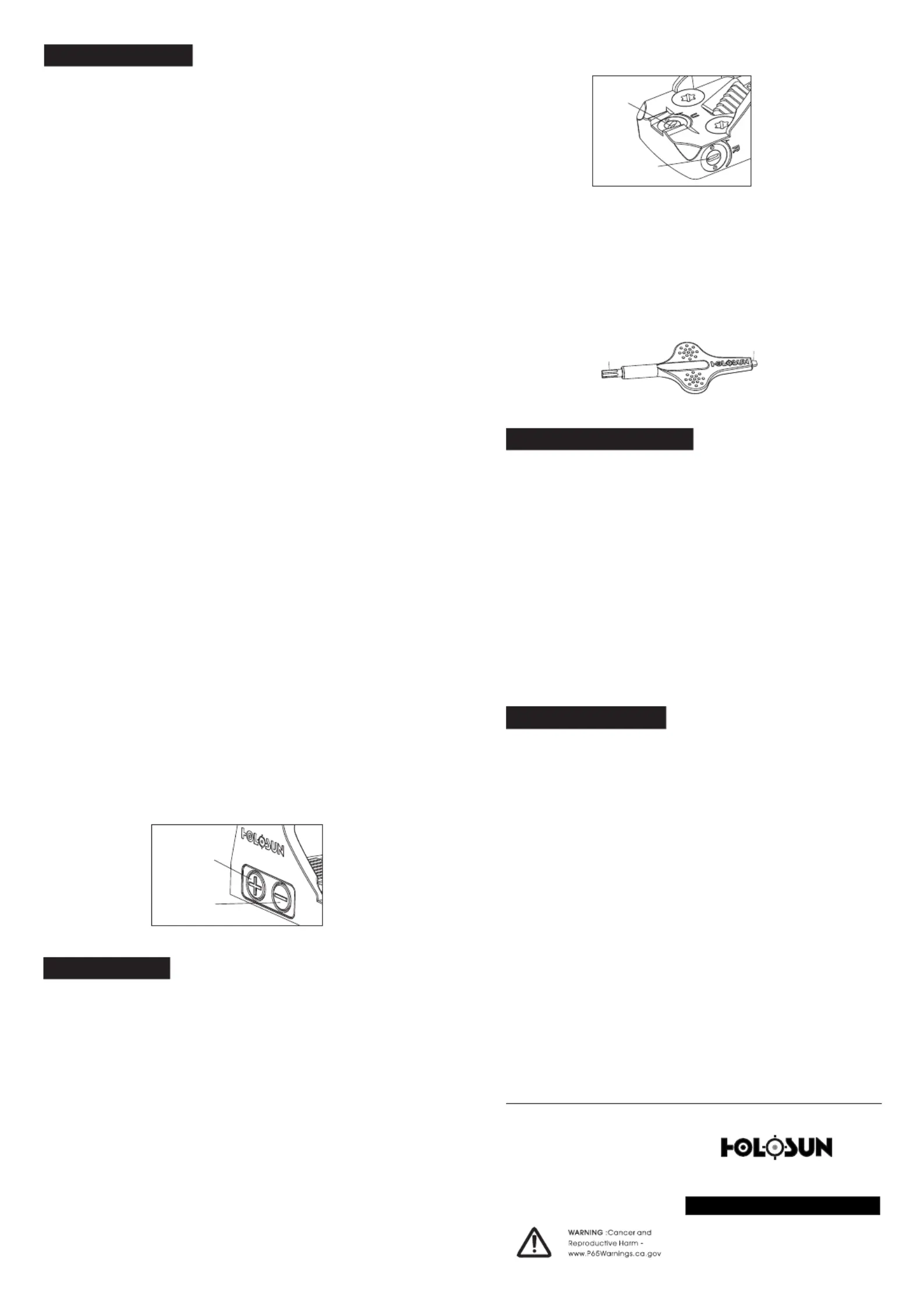

1.Switch on: Press and release either brightness button
("+"or"-") to turn on the sight, See Fig 6.
2.Power off: Press the"+"and"-" buttons simultaneously to
turn the power and motion sensor off (this will disable Shake
Awake).
3.Operation mode: Two modes are available in the following
order: Manual Mode -> Lockout Mode.
1) Manual mode:
Brightness adjustment: There are 12 reticle brightness
setting levels in manual mode. Settings 1 and 2 are NV
compatible and setting 12 is the brightest. Press ”+” or ”-” to
increase or decrease the brightness.
2) Lockout Mode:
Lock Mode Activation: Hold the “+” button for 3 seconds
(until the LED blinks once) to activate Lock Mode. In lock
mode buttons are locked out preventing any setting changes.
To deactivate Lock Mode, hold the “+” button for 3 seconds ,
the LED will blink once to confirm Lock Mode is deactivated.
4. Sleep time setting:
1) Please note that your red dot will automatically enter into
sleep mode after 10 minutes of no movement.
2) The sight will instantaneously wake up and turn on with
any motion detection to last saved settings.
3) The default sleep timer setting is 10 min, but can be
adjusted.
i. Press and hold the “+” button for 10 seconds to enter time
adjustment mode. There are 4 options: 10 min, 1h, 12h or
the sleep mode is disabled.
ii. Press and release either “+” or “-” button to set the time.
The LED will blink (1=10 min, 2=1h, 3=12h, or 4=disable sleep
mode).
iii. Press the “+” and “-” buttons simultaneously to save the
time setting and power off the sight.
5. Note:
1) Memory function: The sight will remember the last saved
brightness setting when powered on and off.
2) Low battery Warning: If the battery voltage is below
2.2Vdc, the reticle will blink slowly.
Caution: If you feel the knobs can no longer be rotated, you
may have reached the mechanical limit of the adjustment
turret. Do not try to rotate the knobs further if you feel a
bind or you may cause damage.
Fig 7
Sight Operation
5) The maximum adjustment range is 30MOA. ±
HE407K-GR X2
Reflex Sight
Holosun Technologies Inc.
www.holosun.com
C
C
C
CCu
u
u
uus
s
s
sst
t
t
tto
o
o
oom
m
m
mme
e
e
eer S
r S
r S
r Sr Se
e
e
eer
r
r
rrv
v
v
vvi
i
i
iic
c
c
cce
e
e
ee
We provide a limited lifetime warranty from the date of
purchase on parts and workmanship to the original
purchaser. At our sole discretion, we will repair or replace
products found to be defective under normal use without
charge, excluding any delivery costs, which will be born by
purchaser. We will not be liable for incidental,
consequential, or special damages arising out of or in any
connection with the use or performance of this product. This
warranty is void if the product has been misused, modified,
neglected, or disassembled prior to its return. Please refer to
www.holosun.com for current and complete warranty
information and other conditions.
This device is a precision instrument that deserves
reasonably cautious care. The following tips are provided to
ensure a long product life. The optical lenses are multicoated
optical glass. When cleaning the lenses, blow away the dust
on the surface, wet the lens with lens cleaner or clean water,
then wipe away smudges with lens tissue, soft cotton or a
microfiber cloth. Avoid touching the glass surface with dry
cloth or tissue paper. Do not use organic solvents such as
alcohol or acetone. No special maintenance is needed for the
housing surface. Do not try to dismantle the device as the
internal parts are specially cleaned and sealed and with an
anti-fog treatment. Any such attempt will void the warranty.
Limited Warranty
Maintenance & Care
Included Tool:
1. Flat tipped end is used to adjust the Windage & Elevation.
2. T10 Torx tool for screws.
Fig 8
Zero Setting
1) The sight has been factory zeroed to approximately 25
yards and should require minimal adjustment to achieve
zero.
2) The Elevation adjustment is located on the rear section of
the housing and the Windage adjustment is located on the
right side of the housing.
3) Adjustment can be performed by inserting the flat tipped
end of the included tool into the turret slot and rotating, See
Fig 7.
4) Each adjustment click has a value of approximately 1 MOA
or 1 inch at 100 yards (1/2" at 50y; 1/4" at 25y). When zeroing
at 25 yard, if your impacts are 2 inches low and 1 inch right,
you will need to adjust Elevation 8 clicks
UP(counterclockwise) and 4 clicks LEFT (clockwise)
Phone: (909) 594-2888
Fax: (909) 598-4888
E-mail: warranty@holosun.com
Ver:A0
Windage
Adjustment
Elevation
Adjustment
Brightness
increase
Brightness
decrease
②
①
