Model

RRe

eef

ffl

lle

eex S

x S

x Sx Si

iig

ggh

hht

www.holosun.com

UUs

sse

eer

rr'

''s M

s M

s Ms Ma

aan

nnu

uua

aal

HS407C X2

HS407C X2 Reflex sightFig 1

Fig 4

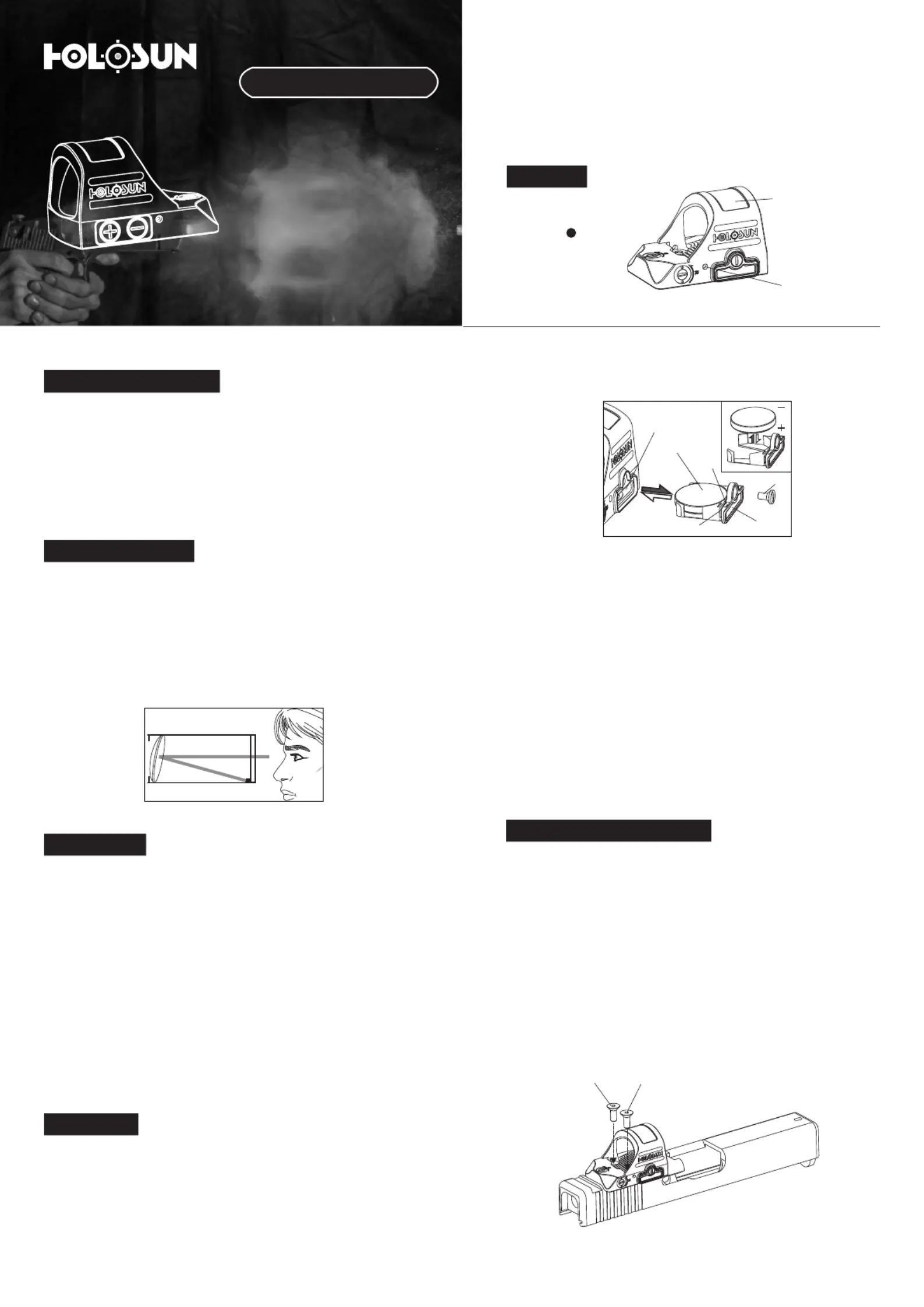

Thank you for purchasing the HOLOSUN HS407C X2 Open

Reflex sight. This open reflex red dot sight is sized for use on

either a pistol or rifle. The stream lined design, Shake

Awake™ technology and our Solar Fail Safe™ dual power

system combine to make it the ideal sight for small arms.

Before operation, please read the User's Manual carefully.

1. Operates with our Solar Fail Safe™ dual power system

(solar cell and internal battery). One high quality CR1632

Lithium battery is included with purchase.

Caution: Do not use a rechargeable battery.

2. A high quality battery can power this device for up to

50000 hours at setting 6.

Important Notices

1. Ensure the firearm is unloaded and safe by removing all

ammunition and magazines from firearm and verifying an

empty chamber before installation and battery replacement.

2. Please keep the packaging should you need to make a

warranty claim.

Features

1) Automatic reticle intensity adjustment in Auto Mode.

2) 2MOA dot.

3) Shake Awake - Motion on with last setting recall.

4) Parallax free, unlimited eye relief.

5) Drain holes on both sides of the optic allow for excess

water to drain in wet conditions.

6) CNC milled 7075 Aluminum Housing.

7) 10 day light and 2 night vision compatible brightness

settings.

8) Window Size 0.63x0.91 inches.

9) IP67 Certified.

Battery

Installation on a Slide

Objective Lens

A canted objective lens is part of the design of

reflex/reflective optical sights. In order to create a proper

reflection of the reticle/dot the objective lens must be

perpendicular to the LED. Because the LED is mounted to the

side of the internal tube the objective lens will be canted in

that direction.

Fig2

Fig 5

3.Battery Replacement(Fig4):

a. Remove the battery :

I. Remove the battery tray screw.

ii. Use the included tool as a lever in the battery tray slots to

remove the battery tray and battery.

b. Battery installation :

I. Insert the battery into the battery tray with the POSITIVE

side facing DOWN.

ii. Insert and press the tray into the battery compartment.

iii. Tighten the battery tray screw.

Caution:

The loss or damage of the seal ring may cause water to leak

into the compartment which could damage the product.

2 MOA

RED Dot

Silicon

Solar Cell

Drain

Hole

Screw

Battery Tray

Seal Ring

Battery

Slot

Battery

Compartment

NOTE: HS407C is compatible with some standard mounting

interfaces currently available. For a footprint drawing,

contact Holosun.

1.Place the HS407C on a compatible slide cut or adapter

plate.

2. Use either the included screws or screws supplied with

your slide or from your gunsmith and tighten to 15 INCH/lbs

using a non-permanent (medium/blue) thread locker. (Fig5)

3. Verify proper clearances and firearm function prior to use.

Screw2

Screw1

Fig 6

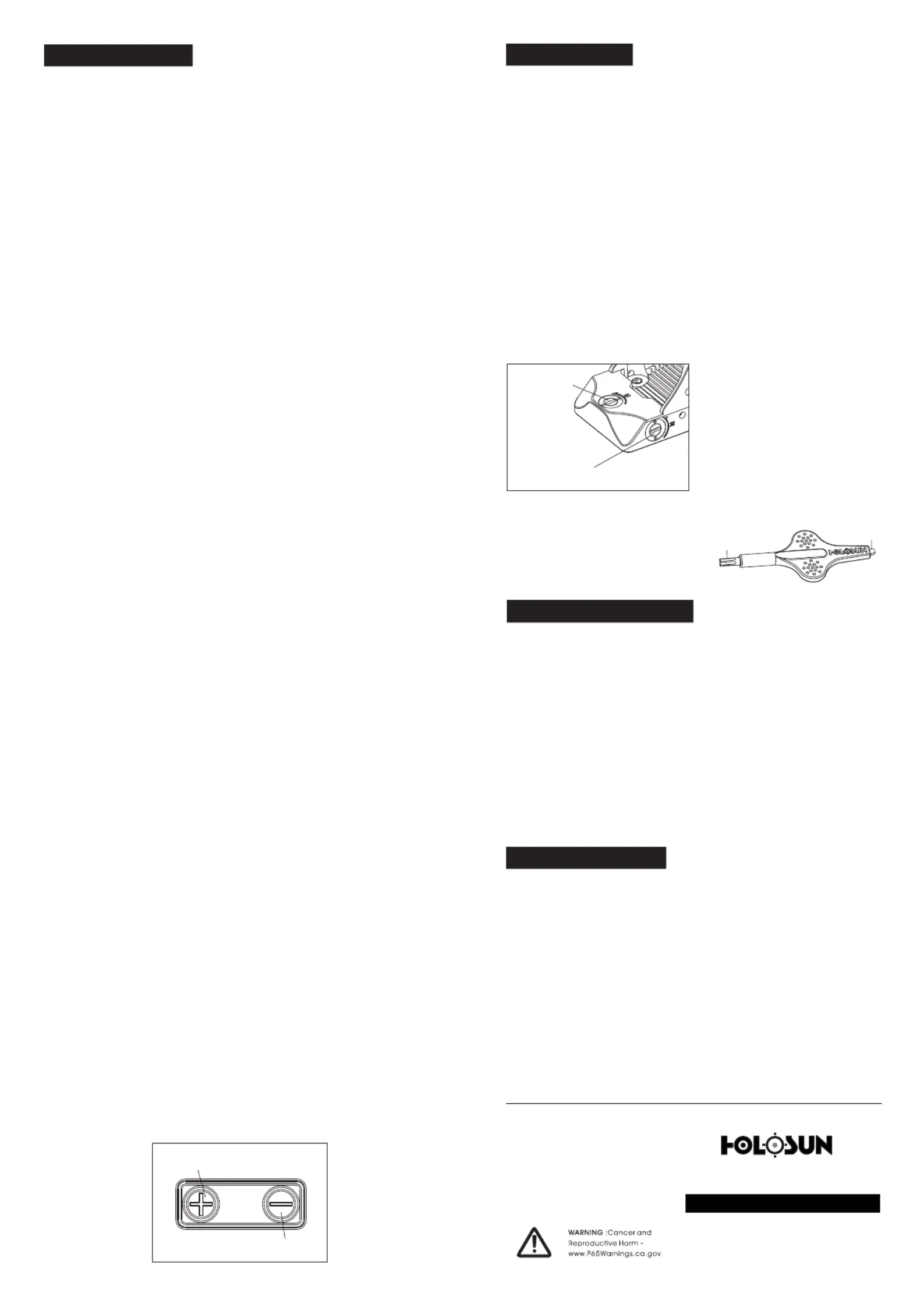

Two operation modes are available: Auto mode and manual

mode.See Fig 6.

1.Power ON: Press and release either brightness button

("+"or"-") to turn on the sight.

2.Power OFF: Press the"+"and"-" buttons simultaneously to

turn the power and motion sensor off.

3.Operation Mode: Three modes are available in the

following order: Auto Mode -> Manual Mode -> Lockout

Mode.

1) Auto mode - operates with a solar cell and internal battery

two-way power supply: Based upon the ambient lighting

level, the sight will switch between battery and solar cell

power automatically. Accommodates operation in all lighting

conditions. Auto mode is the default setting.

a) In auto mode, the brightness of the reticle is automatically

adjusted to match ambient lighting.

b) The battery will compensate for power if the solar cell

cannot drive the reticle alone.

c) If lighting is low enough, the sight will automatically

switch to battery power. While running on battery power,

you can adjust the reticle brightness using the "+"and "-"

buttons to switch between higher and lower brightness

levels.

2) Manual mode:

a) Switch to Manual mode from Auto mode by holding the

“+” button for about 3 seconds, until the reticle blinks once.

b) Brightness adjustment: There are 12 reticle brightness

setting levels in manual mode. Settings 1 and 2 are NV

compatible and setting 12 is the brightest. Press ”+” or ”-” to

increase or decrease the brightness.

3) Lockout Mode:

Switch to Lockout mode from Manual mode by holding the

“+” button for about 3 seconds, until the LED blinks once. In

lockout mode, momentary presses of the “+” or "-" button

will not change settings. To exit the lockout mode, press and

hold the + button again for 3 seconds, the LED will blink once

then switch to Auto Mode.

4. Sleep time setting:

1) Please note that your red dot will automatically enter into

sleep mode after 10 minutes of no movement.

2) The sight will instantaneously wake up and turn on with

any motion detected to last saved settings.

3) The default sleep timer setting is 10 min, but there 4

settings to select from.

i. Press and hold the “+” button for 10 seconds to enter sleep

time adjustment mode. There are 4 options: 10 min, 1h, 12h

or the sleep mode is disabled.

ii. Press and release the “+” or “-” button to select a sleep

timer setting. The LED will blink to show which setting is

selected: 1=10 min, 2=1h, 3=12h, or 4=sleep mode disabled.

iii. Press the “+” and “-” buttons simultaneously to save the

sleep timer setting (this will power off the sight).

5. Special operation:

Solar cell power: If the battery voltage is below 2.2Vdc,

please replace it. The sight will still operate if there is

sufficient ambient light for the solar cell.

6. Note:

1) Memory function: The sight will remember the last saved

brightness setting when powered on and off.

2) Low battery Warning: If the battery voltage is below

2.2Vdc, the reticle will blink slowly.

Caution: If you feel the knobs

can no longer be rotated, you

may have reached the

mechanical limit of the

adjustment turret. Do not try

to rotate the knobs further if

you feel a bind or you may

cause damage.

Fig 7

Sight Operation

Zero Setting

1) This sight has been factory adjusted to an approximate 25

yard zero and should require minimal adjustment to achieve

zero.

2) The Elevation adjustment is located on top of the tail

section of the housing and the Windage adjustment is

located on the right side of the housing. Adjustment can be

performed by inserting the flat-tipped end of the included

tool into the turret slot and rotating, See Fig 7.

3) Windage and Elevation adjustments are approximately 1

MOA per click.

4) Each adjustment click has a value of approximately 1 MOA

or 1 inch at 100 yards (1/2" at 50y; 1/4" at 25y). When

zeroing at 25 yard, if your impacts are 2 inches low and 1 inch

right, you will need to adjust Elevation 8 clicks UP

(counterclockwise) and 4 clicks LEFT (clockwise)

5) The maximum adjustment range is 50MOA from center. ±

HS407C X2

Reflex Sight

Holosun Technologies Inc.

www.holosun.com

CCu

uus

sst

tto

oom

mme

eer S

r S

r Sr Se

eer

rrv

vvi

iic

cce

We provide a limited lifetime warranty from the date of

purchase on parts and workmanship to the original

purchaser. At our sole discretion, we will repair or replace

products found to be defective under normal use without

charge, excluding any delivery costs, which will be born by

purchaser. We will not be liable for incidental, consequential,

or special damages arising out of or in any connection with

the use or performance of this product. This warranty is void

if the product has been misused, modified, neglected, or

disassembled prior to its return. Please refer to

www.holosun.com for current and complete warranty

information and other conditions.

This device is a precision instrument that deserves

reasonably cautious care. The following tips are provided to

ensure a long product life. The optical lenses are multicoated

optical glass. When cleaning the lenses, blow away any dust

on the surface, wet the lens with lens cleaner or clean water,

then wipe away smudges with lens tissue, soft cotton or a

microfiber cloth. Avoid touching the glass surface with dry

cloth or tissue paper. Do not use organic solvents such as

alcohol or acetone. No special maintenance is needed for the

housing surface. Do not try to dismantle the device as the

internal parts are specially cleaned and sealed and with an

anti-fog treatment. Any such attempt will void the warranty.

Limited Warranty

Maintenance & Care

Phone: (909) 594-2888

Fax: (909) 598-4888

E-mail: warranty@holosun.com

Tools: wrench

1. Flat tab is used to adjust the

Windage & Elevation.

2. T10 Torx wrench for screws.

Fig 8

V1.0

Brightness

Increase

Brightness

Decrease

②

①

Windage

Adjustment Screw

Elevation

Adjustment

Screw
